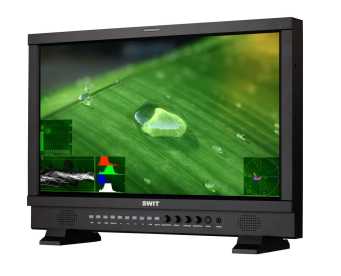

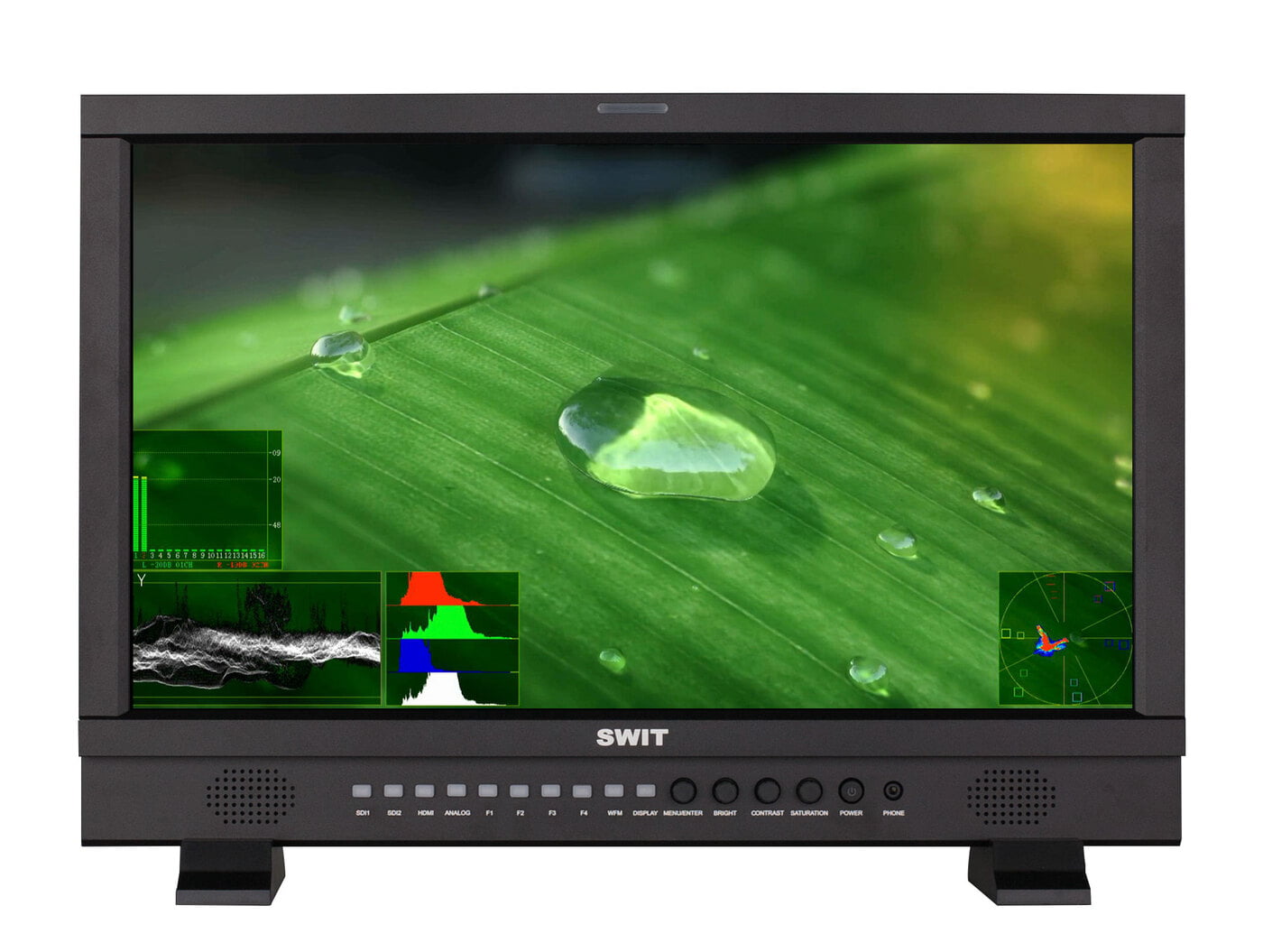

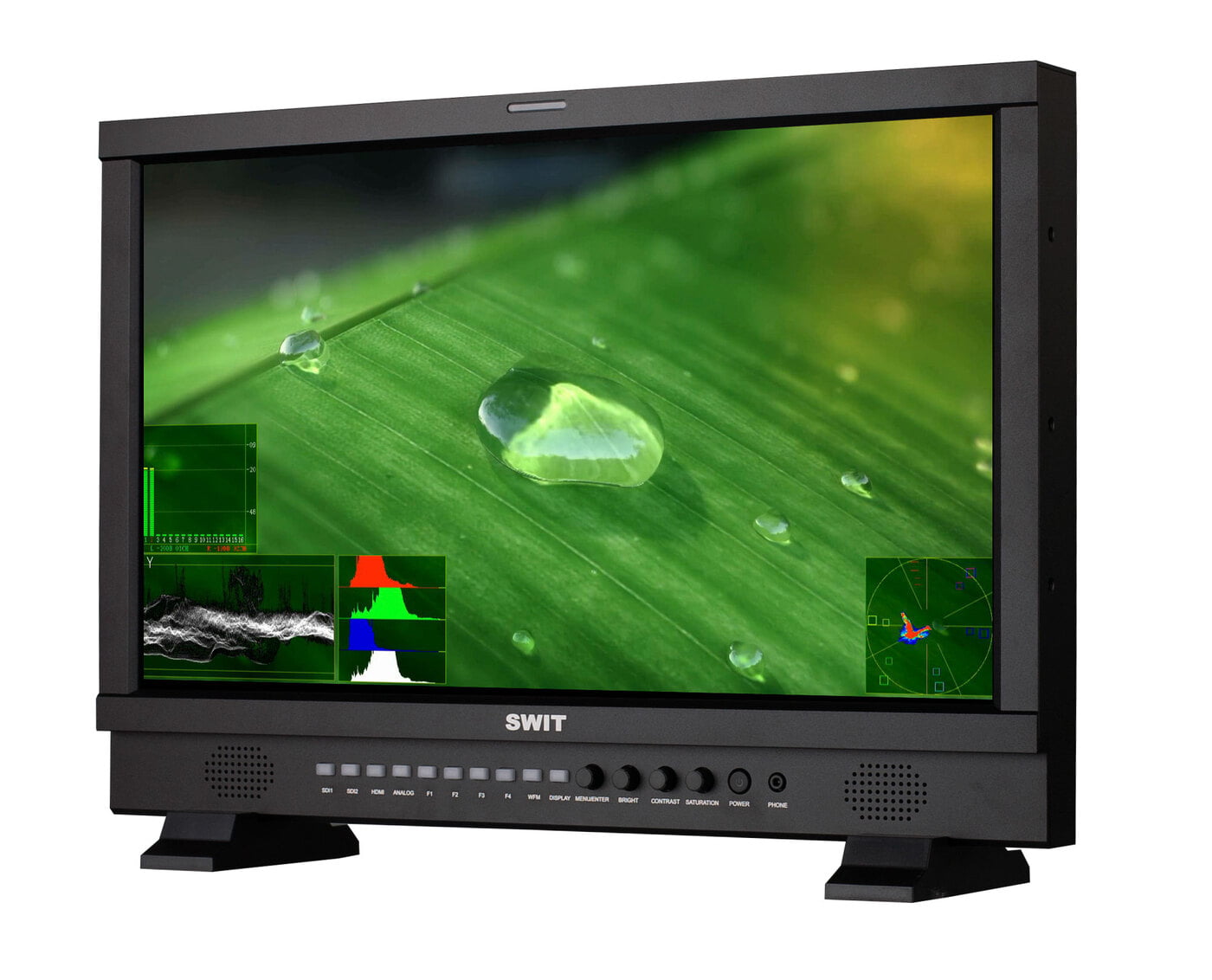

SWIT S-1223F, 21.5-inch Full HD Waveform Studio LCD Monitor, False Color, Tally, Color Calibartion

Mobile Preview: SWIT S-1223F, 21.5-inch Full HD Waveform Studio LCD Monitor, False Color, Tally, Color Calibartion

-6%

Beschreibung

SWIT S-1223F

21.5-inch FHD LCD Panel, 1920×1080 resolution
2K/3G/HD/SD-SDI( x2 ), HDMI® monitoring
Y/Pb/Pr, VGA, CVBS monitoring
3DLUT 17x17x17 color calibration
Built-in Multiple De-log 3DLuts
User LUTs upload by USB
16-ch Embedded audio meters with alert
Select any 2 audio channels to output
Waveform Y/Cb/Cr/R/G/B and single line
Vector scope, histogram R/G/B/Y
Peaking focus assist (red/blue switch)
AFD, Timecode, H/V delay
TSL UMD and text TALLY display
Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar
V-mount / Gold mount battery plate optional
USB firmware upgrade

Technische Daten

LCD Performance

Size	21.5inches
Display area	476×268mm
Resolution	1920×1080
Aspect ratio	16:9 (4:3 )
Brightness	250cd/m2
Contrast	1000:1
Color depth	16.77 million colors
Viewing angle	178°(H) / 178°(V)

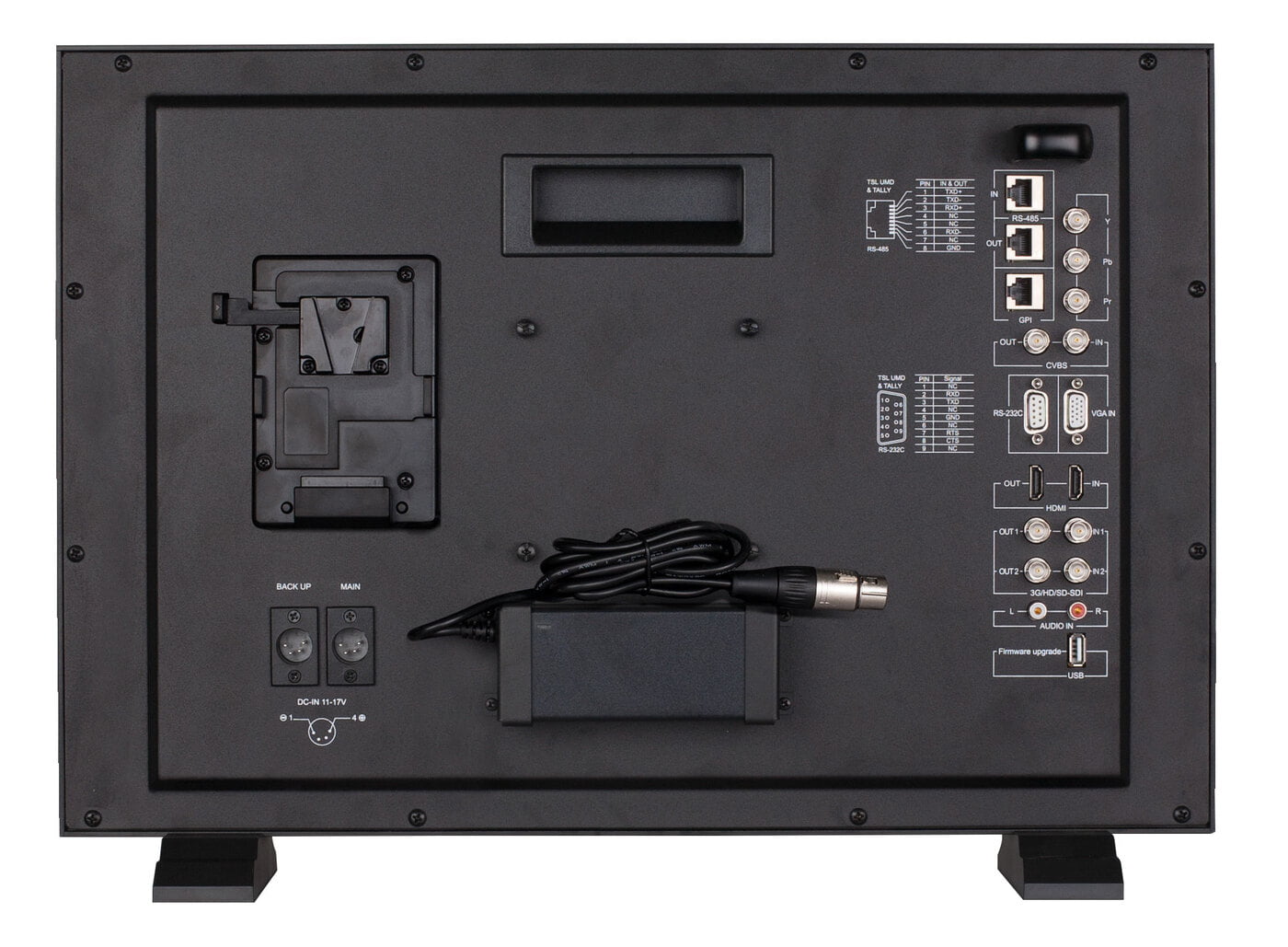

Input

BNC ×2	2k/3G/HD/SD-SDI input×2
BNC ×1	CVBS input
BNC ×3	Y/Pb/Pr input
HDMI® ×1	HDMI® input
RS485 ×2	GPI×1, UMD×1
RS232C ×1	UMD
VGA ×1	VGA input
RCA ×2	L/R audio input
USB ×1	USB input (firmware upgrade)

Output

BNC ×2	2K/3G/HD/SD-SDI Loop output
BNC ×1	CVBS Loop output
HDMI® ×1	HDMI® Loop output
RS485 ×1	UMD×1
3.5mm ×1	SDI/HDMI® embedded audio output, analog audio output

Video Format

CVBS	NTSC / PAL
SDI	2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	1080p (60 / 59.94 / 50)
	1080i (60 / 59.94 / 50)
	1080p (30 / 29.97 / 25 / 24 / 23.98)
	1080psf (30 / 29.97 / 25 / 24 / 23.98)
	720p (60 / 59.94 / 50)
	480i (59.94)
	576i (50)
HDMI®	480i/ 576i / 480p / 576p
	1080i (60 / 59.94 / 50)
	720p (60 / 59.94 / 50)
	1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
Y/Pb/Pr	480i/ 576i / 480p / 576p, 720p (50/60), 1080i (50/60), 1080p (50/60)
VGA	640×480 / 800×600 / 1024×768 / 1152×864 / 1280×768
VGA	1280×960 / 1280×1024 / 1600×1200

General

Input voltage	AC: 100V-240V DC: 11V-17V
Power consumption	≤32W
Working temperature	0°C～+40°C
Working humidity	10%～90%
Storage temperature	-15°C～+60°C
Storage humidity	10%～90%
Dimensions	525×358×87mm
Net weight (main body)	Net 6.2kg; With package 9.3kg
