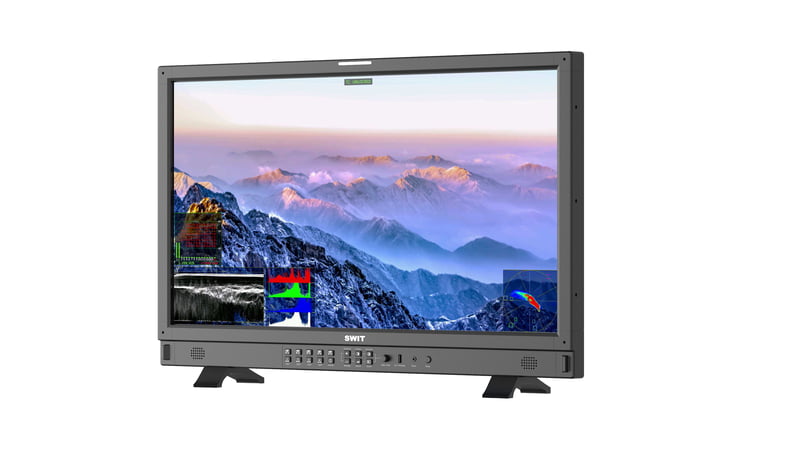

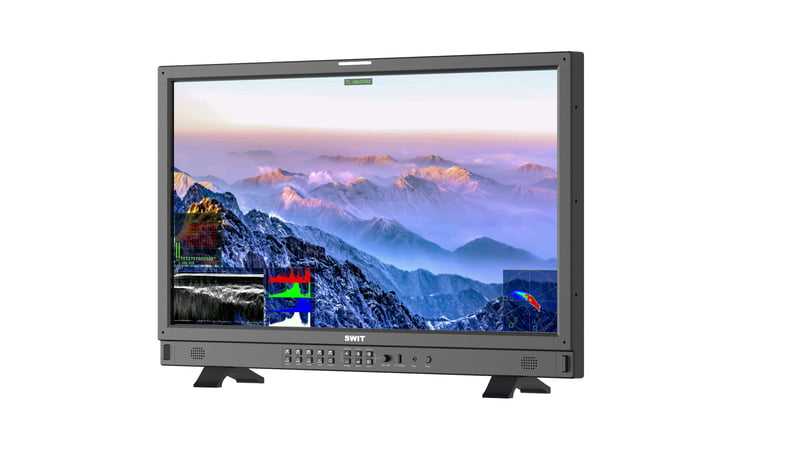

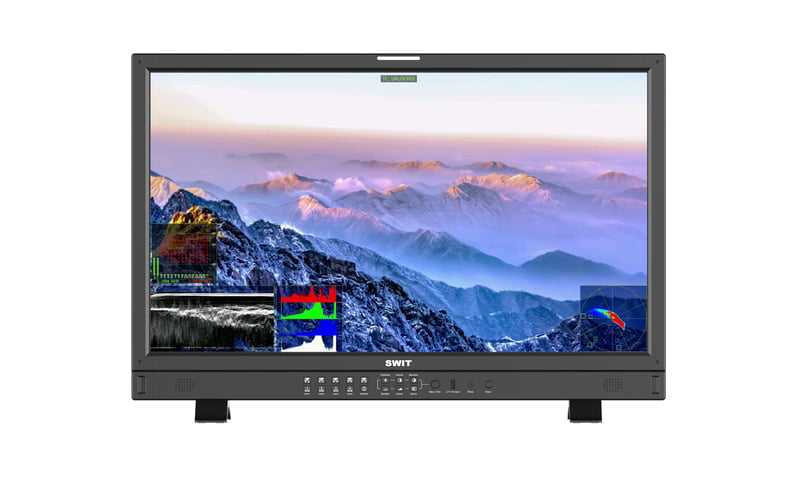

Name: Swit BM-U325, 31.5" 8K 4x12GSDI HDR Zero-Delay UHD Monitor with AI-Calibration
SKU: Swit BM-U325
Price: 3599.00 EUR
Availability: InStock

Startseite » STUDIOTECHNIK » Monitor über 10" » 4K » Swit BM-U325, 31.5" 8K 4x12GSDI HDR Zero-Delay UHD Monitor with AI-Calibration

Preview: Swit BM-U325, 31.5" 8K 4x12GSDI HDR Zero-Delay UHD Monitor with AI-Calibration

Swit BM-U325, 31.5" 8K 4x12GSDI HDR Zero-Delay UHD Monitor with AI-Calibration

Mobile Preview: Swit BM-U325, 31.5" 8K 4x12GSDI HDR Zero-Delay UHD Monitor with AI-Calibration

NEU

TOP

-23%

Beschreibung

Swit BM-U325

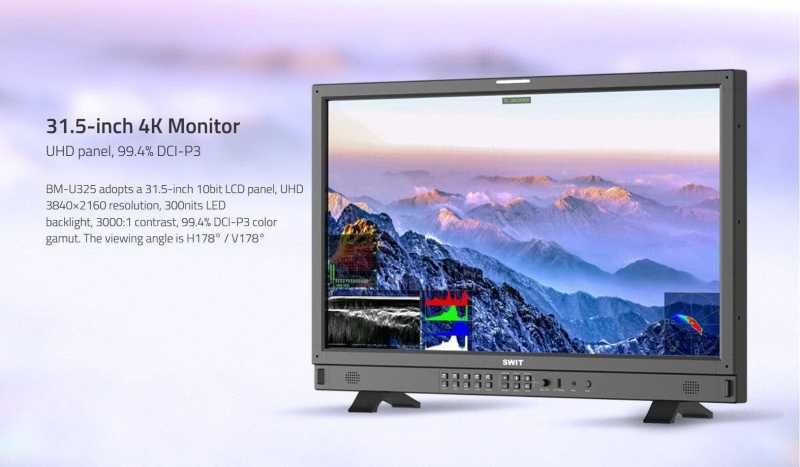

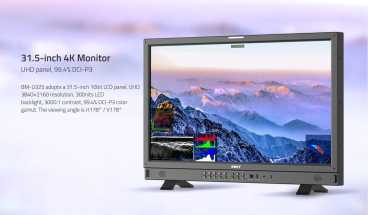

› 31.5-inch LCD Panel, 3840×2160 resolution

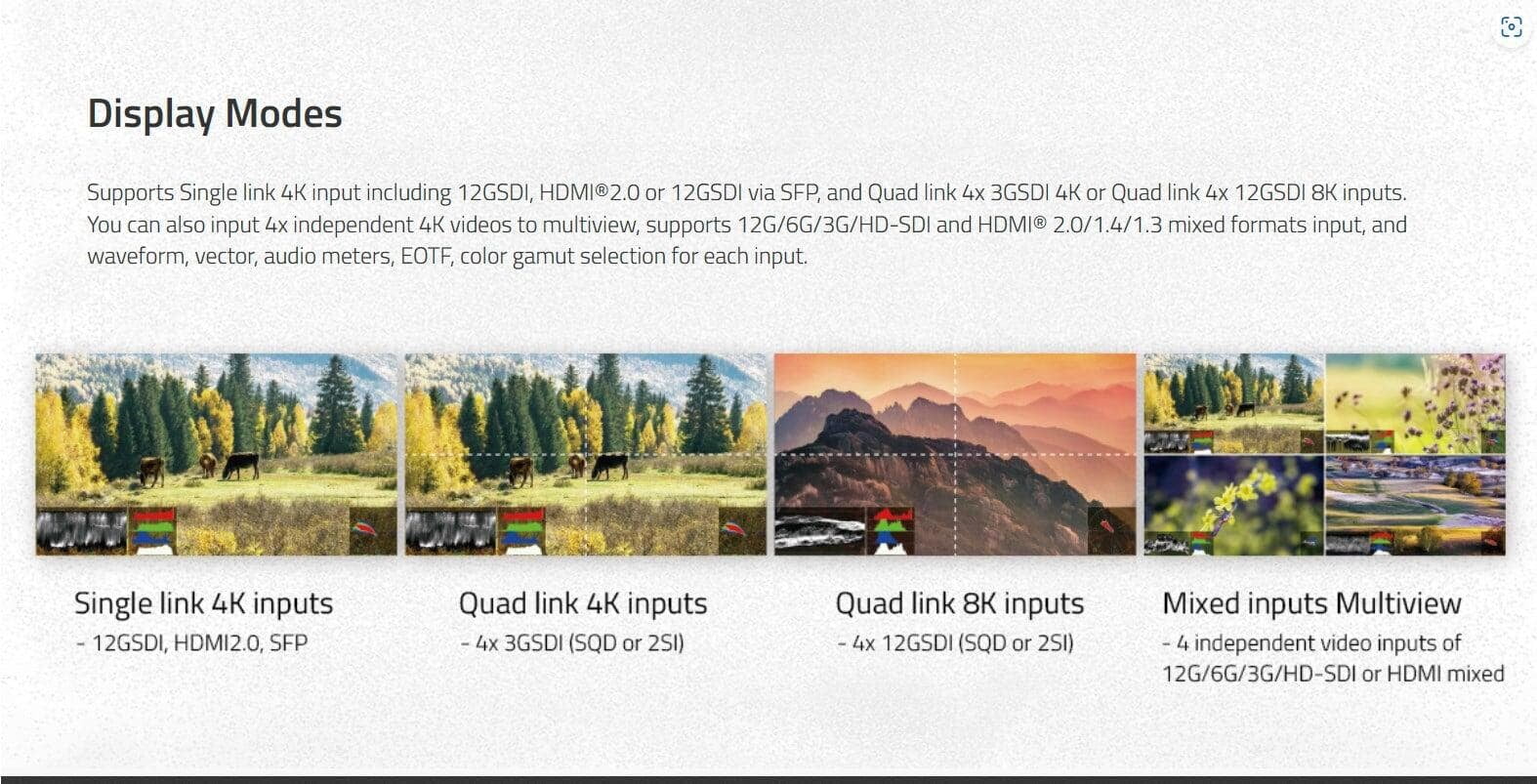

› 12GSDI 4-in 4-out, 8K input ready, HDMI®2.0 input
› 12GSDI via SFP Fiber input (Optional)
› ST2110 IP via SFP Fiber input (Optional)

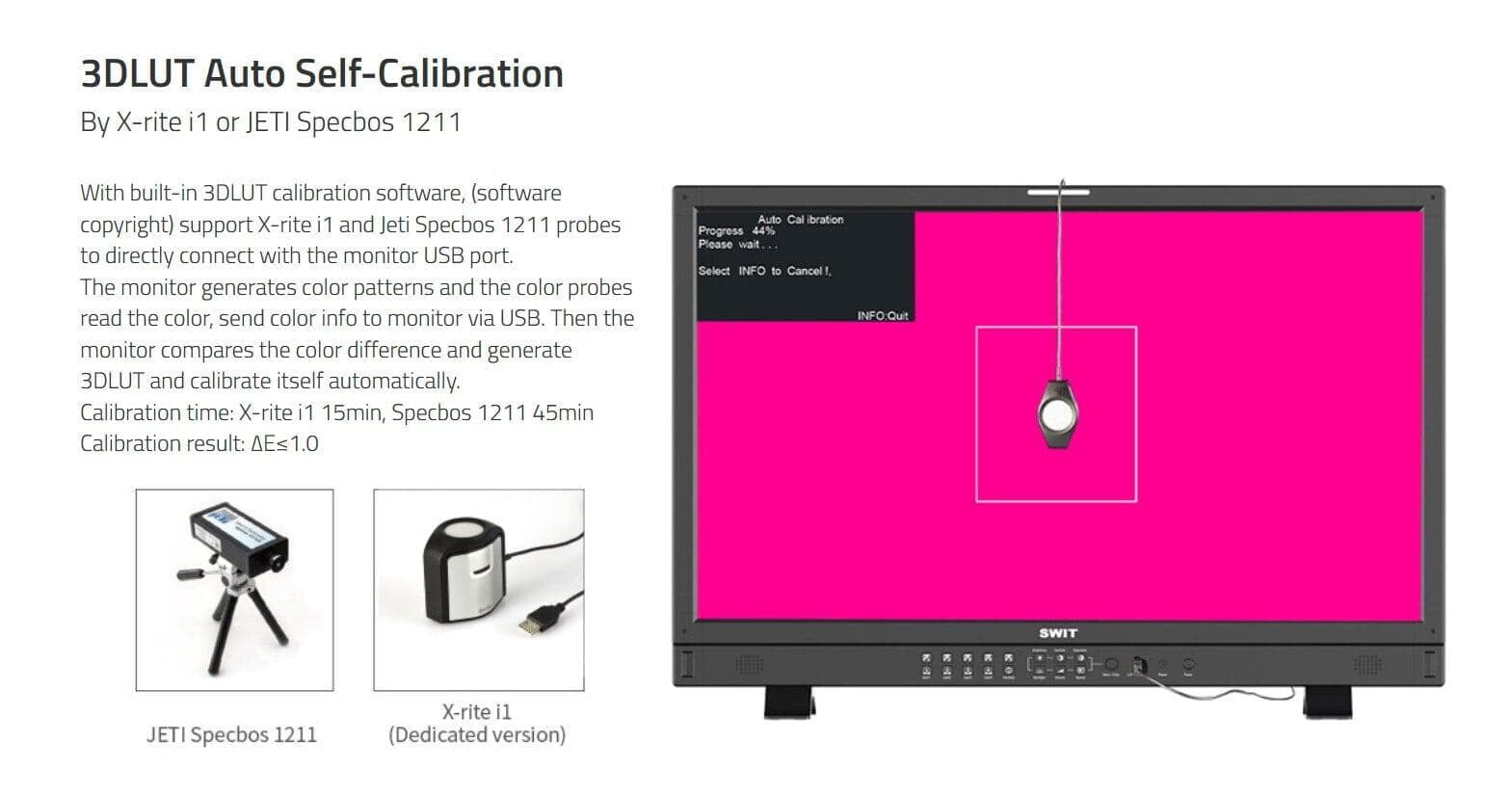

› 3DLUT Auto Self-calibration without PC
› Audio/Video 0 latency for lip-sync

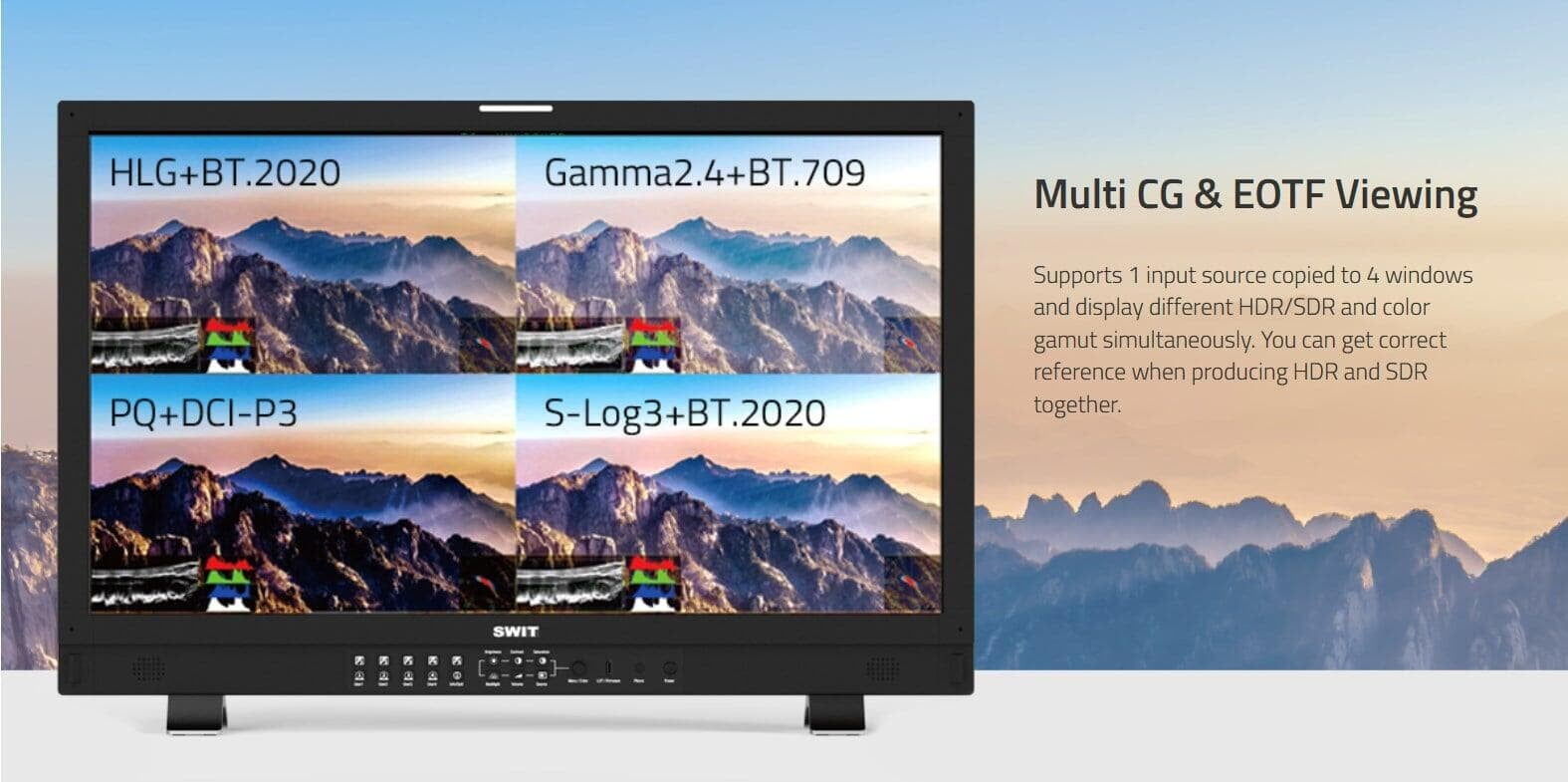

› HLG/PQ/S-log3 HDR EOTF
› Payload ID auto setting
› Built-in Multi camera Delog LUTs
› User 3DLUTs upload via USB
› Waveform / Vector / Histogram
› Focus assist / False color / Zebra
› 16-ch audio meters / Lissajous
› IP webserver remote control
› TSL UMD and text TALLY display
› USB firmware upgrade

Technische Daten

Display

Size	31.5 inches
Display area	698.4×392.85mm
Resolution	3840×2160
Aspect ratio	16:9
Brightness	300nits
Contrast	3000:1
Color depth	1.073G colors, 10-bit
Signal process	18-bit
Viewing angle	178°(H) /178°(V)

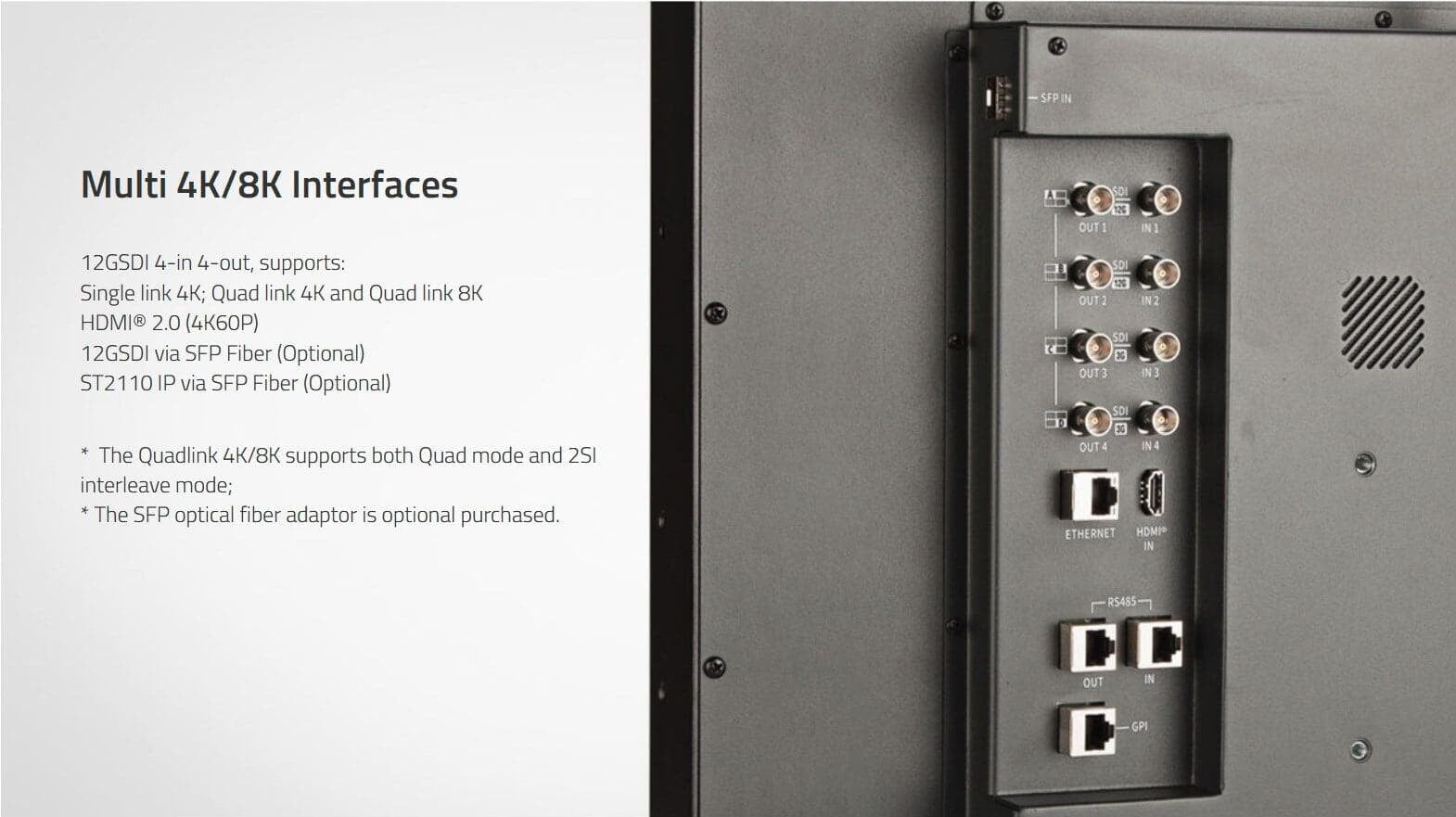

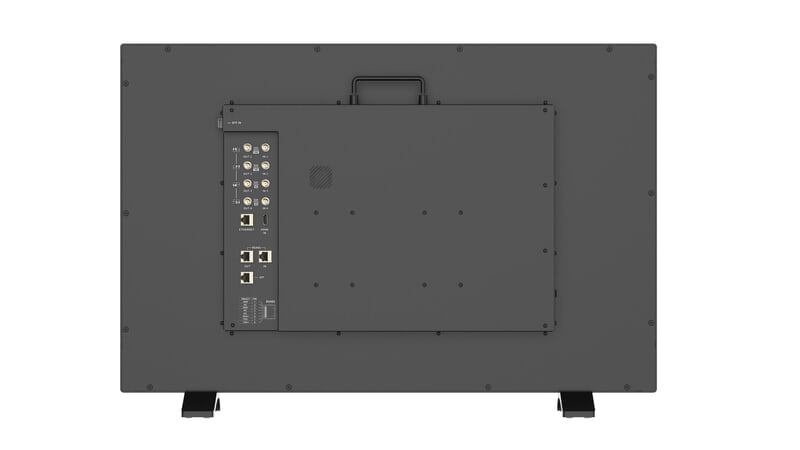

Input

BNC ×4	12G/6G/3G/HD/SD-SDI input
HDMI® ×1	HDMI® 2.0 input
SFP ×1	Optical Fiber input (By optional SFP adaptor)
RS485 ×1	TSL 3.1/4.0 UMD input
RS485 ×1	GPI (Tally) input
RJ45 ×1	1000M Ethernet input for Webserver IP control

Output

BNC ×4	12G/6G/3G/HD/SD-SDI loop output
RS485 ×1	TSL 3.1/4.0 UMD output
Analog audio	3.5mm headphone and speaker

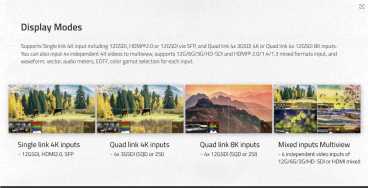

Video Format

SDI 1/2/3/4	4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	2048×1080i (50 / 59.94 / 60)
	1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	1080i (60 / 59.94 / 50)
	1080psf (30 / 29.97 / 25 / 24 / 23.98)
	720p (60 / 59.94 / 50)
	480i (59.94), 576I (50)
Quad Link 4K (Each channel)	2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
Quad Link 4K (Each channel)	1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
Quad Link 8K (Each channel)	4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
Quad Link 8K (Each channel)	3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
HDMI®	4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	1080i (60 / 59.94 / 50)
	720p (60 / 59.94 / 50)

General

Input voltage	DC 12V-17V, AC 100-240V, 50/60Hz
Power consumption	80W
Working temperature	0°C～+50°C
Working humidity	10%～90%
Storage temperature	-15°C～+60°C
Storage humidity	10%～90%
Dimensions	753.5×489.9×88.8mm
Net weight (main body)	Net 12kg; With package 22.2kg
