Swit BM-U325MD
31.5-inch 4K/UHD 3840×2160 resolution

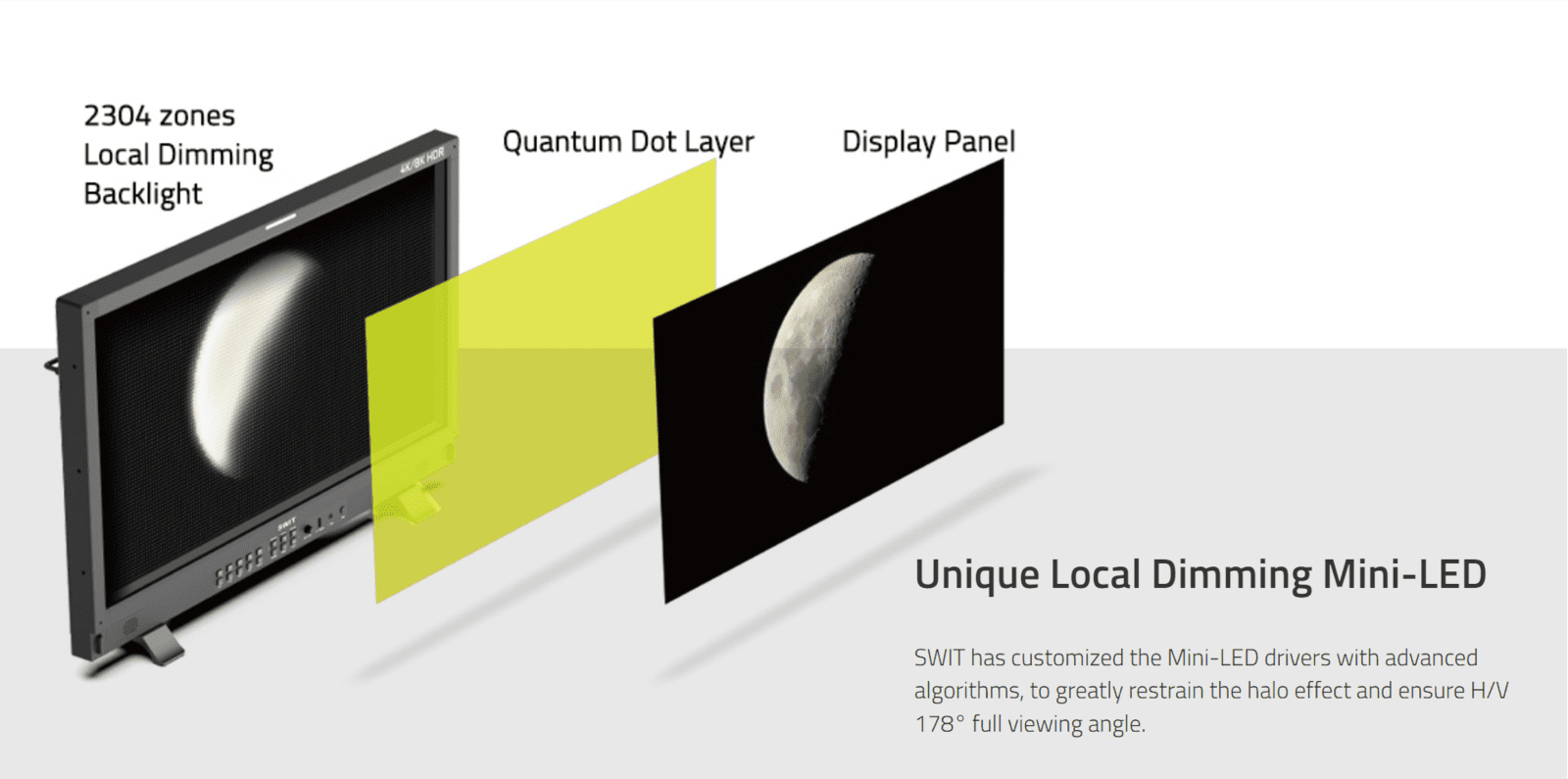

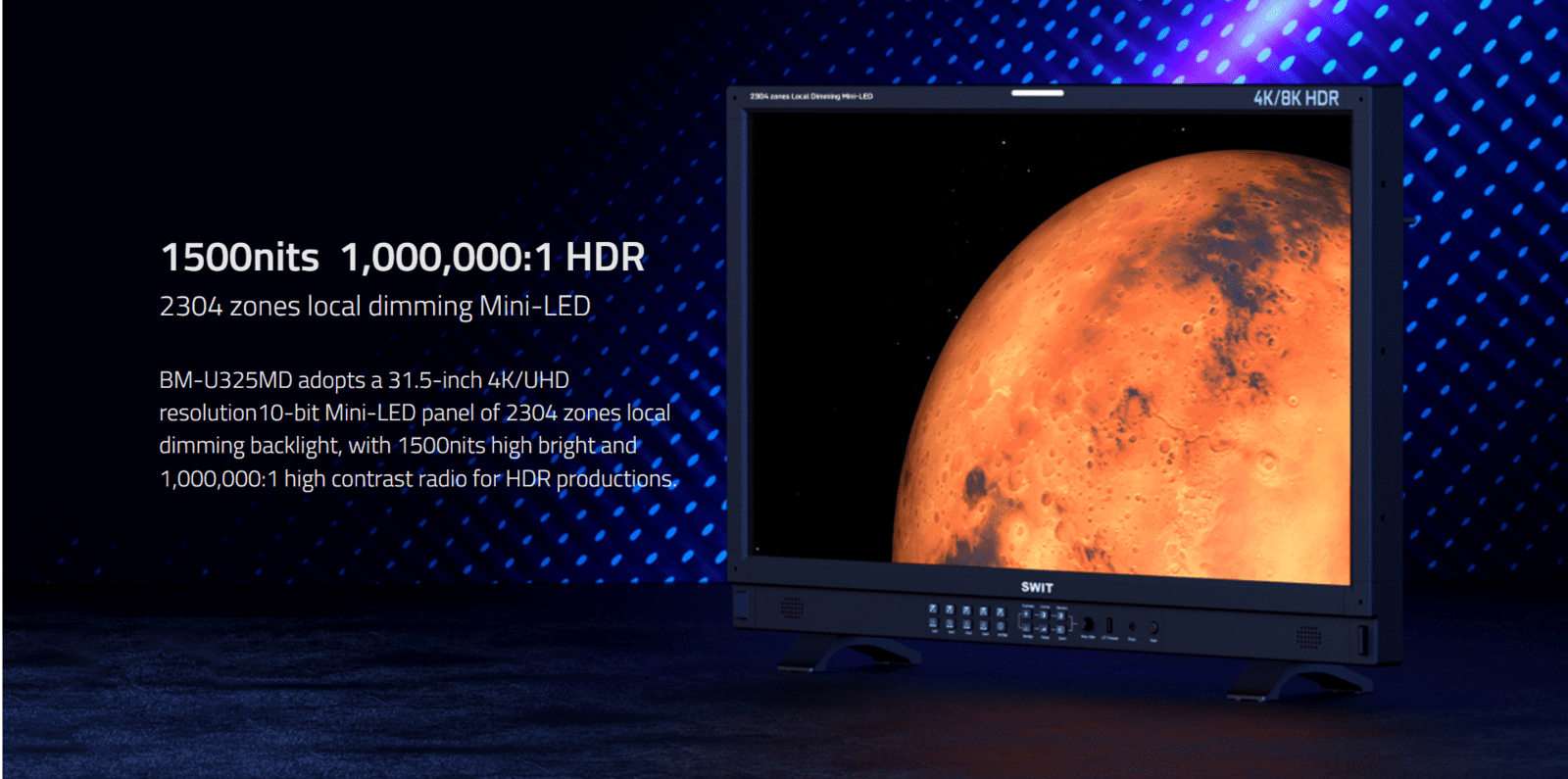

2304 zones local dimming MINI-LED
1500nits, 1,000,000:1 contrast HDR
100% DCI-P3 wide color gamut coverage

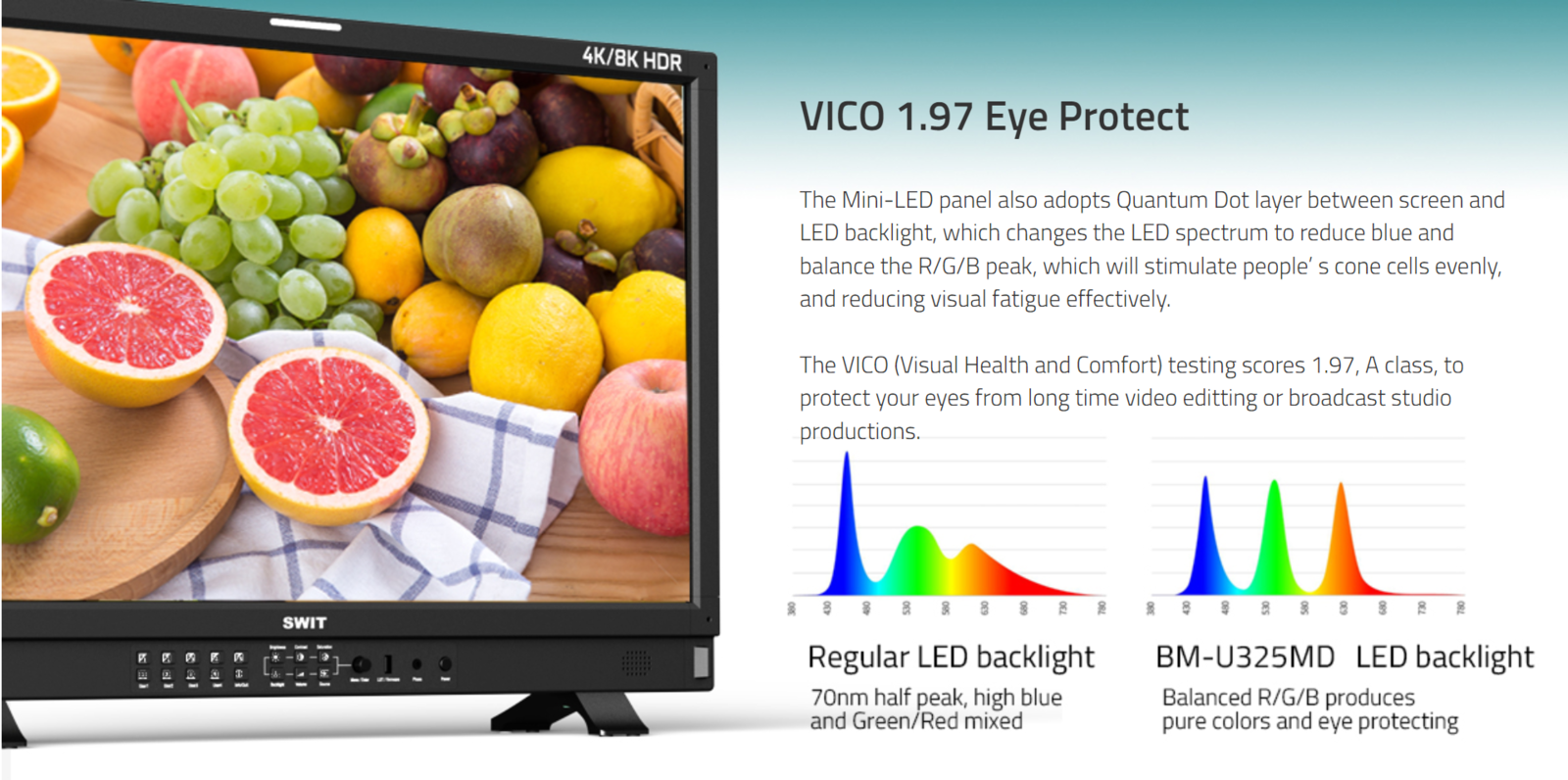

VICO 1.97 A-class Eye Protecting LCD

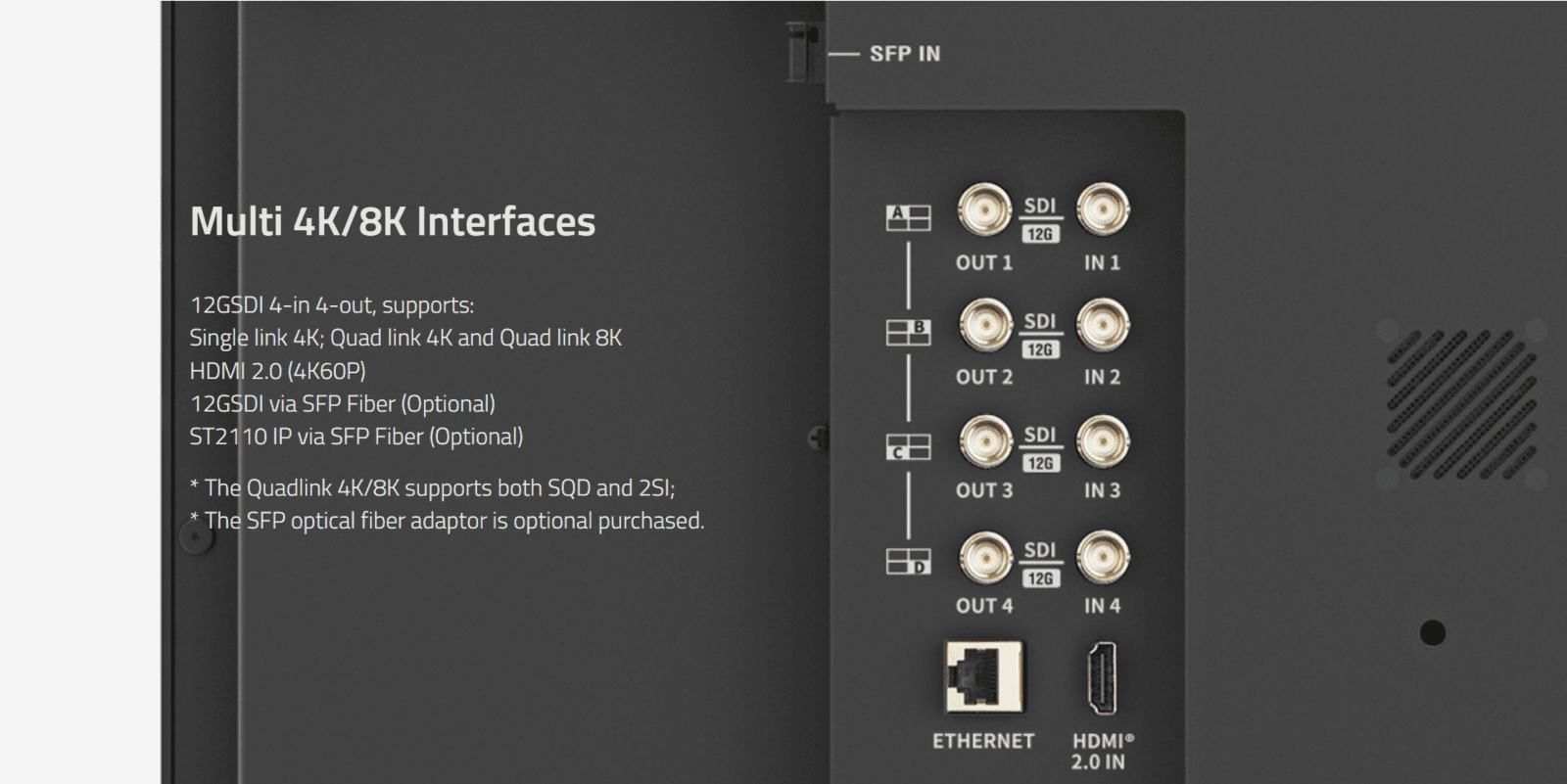

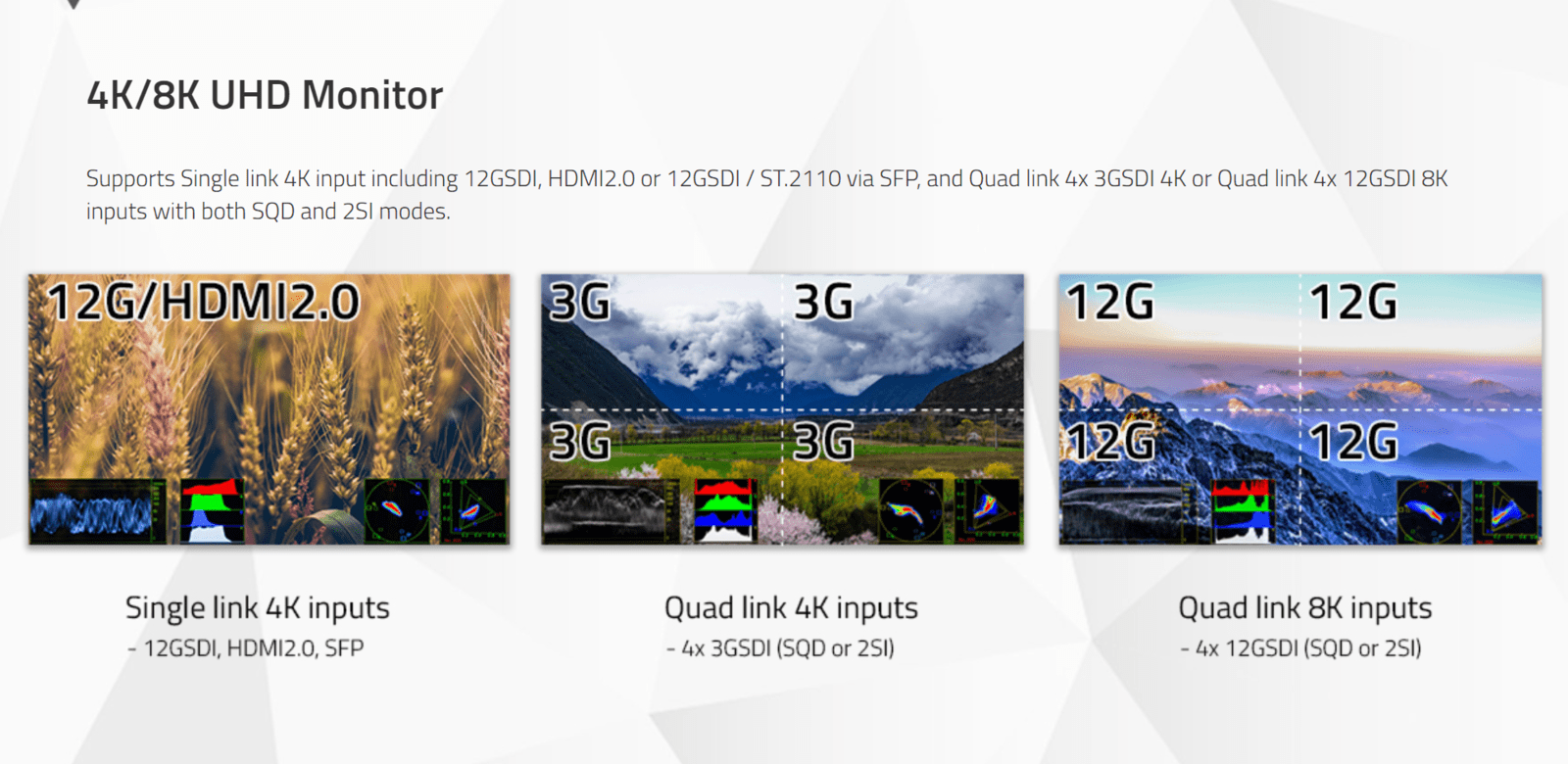

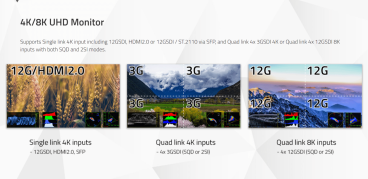

12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
12GSDI via SFP Fiber input (Optional)
ST2110 IP via SFP Fiber input (Optional)
SFP Fiber 12G input converted to 12GSDI out

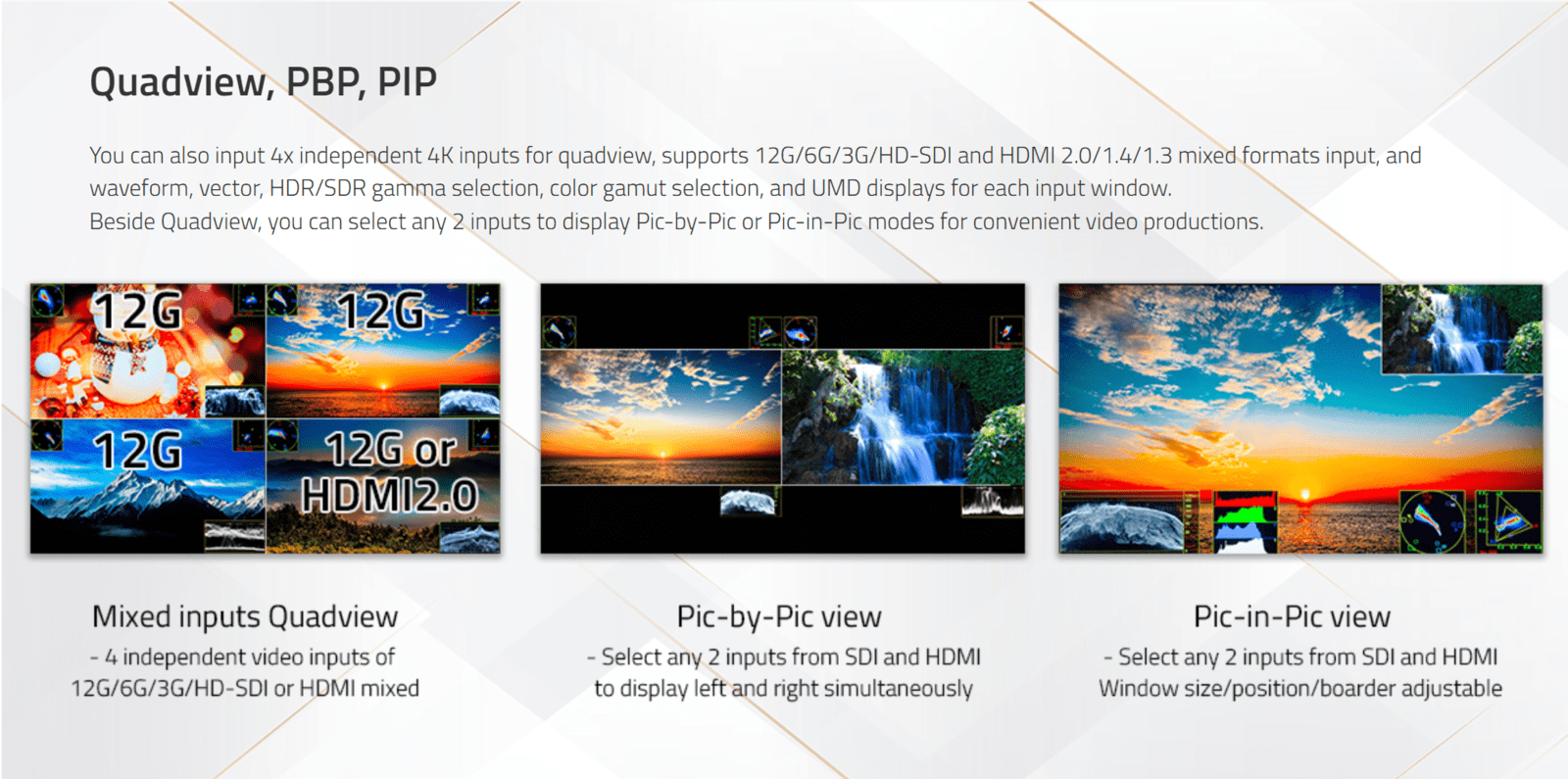

4 inputs Quadview, any 2 inputs PBP/PIP view

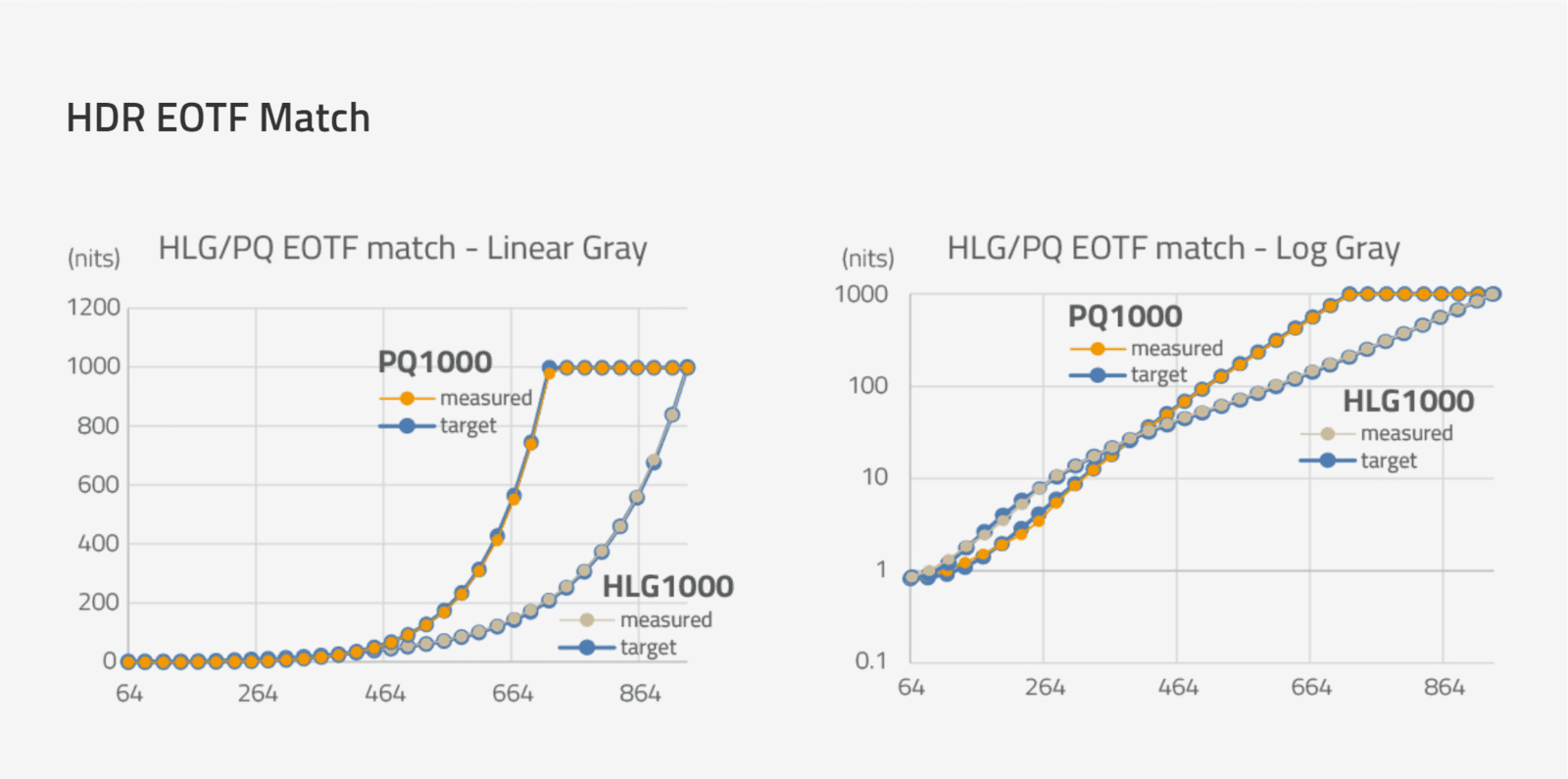

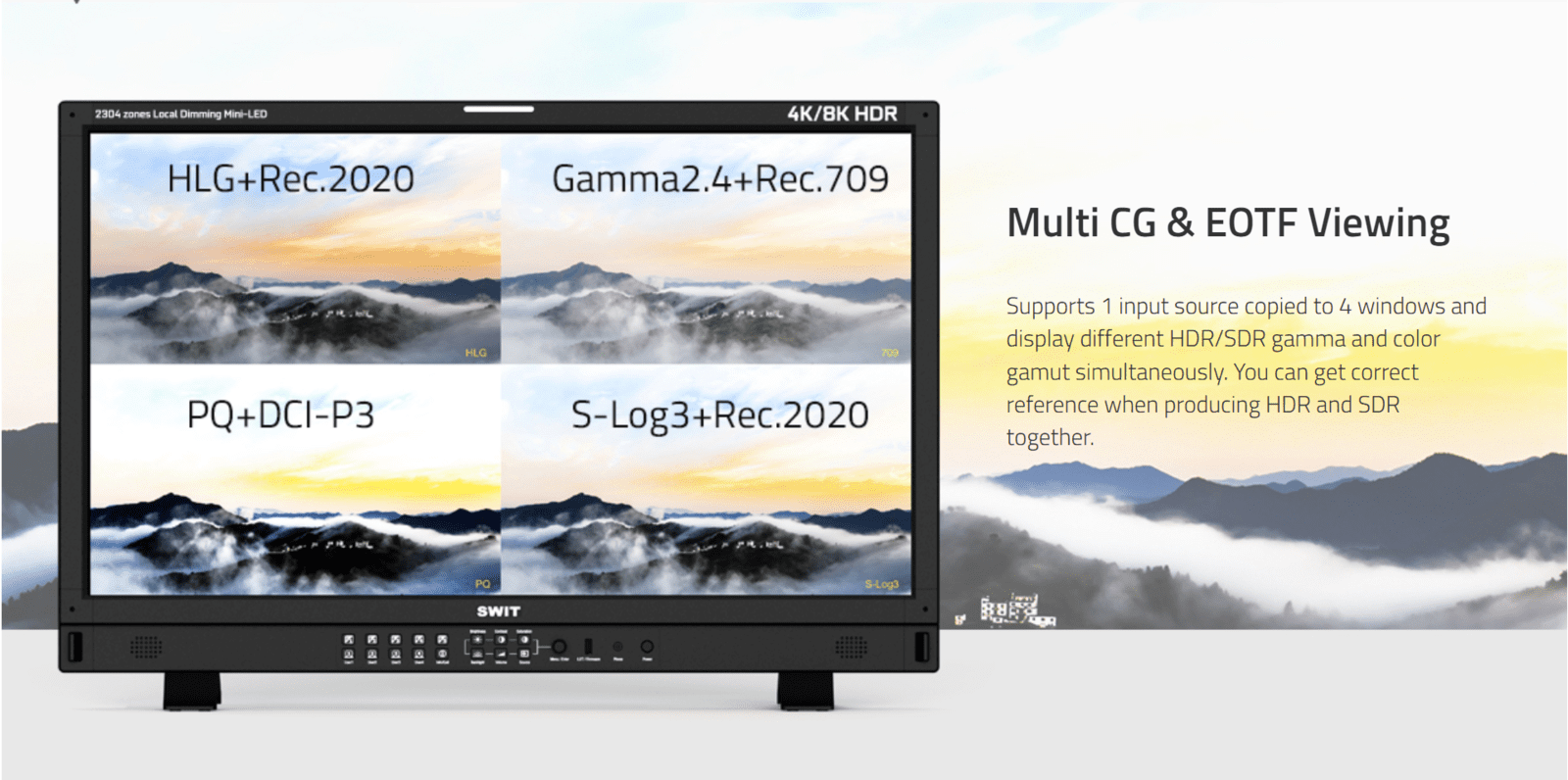

HLG/PQ/S-log3 HDR, Payload ID auto setting

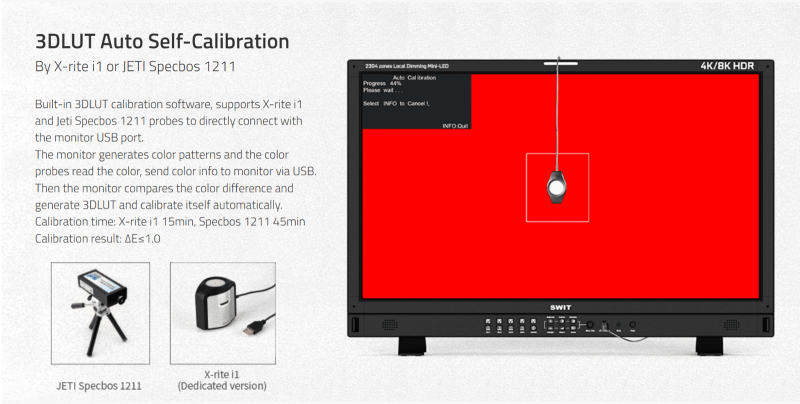

3DLUT Auto Self-calibration without PC

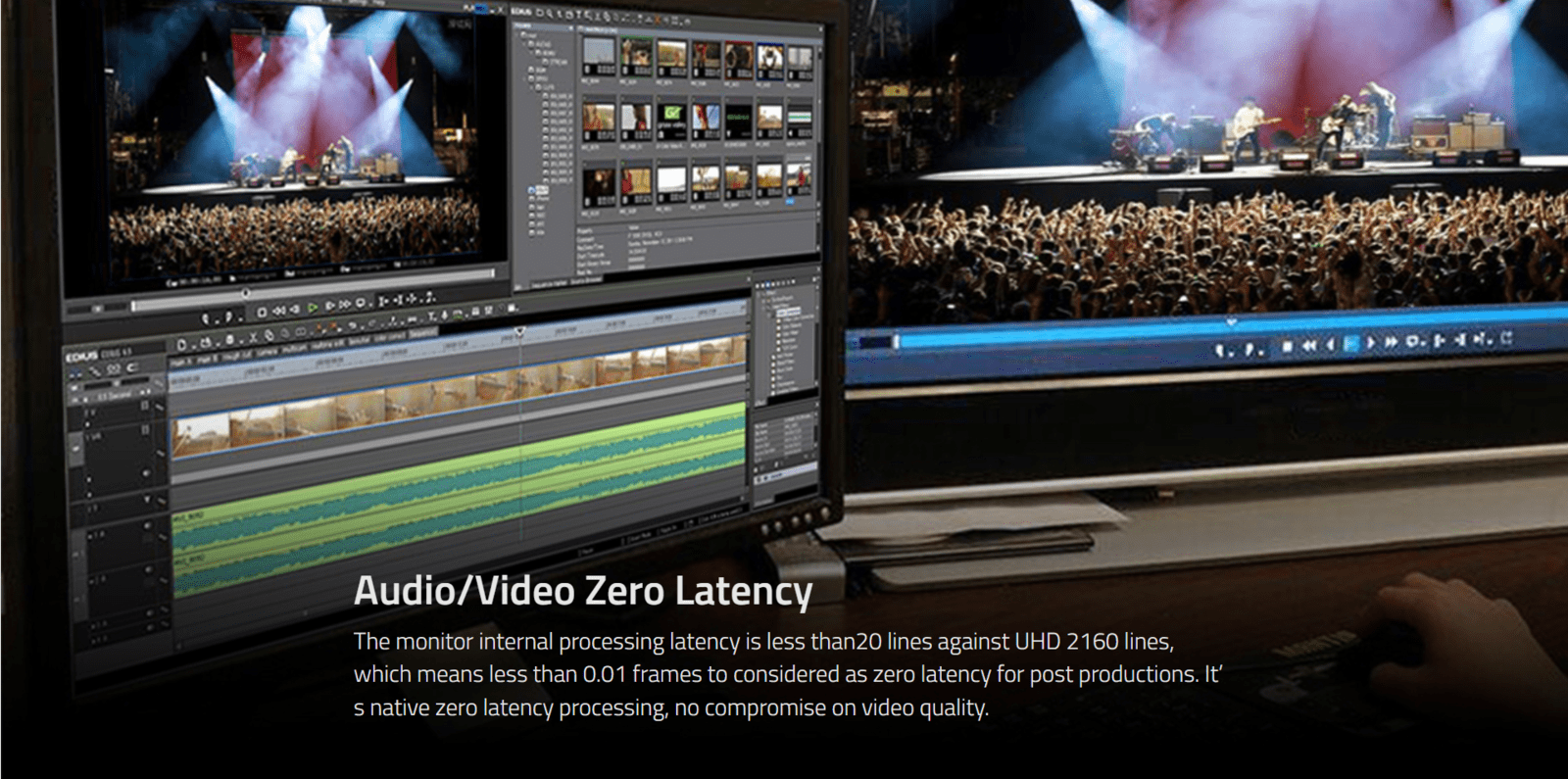

Audio/Video 0 latency for post production

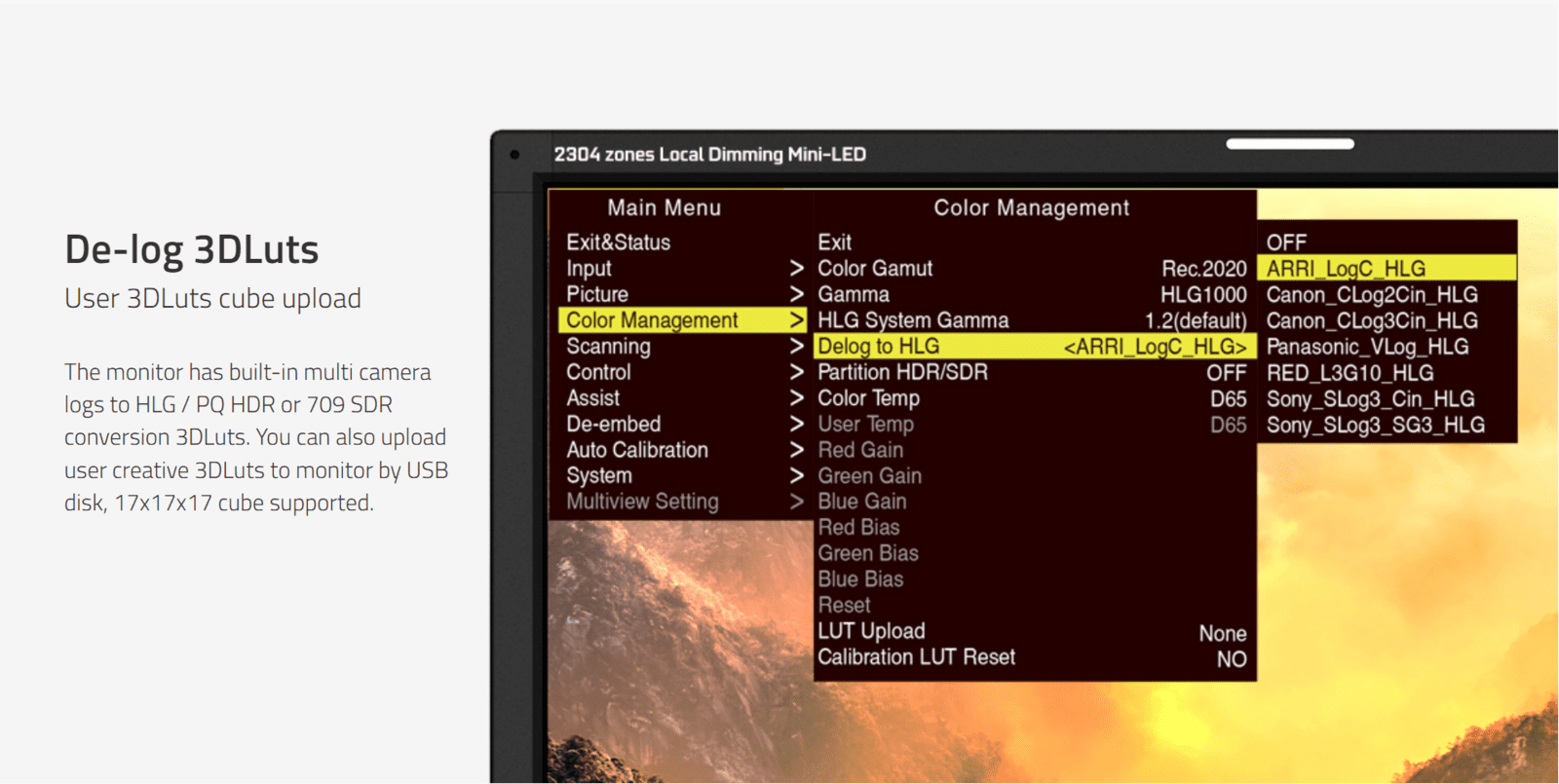

Built-in Multi camera Delog Luts to 709/HLG/PQ
User 3DLUTs upload via USB

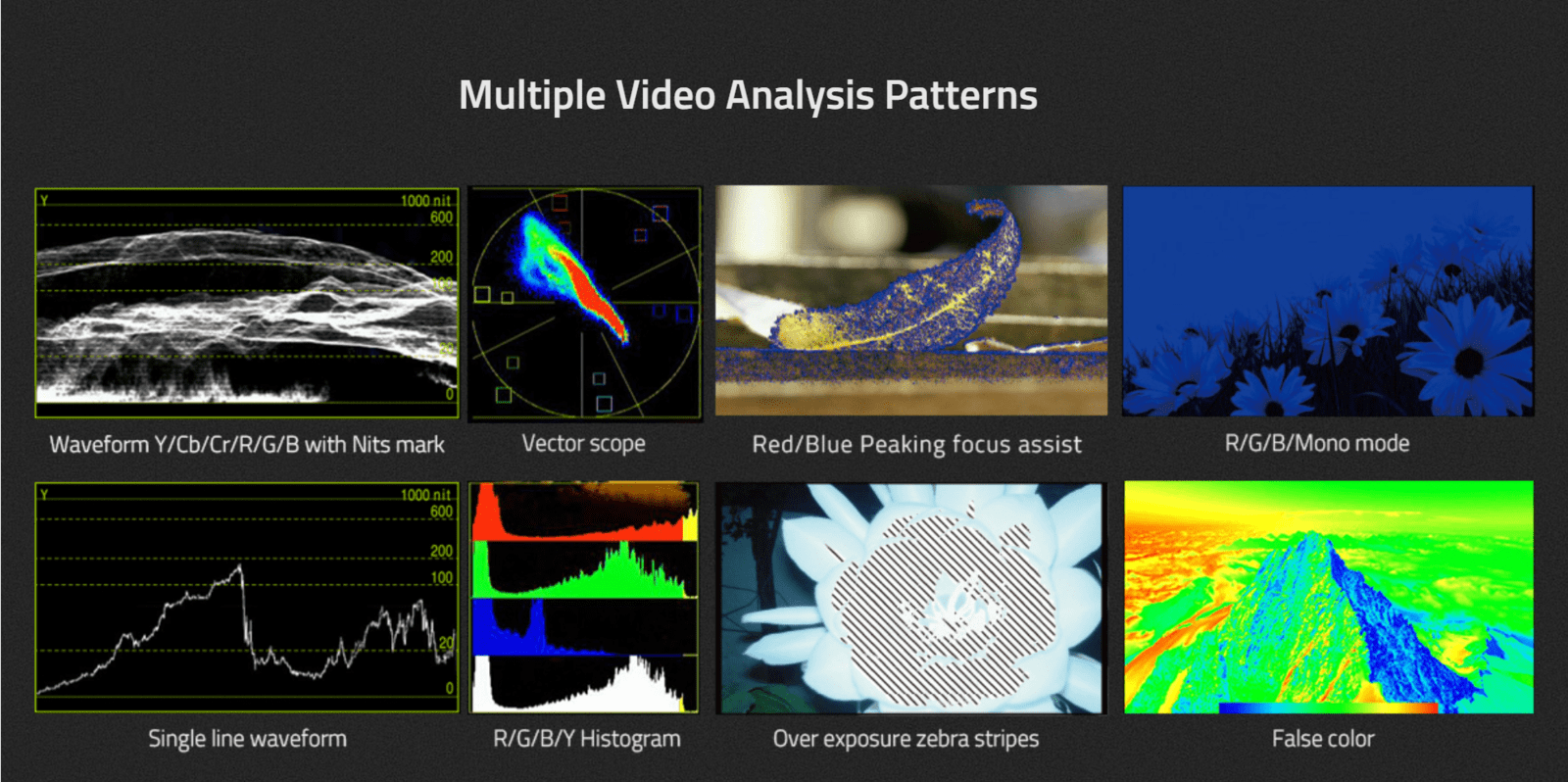

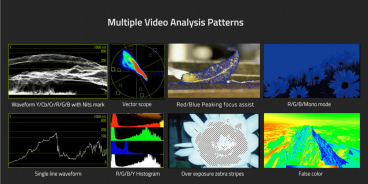

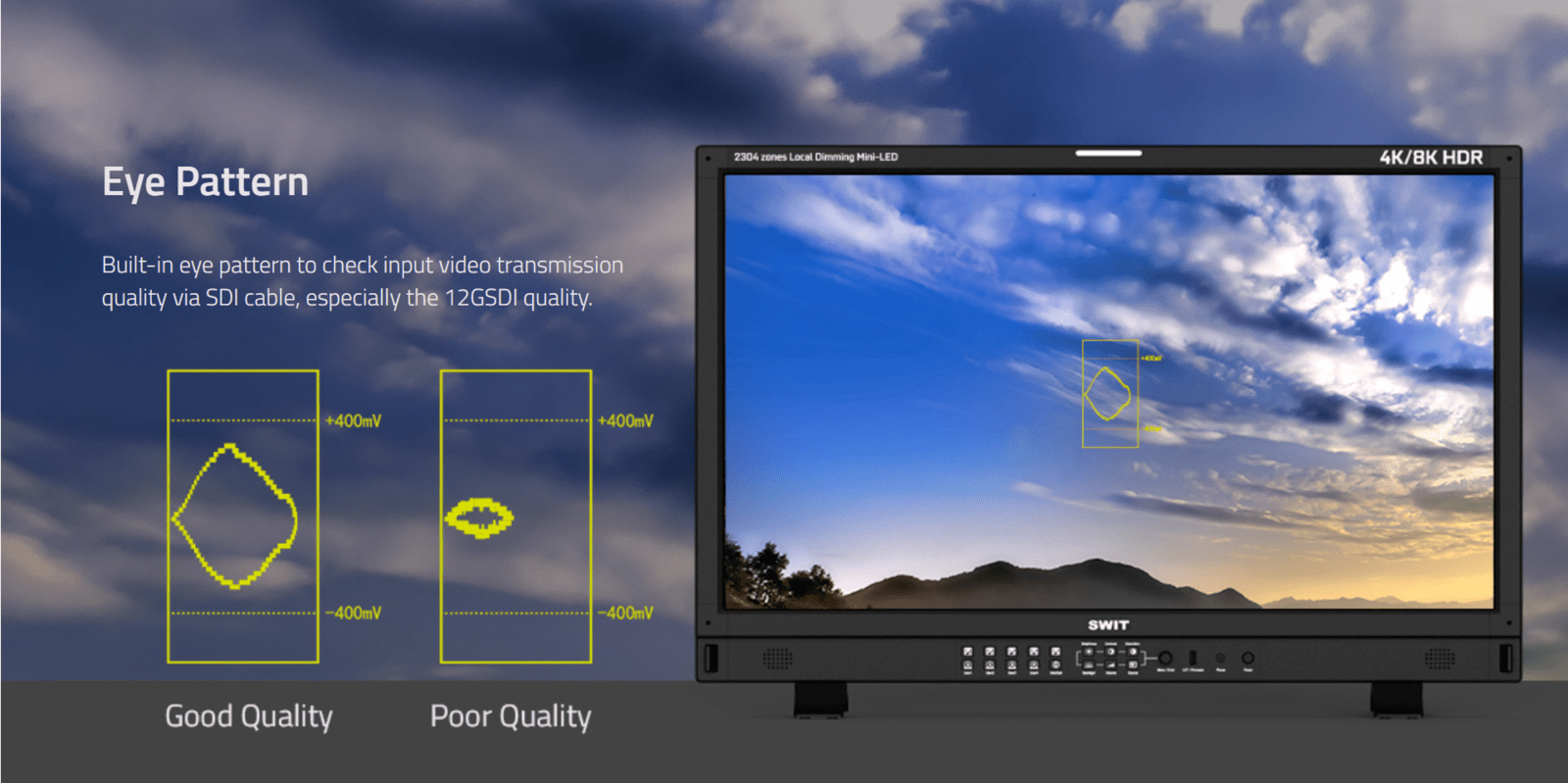

Waveform / Vector / Histogram / Eye pattern
Focus assist / False color / Zebra

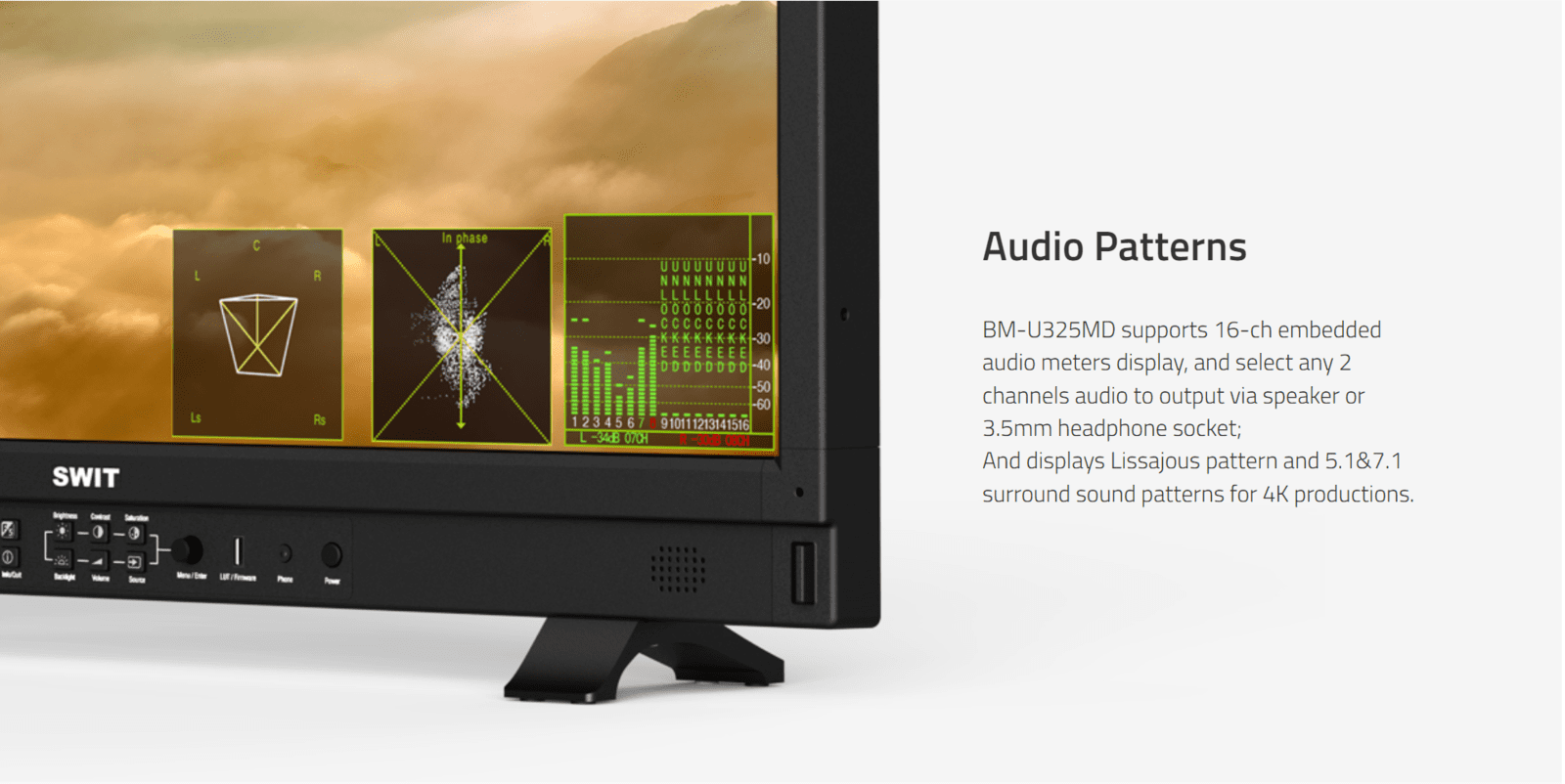

16-ch audio meters / Lissajous
5.1 & 7.1 surround sound phase pattern
IP webserver remote control
LCD Performance
| Size | 31.5 inches |
| Display area | 697.3×392.2mm |
| Resolution | 3840×2160 |
| Aspect ratio | 16:9 |
| Brightness | 1500nits |
| Contrast | 1,000,000:1 |
| Color depth | 1.073G colors, 10-bit |
| Signal process | 18-bit |
| Viewing angle | 178°(H) /178°(V) |
Input
| BNC ×4 | 12G/6G/3G/HD/SD-SDI input |
| HDMI® ×1 | HDMI® 2.0 input |
| SFP ×1 | Optical Fiber input (By optional SFP adaptor) |
| RS485 ×1 | TSL 3.1/4.0 UMD input |
| RS485 ×1 | GPI (Tally) input |
| RJ45 ×1 | 1000M Ethernet input for Webserver IP control |
Output
| BNC ×4 | 12G/6G/3G/HD/SD-SDI loop output |
| RS485 ×1 | TSL 3.1/4.0 UMD output |
| Analog audio | 3.5mm headphone and speaker |
Video Format
| SDI 1/2/3/4 | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080i (50 / 59.94 / 60) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576I (50) | |
| Quad Link 4K (Each channel) | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| Quad Link 8K (Each channel) | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| HDMI® | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) |
General
| Input voltage | AC 100-240V, 50/60Hz |
| Power consumption | ≤ 200W |
| Working temperature | 0°C～+50°C |
| Working humidity | 10%～90% |
| Storage temperature | -15°C～+60°C |
| Storage humidity | 10%～90% |
| Dimensions | 753.5×490×111.1mm |
| Net weight (main body) | Net 16.8kg; With package 22.4kg |
