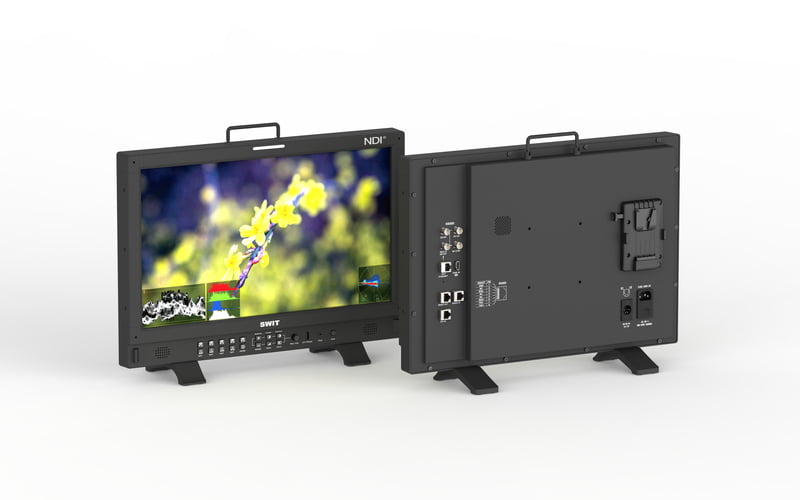

21.5" 4K-NDI QLED HDR 100%DCI-P3 Zero-Delay professional FHD Monitor with Auto-Calibration

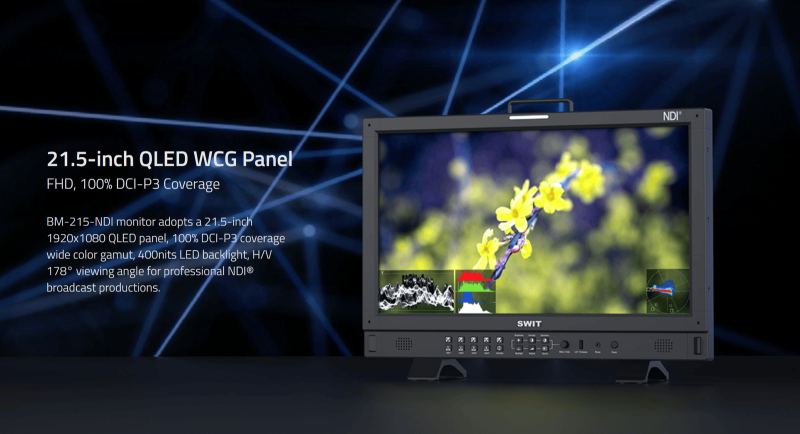

› 21.5-inch 1920×1080 QLED Panel
› 100% DCI-P3 wide color gamut coverage
› VICO 1.97 A-class Eye Protecting Panel
› High bandwidth 4K NDI® monitoring
› 3GSDI 2-in 1-loop, HDMI2.0 input
› NDI® decode to 3GSDI output

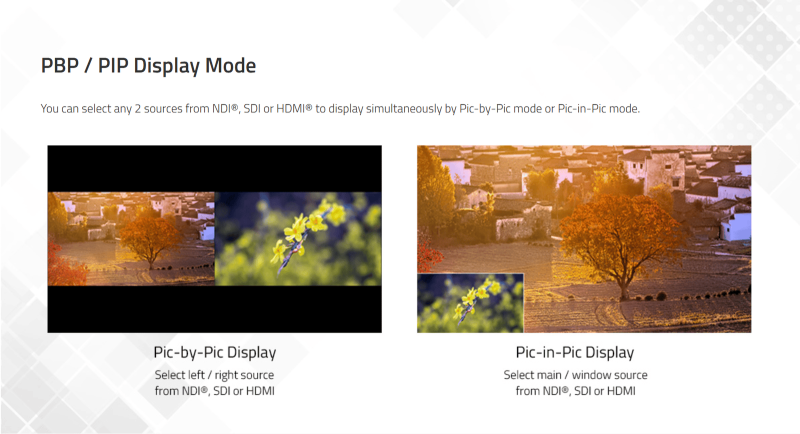

› NDI®/SDI/HDMI PBP or PIP view

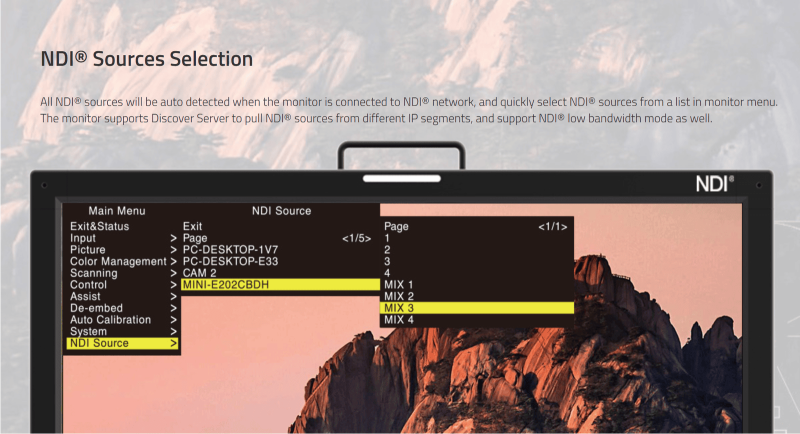

› Auto detect and quick select NDI® sources
› Support NDI® Discover Server
› Rec 709 / DCI-P3 / Rec 2020 color gamut selection

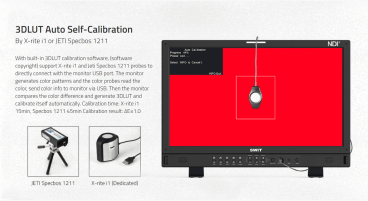

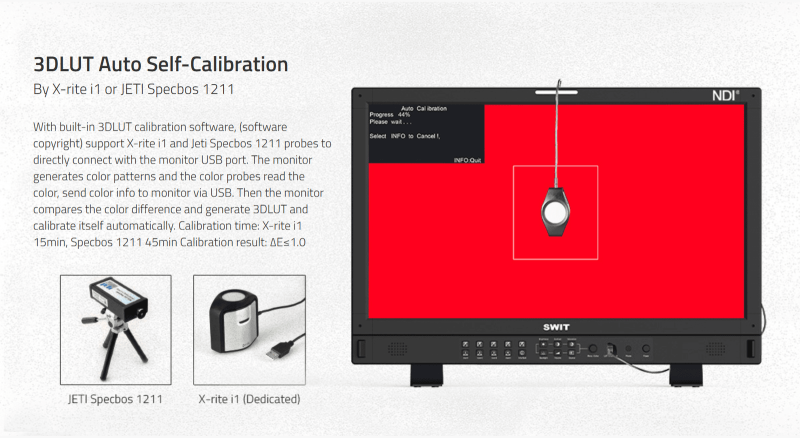

› 3DLUT Auto Self-calibration without PC
› Built-in Delog LUTs and User LUTs upload by USB

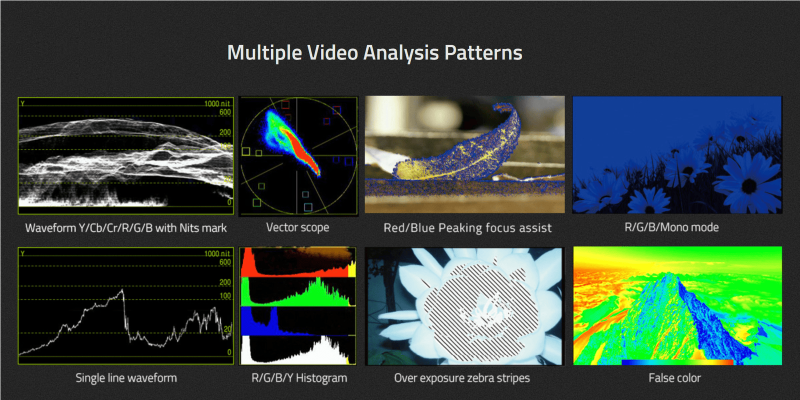

› Waveform / Vector / Histogram
› Focus assist / False color / Zebra

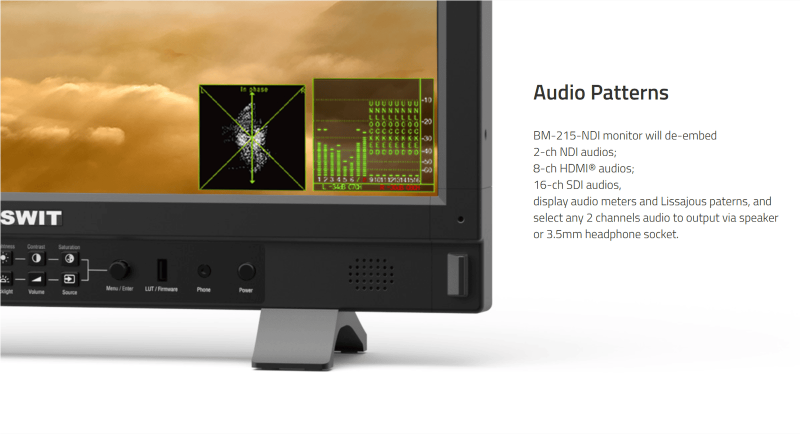

› 16-ch audio meters / Lissajous pattern

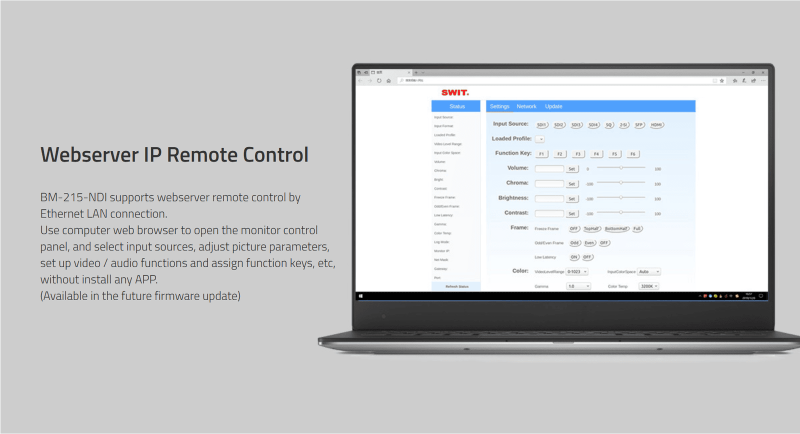

› IP webserver remote control (Future update)

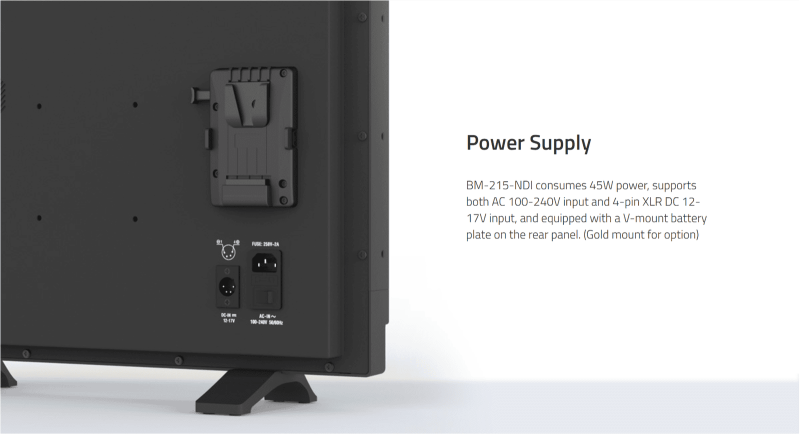

› AC, DC and battery plate power
LCD Performance
| Size | 21.5 inches |
| Display area | 495.6×292.2mm |
| Resolution | 1920×1080 |
| Aspect ratio | 16:9 |
| Brightness | 400nits |
| Contrast | 3000:1 |
| Color Gamut | 100% DCI-P3 |
| Color depth | 10bit (8+2FRC) |
| Eye Protect | VICO 1.97 |
| Viewing angle | 178°(H) /178°(V) |

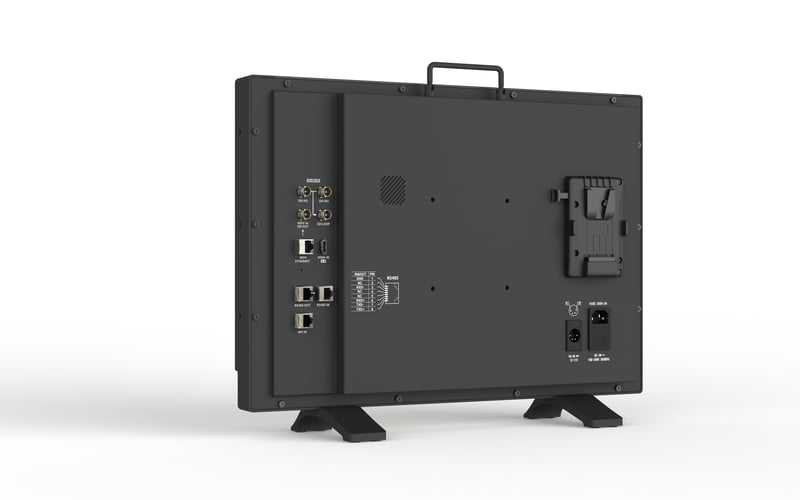

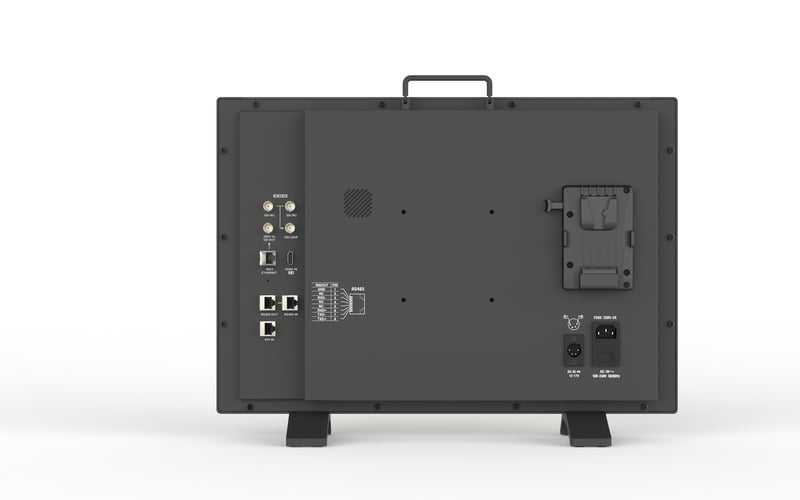

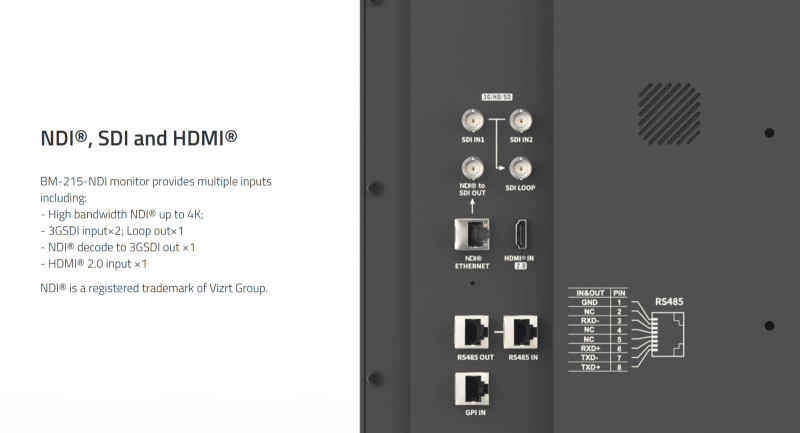

Input
| RJ45 ×1 | High bandwidth 4K NDI® |
| BNC ×2 | 3G/HD/SD-SDI input |
| HDMI® ×1 | HDMI® 2.0 input |
| RS485 ×1 | TSL 3.1/4.0 UMD input |
| RS485 ×1 | GPI (Tally) input |
Output
| BNC ×1 | 3G/HD/SD-SDI loop output |
| BNC×1 | NDI® decoded to SDI output |
| RS485 ×1 | TSL 3.1/4.0 UMD output |
| Analog audio | 3.5mm headphone and speaker |
Video Format
| NDI® | 4096×2160p (30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080i (50 / 59.94 / 60) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| NDI® decoded to SDI out | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (50 / 59.94 / 60) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| SDI IN1/2 and LOOP | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (50 / 59.94 / 60) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576i (50) | |
| HDMI® IN | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) |
General
| Input voltage | DC 12V-17V, AC 100-240V, 50/60Hz |
| Power consumption | 45W |
| Working temperature | 0°C～+50°C |
| Working humidity | 10%～90% |
| Storage temperature | -15°C～+60°C |
| Storage humidity | 10%～90% |
| Dimensions | 530.6×364.3×74.2mm |
| Net weight (main body) | Net 5.90kg; With package10.05kg |
