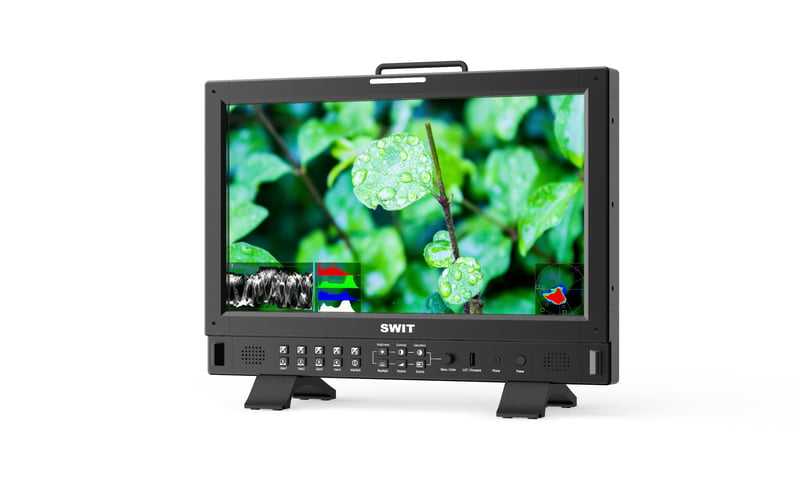

Swit BM-U175
17" 8K 4x12GSDI HDR Zero-Delay Reference UHD Monitor with Auto-Calibration

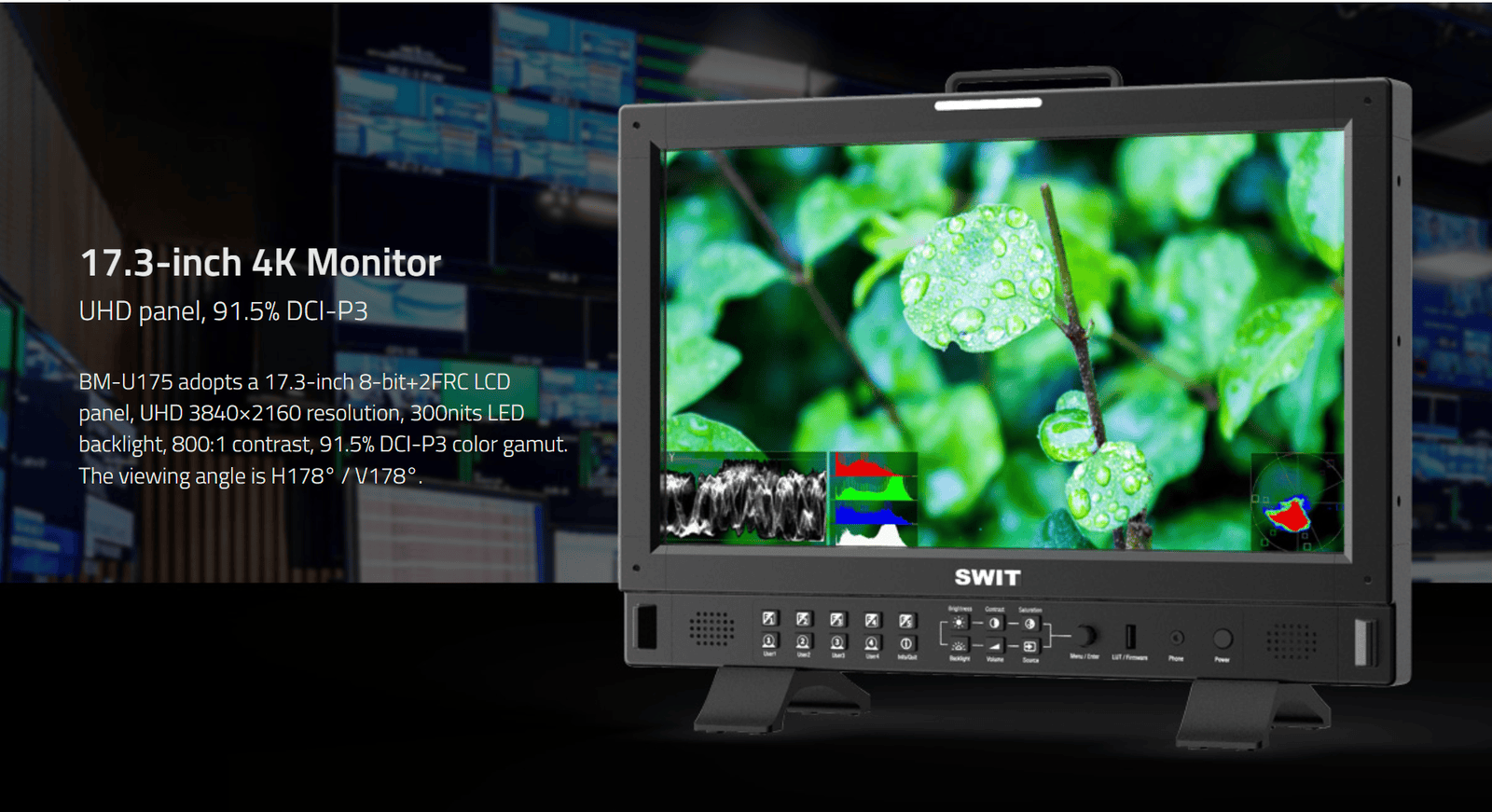

› 17.3-inch LCD Panel, 3840×2160 resolution

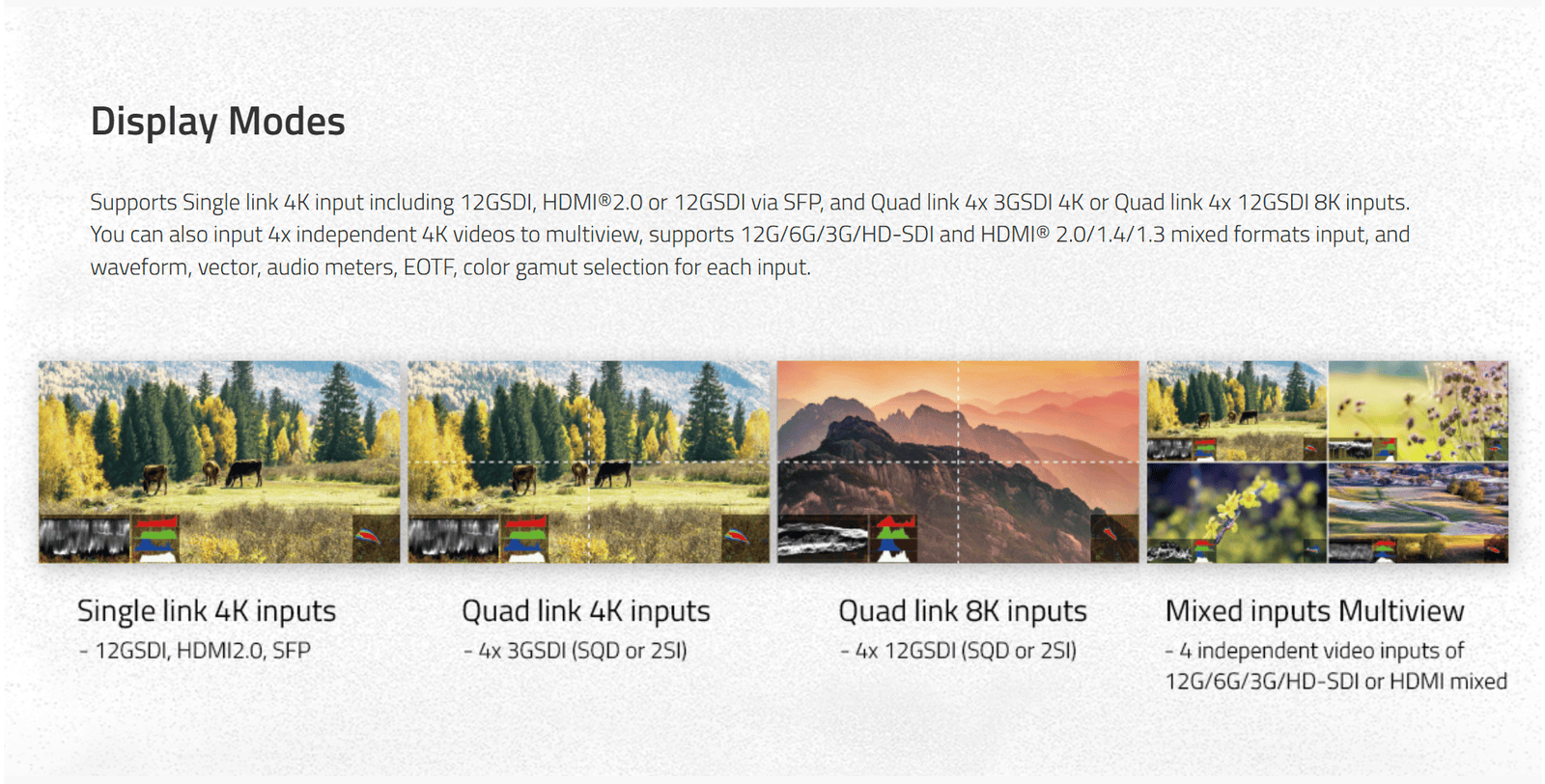

› 12GSDI 4-in 4-out, 8K input ready, HDMI®2.0 input
› 12GSDI via SFP Fiber input (Optional)
› ST2110 IP via SFP Fiber input (Optional)
› 3DLUT Auto Self-calibration without PC
› Audio/Video 0 latency for lip-sync

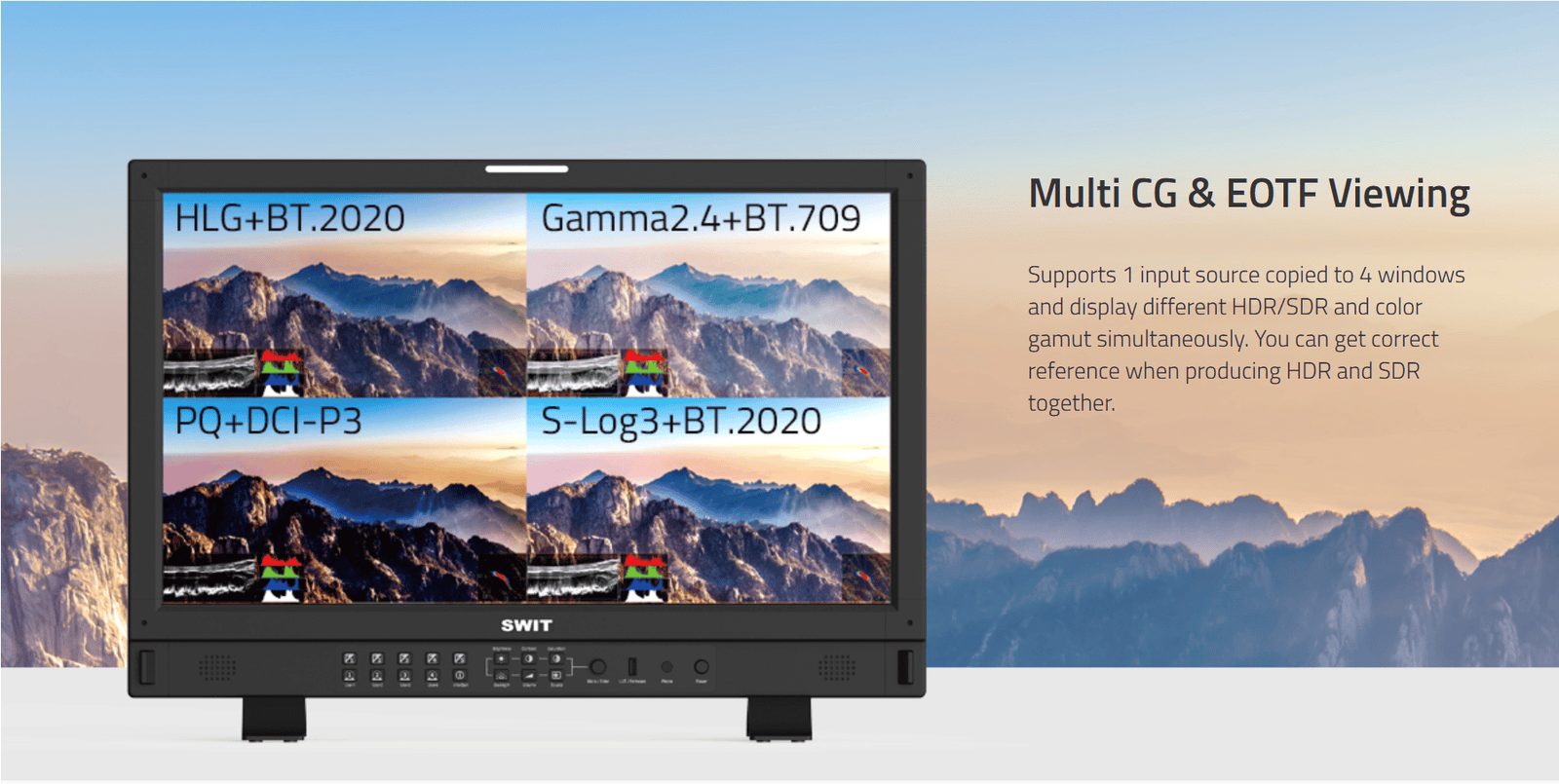

› HLG/PQ/S-log3 HDR EOTF
› Payload ID auto setting
› Built-in Multi camera Delog LUTs
› User 3DLUTs upload via USB

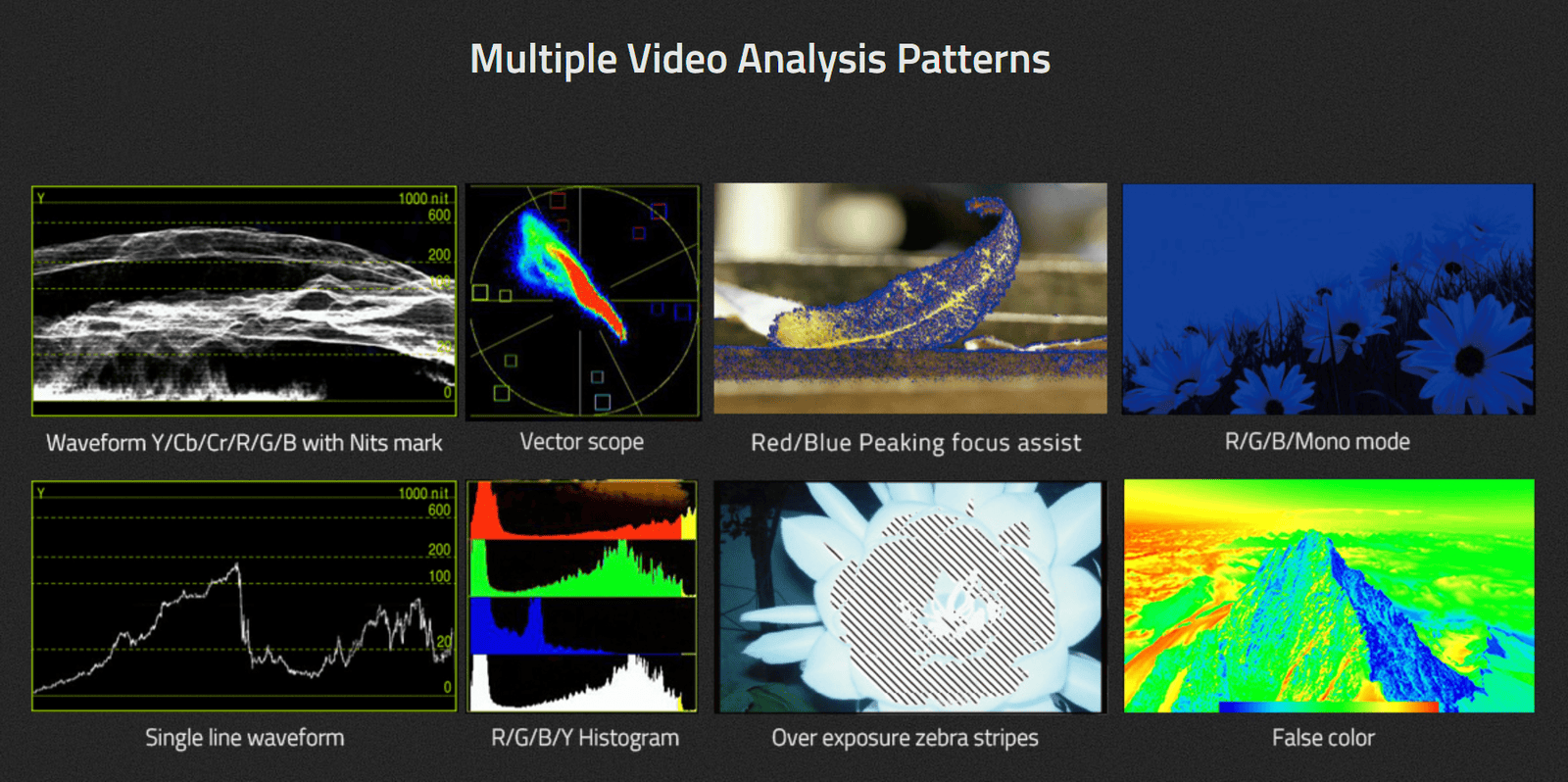

› Waveform / Vector / Histogram
› Focus assist / False color / Zebra
› 16-ch audio meters / Lissajous
› IP webserver remote control
› TSL UMD and text TALLY display
› USB firmware upgrade

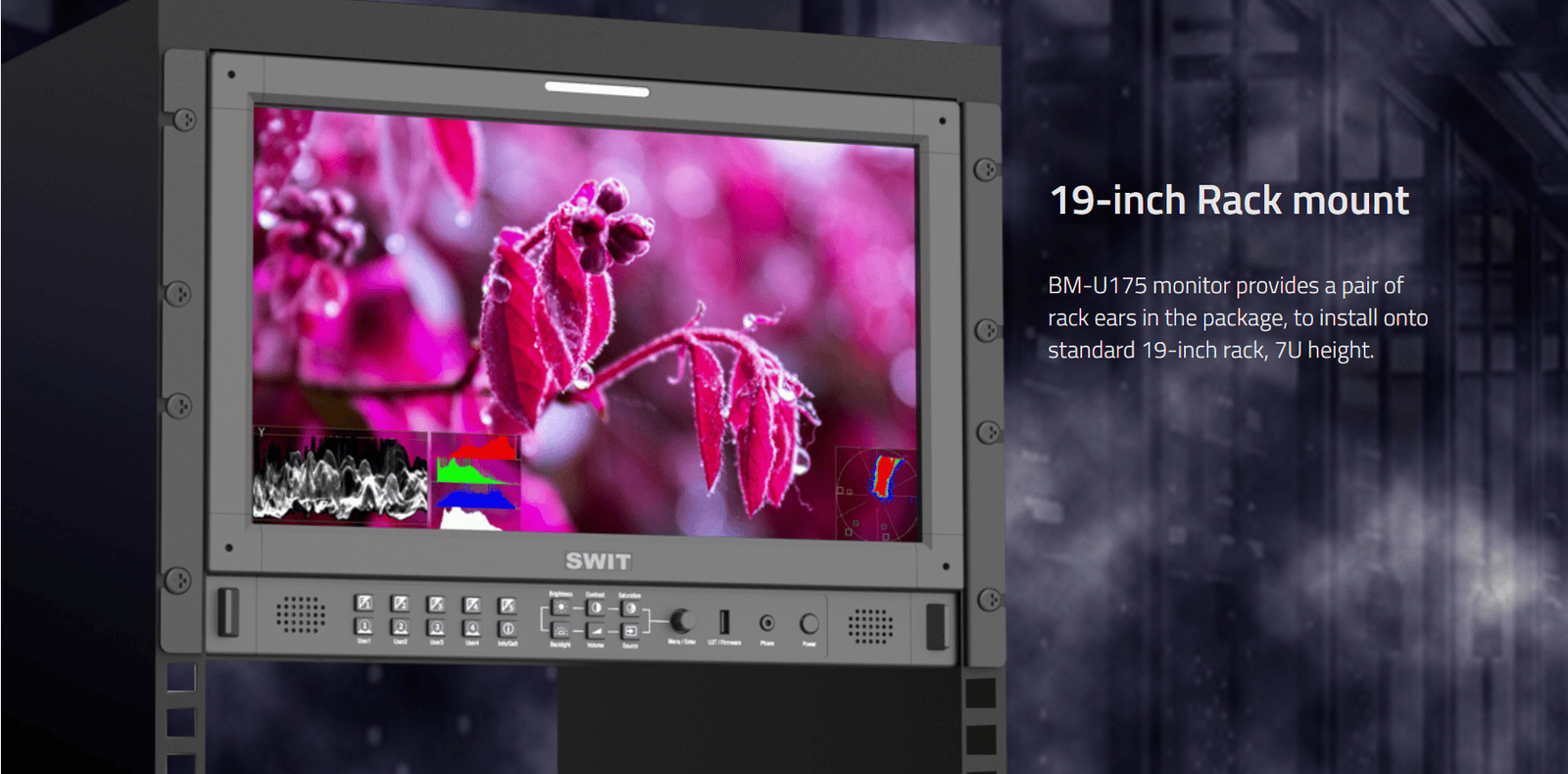

› 19-inch rack mountable, 7U height
LCD Performance
| Size | 17.3 inches |
| Display area | 381.88×214.82mm |
| Resolution | 3840×2160 |
| Aspect ratio | 16:9 |
| Brightness | 300nits |
| Contrast | 800:1 |
| Color depth | 16.77M colors, 8-bit |
| Signal process | 18-bit |
| Viewing angle | 178°(H) /178°(V) |

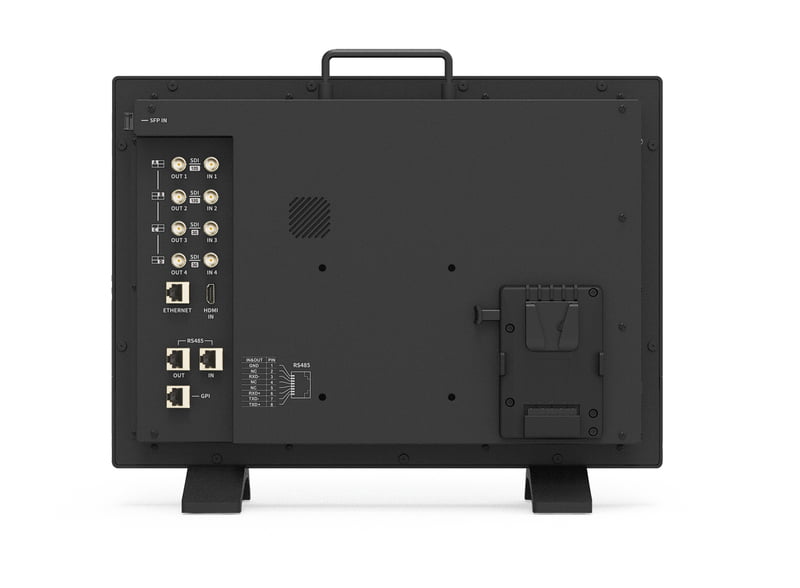

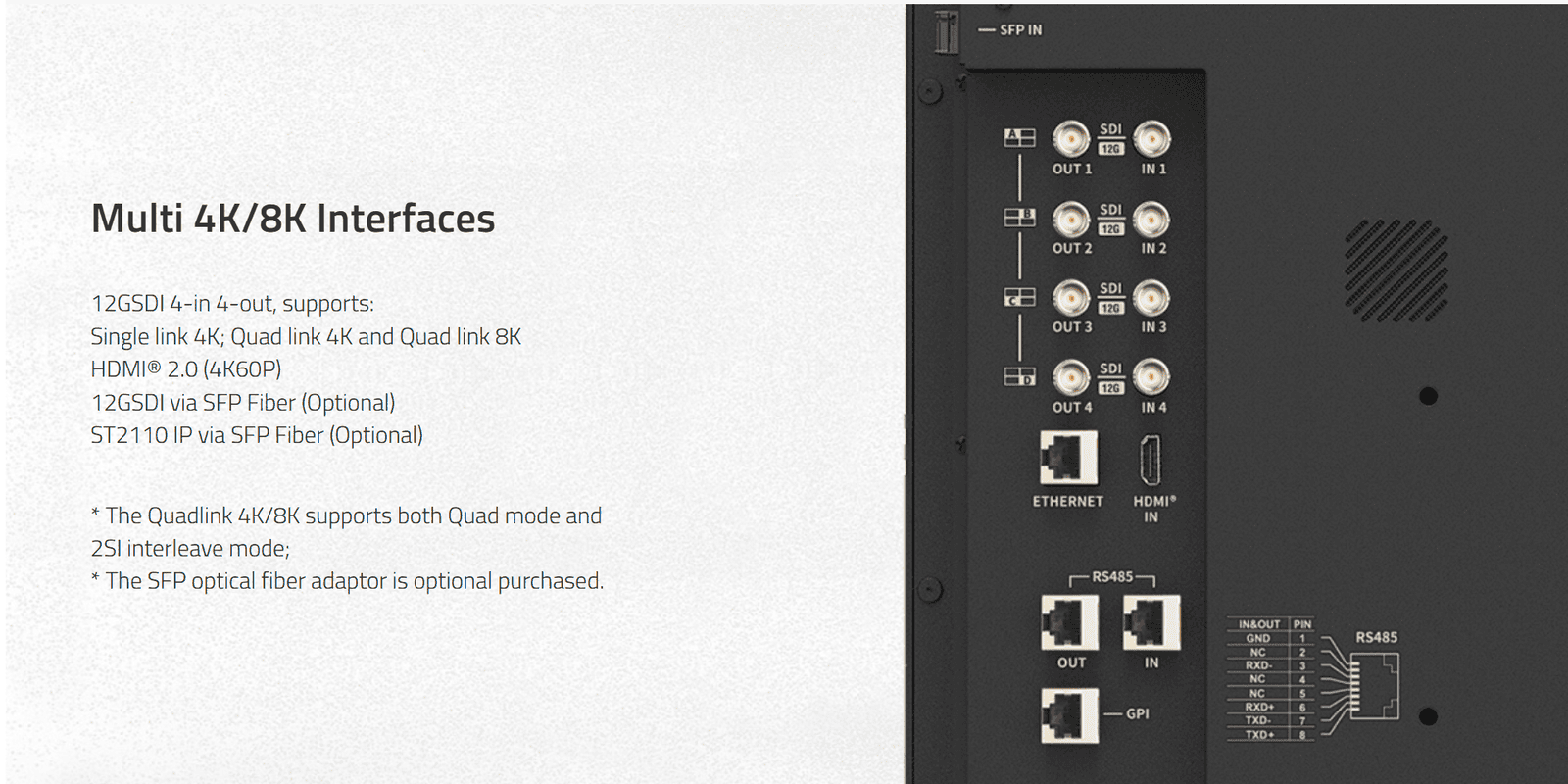

Input
| BNC ×4 | 12G/6G/3G/HD/SD-SDI input |
| HDMI® ×1 | HDMI® 2.0 input |
| SFP ×1 | Optical Fiber input (By optional SFP adaptor) |
| RS485 ×1 | TSL 3.1/4.0 UMD input |
| RS485 ×1 | GPI (Tally) input |
| RJ45 ×1 | 1000M Ethernet input for Webserver IP control |
Output
| BNC ×4 | 12G/6G/3G/HD/SD-SDI loop output |
| RS485 ×1 | TSL 3.1/4.0 UMD output |
| Analog audio | 3.5mm headphone and speaker |
Video Format
| SDI 1/2/3/4 | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080i (50 / 59.94 / 60) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576I (50) | |
| Quad Link 4K (Each channel) | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| Quad Link 8K (Each channel) | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| HDMI® | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) |
General
| Input voltage | DC 12V-17V, AC 100-240V, 50/60Hz |
| Power consumption | 60W |
| Working temperature | 0°C～+50°C |
| Working humidity | 10%～90% |
| Storage temperature | -15°C～+60°C |
| Storage humidity | 10%～90% |
| Dimensions | 436×310.8×88.8mm |
| Net weight (main body) | Net 5.9kg; With package 8.55kg |
