Swit FM-215HDR QLED 21.5-inch 1920×1080 QLED Panel Monitor + Vesa to C-Stand Stativadapter

Art.Nr.:
Swit FM-215HDR
Lieferzeit:
1-3 Werktage 1-3 Werktage (Ausland abweichend)
Lagerbestand:
2 Stück
UVP 1.999,00 €
Nur 1.409,00 €

zzgl. 19% MwSt. zzgl. Versand

Auf den Merkzettel
Woanders günstiger?
Frage zum Produkt
Hinweis zur gesetzlichen Gewährleistung
Beschreibung

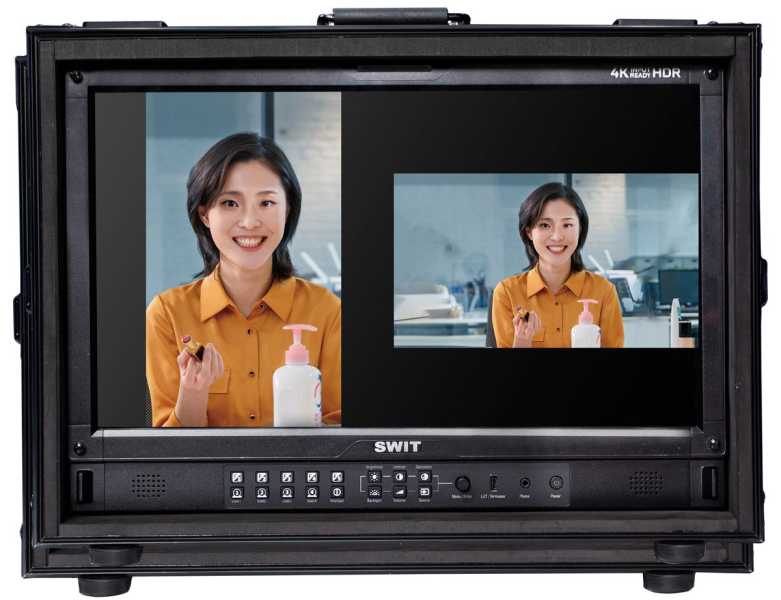

SWIT FM-215HDR

21.5-inch 1920×1080 QLED Panel
1000nits high bright PQ/HLG HDR
100% DCI-P3 wide color gamut coverage
VICO 1.97 A-class Eye Protecting LCD
12G-SDI, 4x3G-SDI, HDMI®2.0 4K input
4-ch SDI/HDMI® mixed formats multiview
Any 2 inputs mixed PBP or PIP view
Horizontal and Vertical (cropped) PBP view
Zero latency video processing (0.01frame)
3DLUT Auto Self-calibration without PC
Built-in Multi camera Delog LUTs
User 3DLUTs upload via USB
Waveform / Focus assist / False color / Zebra
With flight case and screen protector
Optional VESA to C-stand adaptor


Mitgeliefertes Zubehör:
1x Swit FM-215HDR Monitor in Flight Case
1x Flight Case
1x Schutzglas
1x Montageplatte mit 1/4" und 3/8" Bohrungen für Zubehör
1x Vesa to C-Stand Stativadapter


Optionales Zubehör:
1x Swit MA-HC 215, Foldable Sunhood for FM-215HDR für € 128,- netto


Technische Daten

LCD Performance

Size

21.5 inches

Display area

476×268mm

Resolution

1920×1080

Aspect ratio

16:9

Brightness

1000nits

Contrast

1000:1

Color depth

10-bit

Signal process

18-bit

Viewing angle

178°(H) /178°(V)

Input

BNC ×1

12G/6G/3G/HD/SD-SDI input

BNC ×3

3G/HD/SD-SDI input

HDMI® ×1

HDMI® 2.0 input

RS485 ×1

TSL 3.1/4.0 UMD input

RS485 ×1

GPI (Tally) input

RJ45 ×1

1000M Ethernet input for Webserver IP control

Output

BNC ×1

12G/6G/3G/HD/SD-SDI loop output

BNC×1

3G/HD/SD-SDI loop output

RS485 ×1

TSL 3.1/4.0 UMD output

Analog audio

3.5mm headphone and speaker

Video Format

SDI 1

4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)

SDI 2/3/4

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)

Quad Link 4K (Each channel)

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

HDMI®

4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)

General

Input voltage

DC 12V-17V, AC 100-240V, 50/60Hz

Power consumption

60W

Working temperature

0°C～+50°C

Working humidity

10%～90%

Storage temperature

-15°C～+60°C

Storage humidity

10%～90%

Dimensions

570×405×260mm (with case)

Net weight (main body)

14kg (with case)
Kundenrezensionen

Leider sind noch keine Bewertungen vorhanden. Seien Sie der Erste, der das Produkt bewertet.
