Swit FLOW6500 Tx+Rx Set, 3G HD-SDI / HDMI mit NP-F und V-Mount Akku Mount
TOP
-15%
Swit FLOW6500 Set
- Wireless der neuen Generation durch einzigartige SWIT-Technologie
- 6500 Fuß (2000 m) FHD-Videoübertragung mit vollständiger DFS-Konformität
- robustere und reibungslosere Verbindung mit höherer Bildqualität, selbst in sehr komplexen drahtlosen
Umgebungen
- viel stärkere Entstörungsfähigkeit
- längerer praktischer Abstand
- stärkerer Wall-Through
- kleines und robustes Aluminiumgehäuse
- kein Signalverlust, genaue Farb- und Taktwiedergabe (Algorithmus von SWIT)
- völlig leise ohne Ventilator
- kleine Latenz < 30 ms
- OLED-Display auf Tx & Rx für Sichtbarkeit und beste Kanalauswahl
- automatisches oder manuelles Pairing (alles unter Ihrer Kontrolle)
- beide DFS-konform ( Dynamic Frequency Selection ) automatischer Kanalwechsel für Outdoor-Anwendungen
- Inhaltsverschlüsselung auf Chipebene
- 16-Kanal-Audio, Timecode und Trigger
- Einsatz von bis zu 4 Paaren an einem Ort
- 1 Tx unterstütz bis zu 4 Rx Multicast
- Tx DC-Eingang und NP-F Halterung
- Rx DC-Eingang und V-Mount Halterung
- Sendeleistung 125 mW
Unterstützte Videoformate:
1080/60p, 59.94p, 50p, 30p, 29,97p 25p, 24p, 23,98p
1080/60i, 59.94i, 50i
720/60p, 59.94p, 50p
Anschlüsse Sender Tx:
1x 3G-SDI / HD-SDI / SDI In
1x 3G-SDI / HD-SDI / SDI Loop Out
1x HDMI In
1x DC In 7 - 34 V
1x micro USB für Firmware Updates
1x NP-F Akku-Mount
Anschlüsse Empfänger Rx:
1x 3G-SDI / HD-SDI / SDI Out
1x DC In 7 - 34 V
1x Micro USB für Firmware Updates
1x V-Mount Akku-Mount
Allgemeines:
Abmessungen Sender (BxHxT): 6,6 x 10,65 x 2,47 cm
Abmessungen Empfänger (BxHxT): 19 x 19 x 4,7 cm
Spannungsversorgung: DC In 7 - 34 V
Betriebstemperatur: 0° bis 40° C
Leistungsaufnahme: 9 W je Sender und Empfänger
Gewicht: 236 g (Sender) / 1,26 kg (Empfänger)
Lieferumfang:
1x FLOW6500 Tx Transmitter
1x FLOW6500 Rx Receiver
2x Externe Antenne
1x Gelenkarm
1x AC-DC Adapter
2x D-Tap zu Hohlstecker (verriegelbar)
1x Transportkoffer

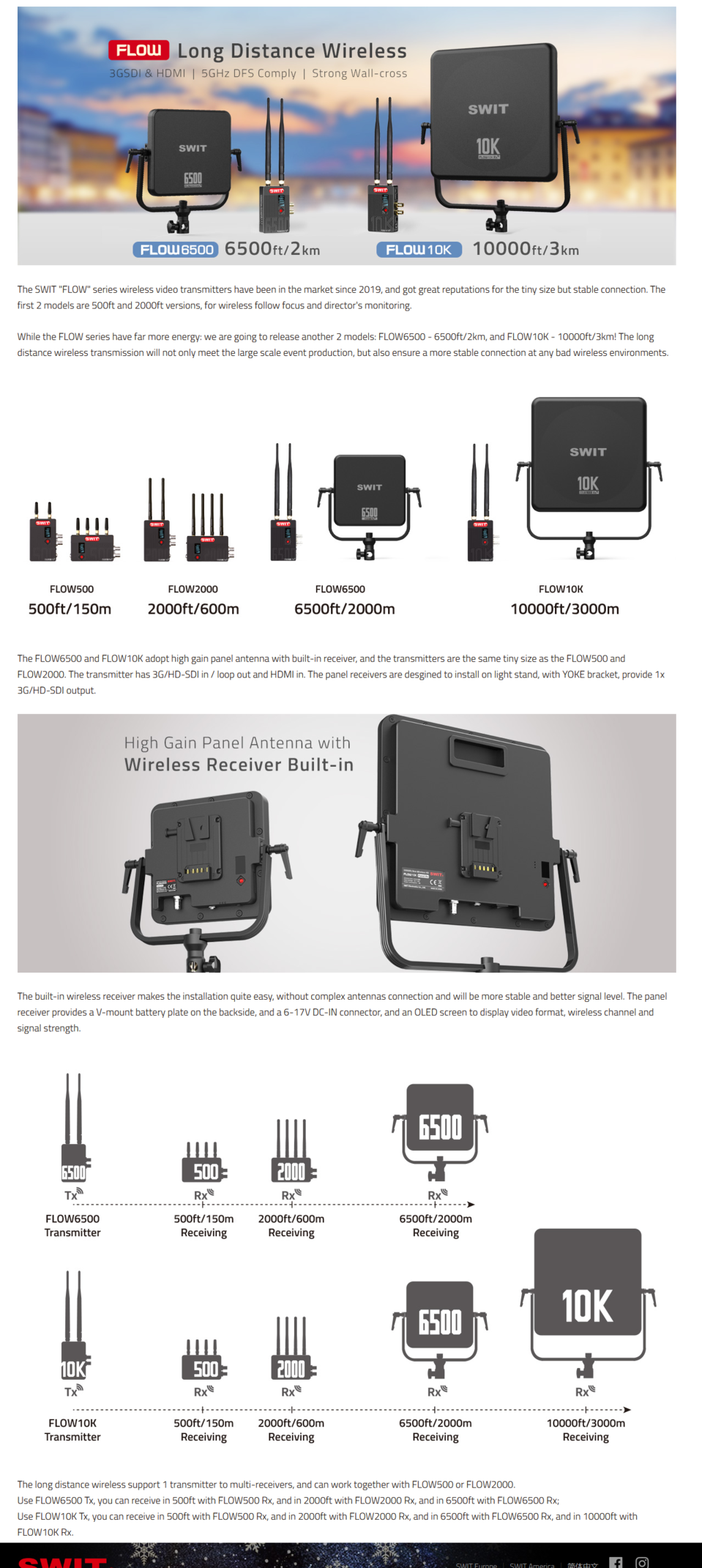

FLOW10K Ieaflet / Flyer 2021-09-29 pdf
- Wireless der neuen Generation durch einzigartige SWIT-Technologie
- 6500 Fuß (2000 m) FHD-Videoübertragung mit vollständiger DFS-Konformität
- robustere und reibungslosere Verbindung mit höherer Bildqualität, selbst in sehr komplexen drahtlosen
Umgebungen
- viel stärkere Entstörungsfähigkeit
- längerer praktischer Abstand
- stärkerer Wall-Through
- kleines und robustes Aluminiumgehäuse
- kein Signalverlust, genaue Farb- und Taktwiedergabe (Algorithmus von SWIT)
- völlig leise ohne Ventilator
- kleine Latenz < 30 ms
- OLED-Display auf Tx & Rx für Sichtbarkeit und beste Kanalauswahl
- automatisches oder manuelles Pairing (alles unter Ihrer Kontrolle)
- beide DFS-konform ( Dynamic Frequency Selection ) automatischer Kanalwechsel für Outdoor-Anwendungen
- Inhaltsverschlüsselung auf Chipebene
- 16-Kanal-Audio, Timecode und Trigger
- Einsatz von bis zu 4 Paaren an einem Ort
- 1 Tx unterstütz bis zu 4 Rx Multicast
- Tx DC-Eingang und NP-F Halterung
- Rx DC-Eingang und V-Mount Halterung
- Sendeleistung 125 mW
Unterstützte Videoformate:
1080/60p, 59.94p, 50p, 30p, 29,97p 25p, 24p, 23,98p
1080/60i, 59.94i, 50i
720/60p, 59.94p, 50p
Anschlüsse Sender Tx:
1x 3G-SDI / HD-SDI / SDI In
1x 3G-SDI / HD-SDI / SDI Loop Out
1x HDMI In
1x DC In 7 - 34 V
1x micro USB für Firmware Updates
1x NP-F Akku-Mount
Anschlüsse Empfänger Rx:
1x 3G-SDI / HD-SDI / SDI Out
1x DC In 7 - 34 V
1x Micro USB für Firmware Updates
1x V-Mount Akku-Mount
Allgemeines:
Abmessungen Sender (BxHxT): 6,6 x 10,65 x 2,47 cm
Abmessungen Empfänger (BxHxT): 19 x 19 x 4,7 cm
Spannungsversorgung: DC In 7 - 34 V
Betriebstemperatur: 0° bis 40° C
Leistungsaufnahme: 9 W je Sender und Empfänger
Gewicht: 236 g (Sender) / 1,26 kg (Empfänger)
Lieferumfang:
1x FLOW6500 Tx Transmitter
1x FLOW6500 Rx Receiver
2x Externe Antenne
1x Gelenkarm
1x AC-DC Adapter
2x D-Tap zu Hohlstecker (verriegelbar)
1x Transportkoffer
FLOW10K Ieaflet / Flyer 2021-09-29 pdf
KUWI Wireless Technology
SDI&HDMI 6500ft / 2km long distance
FLOW6500 wireless system is based on SWIT latest professional KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, sup- ports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 6500ft / 2km Line-of-Sight distance. The KUWI professional wireless chip features stable connection at any complex environment and stronger in wall-cross capability.
The long distance wireless can be widely used in film production, event broadcasting etc.

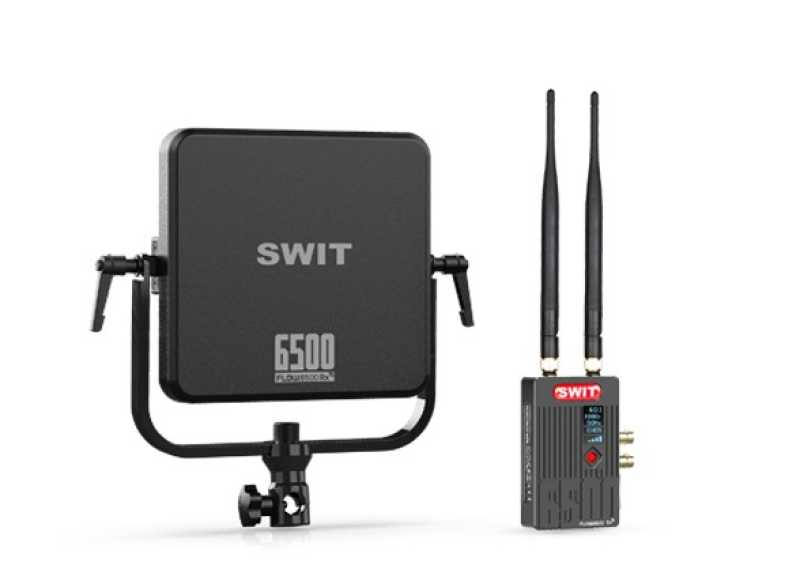

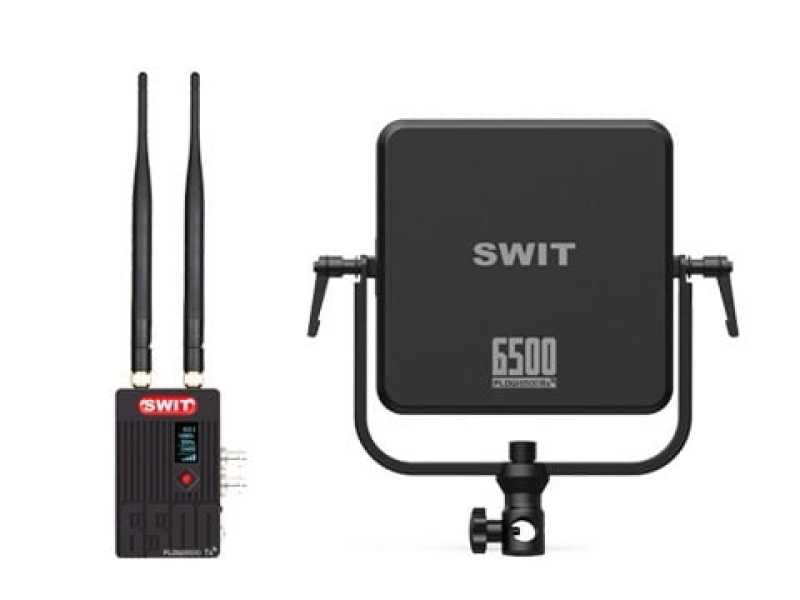

The Transmitter
The Transmitter has 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI 1.3 input
SDI & HDMI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
Supports embedded audio (CH1&2) transmission.
The Panel Receiver
The Receiver has built into high gain directional Panel Antenna, compact size, without complex antanna wires connection, solid and reliable, and provides 1x 3G/HD-SDI output.
6500ft/2km Long Distance
Strong Wall-cross Performance
With the high gain panel receiver, FLOW6500 supports 6500ft/2km (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.

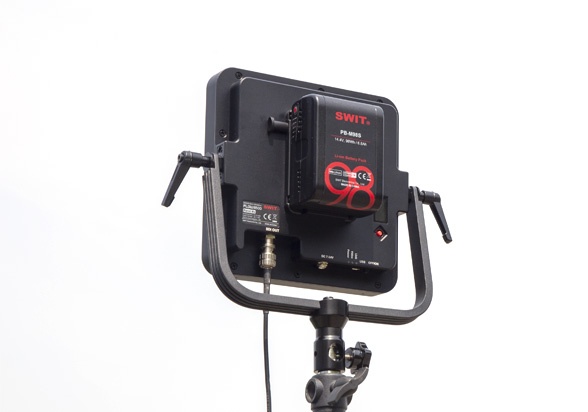

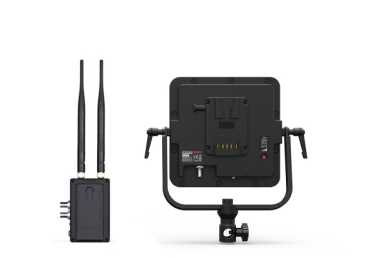

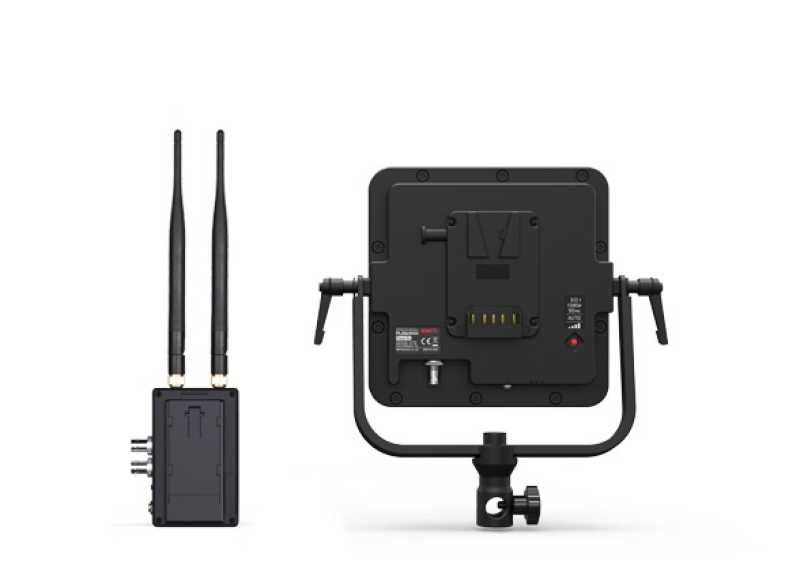

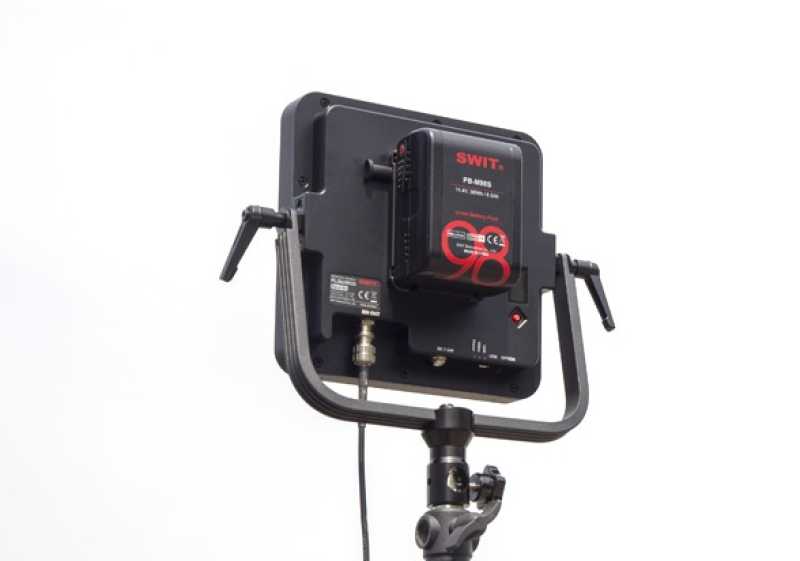

Power Supply
The power consumtion of Tx and Rx are less than 9W. The Transmitter provides NP-F DV battery plate, and 7-34V DC-IN socket; The Panel Receiver provide V-mount battery plate, and 7-34V DC-IN socket.
OLED Display & Channel Switch
5GHz Frequency, DFS Comply
The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all frequencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply.
You can also switch the wireless channels manually from 7 Non-DFS restricted channels.
Both Transmitter and Panel Receiver are equipped with OLED to display signal format, wireless channel number and signal strength.
Multicast and Double Encryption
Support 1 transmitter to unlimited quantity receivers reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footages.
Stable Connection at Worst Wireless Environment
The FLOW series adopt professional KUWI 5GHz wireless technology, can keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers.
FLOW series Cross-Receiving
The FLOW6500 can work together with other FLOW series wireless at different receiving distance.
Use FLOW6500 Tx, you can receive in 500ft with FLOW500 Rx, and in 2000ft with FLOW2000 Rx, and in 6500ft with FLOW6500 Rx.
SDI&HDMI 6500ft / 2km long distance
FLOW6500 wireless system is based on SWIT latest professional KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, sup- ports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 6500ft / 2km Line-of-Sight distance. The KUWI professional wireless chip features stable connection at any complex environment and stronger in wall-cross capability.
The long distance wireless can be widely used in film production, event broadcasting etc.
The Transmitter
The Transmitter has 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI 1.3 input
SDI & HDMI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
Supports embedded audio (CH1&2) transmission.
The Panel Receiver
The Receiver has built into high gain directional Panel Antenna, compact size, without complex antanna wires connection, solid and reliable, and provides 1x 3G/HD-SDI output.
6500ft/2km Long Distance
Strong Wall-cross Performance
With the high gain panel receiver, FLOW6500 supports 6500ft/2km (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.
Power Supply
The power consumtion of Tx and Rx are less than 9W. The Transmitter provides NP-F DV battery plate, and 7-34V DC-IN socket; The Panel Receiver provide V-mount battery plate, and 7-34V DC-IN socket.
OLED Display & Channel Switch
5GHz Frequency, DFS Comply
The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all frequencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply.
You can also switch the wireless channels manually from 7 Non-DFS restricted channels.
Both Transmitter and Panel Receiver are equipped with OLED to display signal format, wireless channel number and signal strength.
Multicast and Double Encryption
Support 1 transmitter to unlimited quantity receivers reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footages.
Stable Connection at Worst Wireless Environment
The FLOW series adopt professional KUWI 5GHz wireless technology, can keep connected at any complex wireless environment, such as sports stadium, concert, public plaza where full of people, electronic devices or wifi routers.
FLOW series Cross-Receiving
The FLOW6500 can work together with other FLOW series wireless at different receiving distance.
Use FLOW6500 Tx, you can receive in 500ft with FLOW500 Rx, and in 2000ft with FLOW2000 Rx, and in 6500ft with FLOW6500 Rx.
