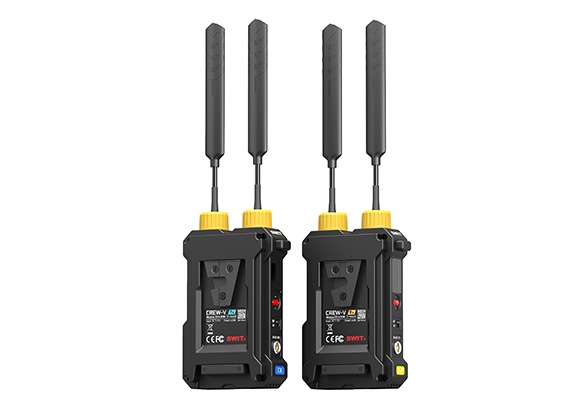

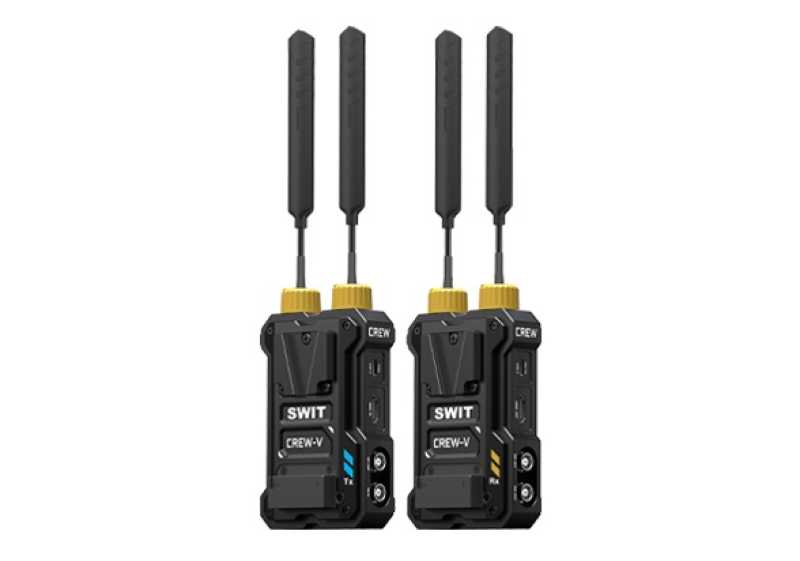

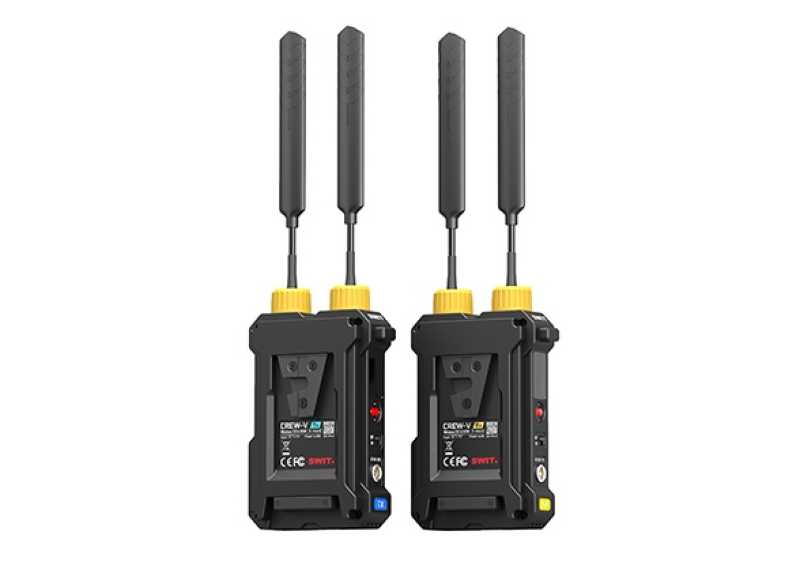

Swit CREW-V, 1.2km/4000ft Pro Wireless Video Transmission
.jpg "Swit CREW-V, 1.2km/4000ft Pro Wireless Video Transmission")
NEU
TOP
-12%
Swit CREW-V
Professional RF, NOT WIFI
The new generation CREW wireless system, upgraded with twice longer transmission distance, enhanced reliable image quality, and uncompromised multicast capabilities. The CREW system continues to deliver the same rock-solid transmission stability as FLOW series, for professional broadcast and film productions.
› KUWI 2.0 Pro wireless tech, NOT WIFI
› Proprietary anti-interference RF
› 5.1-5.9GHz License-Free DFS Comply
› Auto scan and select optimal channel
› 3GSDI & HDMI® HD video transmission
› 1.2km / 4000ft (Line-of-Sight) distance
› USB-C Video Capture out for PC/Mac
› H.265 up to 26.8Mbps visual lossless
› Consistent 32ms ultra low latenty
› Uncompromised 1T to 4R Multicast
› MetaData & TC trigger transmission

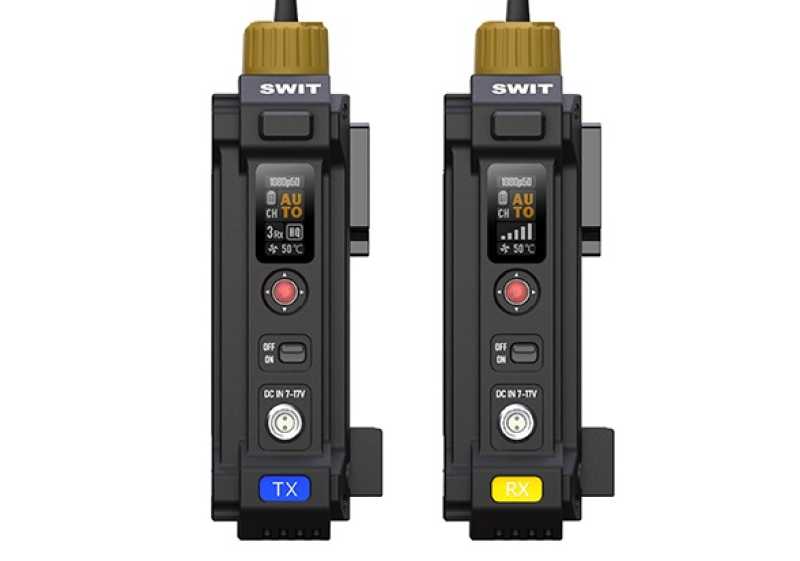

› High bright OLED display & configuration
› AES-256 dual encryption protection
› Dual Sided V-mount power and install
› 2-pin LEMO / USB-C Power Supply
4x Backup High Gain Antenna
4x Tags white
4x Tags yellow
2x D-Tap to 2-pin Lemo cable
2x USC-C to C cable
1x USB-A to C OTG
1x Carrying Case
Professional RF, NOT WIFI
The new generation CREW wireless system, upgraded with twice longer transmission distance, enhanced reliable image quality, and uncompromised multicast capabilities. The CREW system continues to deliver the same rock-solid transmission stability as FLOW series, for professional broadcast and film productions.
› KUWI 2.0 Pro wireless tech, NOT WIFI
› Proprietary anti-interference RF
› 5.1-5.9GHz License-Free DFS Comply
› Auto scan and select optimal channel
› 3GSDI & HDMI® HD video transmission
› 1.2km / 4000ft (Line-of-Sight) distance
› USB-C Video Capture out for PC/Mac
› H.265 up to 26.8Mbps visual lossless
› Consistent 32ms ultra low latenty
› Uncompromised 1T to 4R Multicast
› MetaData & TC trigger transmission
› High bright OLED display & configuration
› AES-256 dual encryption protection
› Dual Sided V-mount power and install
› 2-pin LEMO / USB-C Power Supply
Liferumfang:
1x Crew-V Tx + Rx4x Backup High Gain Antenna
4x Tags white
4x Tags yellow
2x D-Tap to 2-pin Lemo cable
2x USC-C to C cable
1x USB-A to C OTG
1x Carrying Case

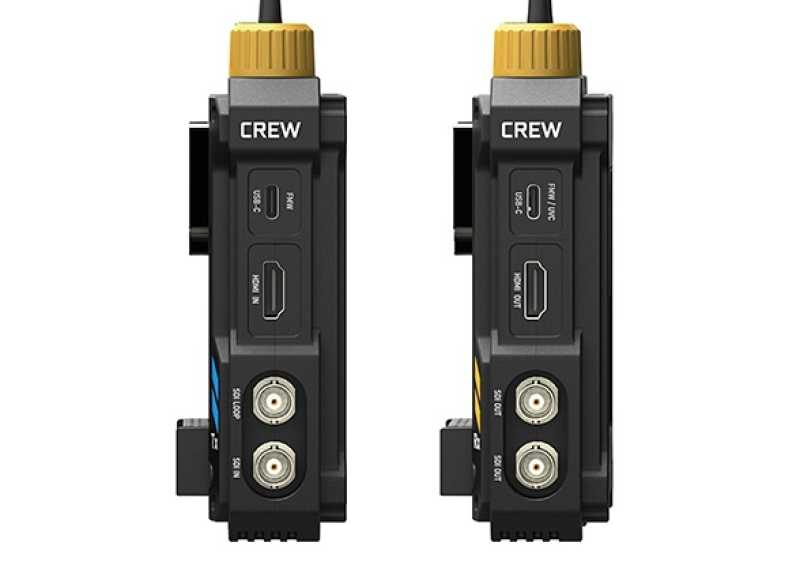

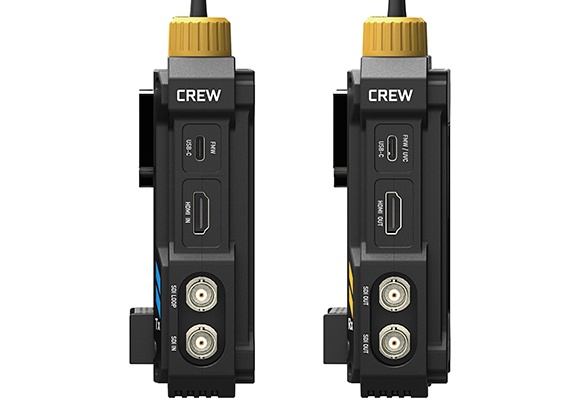

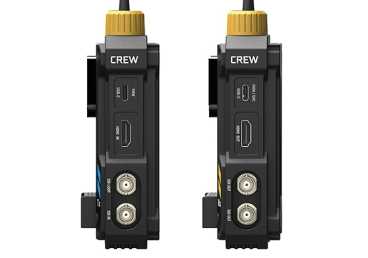

Input / Output
| Transmitter | SDI input×1, loop output ×1 |
|
| HDMI® input×1 |
| Receiver | SDI output×2 |
|
| HDMI® output ×1 |
|
| USB-C Video capture output ×1 |
Video Formats
| SDI / HDMI® | 1080p60, 1080p59.94, 1080p50 |
| 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; | |
| 1080psf23.98, 1080psf24, 1080psf25, 1080psf29.97, 1080psf30 | |
| 1080i60, 1080i59.94, 1080i50; | |
| 720p60, 720p59.94, 720p50 | |
| Compression | H.265 up to 26.8M bit-rate |
| Embedded Audio | 2-ch |
| Metadata | Yes |
| Timecode & Trigger | Yes |
Wireless
| Frequency | 5.17GHz-5.69GHz and 5.75GHz-5.83GHz |
| RF Modules | OFDM 16QAM, 64QAM, QPSK, BPSK |
| RF Power | 23dbm |
| Distance | 1.2km / 4000ft (Line of sight) |
| Latency | 32ms |
| Multicast | 1 Tx up to 4 Rx |
| Encryption | AES-256 |
Power
| Battery Plate | Tx & Rx: Dual sided V-mount |
| DC Input | Tx & Rx: 2-pin LEMO 7-17V |
| USB-C Input | Tx: 9V/2A; Rx: 5V/2A |
| Power Consumption | Tx: 16W, Rx: 6W |
General
| Environmental | -10°C to 40°C |
| Dimension | Tx & Rx: 130×85.9×44.8mm |
| Weight | Net: Tx:399g, Rx: 397g |
