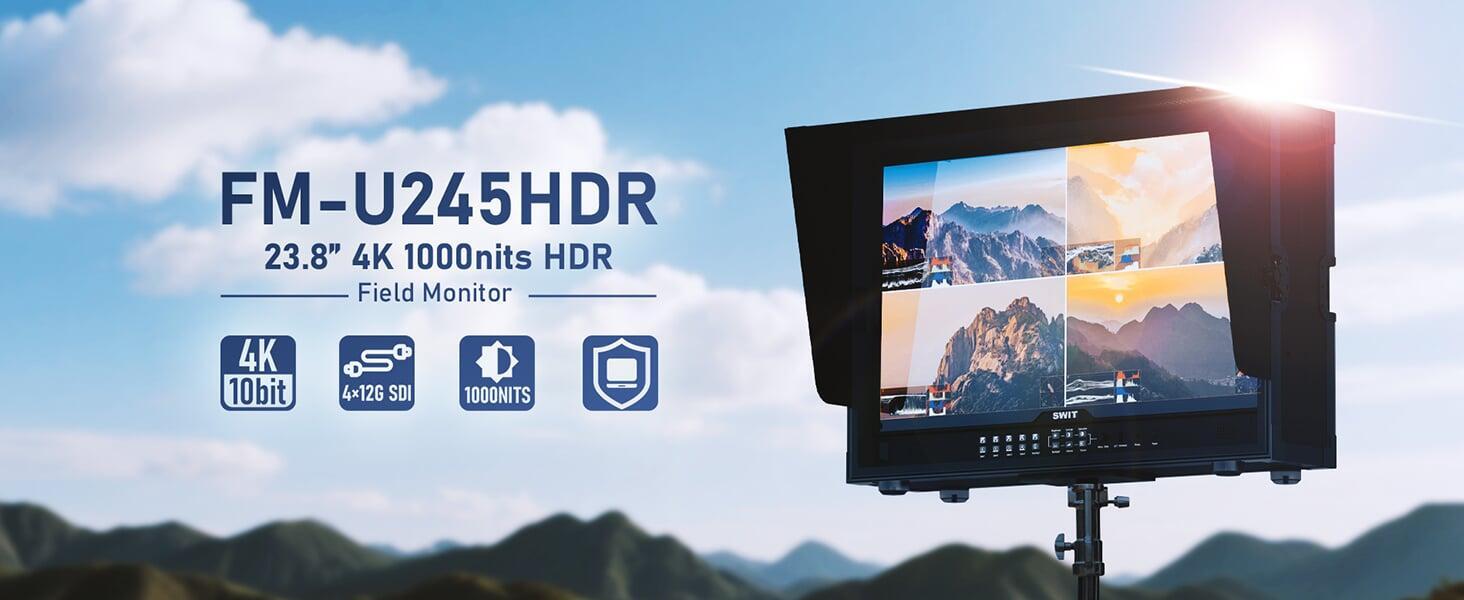

› 23.8-inch LCD Panel, 3840×2160 resolution
› 1000nits high bright LED backlight
› HLG/PQ/S-log3 HDR, Payload ID auto setting
› 12GSDI 4-in 4-out, 8K input ready, HDMI®2.0 input

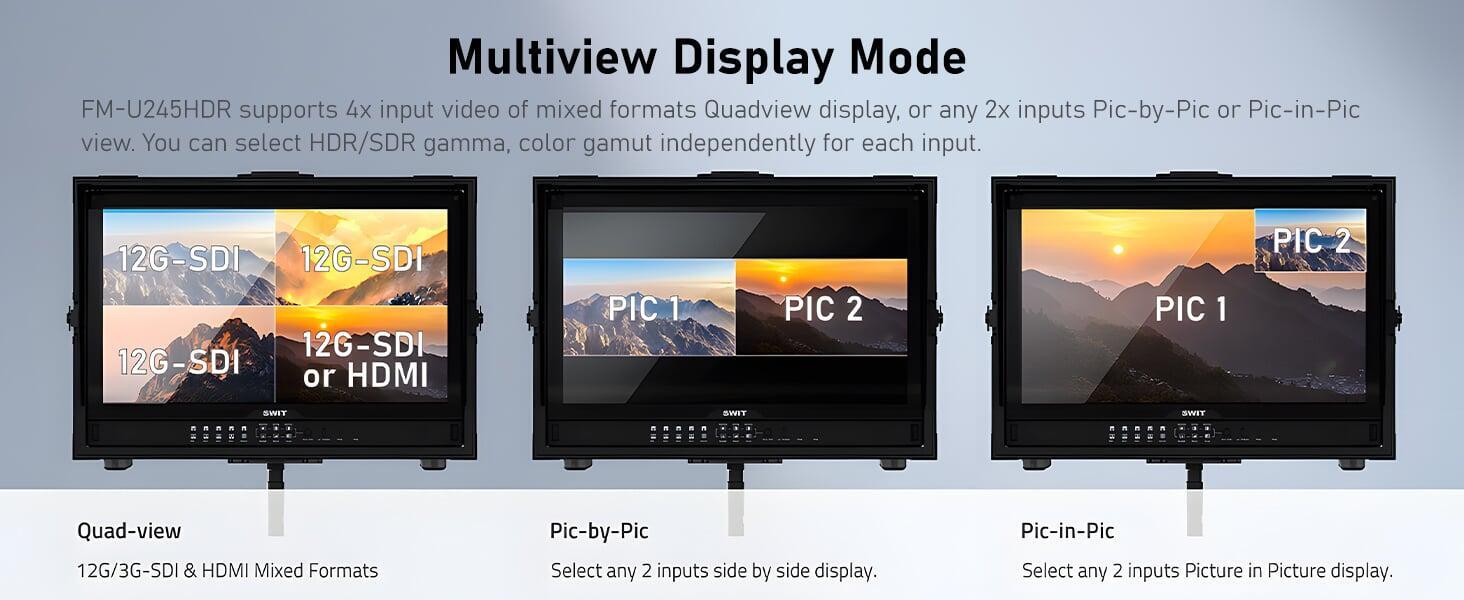

› Quad-view / Pic-by-Pic / Pic-in-Pic
› 3DLUT Auto Self-calibration without PC
› 18-bit and Zero latency video process

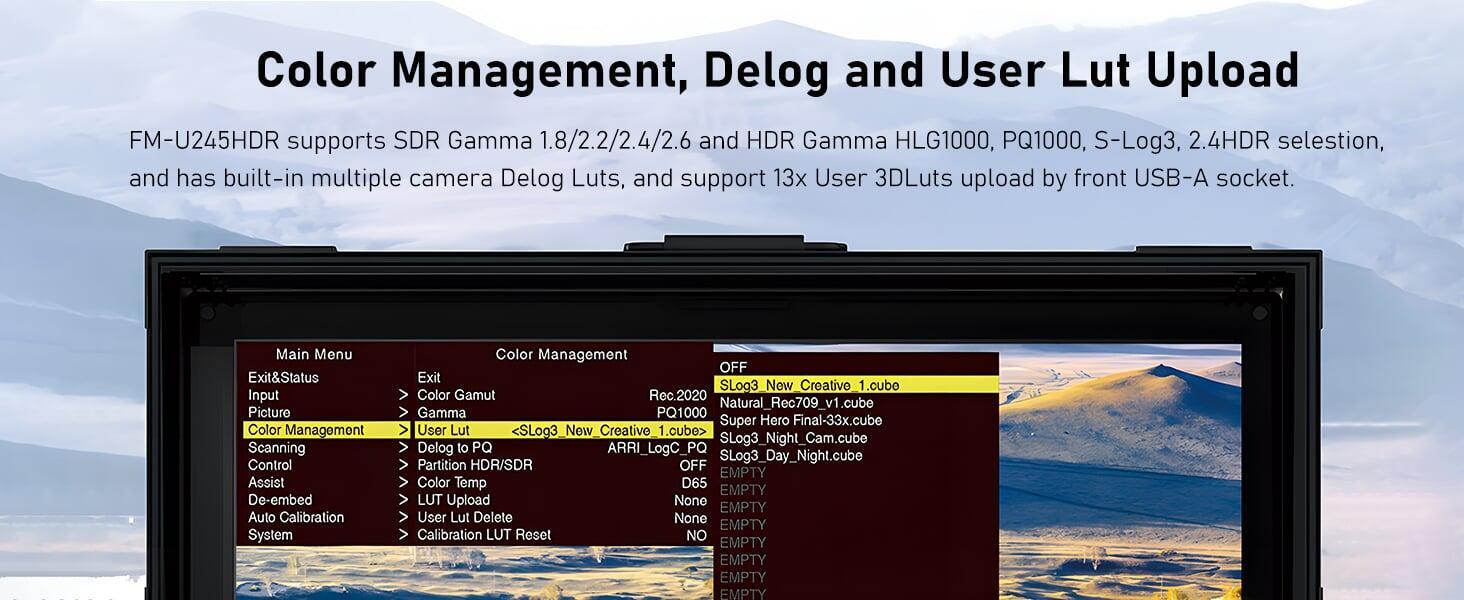

› Built-in Multi camera Delog LUTs
› 13× User 3DLuts Cubes Upload by USB-A

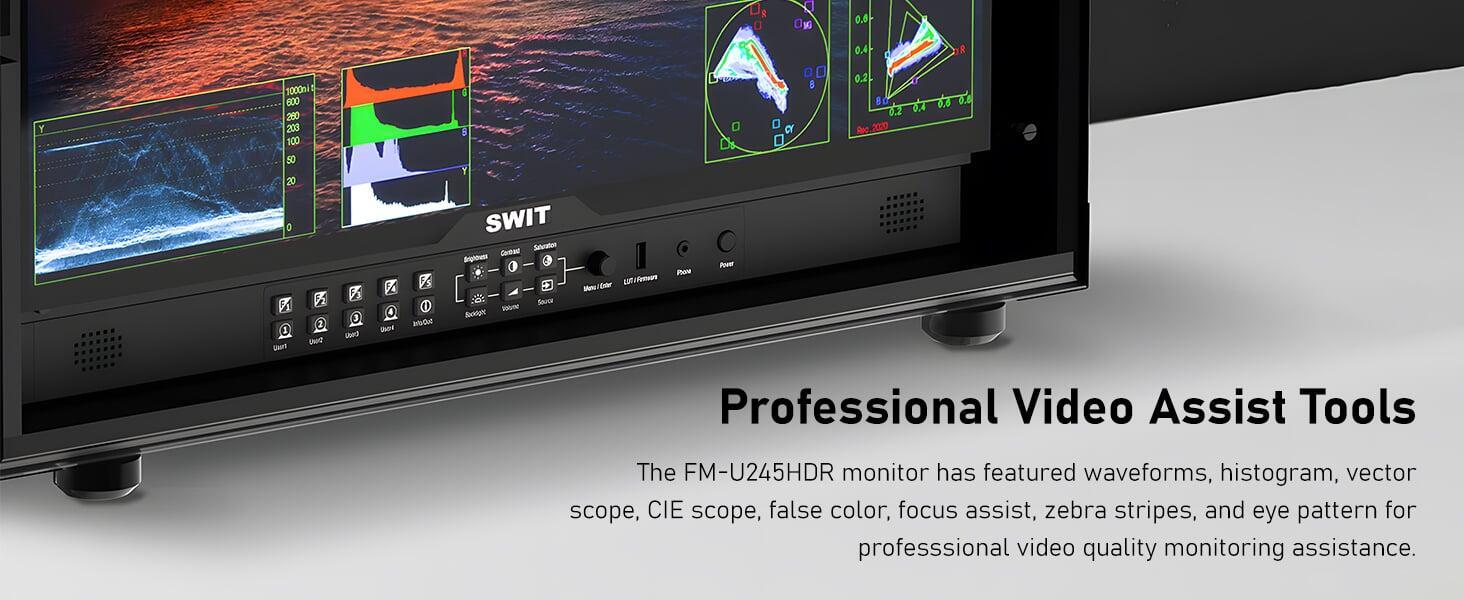

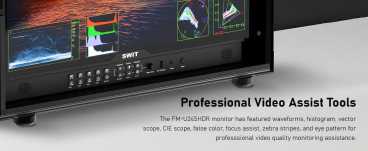

› Waveform / Vector Scope / CIE Scope / Histogram
› Eye Pattern / Focus Assist / Zebra / False Color

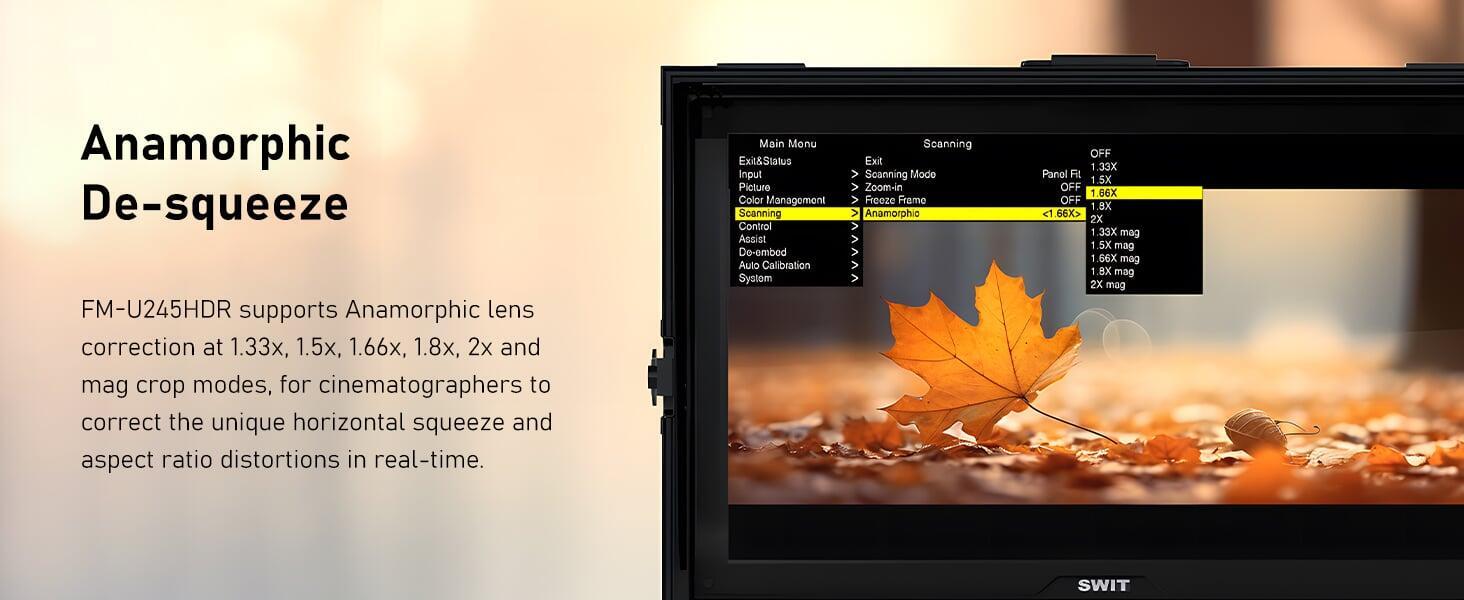

› Anamorpic De-squeeze 1.33/1.5/1.6/1.8/2/ MAG

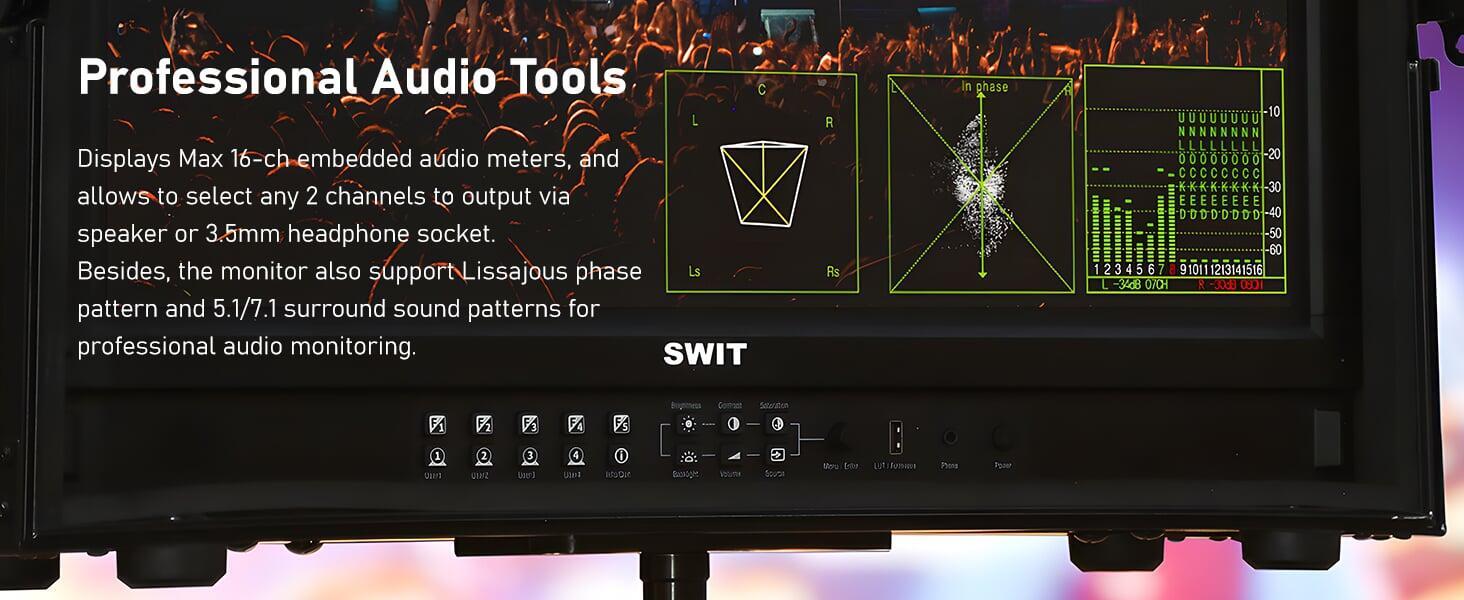

› Audio meters / Lissajous / 5.1&7.1 Surround pattern
› On-board V-mount battery plate

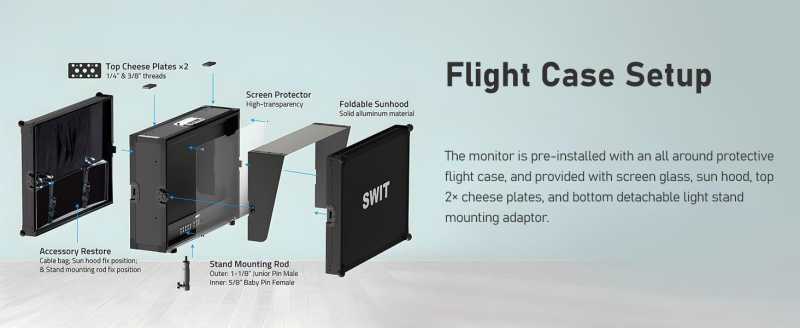

› Shipping with flight case and various accessories
› Junior & Baby double riser stand mounting
Lieferumfang:
Monitor FM-U245HDR
Flight Case
Sunhood

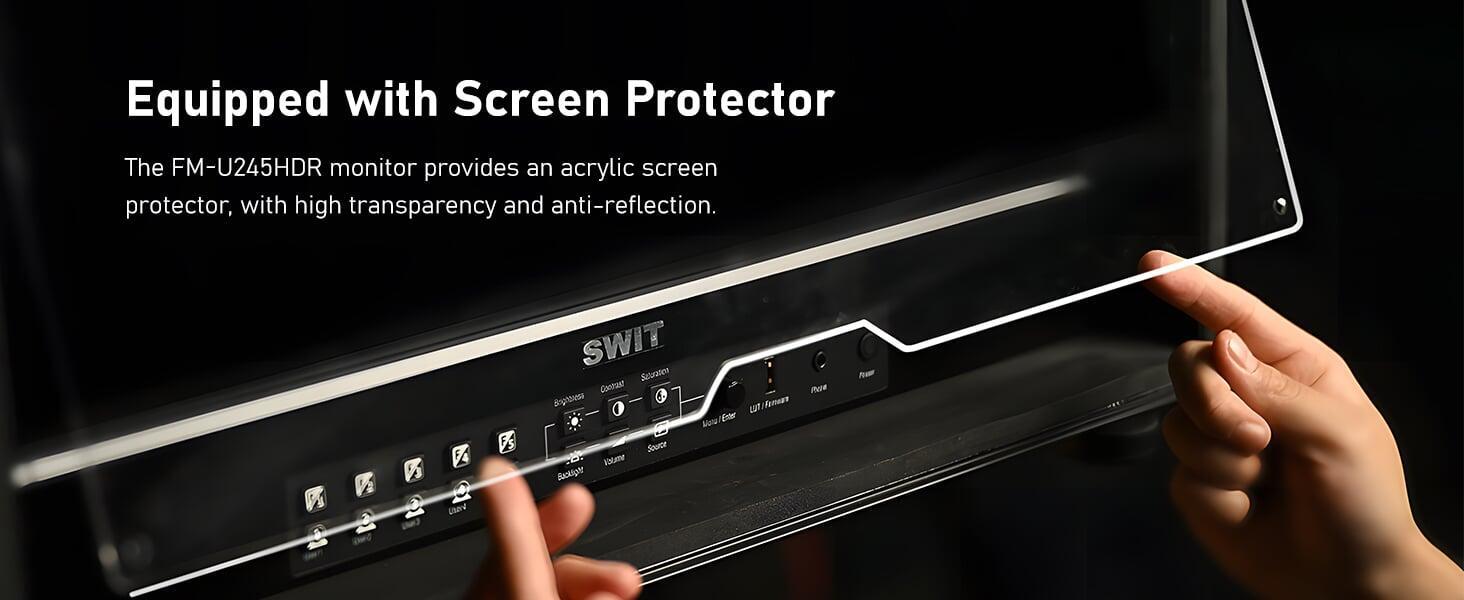

Screen Protector

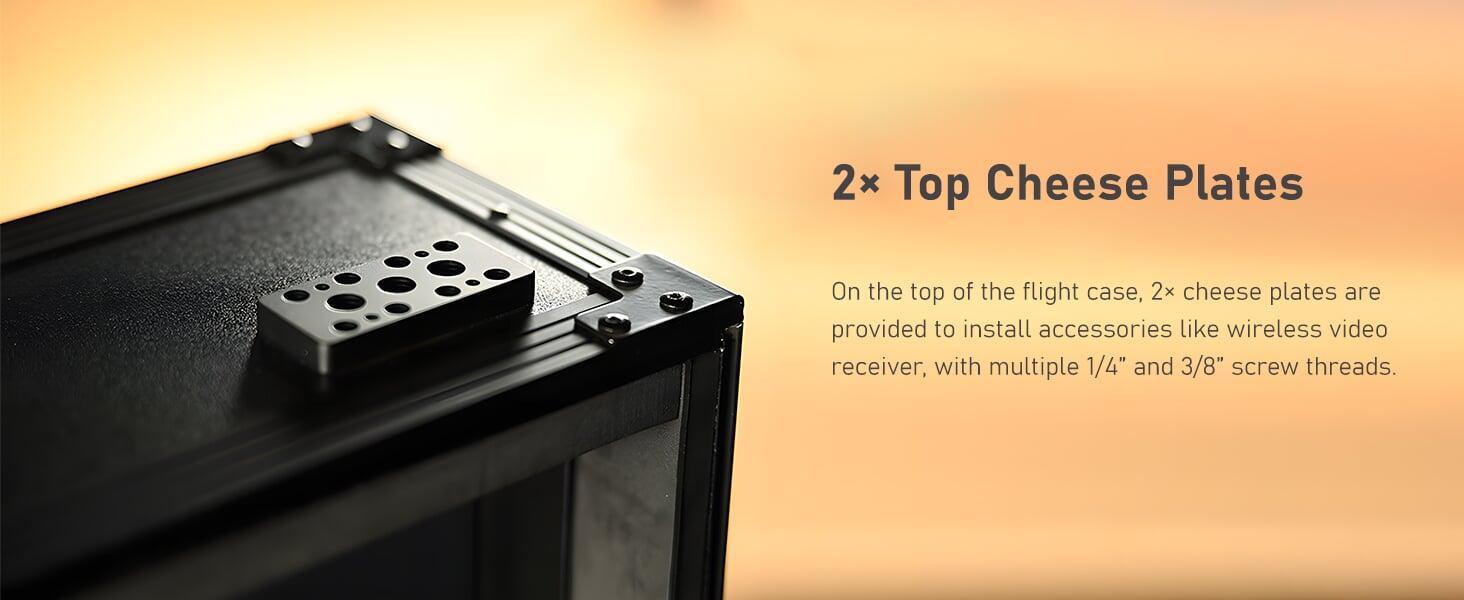

2x Cheese plates
Light Stand Rod
Technical Specifications
| Feature | Specification |
| Panel | 23.8” 10bit QLED |
| Resolution | 3840×2160 (UHD 4K) |
| Brightness | 1000nits |
| HDR Support | HLG1000, PQ1000, S-Log3, 2.4HDR |
| SDR Gamma | 1.8 / 2.2 / 2.4 / 2.6 |
| Inputs | 12G-SDI ×4, 3G-SDI Quadlink, HDMI 2.0 |
| Outputs | SDI loop-through |
| Multiview Modes | Quadview, Pic-by-Pic, Pic-in-Pic |
| Audio Monitoring | 16-ch meter, Lissajous, 5.1/7.1 surround |
| De-squeeze Ratios | 1.33x, 1.5x, 1.66x, 1.8x, 2x (MAG) |
| 3DLUT Upload | 13x user LUTs via USB-A |
| Mounting | Cheese plates, detachable light stand rod |
| Power Input | 14.4V V-mount, AC 100-240V, DC 12-17V XLR |
LCD Performance
| Size | 23.8 inches |
| Display area | 527.04×296.46mm |
| Resolution | 3840×2160 |
| Aspect ratio | 16:9 |
| Brightness | 1000nits |
| Contrast | 1000:1 |
| Color depth | 1.073G colors, 10-bit |
| Signal process | 18-bit |
| Viewing angle | 178°(H) /178°(V) |

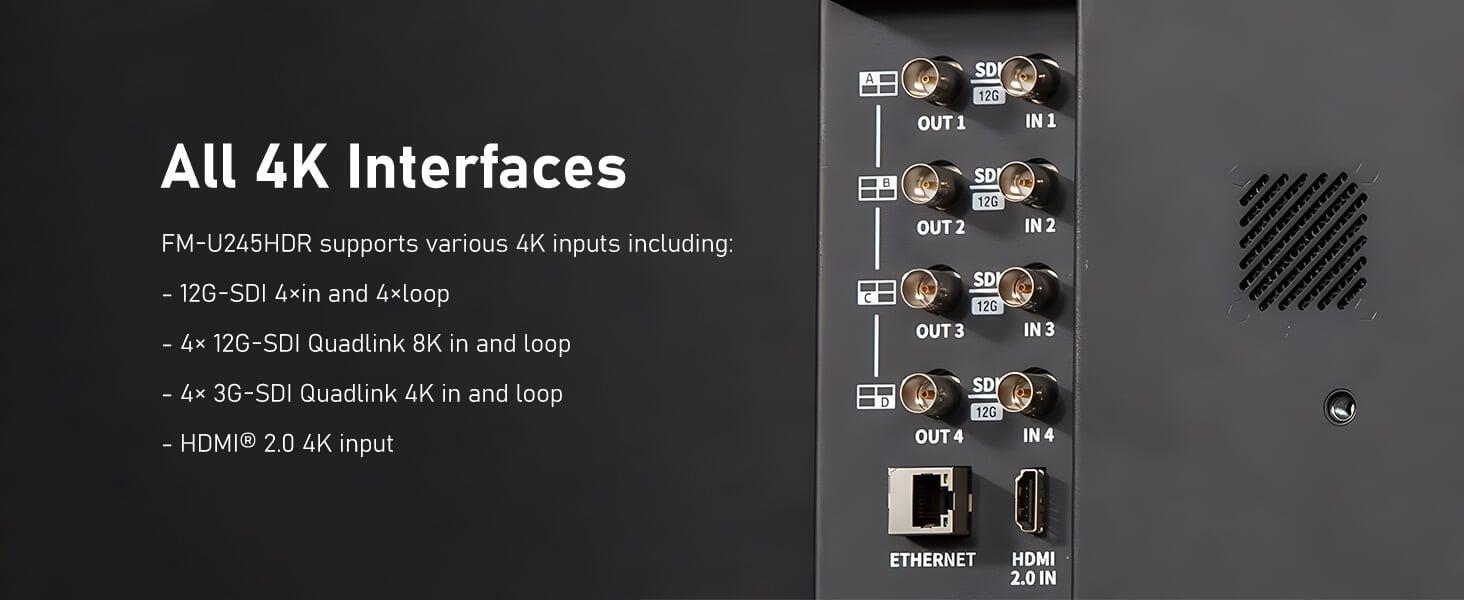

Input
| BNC ×4 | 12G/6G/3G/HD/SD-SDI input |
| HDMI® ×1 | HDMI® 2.0 input |
| SFP ×1 | Optical Fiber input (By optional SFP adaptor) |
| RS485 ×1 | TSL 3.1/4.0 UMD input |
| RS485 ×1 | GPI (Tally) input |
| RJ45 ×1 | 1000M Ethernet input for Webserver IP control |
Output
| BNC ×4 | 12G/6G/3G/HD/SD-SDI loop output |
| RS485 ×1 | TSL 3.1/4.0 UMD output |
| Analog audio | 3.5mm headphone and speaker |
Video Format
| SDI 1/2/3/4 | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080i (50 / 59.94 / 60) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576I (50) | |
| Quad Link 4K (Each channel) | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| Quad Link 8K (Each channel) | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| HDMI® | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) |
General
| Input voltage | AC 100-240V, 50/60Hz, DC 12-17V |
| Power consumption | 120W |
| Working temperature | 0°C～+50°C |
| Working humidity | 10%～90% |
| Storage temperature | -15°C～+60°C |
| Storage humidity | 10%～90% |
| Dimensions | Entire Flight Case 632×480×270mm Without front/rear covers 632×480×155mm |
| Net weight (main body) | With all accessories 21.1kg |
