Name: Swit FM-215HDR Demo-Gerät, QLED 4K Videomonitor, 21,5", Quadview, 12G-SDI, 4x 3G-SDI, mit Flight Case
SKU: Swit FM-215HDR, Demo-Gerät
Price: 1149.00 EUR
Availability: InStock

Startseite » STUDIOTECHNIK » Monitor über 10" » LCD/OLED » LCD 14" - 22,9" Zoll » Swit FM-215HDR Demo-Gerät, QLED 4K Videomonitor, 21,5", Quadview, 12G-SDI, 4x 3G-SDI, mit Flight Case

Preview: Swit FM-215HDR Demo-Gerät, QLED 4K Videomonitor, 21,5", Quadview, 12G-SDI, 4x 3G-SDI, mit Flight Case

Swit FM-215HDR Demo-Gerät, QLED 4K Videomonitor, 21,5", Quadview, 12G-SDI, 4x 3G-SDI, mit Flight Case

Mobile Preview: Swit FM-215HDR Demo-Gerät, QLED 4K Videomonitor, 21,5", Quadview, 12G-SDI, 4x 3G-SDI, mit Flight Case

NEU

-50%

Beschreibung

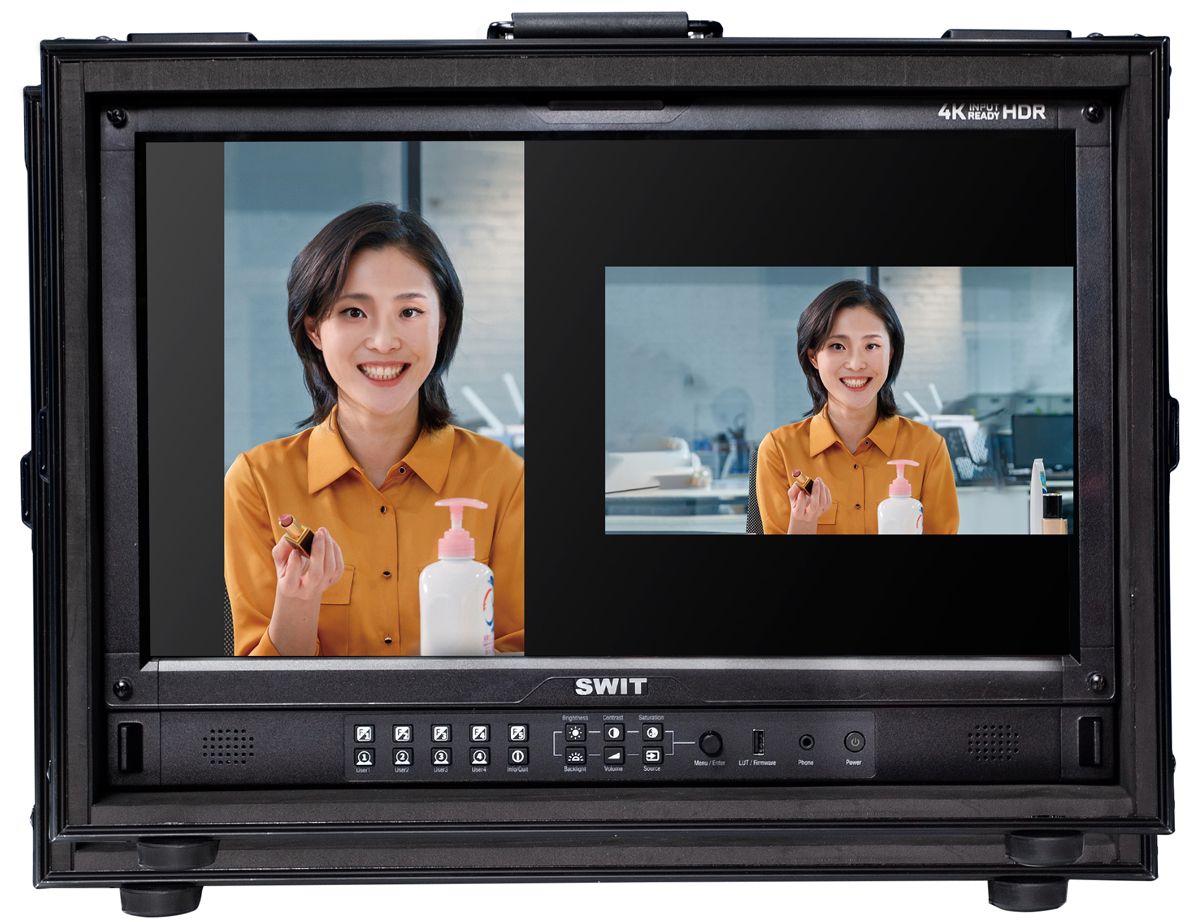

SWIT FM-215HDR, Demo-Gerät

21.5-inch 1920×1080 QLED Panel
1000nits high bright PQ/HLG HDR
100% DCI-P3 wide color gamut coverage
VICO 1.97 A-class Eye Protecting LCD
12G-SDI, 4x3G-SDI, HDMI®2.0 4K input
4-ch SDI/HDMI® mixed formats multiview
Any 2 inputs mixed PBP or PIP view
Horizontal and Vertical (cropped) PBP view
Zero latency video processing (0.01frame)
3DLUT Auto Self-calibration without PC
Built-in Multi camera Delog LUTs
User 3DLUTs upload via USB
Waveform / Focus assist / False color / Zebra
With flight case and screen protector
Optional VESA to C-stand adaptor

Mitgeliefertes Zubehör:
1x Flight Case
1x Schutzglas
1x Montageplatte mit 1/4" und 3/8" Bohrungen für Zubehör

Optionales Zubehör:

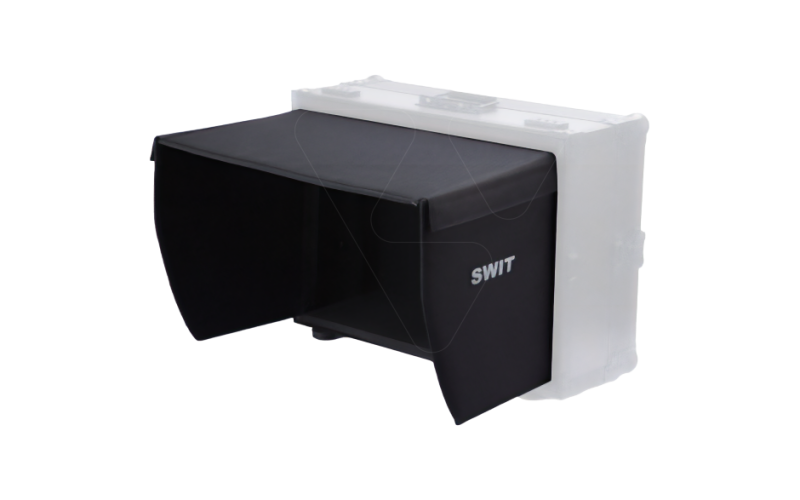

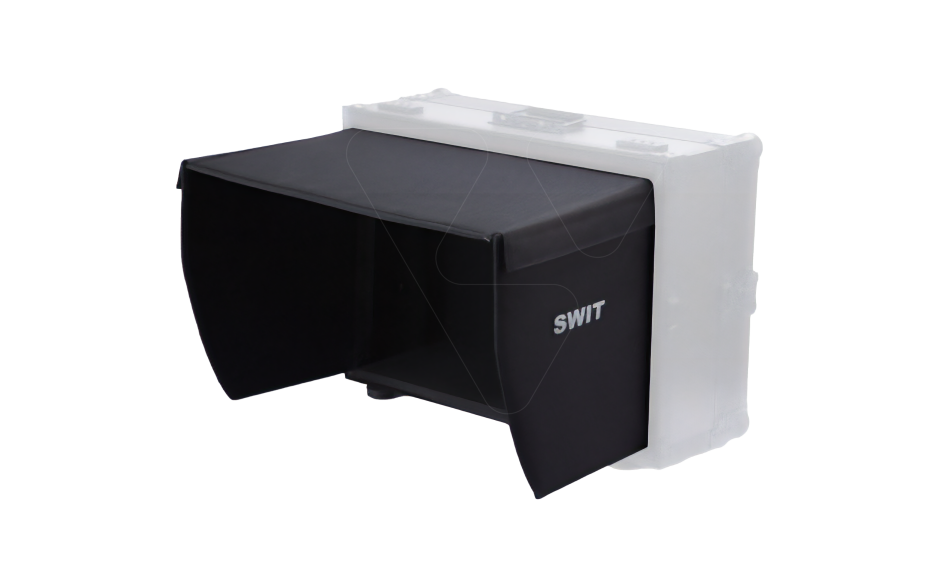

1x Swit MA-HC 215, Foldable Sunhood for FM-215HDR für € 128,- netto
1x C-Stand Bracket für € 99,- netto

Technische Daten

LCD Performance

Size	21.5 inches
Display area	476×268mm
Resolution	1920×1080
Aspect ratio	16:9
Brightness	1000nits
Contrast	1000:1
Color depth	10-bit
Signal process	18-bit
Viewing angle	178°(H) /178°(V)

Input

BNC ×1	12G/6G/3G/HD/SD-SDI input
BNC ×3	3G/HD/SD-SDI input
HDMI® ×1	HDMI® 2.0 input
RS485 ×1	TSL 3.1/4.0 UMD input
RS485 ×1	GPI (Tally) input
RJ45 ×1	1000M Ethernet input for Webserver IP control

Output

BNC ×1	12G/6G/3G/HD/SD-SDI loop output
BNC×1	3G/HD/SD-SDI loop output
RS485 ×1	TSL 3.1/4.0 UMD output
Analog audio	3.5mm headphone and speaker

Video Format

SDI 1	4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	2048×1080i (50 / 59.94 / 60)
	1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	1080i (60 / 59.94 / 50)
	1080psf (30 / 29.97 / 25 / 24 / 23.98)
	720p (60 / 59.94 / 50)
	480i (59.94), 576I (50)
SDI 2/3/4	2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	1080i (60 / 59.94 / 50)
	1080psf (30 / 29.97 / 25 / 24 / 23.98)
	720p (60 / 59.94 / 50)
	480i (59.94), 576I (50)
Quad Link 4K (Each channel)	2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
Quad Link 4K (Each channel)	1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
HDMI®	4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	1080i (60 / 59.94 / 50)
	720p (60 / 59.94 / 50)

General

Input voltage	DC 12V-17V, AC 100-240V, 50/60Hz
Power consumption	60W
Working temperature	0°C～+50°C
Working humidity	10%～90%
Storage temperature	-15°C～+60°C
Storage humidity	10%～90%
Dimensions	570×405×260mm (with case)
Net weight (main body)	14kg (with case)
