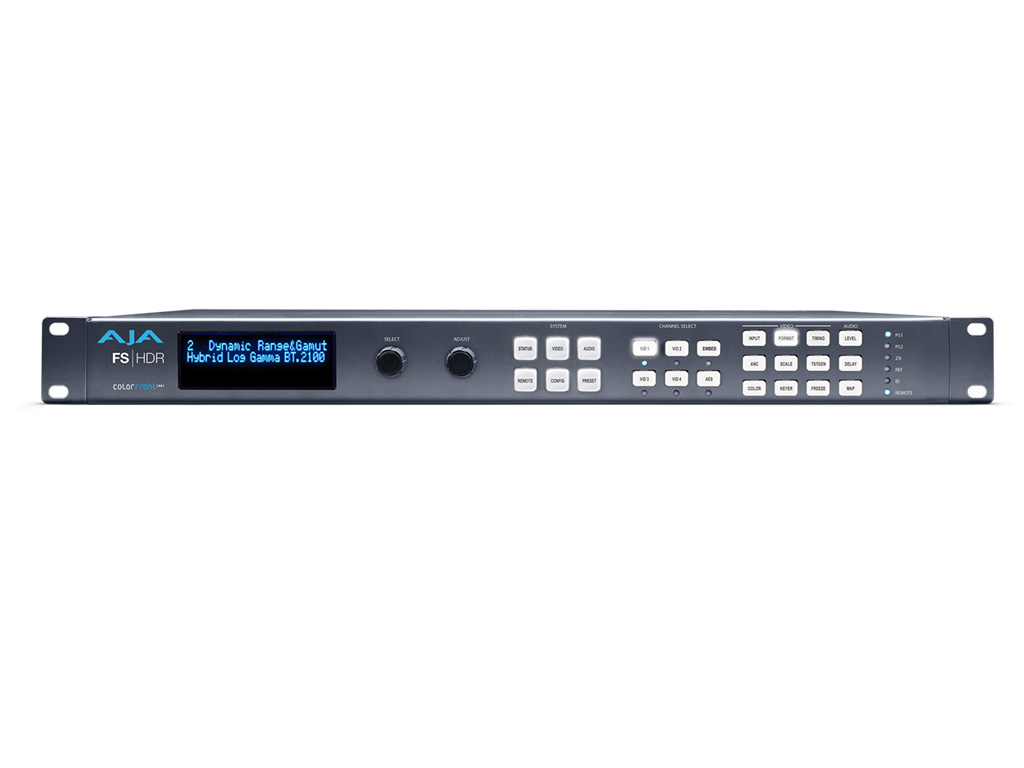

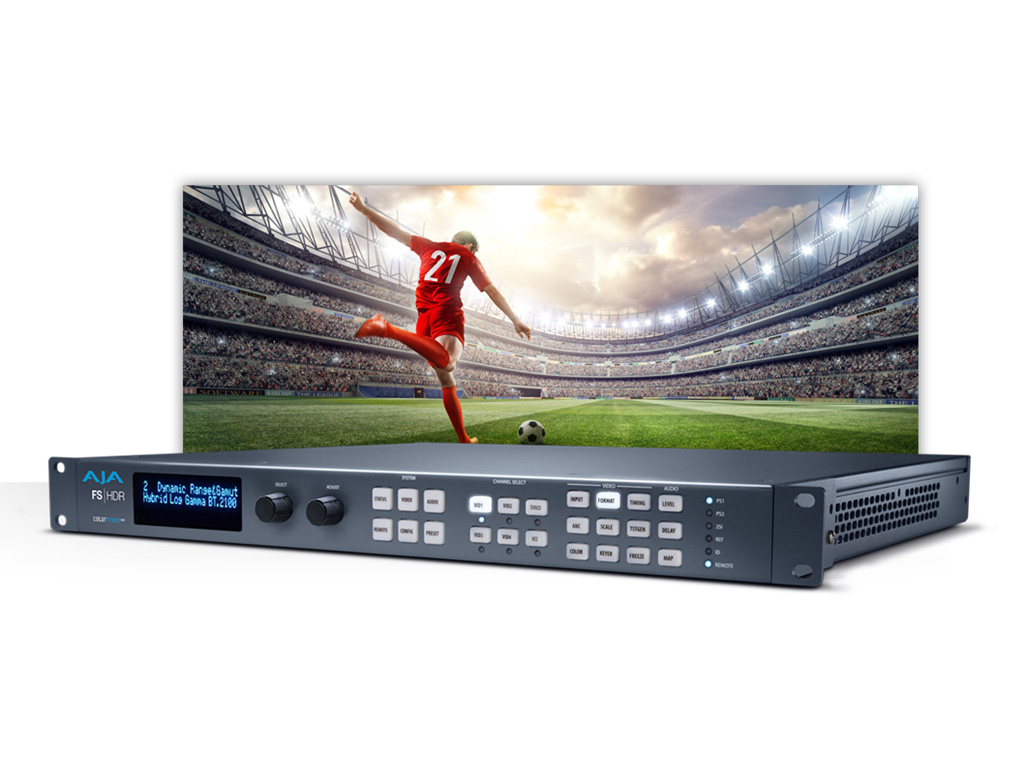

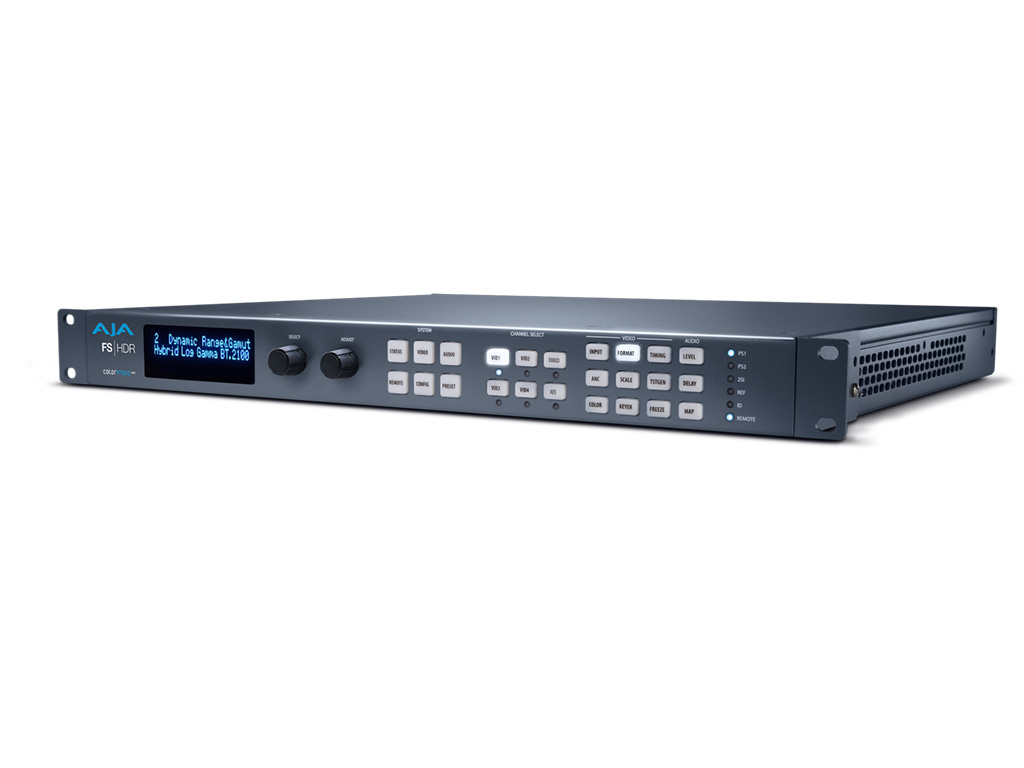

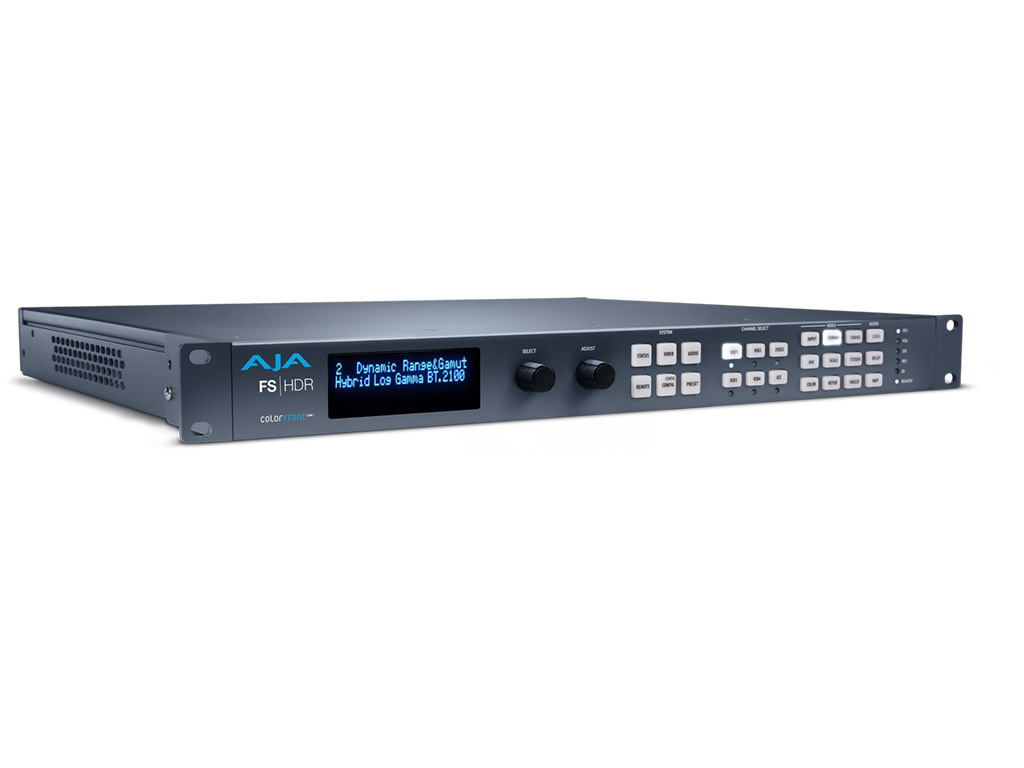

AJA FS-HDR, Frame Synchronizer und Konverter HDR & SDR

• Processing Based on Human Perception Model
• Perceptually optimized color volume remapping
• Preserves the original creative intent
• Input Dynamic Range/Color Gamut
  • SDR BT.709 100 Nits
  • PQ BT.2020 1000 Nits
  • PQ P3D65 1000 Nits
  • Hybrid Log Gamma BT.2100
  • Sony S-Gamut3/S-Log3
  • ARRI Log C Wide Gamut
  • Panasonic V-log
  • RED Log3G10 Wide Gamut
  • Canon Log 2
  • Canon Log 3
• Output Dynamic Range/Color Gamut
  • SDR BT.709 100 Nits
  • PQ BT.2020 1000 Nits
  • Hybrid Log Gamma BT.2100
  • Sony S-Gamut3/S-Log3
• HDR Conversions
  • HDR to HDR
  • HDR to SDR
  • SDR to HDR
• Colorimetry
  • Supports BT.709 and BT.2020

• Four Independent 2K, HD, or SD Video Processors
• One 4K, UltraHD, 2K, HD, or SD Video Processor

• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 1920 x 1080i 50, 59.94, 60
• (HD) 1280 x 720p 50, 59.94, 60
• (SD) 625i 50
• (SD) 525i 59.94
• YCbCr, 4:2:2, 10-bit

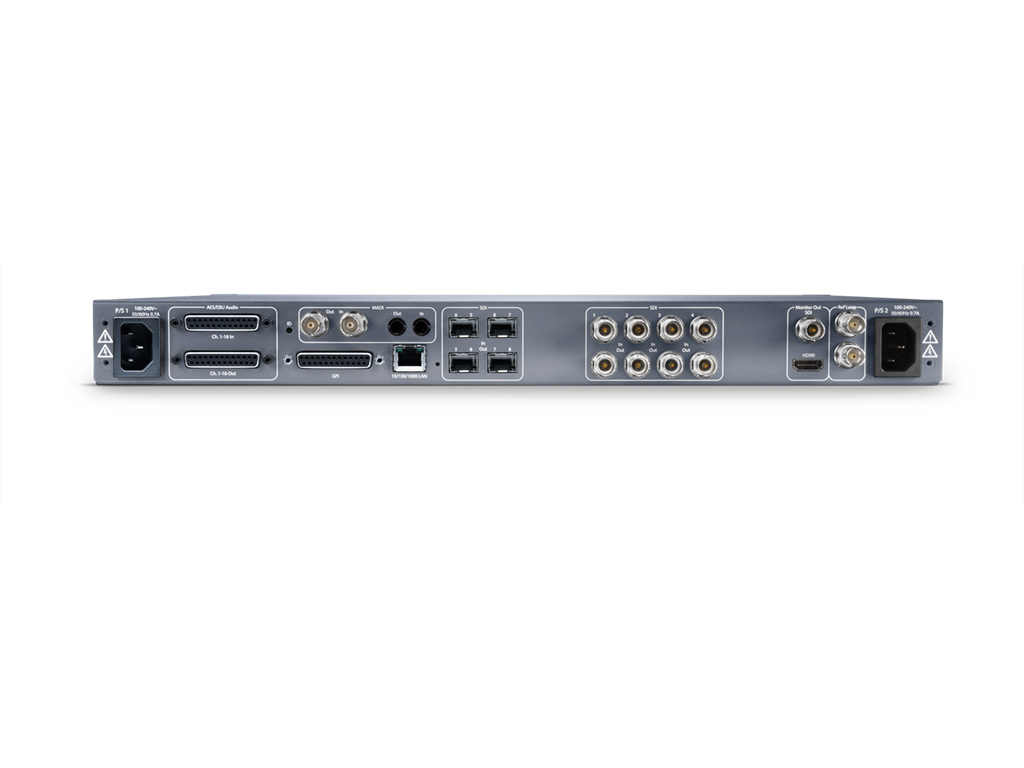

• 4 x 3G-SDI inputs, 4 x BNC
• 4 x 3G-SDI inputs, 4 x Fiber or HD-BNC (optional SFP modules)
  • SFP fiber modules, 3G-SDI, dual LC, single LC, or single SC, SMPTE-297
  • SFP fiber module, 12G/6G-SDI, dual LC, SMPTE-297
  • SFP coax module, 12G/6G-SDI, dual HD-BNC
• 12G/6G/3G/HD/SD, SMPTE-259/292/424/2081/2082
  • Single Link 12G/6G-SDI (with optional SFP module)
  • Quad Link 3G-SDI Level A or B-DL (4 x 3G), SMPTE-425-5
  • Dual Link 3G-SDI Level B-DS (2 x 3G), SMPTE-425-3
  • Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425
  • Quad Link HD-SDI (4 x 1.5G)
  • Dual Link HD-SDI (2 x 1.5G), SMPTE-372
  • Single Link HD/SD
• Quadrant (Square Division) or 2SI (Two Sample Interleave) 4K/UltraHD input pixel mapping
• 8 x 1 selector feeds video processor(s)

• 4 X 3G-SDI outputs, 4 x BNC
• 4 x 3G-SDI outputs, 4 x fiber or HD-BNC (optional SFP modules)
  • SFP fiber modules, 3G-SDI, Dual LC, Dual LC CWDM, Single LC, or Single SC, SMPTE-297
  • SFP fiber module, 12G/6G-SDI, dual LC, SMPTE-297
  • SFP coax module, 12G/6G-SDI, dual HD-BNC
• 12G/6G/3G/HD/SD, SMPTE-259/292/424/2081/2082
  • Single Link 12G/6G-SDI (with optional SFP module)
  • Quad Link 3G-SDI Level A or B-DL (4 x 3G), SMPTE-425-5
  • Dual Link 3G-SDI Level B-DS (2 x 3G), SMPTE-425-3
  • Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425
  • Quad Link HD-SDI (4 x 1.5G)
  • Dual Link HD-SDI (2 x 1.5G), SMPTE-372
  • Single Link HD/SD
• Quadrant (Square Division) or 2SI (Two Sample Interleave) 4K/UltraHD output pixel mapping

• 1 x BNC, 1 x 3G-SDI output
  • 3G-SDI/HD/SD, SMPTE-259/292/424, 10-bits
• 1 x HDMI, 1 x HD output
  • 2K/HD/SD, HDMI v1.4a
  • No HDR Infoframe generation
• Monitored Video Processor output (video and audio) is simultaneously output on both connectors
• 4K/UltraHD down-converted to 2K/HD
• Crop control on HDMI output

• Motion adaptive deinterlacer
• Proc amp controls
• Color corrector
• Legalizer
• Frame rate conversion/film cadence removal/insertion (3:2, 1:2, 2:1, 2:3)
• Adjustable delay 0-6 frames with H and V timing controls in lines and pixels
• Closed Captioning conversion (CEA-608/CEA-708)
• AFD input detection, down-convert control, and output pass through or overwrite
• Freeze (manual or on input signal loss) to black or last good frame
• Matte generator for background fill
• Video test generator
• Nominal video delay HD/SD, 2 frames (LFR), 4 frames (HFR)

• 59.94, 29.97, 23.98
• 50, 25
• 60, 30, 24

• Zoom in and out
• Reposition
• Region of Interest (ROI)

• Hardware 10-bit
• Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
• Zoom Letterbox: results in image zoomed to fill fullscreen
• Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting will introduce a small aspect ratio change

• Hardware 10-bit
• Anamorphic: fullscreen
• Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
• Crop: image is cropped to fit video output format

• Letterbox: Transforms SD anamorphic material to a letterboxed image
• H Crop: Produces a horizontally stretched effect on the image; transforms anamorphic SD to full frame
• SD Pillarbox: Produces an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
• V Crop: Transforms SD letterbox material to an anamorphic image

• 48 kHz sample rate
• 8 x SDI embedded inputs (16-Channels each)
  • 128-Channels, 24-bit (20-bit SD), SMPTE-272/299
• 8 x balanced AES inputs (16-Channels), 1 x DB-25
  • 16-Channels, 24-bit, AES-3
• 2 x MADI inputs, 1 BNC, 1 x ST Fiber
  • 128-Channels, 24-bit, AES-10

• 48 kHz sample rate
• 1 x SDI embedded output per Video Processor (16-Channels each)
  • 16-Channels (in single Video Processor mode), 24-bit (20-bit SD), SMPTE-272/299
  • 64-Channels (in four Video Processor mode), 24-bit (20-bit SD), SMPTE-272/299
• 8 x balanced AES outputs (16-Channels), 1 x DB-25
  • 16-Channels, 24-bit, AES-3
• 2 x MADI outputs, 1 BNC, 1 x ST Fiber
  • 128-Channels, 24-bit, AES-10

• 277 x 208 mono audio matrix, route 1 to 1, 1 to many
  • Inputs:  128 embedded, 16 AES, 128 MADI, 2 stereo mixdowns, 3 tone generator
  • Outputs (Four Channel mode): 16 AES, 128 MADI, 64 embedded
  • Outputs (Single Channel mode): 16 AES, 128 MADI, 16 embedded
• Input adjustment controls for each channel
  • Gain +18 to -18 dB in 0.5 dB steps
  • Phase invert
• Input adjustment controls for each channel pair
  • Delay -16ms to +1sec in 20.8 us steps
• Two independent 5.1 or 7.1 to stereo mixdown processors with gain adjust
• High quality Sample Rate Conversion supported on all audio inputs
• SRC bypass for non-PCM audio (e.g. Dolby E, AC-3, etc)
• Audio tone generator (mute, 400 Hz, 1 kHz)

• Looping, nonterminating
• Blackburst or tri-level sync

• Lock to External Reference
• Lock to SDI input 1 thru 8
• Free run based on Temperature Compensated Crystal Oscillator

• 1 x RJ-45, 10/100/1000 Ethernet
• Embedded web server for remote control
• SNM

• Display
• Keypad with status LEDs
• Two rotary/push knobs
• Comprehensive alarm indicators

• 1 x 25-pin D-Connector
• Four optically isolated GPI inputs
• Four optically isolated GPO outputs

7.9 lb (3.6 kg)

100-240 VAC 50/60 Hz (Dual, redundant power supplies), 55W typical; 70W max.

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
