AJA BRIDGE LIVE 12G-4, Multi-Channel 4K Encoding, Decoding, Transcoding und Streaming
NEU
TOP
-10%

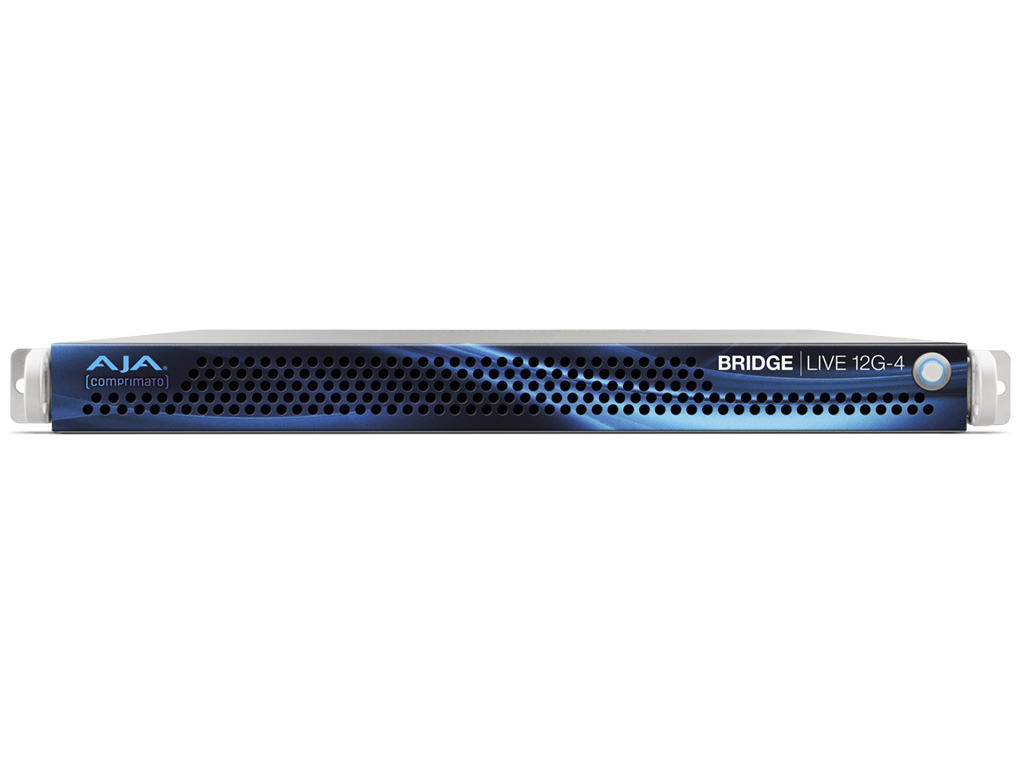

AJA BRIDGE LIVE 12G-4
ist die neue Workflow-Lösung von AJA für hochdichtes Encoding, Decoding, Transcoding, Streaming und Remote-Produktion. Sie verfügt über vier bidirektionale 12G-SDI-Ports für Mehrkanal-UltraHD-Workflows und unterstützt eine Vielzahl von Codecs und Protokollen, darunter H.264, H.265, NDI, JPEG 2000, JPEG XS, SRT, RTMP und HLS. Entwickelt in Zusammenarbeit mit Comprimato, optimiert BRIDGE LIVE 12G-4 den Transport, das Streaming und die Zuspielung von Mehrkanal-UltraHD-Videos über eine benutzerfreundliche und funktionsreiche Oberfläche, die lokal oder im LAN zugänglich ist.
Hauptmerkmale:
ist die neue Workflow-Lösung von AJA für hochdichtes Encoding, Decoding, Transcoding, Streaming und Remote-Produktion. Sie verfügt über vier bidirektionale 12G-SDI-Ports für Mehrkanal-UltraHD-Workflows und unterstützt eine Vielzahl von Codecs und Protokollen, darunter H.264, H.265, NDI, JPEG 2000, JPEG XS, SRT, RTMP und HLS. Entwickelt in Zusammenarbeit mit Comprimato, optimiert BRIDGE LIVE 12G-4 den Transport, das Streaming und die Zuspielung von Mehrkanal-UltraHD-Videos über eine benutzerfreundliche und funktionsreiche Oberfläche, die lokal oder im LAN zugänglich ist.
Hauptmerkmale:
- 4x bidirektionale 12G-SDI-Ports für UltraHD I/O in 1RU
- Unterstützung für H.264, H.265, MPEG-2, NDI (JPEG 2000 & JPEG XS optional per Lizenz)
- Synchrone Multi-Channel-/Multi-System-Übertragung mit Genlock und Timing-Alignment
- Bi-directional NDI↔SDI-Konvertierung (Full & HX)
- Adaptive Bitrate (ABR) Encoding direkt aus SDI-Quellen
- HLS Input/Output für CDN und mobile Endgeräte (iOS, tvOS)
- Streaming-Protokolle: RTMP/RTMPS, RTP, UDP, SRT (inkl. Verschlüsselung), HLS, VSF TR-01, TR-07
- Videoverarbeitung: Cropping, Padding, Resizing, Deinterlacing, Framerate-Konvertierung, Logo-Insertion
- Audioverarbeitung: Remapping, Gain, Sample Rate Conversion, Up-/Downmix (Stereo ↔ 5.1)
- Redundante Netzteile und duale 10 GigE-Anschlüsse
Hersteller-Nr. BLVE-12G-4
EAN: 812321033311
BRIDGE LIVE & BRIDGE LIVE 12G-4 SDI Video Formats
- (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1080i 50, 59.94, 60
- (HD) 720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
- 12G-SDI, SMPTE ST 2082, 10-bit
- 6G-SDI*, SMPTE ST 2081, 10-bit
- 3G-SDI, SMPTE ST 424, 10-bit
- 1.5G-SDI, SMPTE ST 292M, 10-bit
- 270 Mbit/s SDI, SMPTE ST 259M-C, 10-bit
*Only Ultra-HD 2160-line single link is supported, as defined in SMPTE ST 2081-1 and SMPTE ST 2081-10
BRIDGE LIVE 3G-8 SDI Video Formats
- (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1080i 50, 59.94, 60
- (HD) 720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
- 3G-SDI, SMPTE ST 424, 10-bit
- 1.5G-SDI, SMPTE ST 292M, 10-bit
- 270 Mbit/s SDI, SMPTE ST 259M-C, 10-bit
Video Color Component Sampling
- SDI
- YCbCr, 4:2:2, 10-bit
- Transport Streams
- YCbCr, 4:2:2, 10-bit/8-bit
- YCbCr, 4:2:0, 10-bit/8-bit
- NDI
- P216, 4:2:2, 16-bit
- UYVY, 4:2:2, 8-bit
Video Codecs
- H.264 (AVC, MPEG-4)
- H.265 (HEVC)
- JPEG 2000 (VSF TR-01)
- H.262 (MPEG-2)
- NDI
- JPEG XS (VSF TR-07)
Audio Streams/Codecs
- AAC-LC (ADTS, LATM)
- AAC-HE (ADTS, LATM)
- AAC-HE v1 & v2 (ADTS, LATM)
- AC3
- E-AC3 (input)
- Dolby E pass-through
- MPEG-2 Audio
- NDI (uncompressed float)
- Uncompressed PCM multi-channel (SMPTE ST 302M-2007)
Metadata
- MPEG-2 ancillary packet support (SMPTE ST 2038)
- HDR over SDI end-to-end via VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry, and Luminance
- Closed Captioning (EIA-608/708)
- Line 21 Captions
- Metadata pass-through
- SCTE-35, SCTE-104
- Subtitles embedded within H.264 SEI messages
- Timecode embedded within HEVC and H.264 SEI messages
- Electronic program guide (EPG) on input
Containers and Protocols
- HLS (input)
- AVC TS segments
- Fragmented MP4
- HLS (output)
- AVC TS segments
- MPEG-TS
- MPTS (input)
- RTMP
- RTMPS (output)
- RTP, UDP
- SRT (including encryption)
- VSF TR-01
- VSF TR-07
Video Processing
- Auto Color Component Sampling based on I/O settings
- Cropping / Padding
- Color adjustments
- Deinterlacing
- Frame rate 50% down-conversion (60p->30p, 59.94->29.97, 50p->25p)
- Frame rate up-conversion (50i->50p)
- Logo insertion
- Resizing
Audio Processing
- Channel Remapping
- Gain
- Sample Rate conversion
- Up/Down-mixing (e.g., 5.1 to stereo and vice versa)
Synchronization
- Input PCR
- Global configuration (in separate transport stream)
- Local configuration (in each transport stream)
- Output PTS
- Pass-through
- Add offset to input PTS
- NTP
- Encoder Synchronous Multi-Channel Transport
- PCR
- Decoder Synchronous Multi-Channel Transport
Audio Input Digital
- 16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous per SDI connection
Audio Output Digital
- 16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous per SDI connection
Configuration and Monitoring
- Local “Kiosk” interface (keyboard, mouse, and monitor)
- Remote access via Browser
- REST API
- SNMP
BRIDGE LIVE & BRIDGE LIVE 12G-4 Form Factor
- 1RU turnkey system
- 4x full-size BNC (12G/6G/3G/1.5G-SDI compatible)
- 2x 10 GigE
- Local interface via Display Port and USB
- OS custom image
- Update and license via download
BRIDGE LIVE 3G-8 Form Factor
- 1RU turnkey system
- 8x Din 1.0/2.3 (3G-SDI compatible)
- 2x 10 GigE RJ-45
- Local interface via Display Port and USB
- OS custom image
- Update and license via download
Size (w x d x h)
- 17.2” x 16.9" x 1.7" (436.88 x 429.26 x 43.18 mm)
Weight
- 28 lb. (12.7kg) in box
- 18 lb. (8.2kg) server only
Power
- 100-240 VAC 50/60 Hz (Dual, redundant power supplies)
- 190W typical, 245W Maximum
Environment
- Safe Operating Temperature: 5 to 35 C (41 to 95 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 8-90% noncondensing
- Nonoperating Relative Humidity: 5-95% noncondensing
