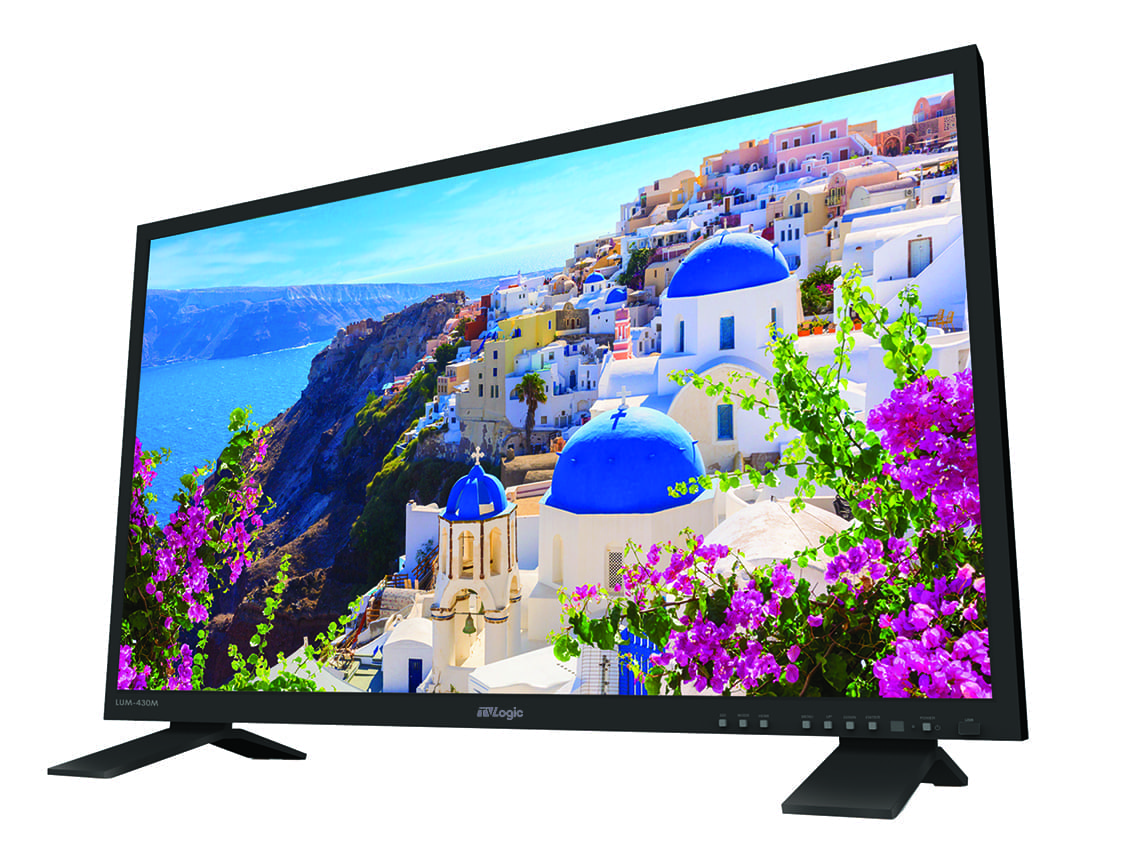

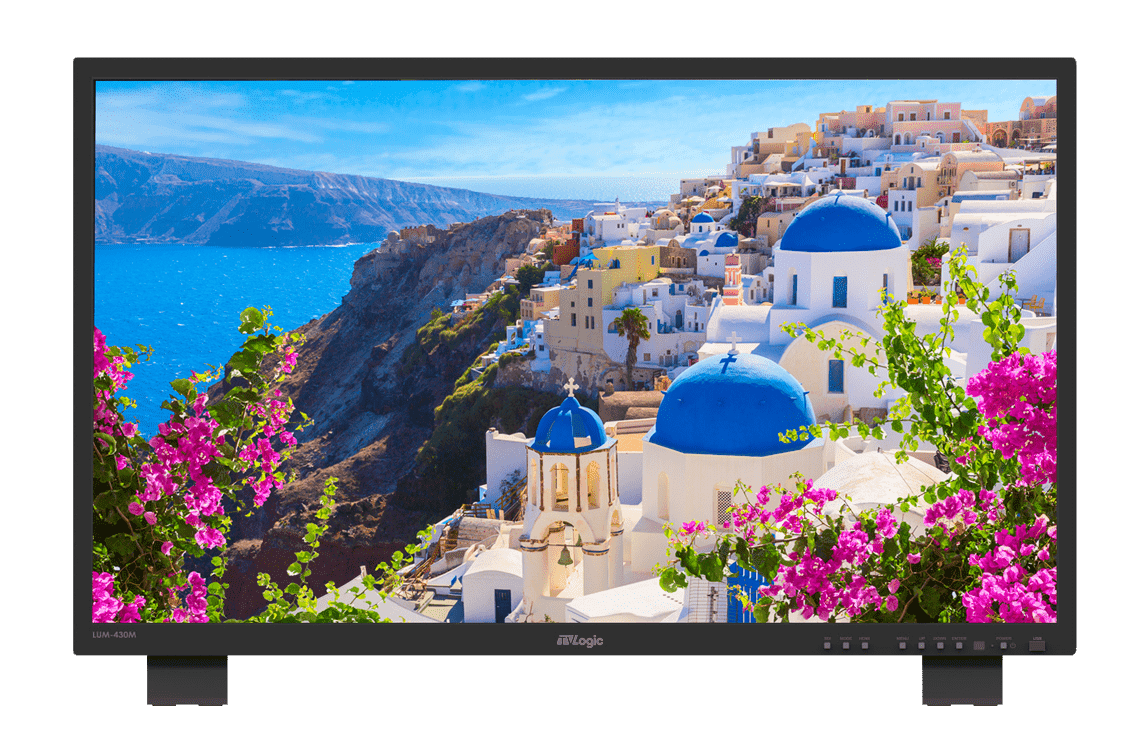

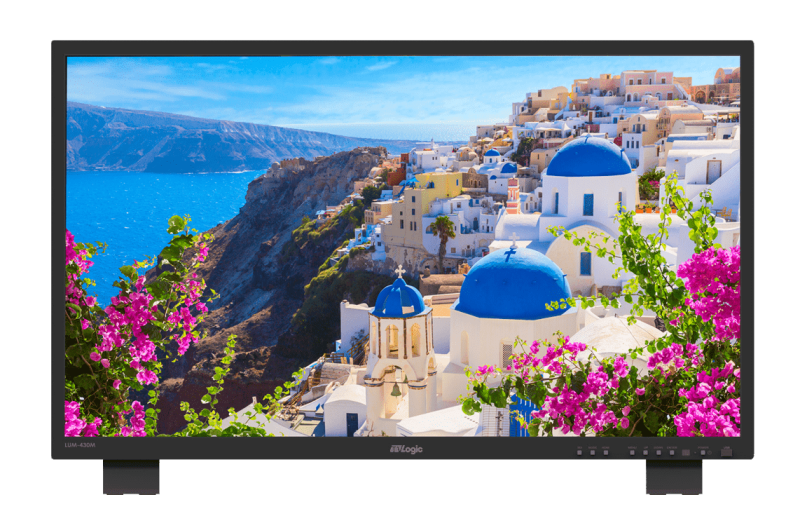

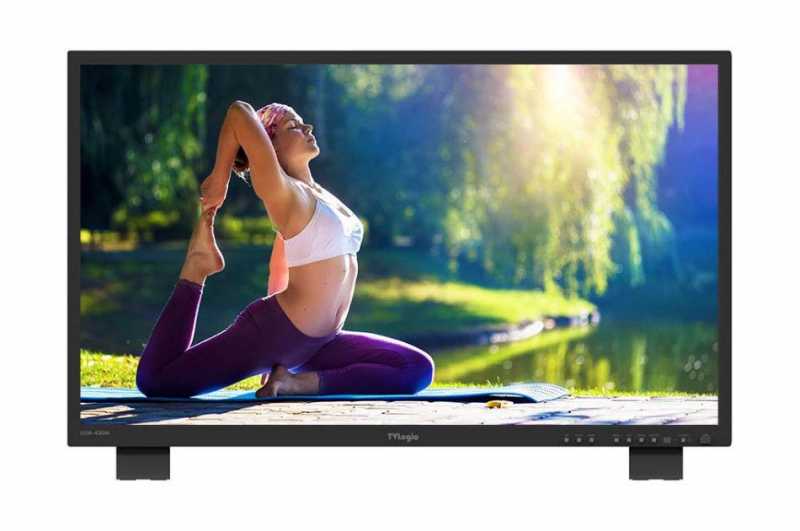

TVLogic LUM-430M3, 43" 4K UHD LCD Monitor, 3840x2160, 3G/6G/12G-SDI, HDMI 2.0, HDR Emulation
TOP
-5%
TVLogic LUM-430M3
Hauptmerkmale
- 4K UHD 3840x2160 Pixel
- Slim Bezel
- Leuchtdichte 350 cd/m² und Kontrast 1000:1
- 4x3G-SDI, 1x12G-SDI, 1xHDMI2.0
- 10bit Farbtiefe
- 4 Input Quad Mode
- 2 Sample Interleave Mode
- Time Code Display
- Audio Level Meter
- IR Remote Control
- HDR Emulation
- Closed Captioning
Main Body Dimensions
Main Body 985 x 587 x 87.4(mm) / 38.77 x 23.11 x 3.44(inch)
With Body 985 x 636.4 x 245(mm) / 38.77 x 25.05 x 9.64(inch)
Weight 23.0kg / 50.70lbs
Optional erhältlich:
TVLogic LUM-550M3 € 5.999,00
TVLogic LUM-550H € 6.099,00
Optional erhältlich:
TVLogic LUM-550M3 € 5.999,00
TVLogic LUM-550H € 6.099,00
Shipping specifications
| Brand | TVLogic |
|---|---|
| Itemcode | 2605.0346 |
| Bruto weight | 35 |
| Net weight | 23 |
| HS code | 8528529100 - Monitors |
| Shipping dimensions | 112cm x 40cm x 77cm |
| Supplier item code | TVL-LUM-430M3 |
Display Spec.
Input
Output
Input Signal
SDI Input Signal Formats
Audio
FPGA Functions
Closed Caption
Calibration
Other Functions
Options Stand, Carrying Case
Dimensions
| Size | 42.5" |
| Resolution | 3840 x 2160 (16:9) |
| Pixel Pitch | 0.2451mm |
| Color Depth | 1.07B |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 350cd/m2 |
| Contrast Ratio | 1,000:1 |
| Display Area | 962(H) x 554.8(V) mm |

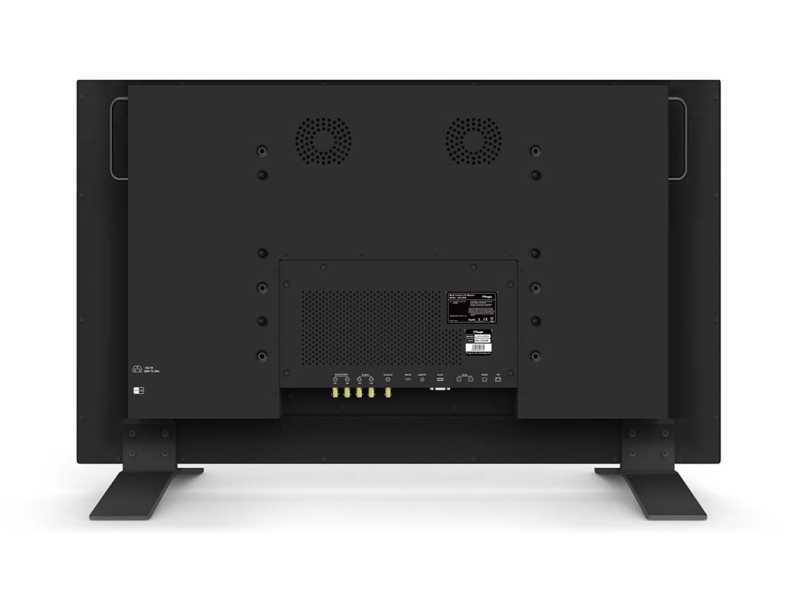

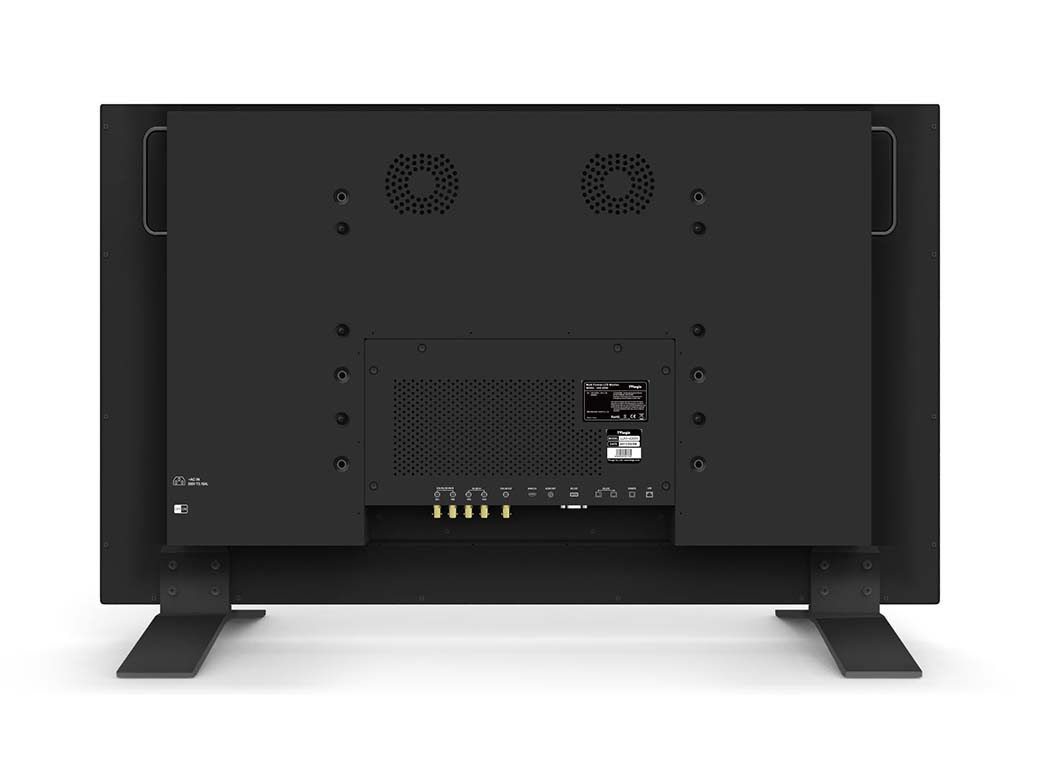

| 4 X BNC | 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input |
| 1 X HDMI | HDMI Input |
| 4 X BNC | 3G-SDI A/B/C/D Channel Output |
| 1 X BNC | 12G/3G/HD/SD SDI Output 1Ch (SDI A/B Selected channel output) |
| 3G SDI | 2.970Gbps |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mb/s |
| HDMI | 480i/480p/576i/576p/720p/1080i/1080p/2160p |
| Audio Out | Analog Stereo (Phone Jack) |
| , 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, Key Lock, Luma(Y') Zone Check, Marker, Time Code Display, UMD, Waveform/Vector, SingleMode, Camera Lut. |
| CC-608 ANC, CC-608 LINE 21, CC-708 |
| TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma |
| REMOTE | GPI (RJ45) |
| REMOTE | TVLogic’s specification |
| USB | Firmware update by USB memory stick |
| Ethernet | Ethernet Control support |
Dimensions
