TVLogic SVM-183S, 18,5-Zoll-Full-HD-Monitor mit 10 Bit, 2x 12G-SDI

The SVM-183S is an 18.5” Full HD monitor that delivers precise image reproduction, high signal integrity, and robust support for 12G-SDI workflows, reflecting TVLogic’s continued commitment to cutting-edge broadcast monitoring solutions.

Product Highlights

• Display Resolution 1920 x 1080
• Wide Color Gamut (DCI-P3 Coverage 98%)*
• lObit {l.073 Billion) Colors*
• 2 x 12G-SDI Input and Loopout
• Dual SFP Input
• HDMI 1.4 Input
• Processed Monitor Output
• 12G-SDI Input to 3G-SDI Processed Output
• HDR (PQ, HLG, S-LOG3)
• Various Color Spaces (BT.709, DCI-P3, BT.2020, S-GAMUT3)
• Custom 3D LUT Import by USB Flash Drive
• Built-in Camera LUTs
• Auto Detection of SDI Payload ID
• Waveform (YCbCr, RGB)
• Vector Scope
• Histogram
• Audio Level Meter
• Audio Phase Meter
• Color Settings Save & Apply

*SVM-2435 only


• TVL-SVM-183S-SPECSHEET.pdf

LCD Panel

• Size: 18.5”
• Resolution: 1920 x 1080 (16:9)
• Pixel Pitch: 0.213(H) x 0.213(V) mm
• Color Depth: 16.7M Colors
• Viewing Angle: 178°(H) / 178°(V)
• Brightness: 500cd/m2
• Contrast Ratio: 1000 : 1
• Display Area: 408.96(H) x 230.04(V) mm

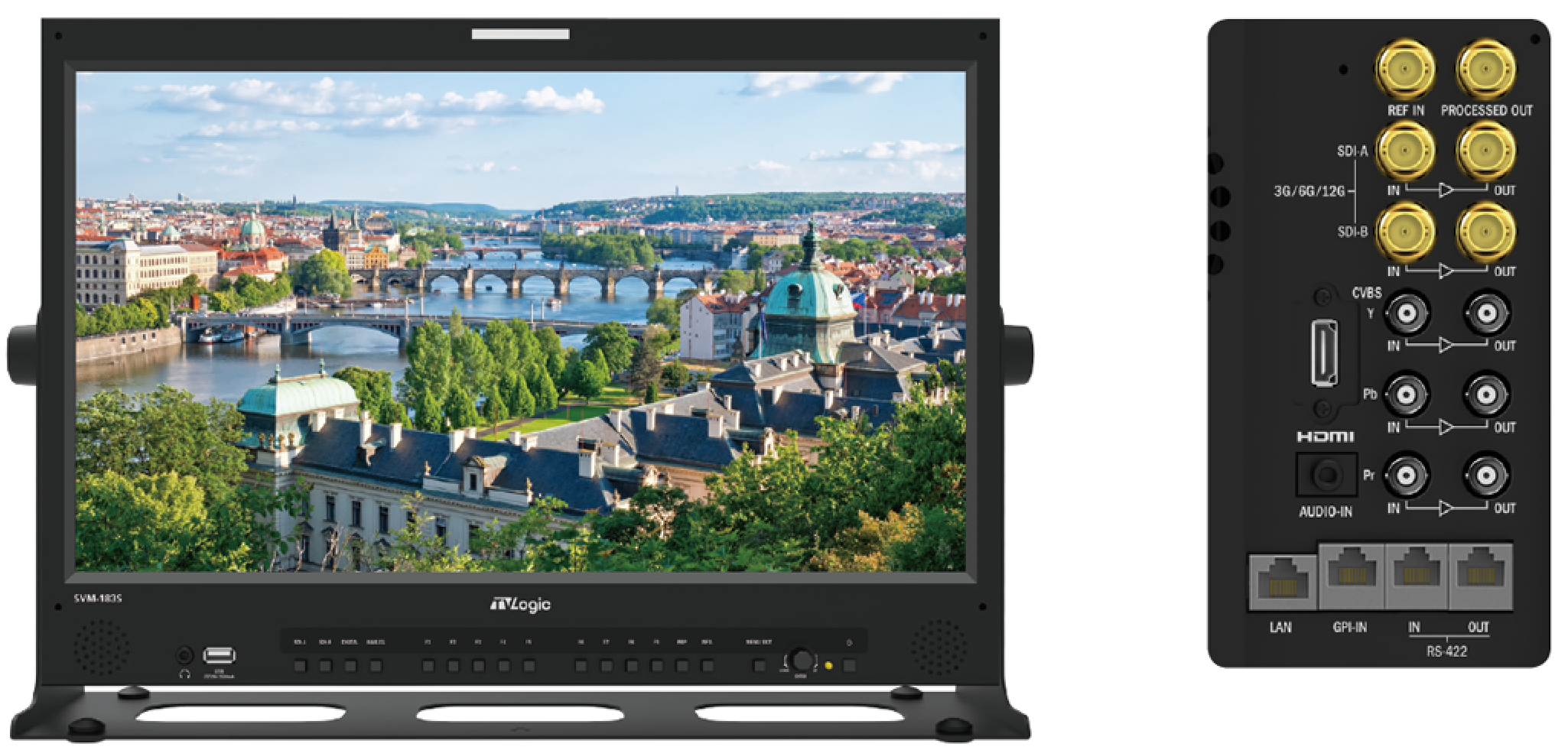

Input

• 2 x BNC: 12G/6G/3G/HD/SD-SDI A/B Input
• 3 x BNC: YPbPr, CVBS Input
• 1 x HDMI: HDMI Input
• 2 x SFP: SFP A/B Channel Input
• 1 x BNC: Reference Input

Output

• 2 x BNC: 12G/6G/3G/HD/SD-SDI A/B Channel Output
• 3 x BNC: YPbPr, CVBS Output
• 1 x BNC: Processed Output
