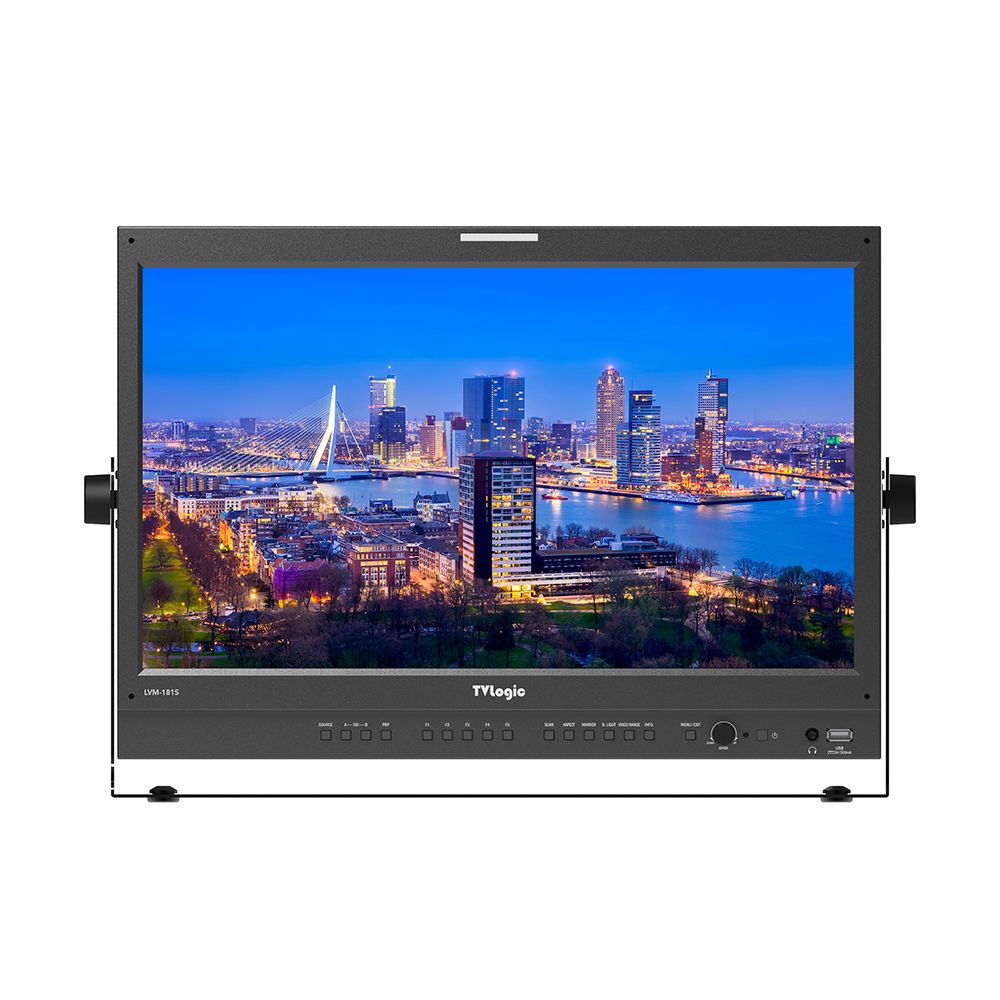

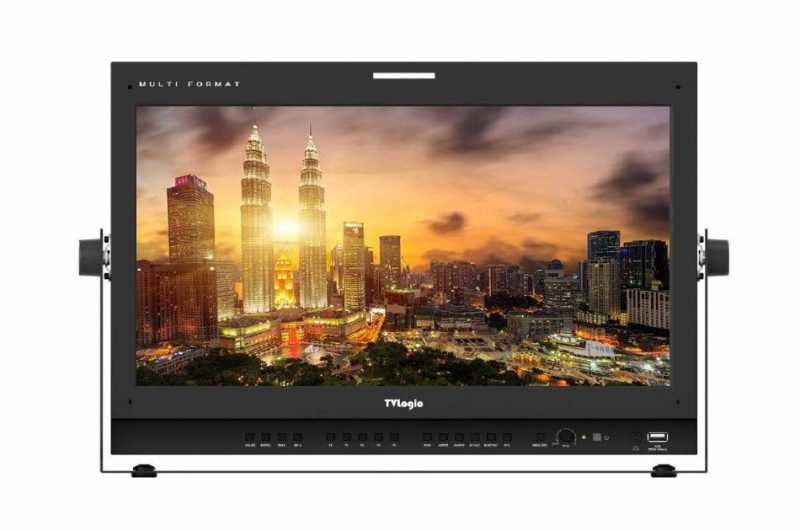

Display Spec.
| Size | 18.5" |
| Resolution | 1920 x 1080 (16 : 9) |
| Pixel Pitch | |
| Color Depth | 1.06B |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 500cd/m2 |
| Contrast Ratio | 1,000:1 |
| Display Area | 408(H) x 203(V) mm |
Input | 3 X BNC | Analog Input (Component) |
| 2 X BNC | 3G-SDI A/B Channel Input |
| 1 X HDMI | HDMI Input |
| 1 X DVI | DVI Input |
Output | 3 X BNC | Analog Output (Component) |
| 2 X BNC | 3G-SDI Output |
| 2 X BNC | HD SDI A/B Channel Output |
Input Signal | 3G SDI | 2.970Gbps |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mb/s |
| HDMI | 480i/480p/576i/576p/720p/1080i/1080p/640x480/ 720x400/800x600/1024x768/1280x1024/1366x768 |
| DVI Analog | 640x480/720x400/800x600/1024x768/1366x768 |
| DVI DP | 640x480/720x400/800x600/1024x768/1366x768 |
| DVI DH | X |
SDI Input Signal Formats | SMPTE 425M-A/B | "1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) |
Audio | Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Stereo) |
FPGA Functions | 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, X3 Zoom(PBP) |
Closed Caption | CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR, OP42, OP47 |
Calibration | TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
Other Functions | REMOTE | GPI (RJ45) |
| USB | Firmware update by USB memory stick |
| Ethernet | Ethernet Control support |
Options Battery Bracket, Carrying Case, External Acrylic Filter, Gold Mount, Sun Hood, V-Mount
