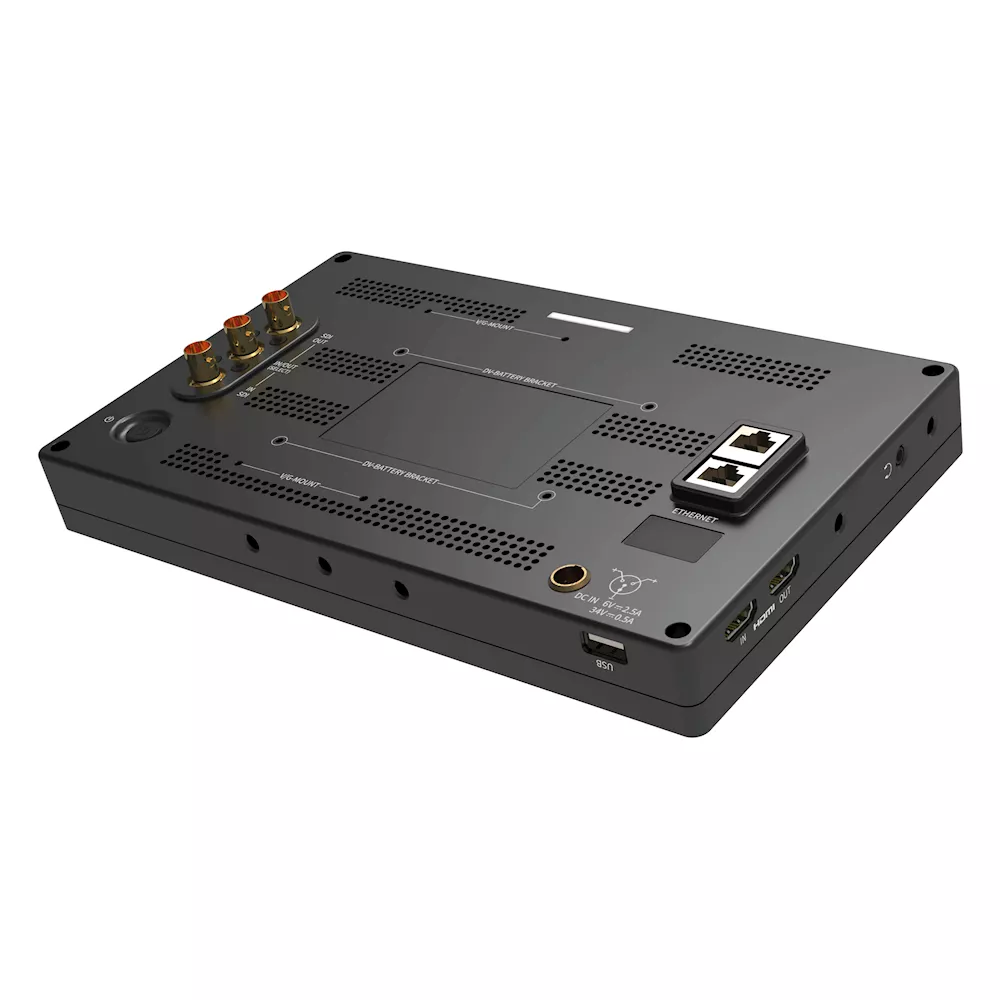

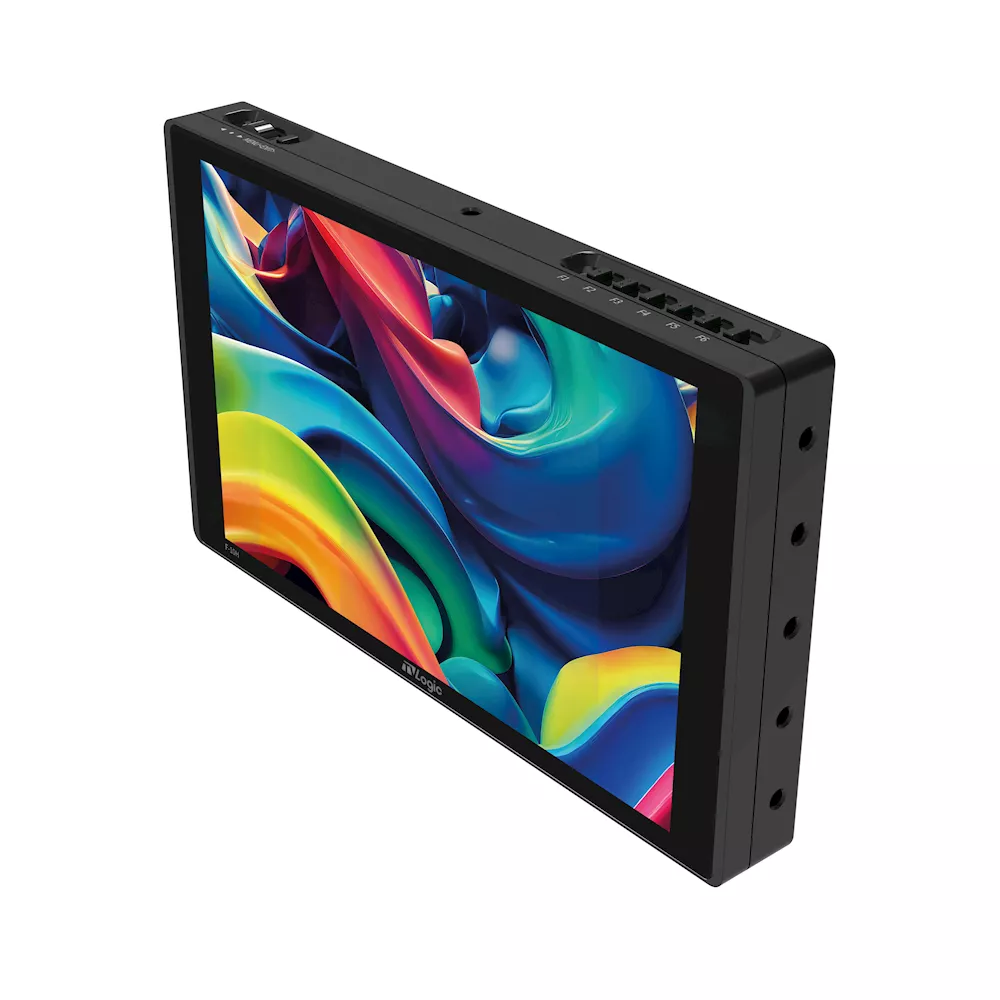

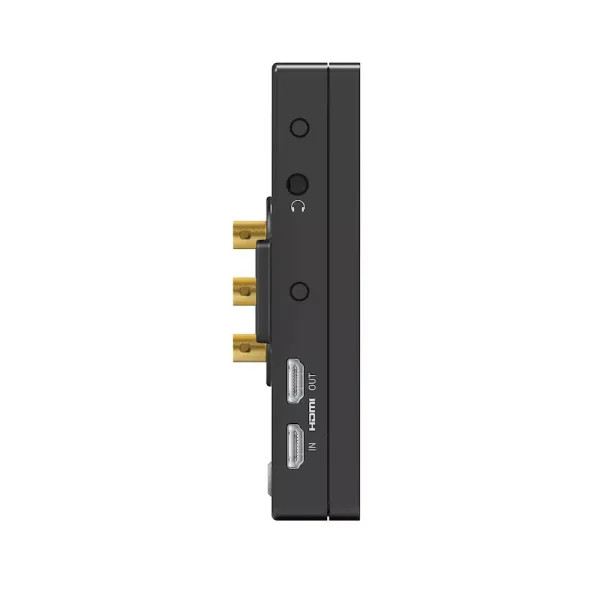

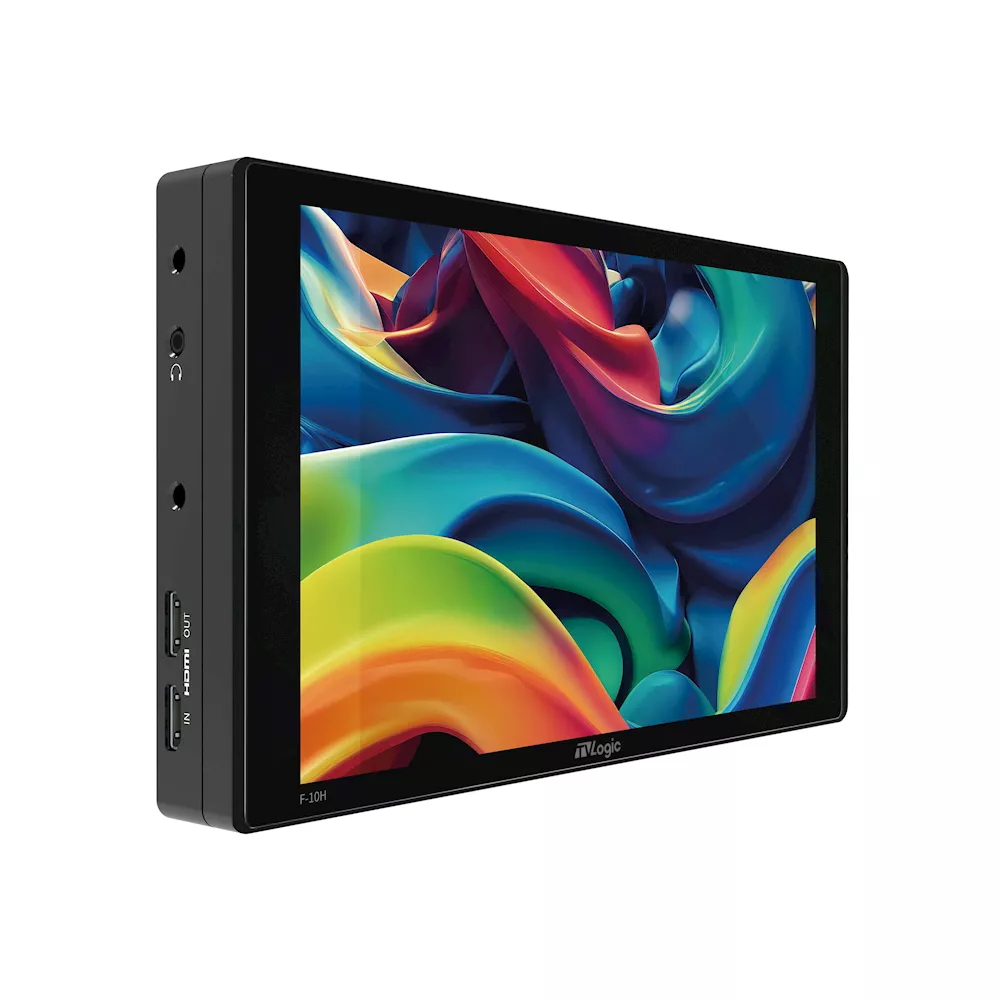

TVLogic F-10H
With 1400 nits of brightness, the F-10H is the latest 10” monitor in the rugged and reliable F-series.
• 10”, Full HD Resolution (1920 x 1200)
• 4K Compatible
• Max Luminance 1400nits
• DCI-P3 Coverage 95%
• Tempered Glass Treatment
• HDR (PQ / HLG / Slog3)
• Camera LUTs (Log-C, C-Log, S-Log1/2/3, Red Gamma3/4)
• Custom 3D-LUT Import
• Sharpness + Peaking Boost
• ARRI Metadata Display
• Scan / Anamorphic Desqueeze / Zoom / Split Zoom
• 3 x 3G SDI (1 x 3G SDI Selectable I/O)
• HDMI SDI Cross Conversion
• Luma(Y’) Zone Check (Zebra / Color)
• H/V Flip, Auto Flip • Horizontal Meter
• Waveform / Vectorscope
• DC 12V ~ 34V
Panel:
- Size 10,1”
- Resolution 1920 x 1200 (16:10)
- Pixel Pitch 0,1128(H) x 0,1128(V) mm
- Color Depth 16.7M Colors (8 bit)
- Viewing Angle 170°(H) / 170°(V)
- Brightness 1400cd/m2
- Contrast Ratio 1100 : 1
- Display Area 216.58(H) x 135.36(V) mm

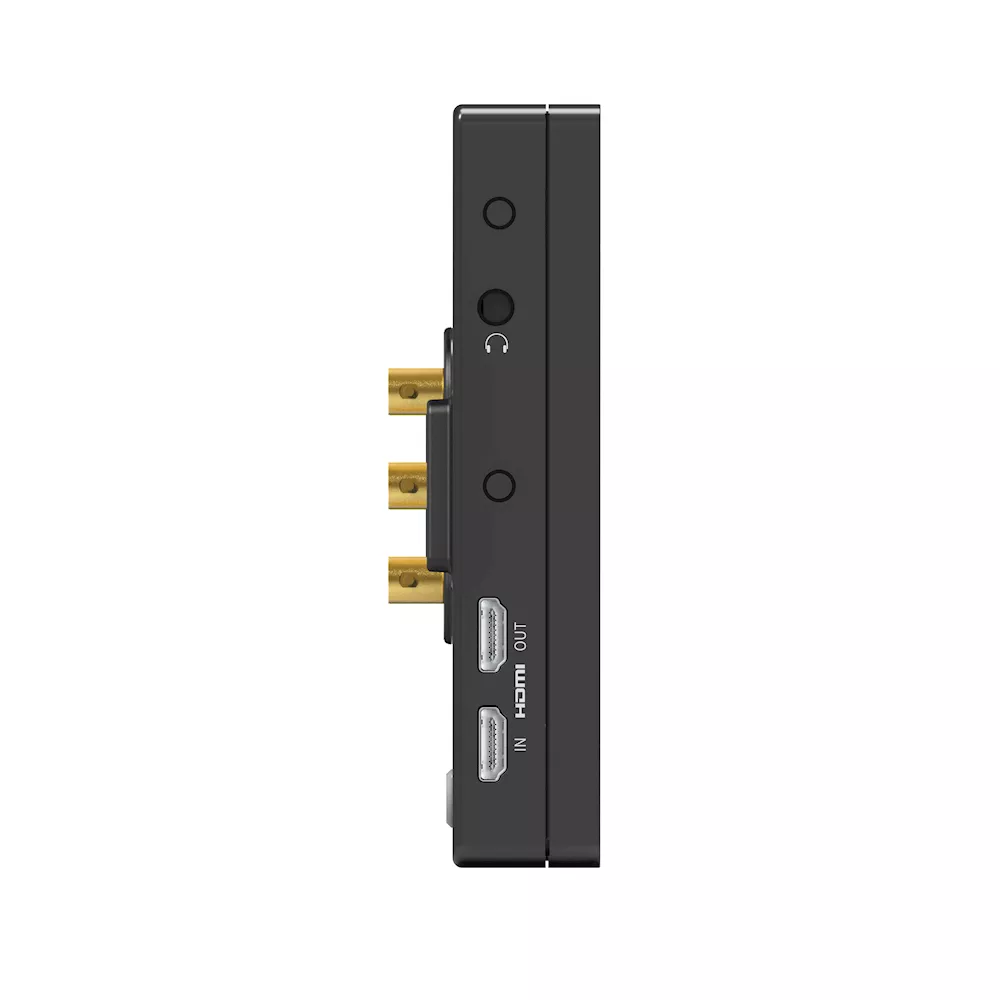

Input:
- SDI: 1 x 3G-SDI Input
- 1 x 3G-SDI In/Out Selectable
- HDMI 1 x HDMI 2.0 Input
Output:
- 1 x 3G-SDI Output
- (SDI-to-HDMI Conversion Output)
Specifications
| Brand | TVLogic |
| Itemcode | 2610.0320 |
| Bruto weight | 2.2 |
| Net weight | 1.7 |
| HS code | 8528529100 - Monitors |
| Shipping dimensions | 42cm x 32cm x 23cm |
| Supplier item code | TVL-F-10H |

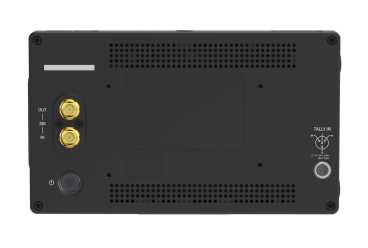

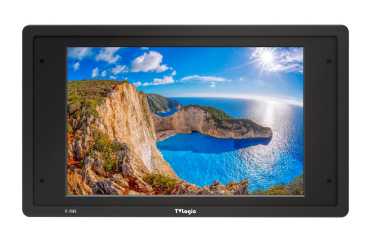

.jpg "Preview: TVLogic F-7HS 7\" High Brightness 1920x1080 Full HD Monitor, 3G SDI/HDMI")
