TVLogic F-5A 5,5"-Full HD-Field Monitor für SDI & HDMI;
TOP
TVLogic F-5A
Hauptmerkmale
Hauptmerkmale
• 5.5” Full HD Resolution (1920×1080)
• HDMI ↔ SDI Cross Conversion
• HDR (PQ, HLG, S-Log3)
• Custom 3D LUT Import
• ARRI Metadata
• Excellent Sharpness
• Peaking Boost
• Waveform / Vectorscope
• H/V Flip
• Auto Flip
• Split Zoom
• Focus Assist
• Anamorphic Desqueeze
• Zoom
• Luma(Y’) Zone Check
• Camera LUTs support
• Built-in battery bracket (Sony L-series)
• Grid
Zubehör
Main Body: 162.5 x 92 x 27.6 (mm) / 6.39 x 3.6 x 1.11 (inch)
Weight: 0.42kg / 0.92 Ibs
Zubehör
| BA-055B | Panasonic CGR, Akkuadapter, einfach, für VFM-055A |
| BA-055E € 209,00 | Canon LP-E6, Akkuadapter, einfach, für VFM-055A |
| BA-055N | Nikon EN-EL15, Akkuadapter, einfach, für VFM-055A |
| BB-055B | Panasonic, CGR, Akkuadapter, für VFM-055A |
| BB-055C | Canon-BP Akkuadapter, für VFM-055A |
| BB-055E € 209,00 | Canon, LP-E6, Akkuadapter, für VFM-055A |
| BB-055P | Panasonic, CGA/VB, Akkuadapter für VFM-055A |
| BB-055U | Sony, BP-U30/60, Akkuadapter, für VFM-055A |
| BH-056 | Kugelkopf Adapter, für TVlogic VFM-056 |
| BH-058 | Kugelkopf Adapter, für TVlogic VFM-058 |
| CC-055 | Für VFM-055A, Koffer, Aluminium |
| D-TAP-L Cable € 107,00 | Adapterkabel Mini-XLR auf D-TAP, 73 cm |
| D-TAP-S Cable € 75,00 | Adapterkabel Mini-XLR auf D-TAP, 43 cm |
| HDMI BKT-055 | HDMI Bracket, für VFM-055A, F-5A |

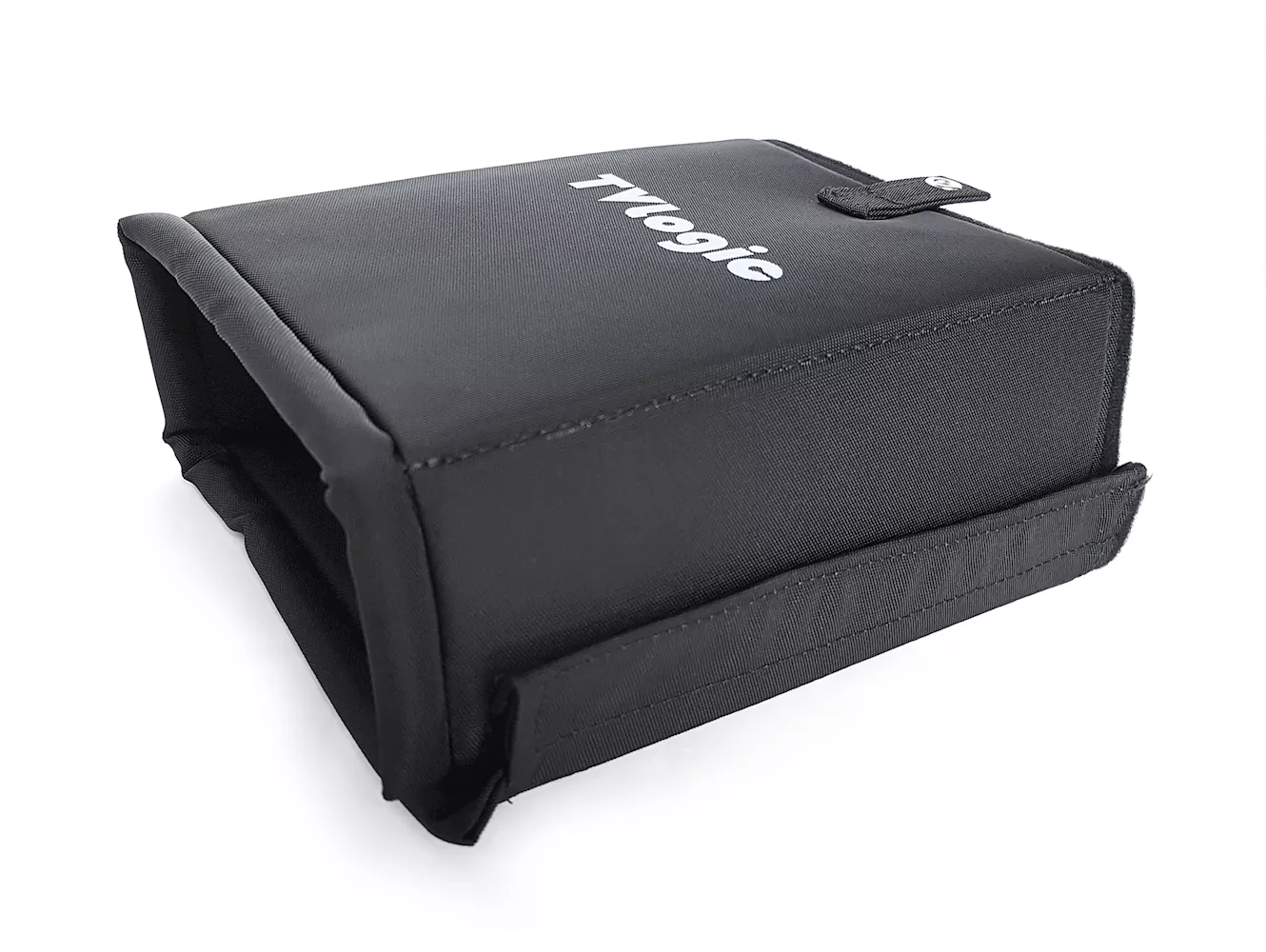

| Hood-F5A € 115,99 | Sonnenschutz, für TVlogic VFM-055AW, F-5A |
| OPT-AF-055A, € 50,00 | Schutzscheibe, Acryl, für VFM-055A, F-5A |
| TH-Mount-05 € 27,00 | Kamera Mount für VFM-056/058 |
Display Spec
Input
Output
Input Signal
SDI Input Signal Formats
Audio
FPGA Functions
Closed Caption
Calibration
Other Functions
Options
Dimensions
| Size | 5.5" |
| Resolution | 1920 X 1080 (16:9) |
| Pixel Pitch | 0.0213(H) X 0.0639(V)mm |
| Color Depth | 16.7M |
| Viewing Angle | 160°(H) / 160°(V) |
| Luminance | 500cd/m2 |
| Contrast Ratio | 1,000 : 1 |
| Display Area | 122.7(H) × 69(V) mm |
| 1 X BNC | 3G-SDI Input |
| 1 X HDMI | HDMI Input |
| 1 X BNC | 3G-SDI Output |
| 1 X HDMI | HDMI Output |
| 3G SDI | 2.970Gb/s |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mbps |
| HDMI | 1080p (60/59.94/50/30/25/24/.23.98)/1080i(60/59.94/50)/720p(60/50) |
| SMPTE 425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
| SMPTE 296 | 720p (60/59.94/50) |
| SMPTE 274 | 1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE 125 | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
| Audio In | Embedded Audio |
| Audio Out | Analog Stereo (Phone Jack) |
| , 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut., Arri Camera Metadata |
| , 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
| USB | Firmware update by USB memory stick |
| Ethernet |

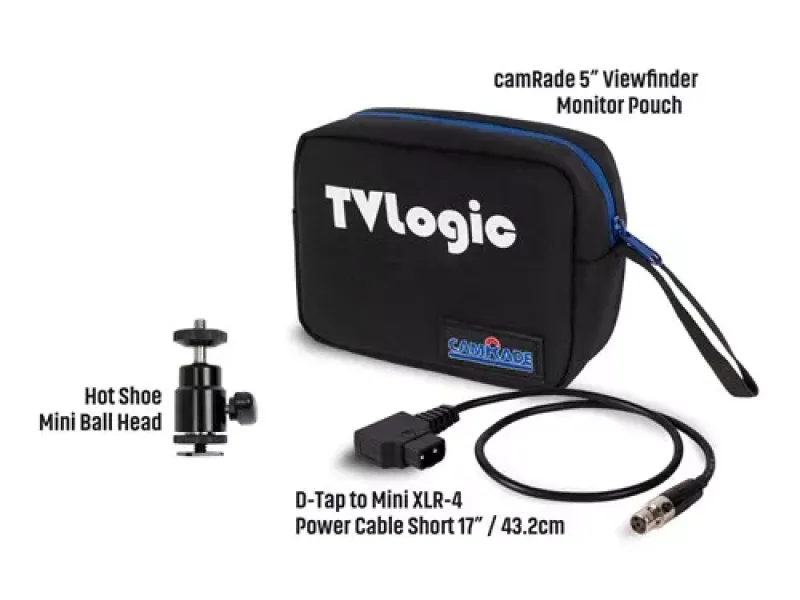

| Battery Bracket, HDMI Bracket, Camera Mount, Ball Head, Carrying Case, D-Tap Cable, External Acrylic Filter, Sun Hood, L-Type BNC Connector , |
