SWIT M-1093F

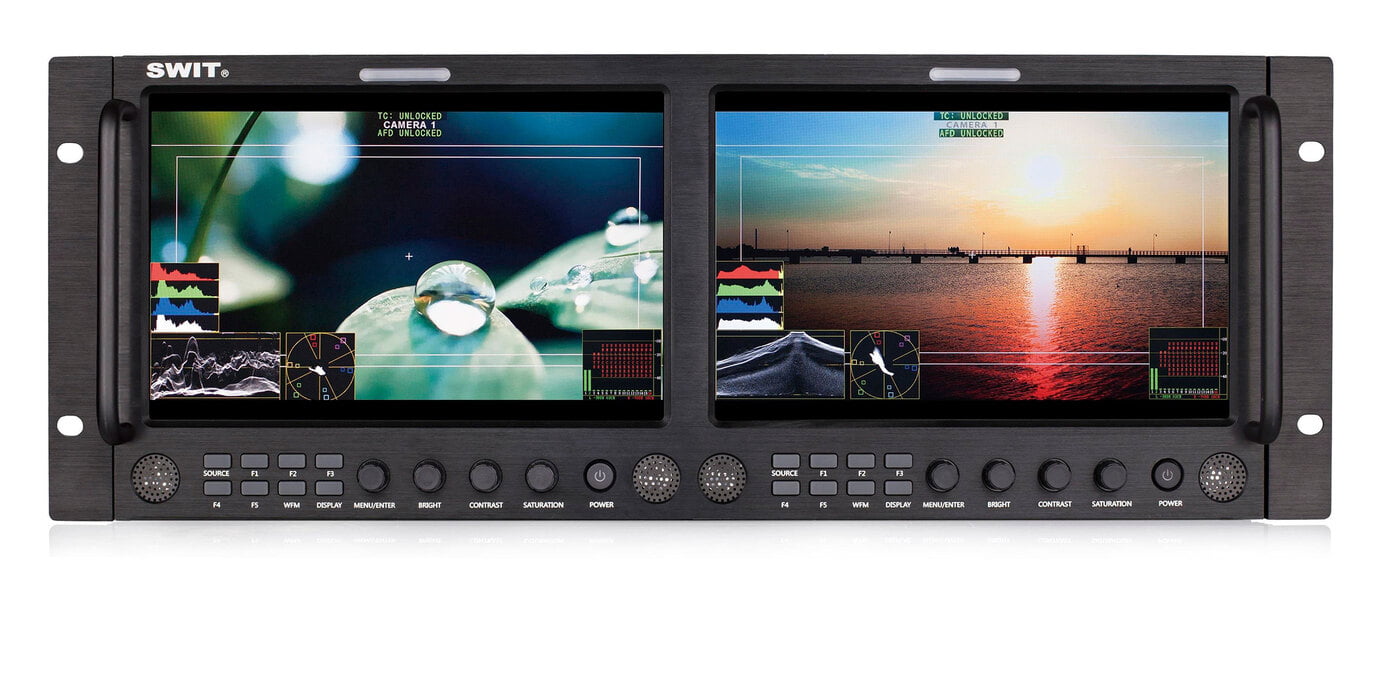

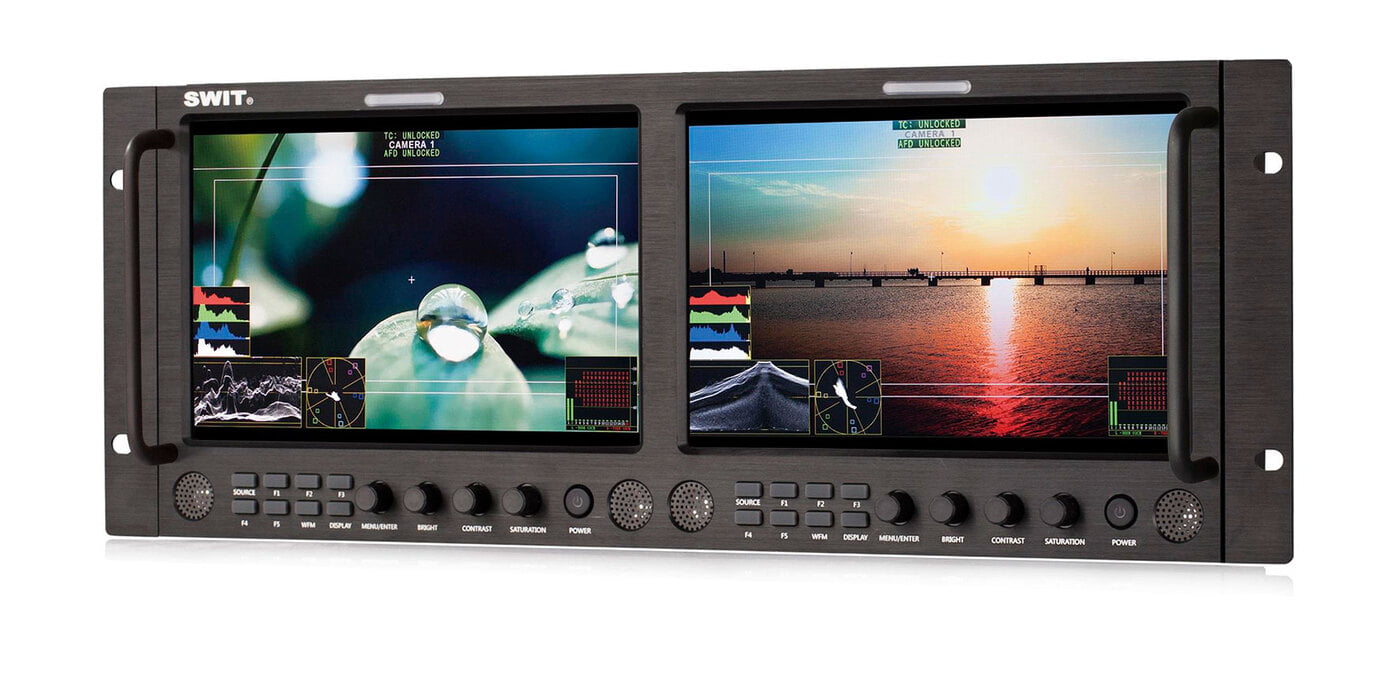

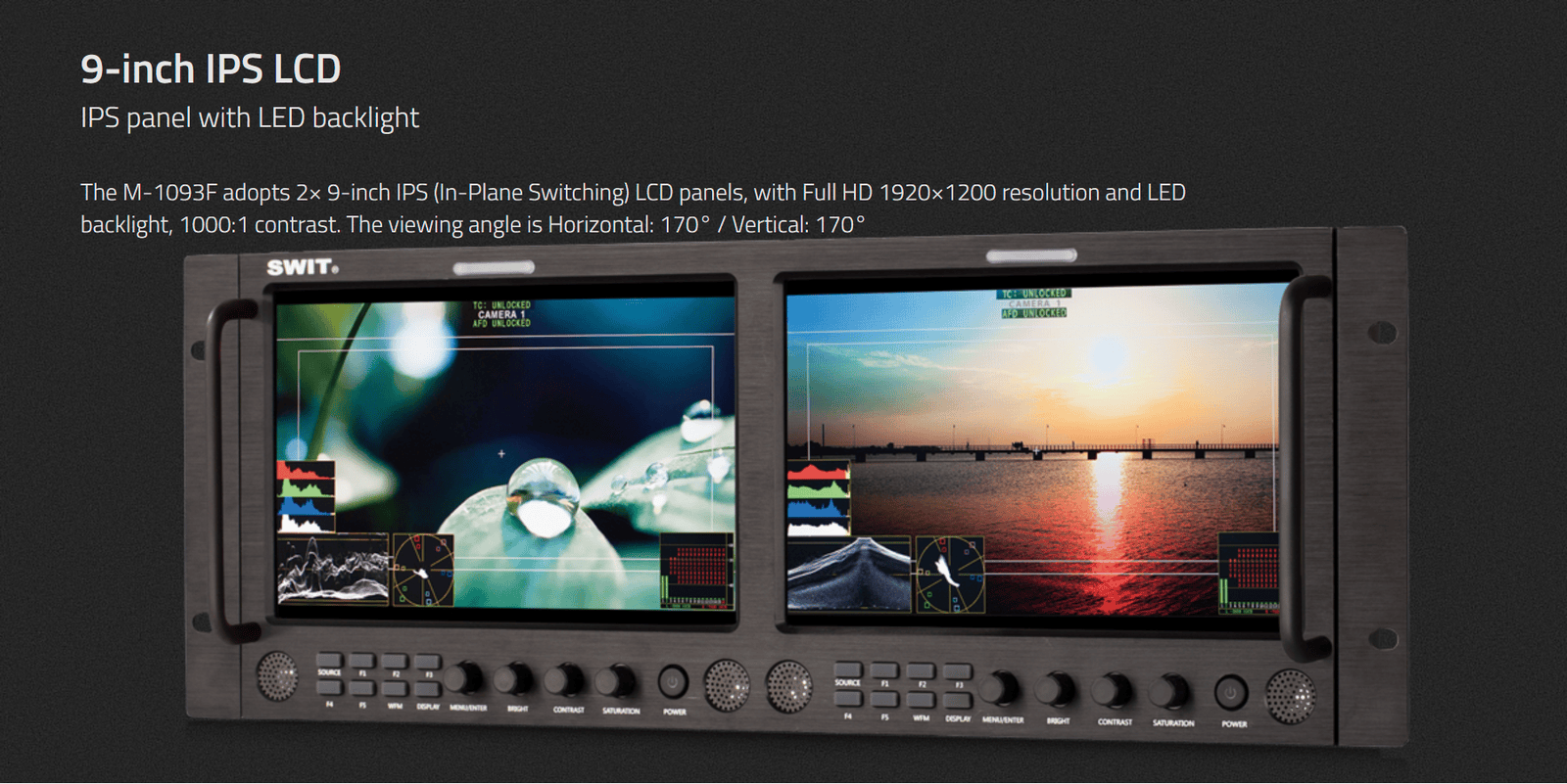

9-inch IPS LCD Panel ×2
1920×1200 resolution, 800:1 contrast
19-inch 4U rack mounting, ±30° rotatable
2K/3G/HD/SD-SDI, HDMI, CVBS monitoring

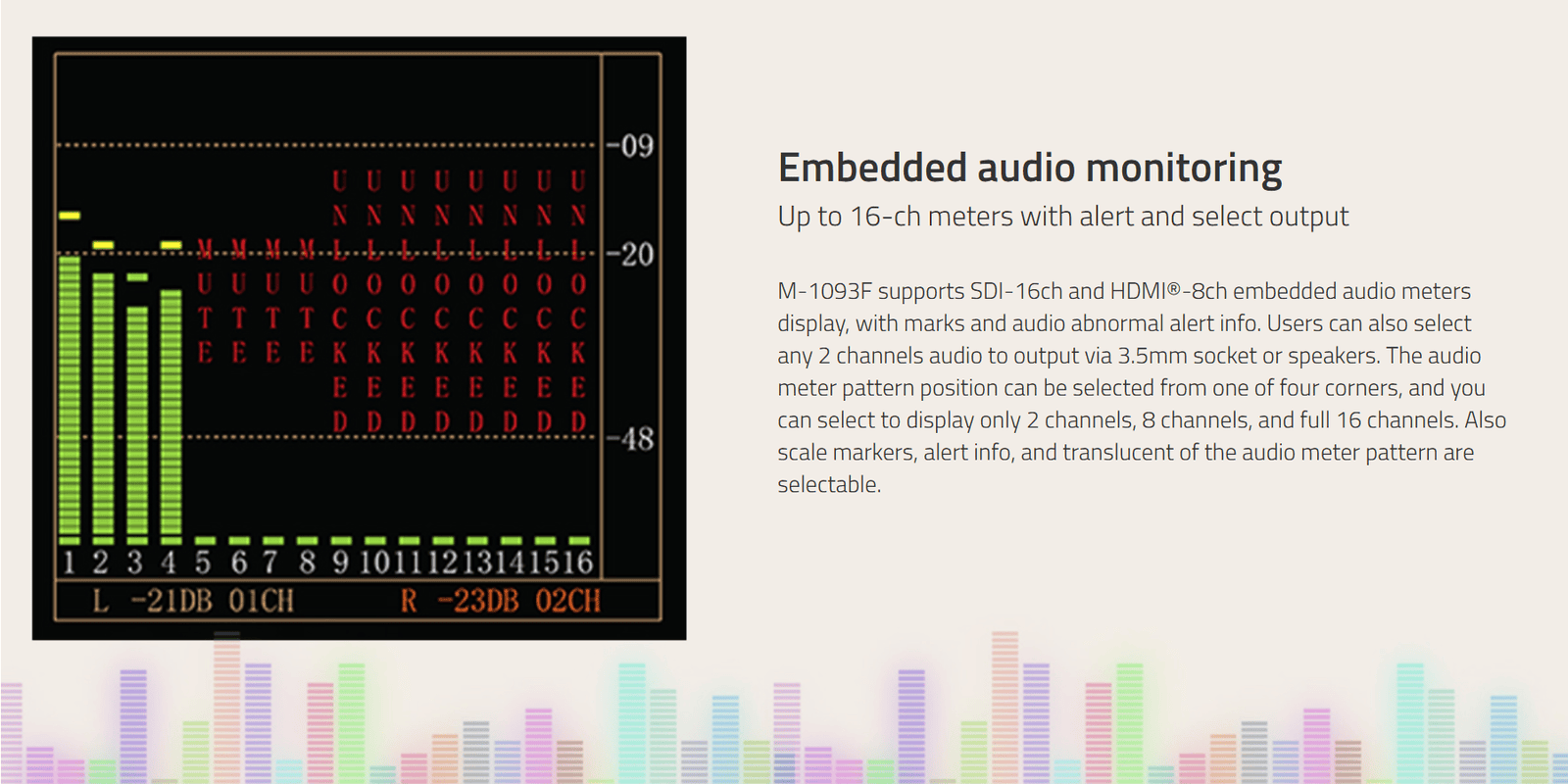

16-ch Embedded audio meters with alert
Select any 2 audio channels to output
Waveform Y/Cb/Cr/R/G/B and single line
Vector scope, histogram R/G/B/Y

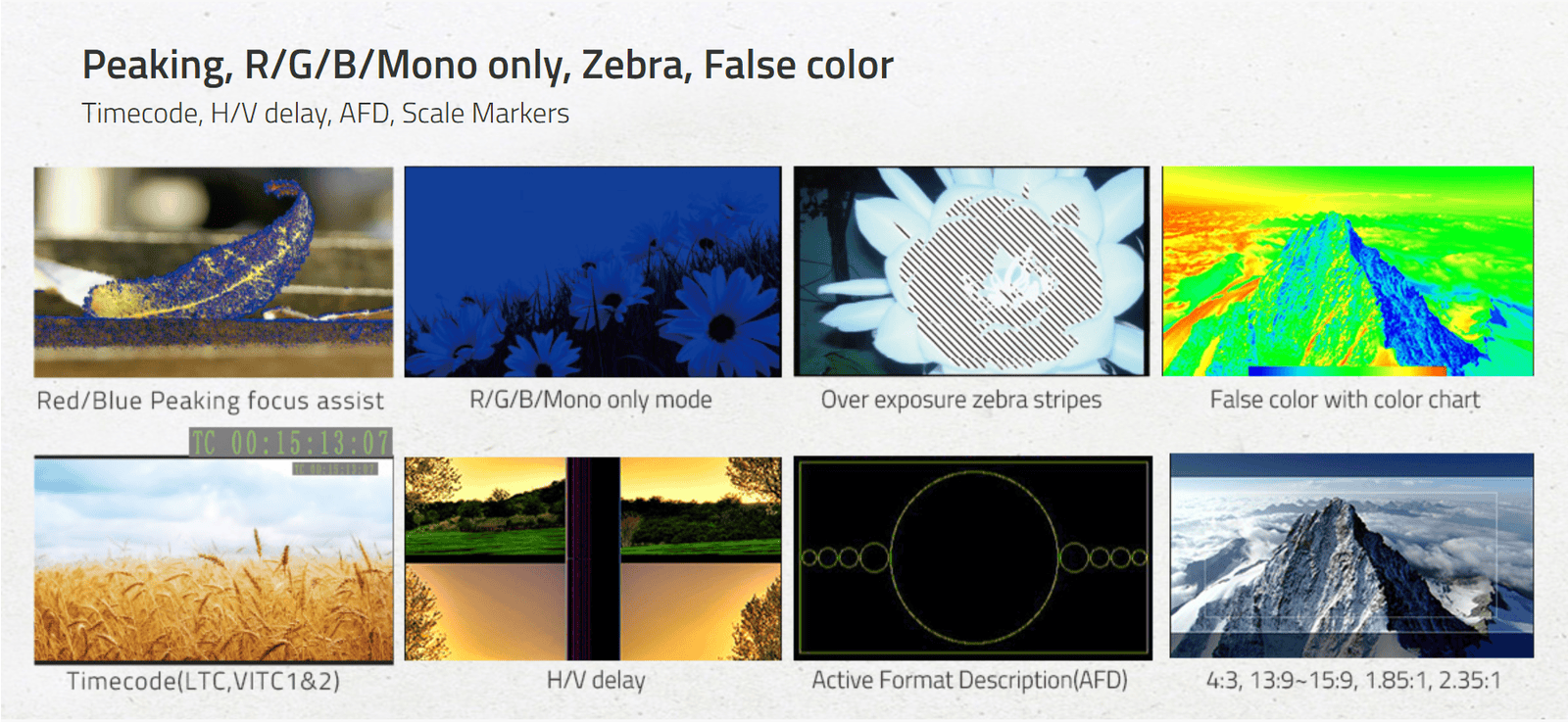

AFD, H/V delay, R/G/B/Mono, False color
TSL UMD and text TALLY display
Zebra stripes, Peaking focus assist
SDI timecode display
Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1

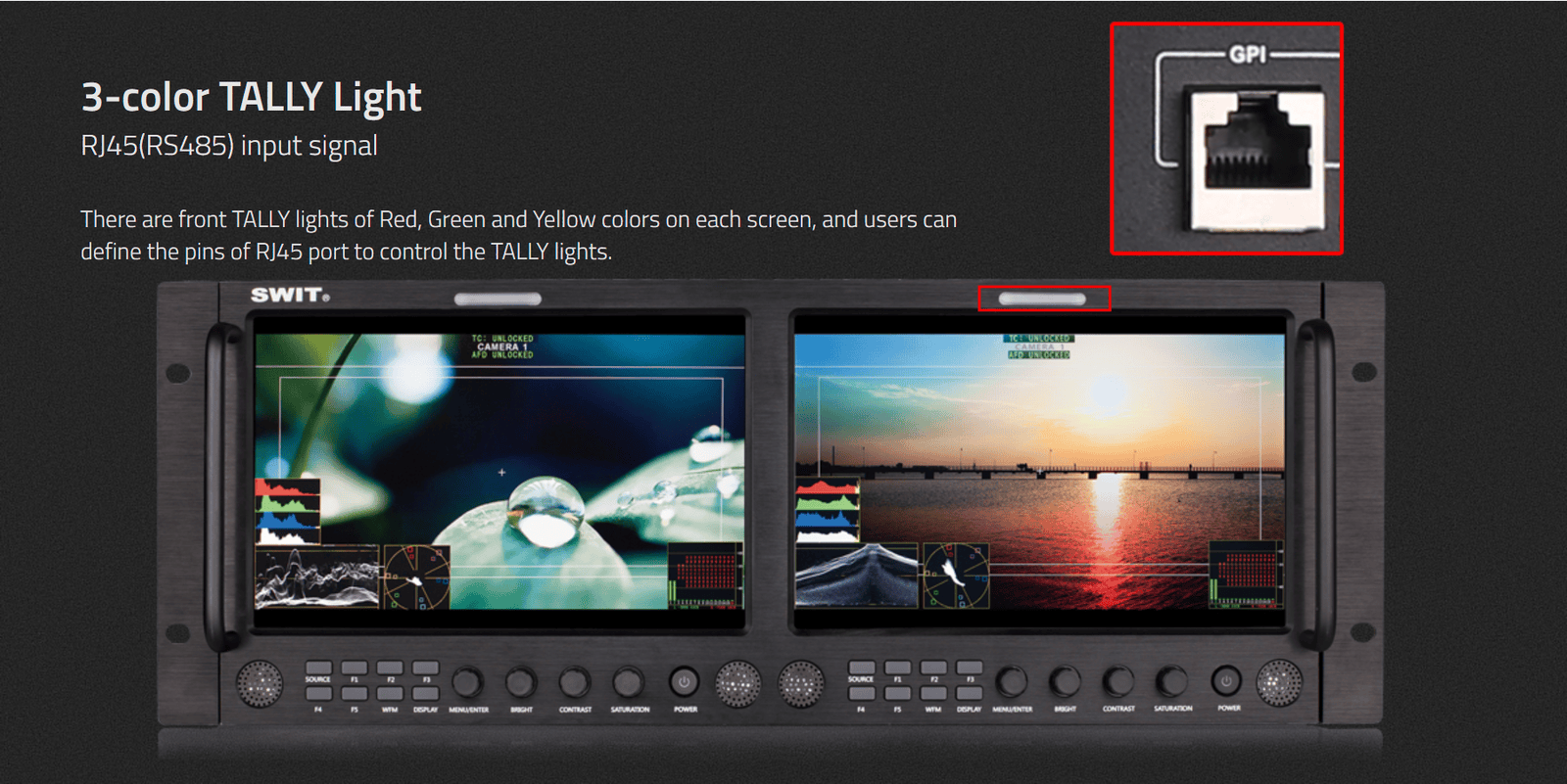

TALLY light and GPI control

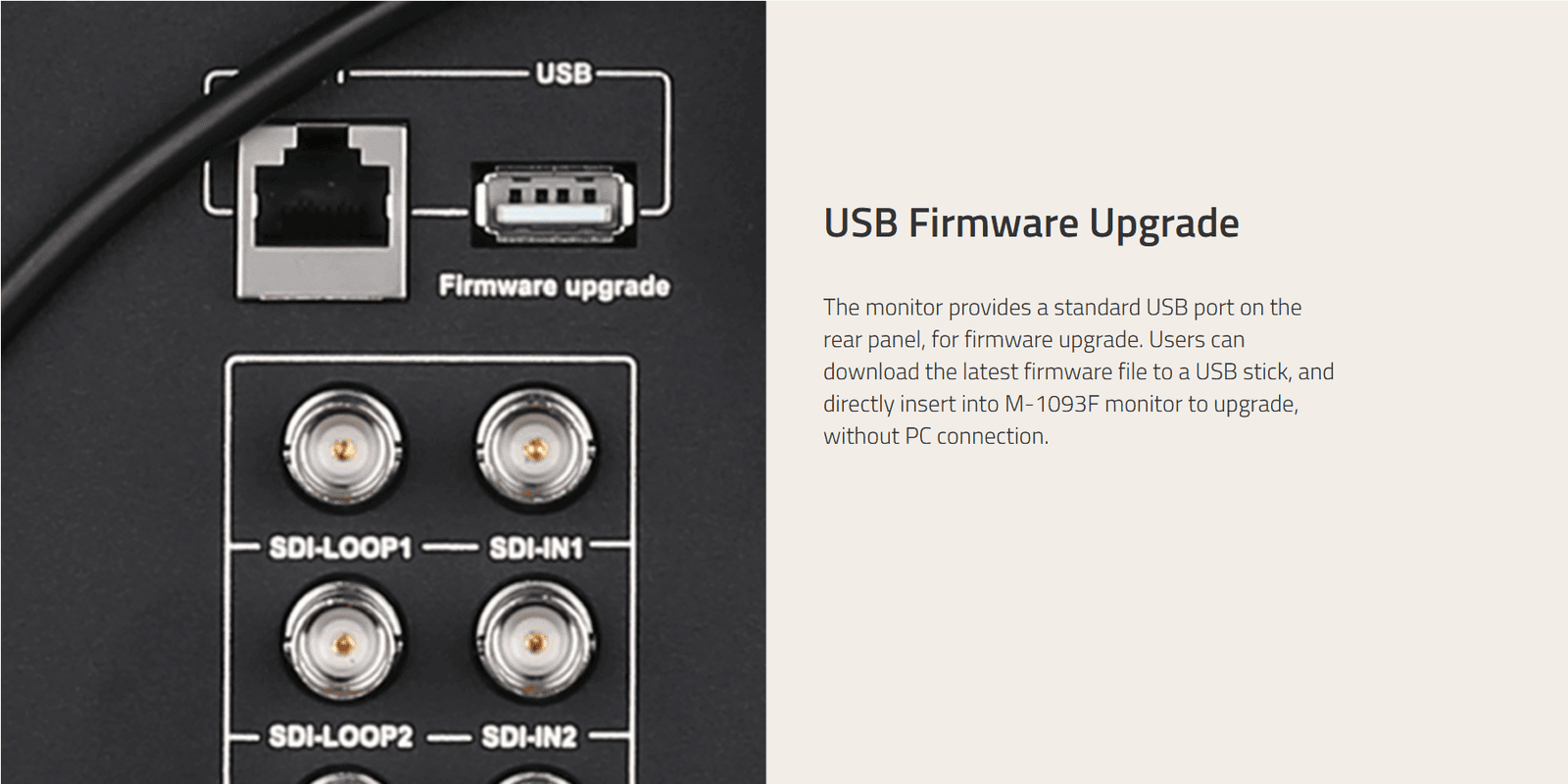

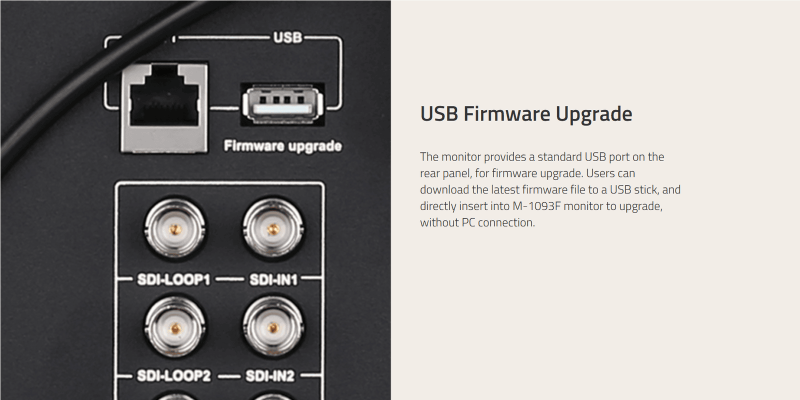

USB firmware upgrade
Lieferumpfang:
M-1093 Monitor
AC-DC Adapter
9-inch IPS LCD Panel ×2
1920×1200 resolution, 800:1 contrast
19-inch 4U rack mounting, ±30° rotatable
2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
16-ch Embedded audio meters with alert
Select any 2 audio channels to output
Waveform Y/Cb/Cr/R/G/B and single line
Vector scope, histogram R/G/B/Y
AFD, H/V delay, R/G/B/Mono, False color
TSL UMD and text TALLY display
Zebra stripes, Peaking focus assist
SDI timecode display
Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
TALLY light and GPI control
USB firmware upgrade
Lieferumpfang:
M-1093 Monitor
AC-DC Adapter
| Size | 9 inches ×2 |
| Display area | 191.52×119.70mm |
| Resolution | 1920×1200 |
| Aspect ratio | 16:9 (4:3 adjustable) |
| Brightness | 450cd/m2 |
| Contrast | 1000:1 |
| Color | 16.77 million colors |
| Viewing angle | Horizontal: 170°; Vertical: 170° |

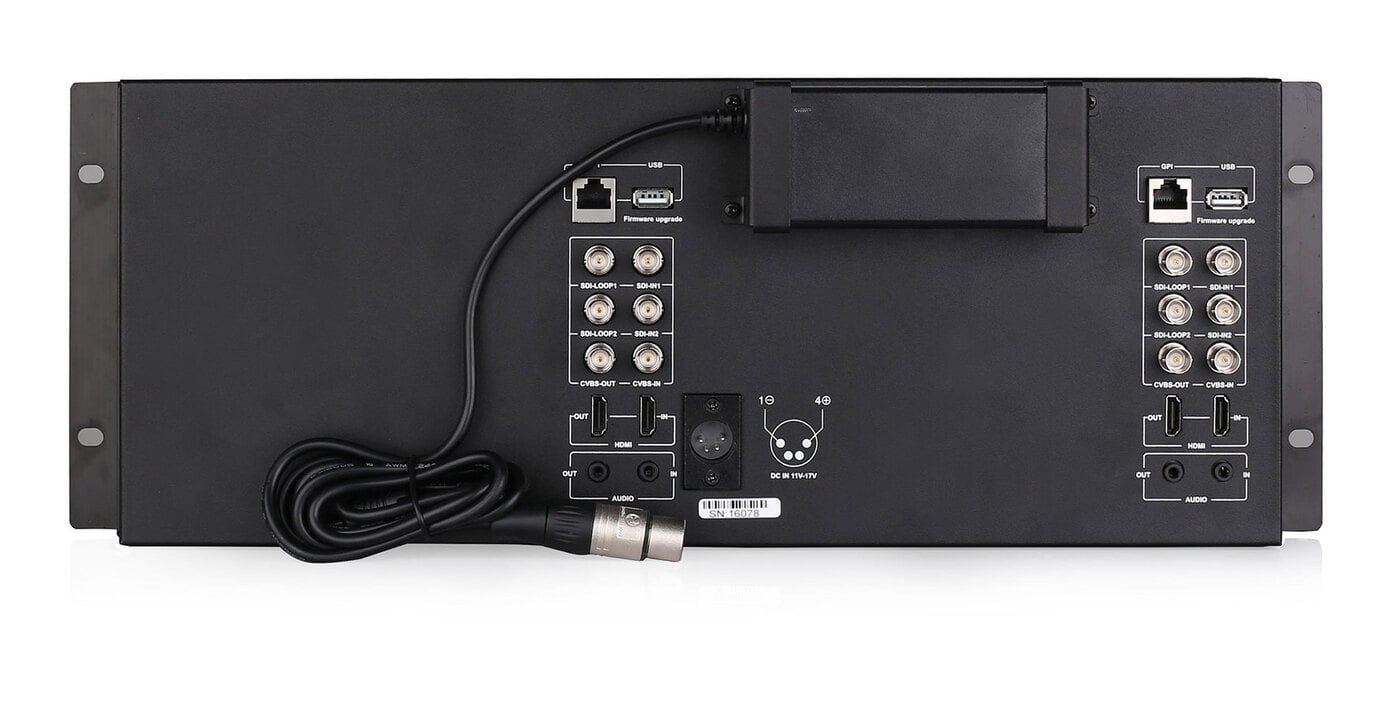

Input(Each LCD)
| BNC ×2 | 2K/3G/HD/SD-SDI input×2 |
| BNC ×1 | Composite input |
| HDMI® ×1 | HDMI® input |
| 3.5mm ×1 | Analog audio input |
Output(Each LCD)
| BNC ×2 | 2K/3G/HD/SD-SDI loop output |
| BNC ×1 | Composite loop output |
| HDMI® ×1 | HDMI® loop output |
| 3.5mm ×1 | SDI, HDMI®, Analog audio output |
Video Format
| SDI | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (60 / 59.94 / 50) | |
| 1080p (60 / 59.94 / 50) | |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
| HDMI® | 480i/ 576i / 480p / 576p |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| CVBS | NTSC / PAL |
General

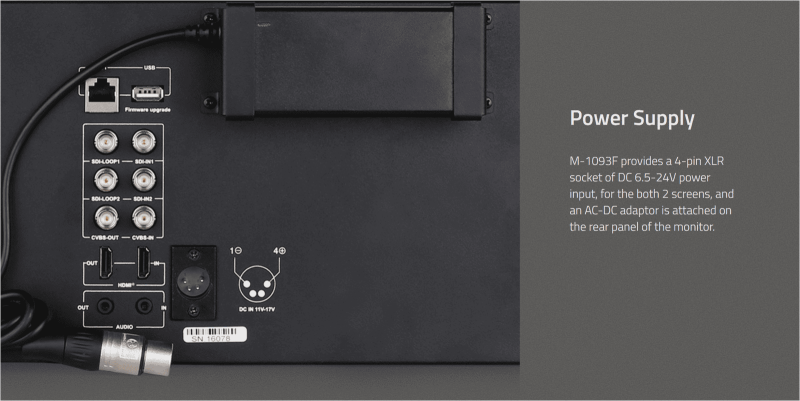

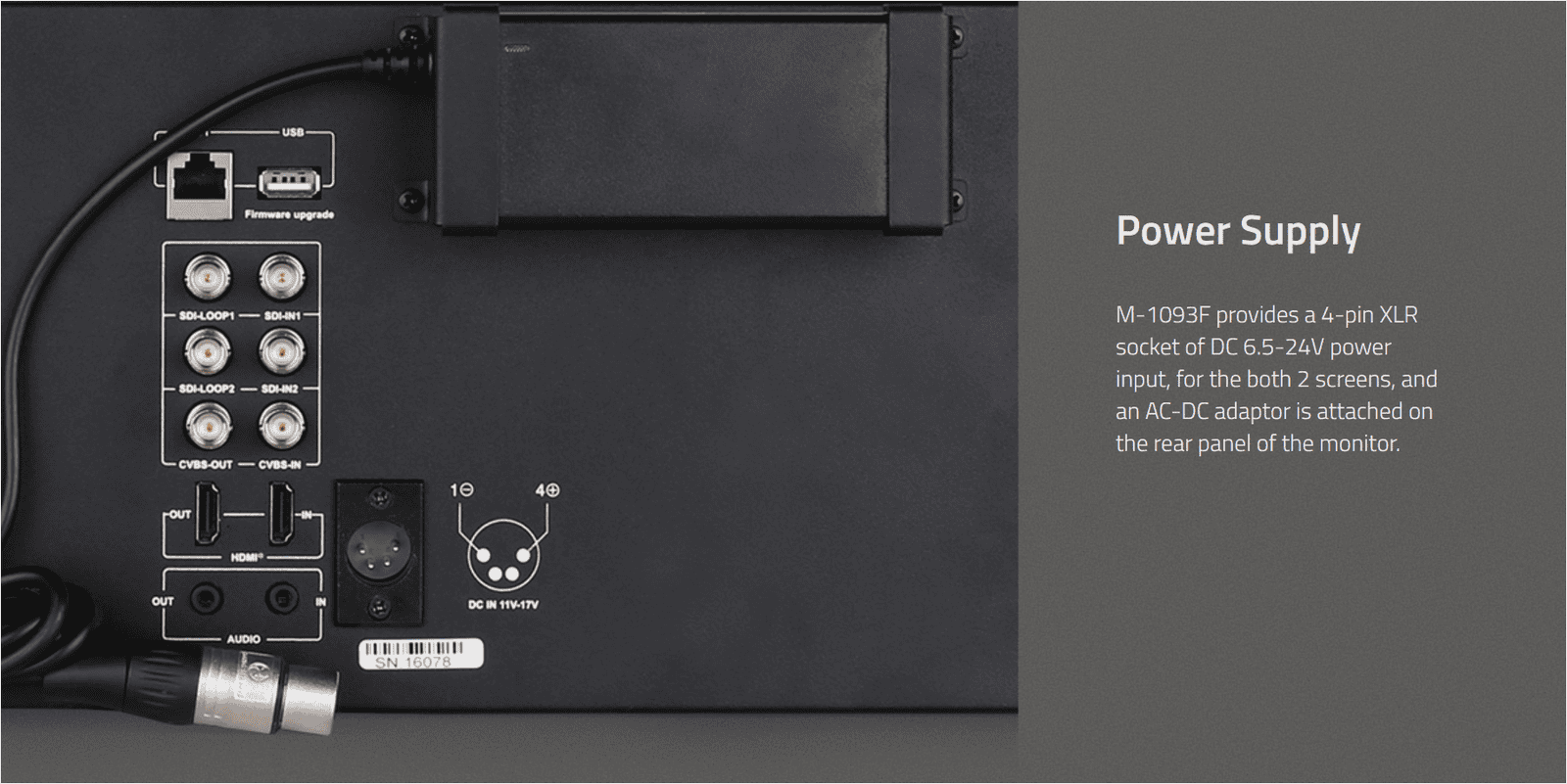

| Input voltage | DC 6.5V-24V |
| Power consumption | ≤36W |
| Working temperature | 0°C～+40°C |
| Working humidity | 10%～90% |
| Storage temperature | -15°C～+60°C |
| Storage humidity | 10%～90% |
| Dimensions | 484×177×112.8mm |
| Net weight (main body) | Net 2.8kg; With package 3.6kg |
