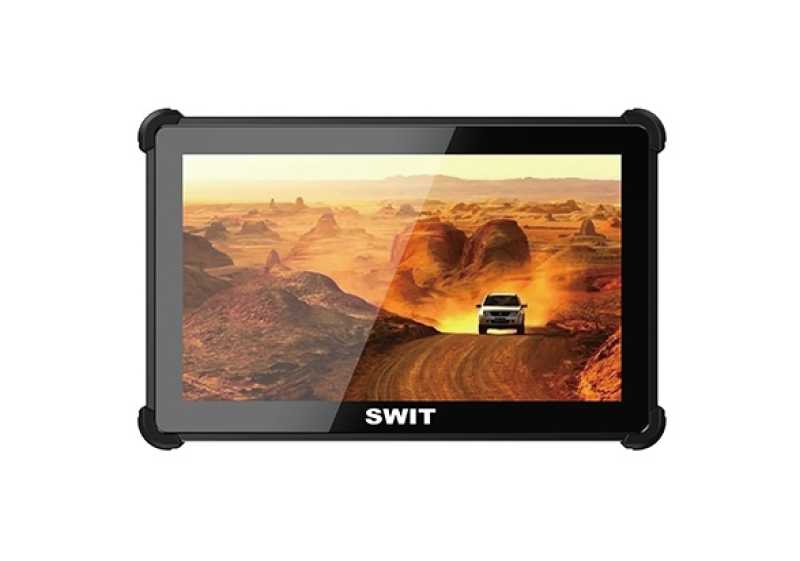

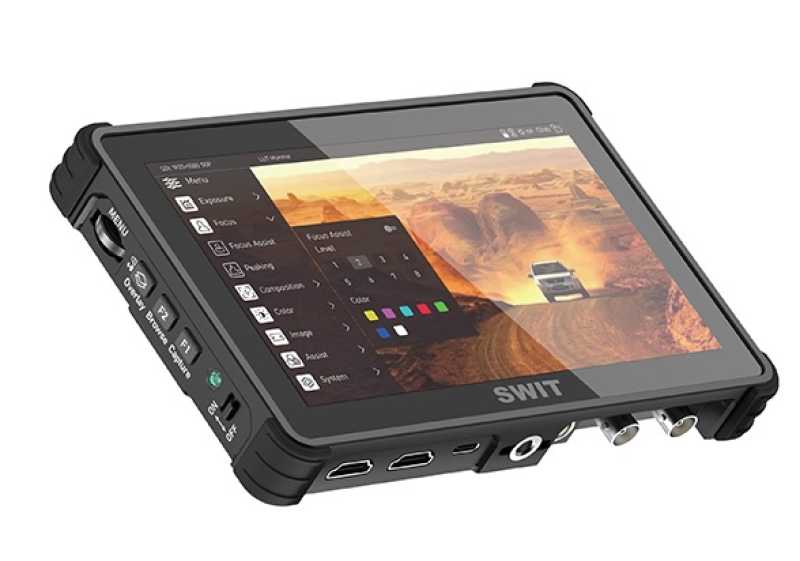

Name: Swit K7, 7" 2800 nits Kamera FHD Monitor 3G-HD/SDI und HDMI, Multi Touch Screen
SKU: Swit K7
Price: 599.00 EUR
Availability: InStock

Startseite » KAMERAZUBEHÖR » Monitor bis 13,9" » LCD 6" - 8,9" Zoll » Swit K7, 7" 2800 nits Kamera FHD Monitor 3G-HD/SDI und HDMI, Multi Touch Screen

Preview: Swit K7, 7" 2800 nits Kamera FHD Monitor 3G-HD/SDI und HDMI, Multi Touch Screen

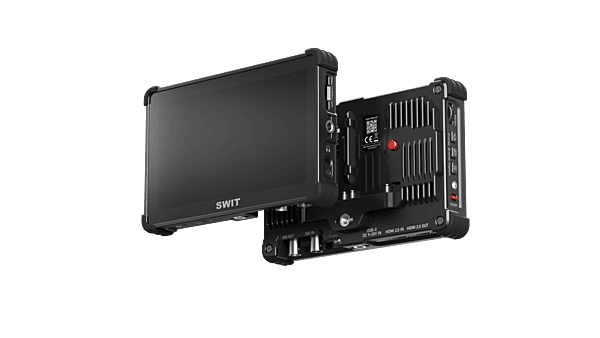

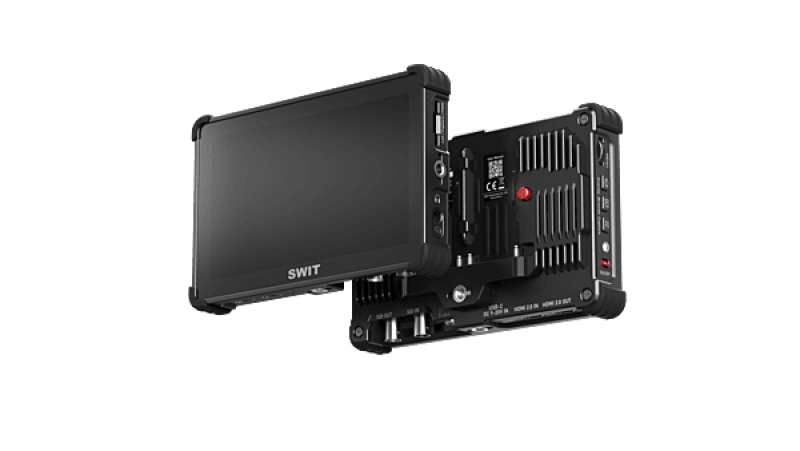

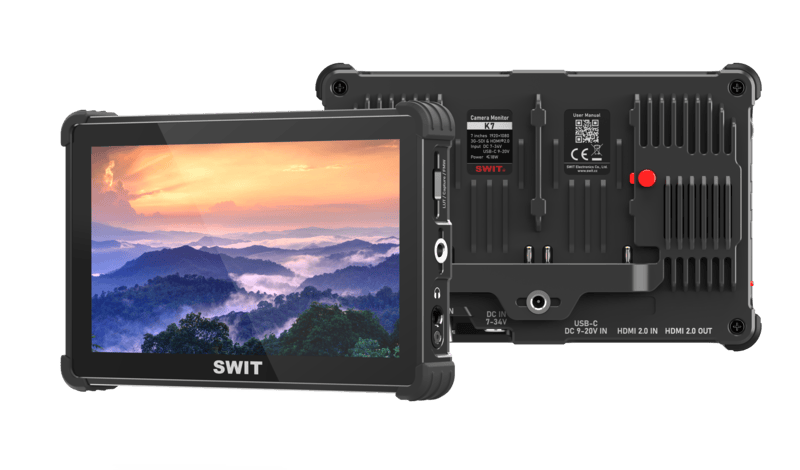

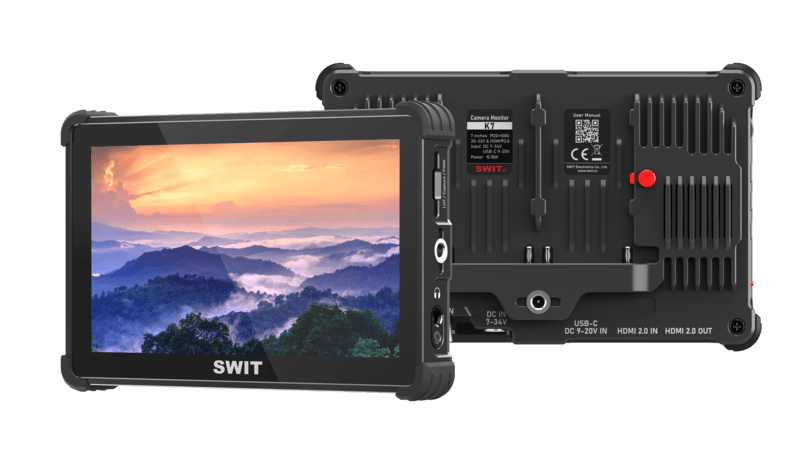

Swit K7, 7" 2800 nits Kamera FHD Monitor 3G-HD/SDI und HDMI, Multi Touch Screen

Mobile Preview: Swit K7, 7" 2800 nits Kamera FHD Monitor 3G-HD/SDI und HDMI, Multi Touch Screen

NEU

TOP

Beschreibung

New

Swit K7
2800 nits Kamera FHD Monitor 3G-HD/SDI und HDMI, Multi Touch Screen

7-inch, 1920 X 1080 FHD display panel

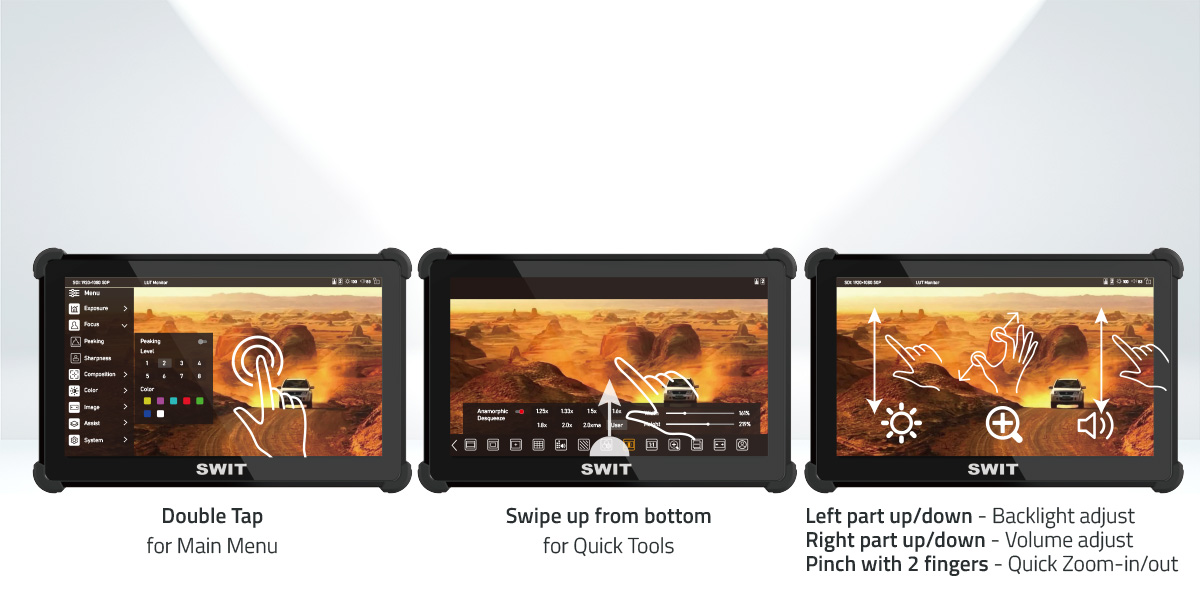

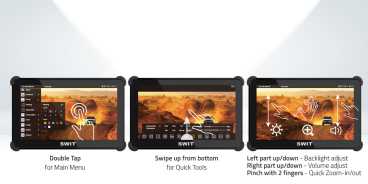

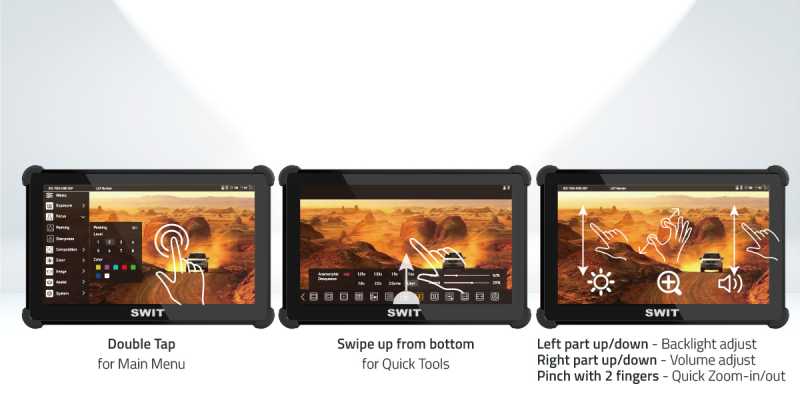

Optically bonded multi-touch screen
2800 nits ultra-bright sunlight view
All-metal with rubber corner anti-crash guards

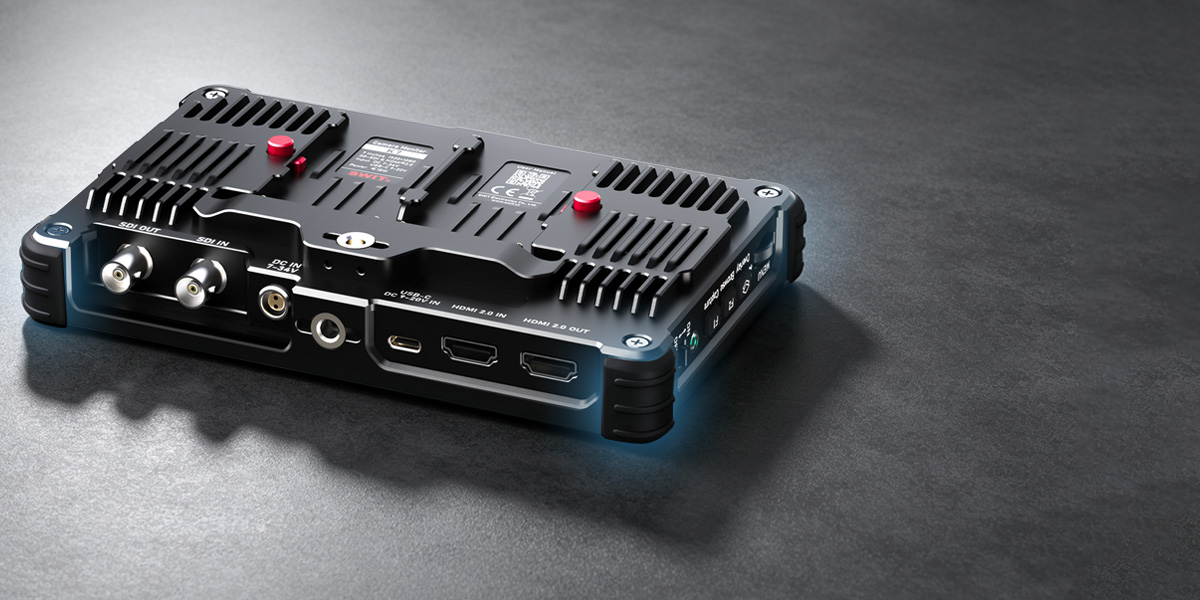

3G/HD/SD-SDI and HDMI 2.0 (4K60P) in & out
SDI & HDMI cross conversion
Built-in Delog Luts and User Luts upload via SD card
SDI & HDMI outputs support LUTS
Screenshot capture and overlay with transparency

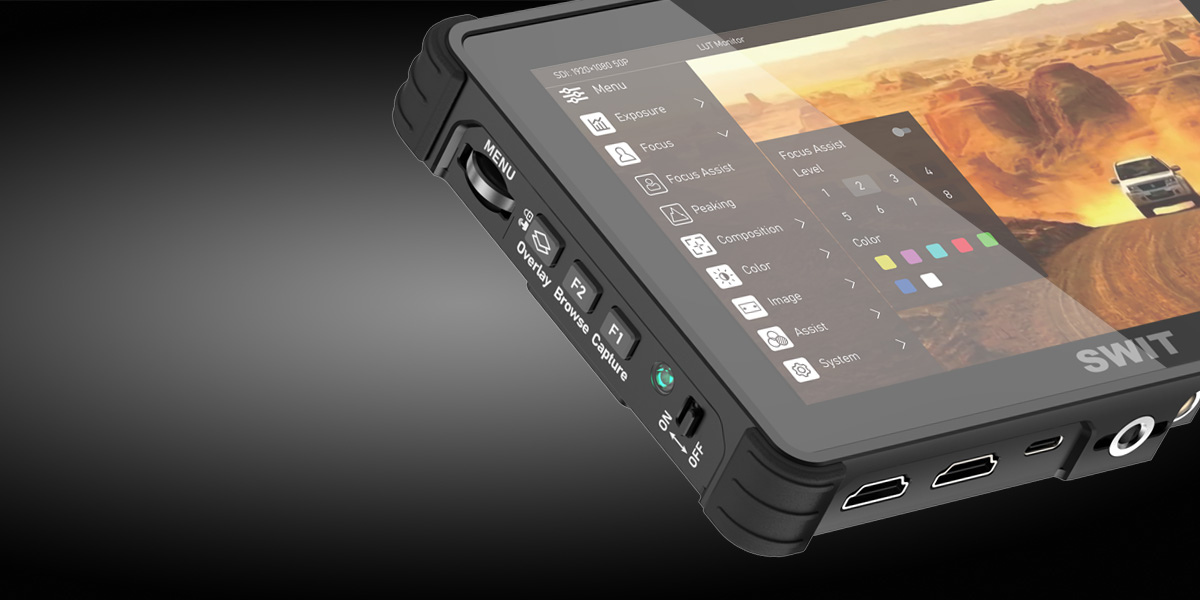

Peaking, Zebra, False color and full assist scopes
4-ch audio meters and 3.5mm audio outputs

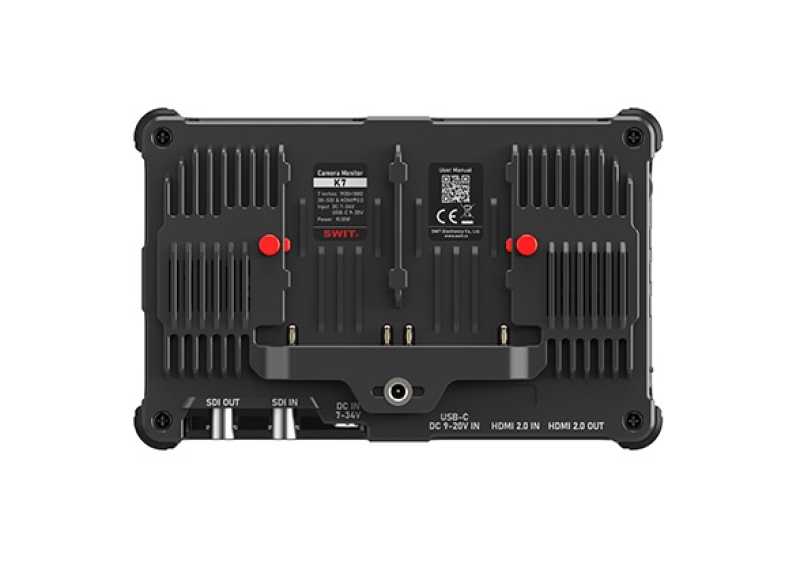

Built-in dual NP-F battery slots with hot swap
2-pin LEMO 7-34V and USB-C PD 9-20V DC input
USB-C PD 9V/12V/15V/20V DC input

Lieferumfang:
1x Swit Monitor K7

Optional:
1x Swit PA-ACL2, 12V Netzteil mit 2-Pin Lemo-Stecker; € 49,00 netto

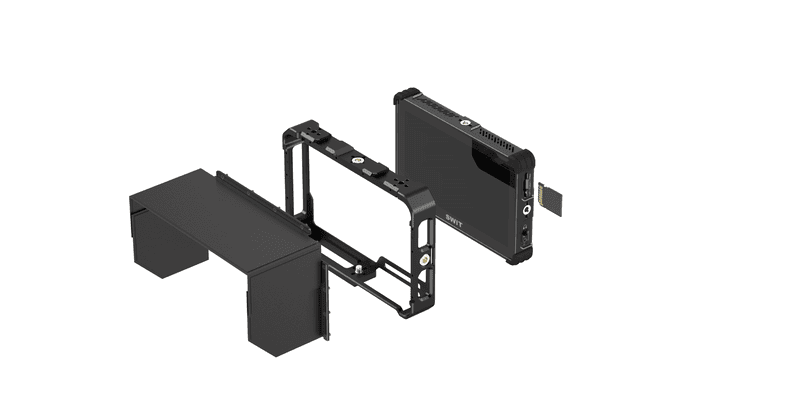

1x Swit MA-K7CAGE, Cage and Sunhood for K7 Professional On-camera Monitor; € 329,00 netto
1x Swit K7-LUX | 7" 2800nits Touch screen Metallic Professional On-camera Monitor with Tactics Package; € 1.099,00 netto

Technische Daten

Model K7

Display

Size	7 inches
Display area	154.4×86.8mm
Resolution	1920×1080, 16:9
Brightness	2800nits Max
Contrast	1000:1
Color depth	8-bit 16.77M colors
Viewing angle	160°(H) /160°(V)

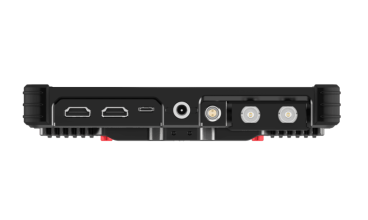

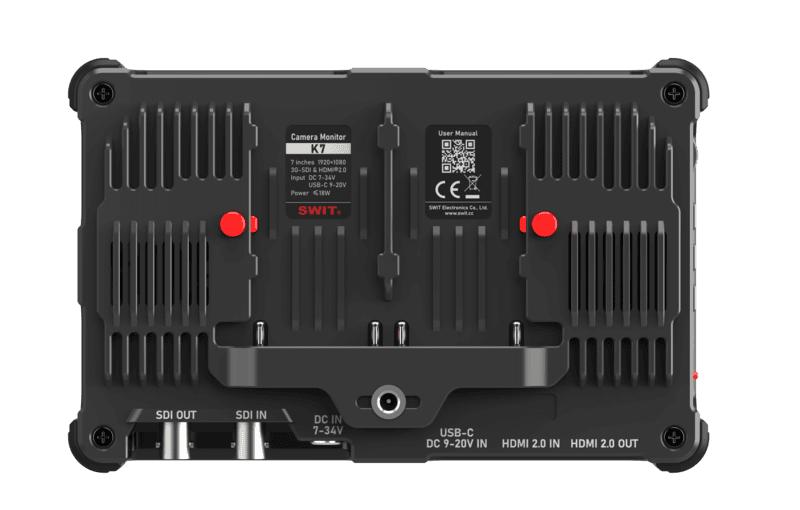

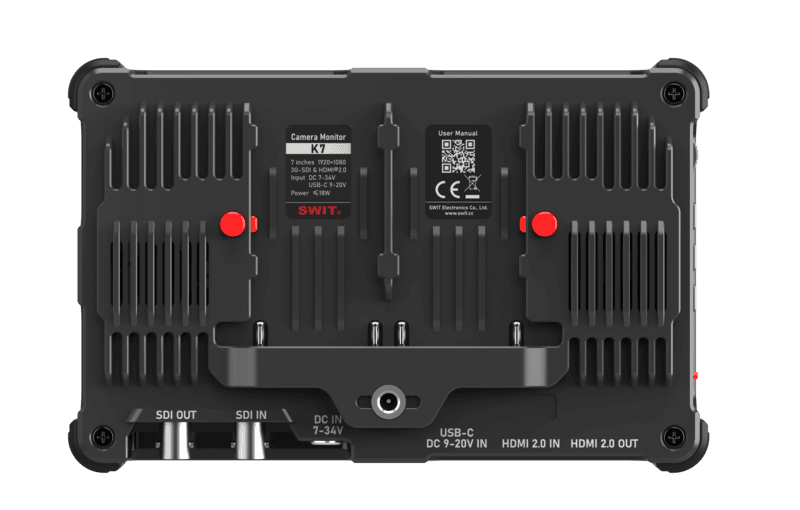

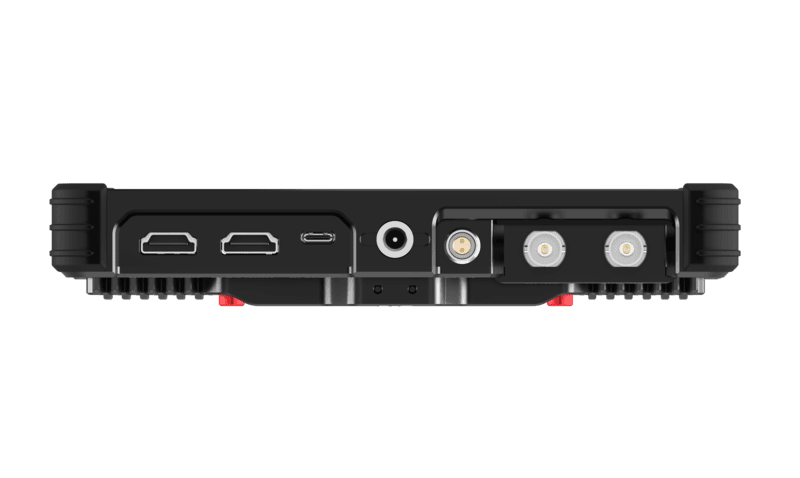

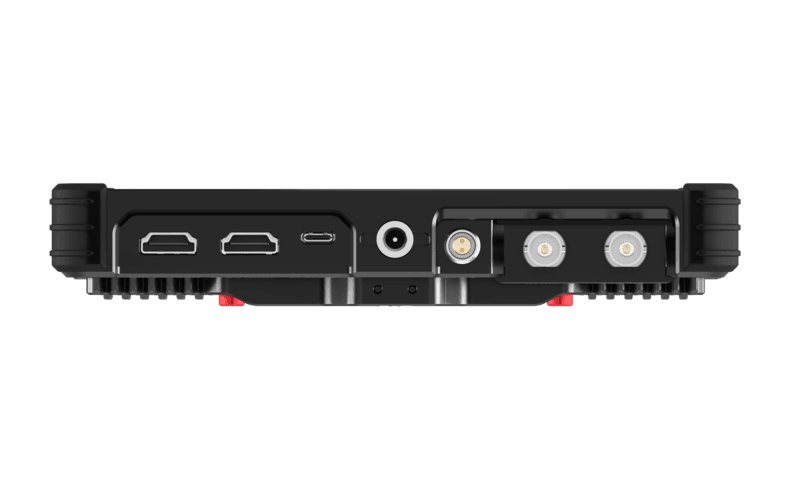

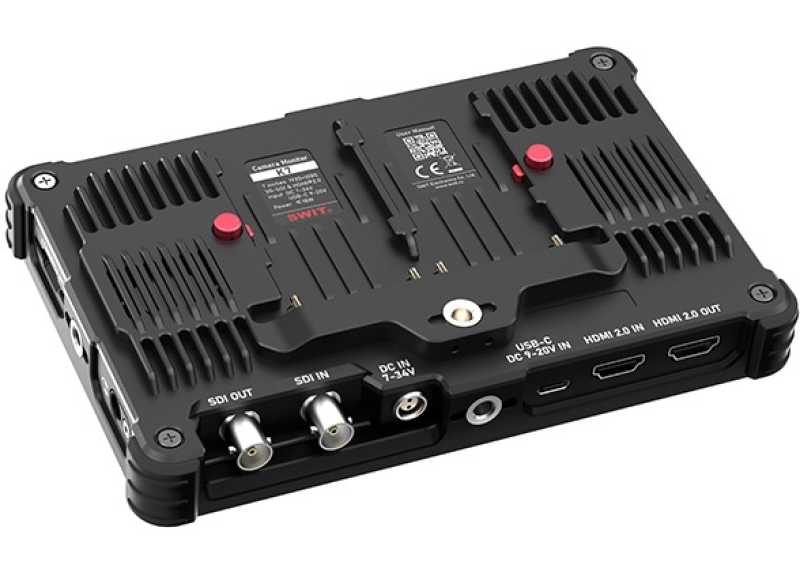

Input

BNC ×1	3G/HD-SDI input
HDMI® type A ×1	HDMI® 2.0 input
SD card ×1	LUT, firmware input

Output

BNC ×1	3G/HD-SDI output
HDMI® type A ×1	HDMI® 2.0 output
3.5mm ×1	Embedded audio output

Video Format

SDI	2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	1080psf (30 / 29.97 / 25 / 24 / 23.98)
	1080i (60 / 59.94 / 50)
	720p (60 / 59.94 / 50)
HDMI	4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	3840×2160p (60 / 59.94 /50 / 30 / 29.97 / 25 / 24 / 23.98)
	2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
	1080psf (30 / 29.97 / 25 / 24 / 23.98)
	1080i (60 / 59.94 / 50)
	720p (60 / 59.94 / 50)

General

DC Input	2-pin LEMO 7-34V in USB-C PD 9V/12V/15V/20V in
Battery Power	Dual NP-F slots 6.5-8.4V in, hot-swapable
Power Consumption	≤18W
Working temperature	0°C～+40°C
Working humidity	10%～90%
Net weight(without packaging)	0.575kg
Product dimensions(without packaging)	187×121×32mm
Gross weight(with packaging)	0.9kg
Package dimensions	240×180×45mm
