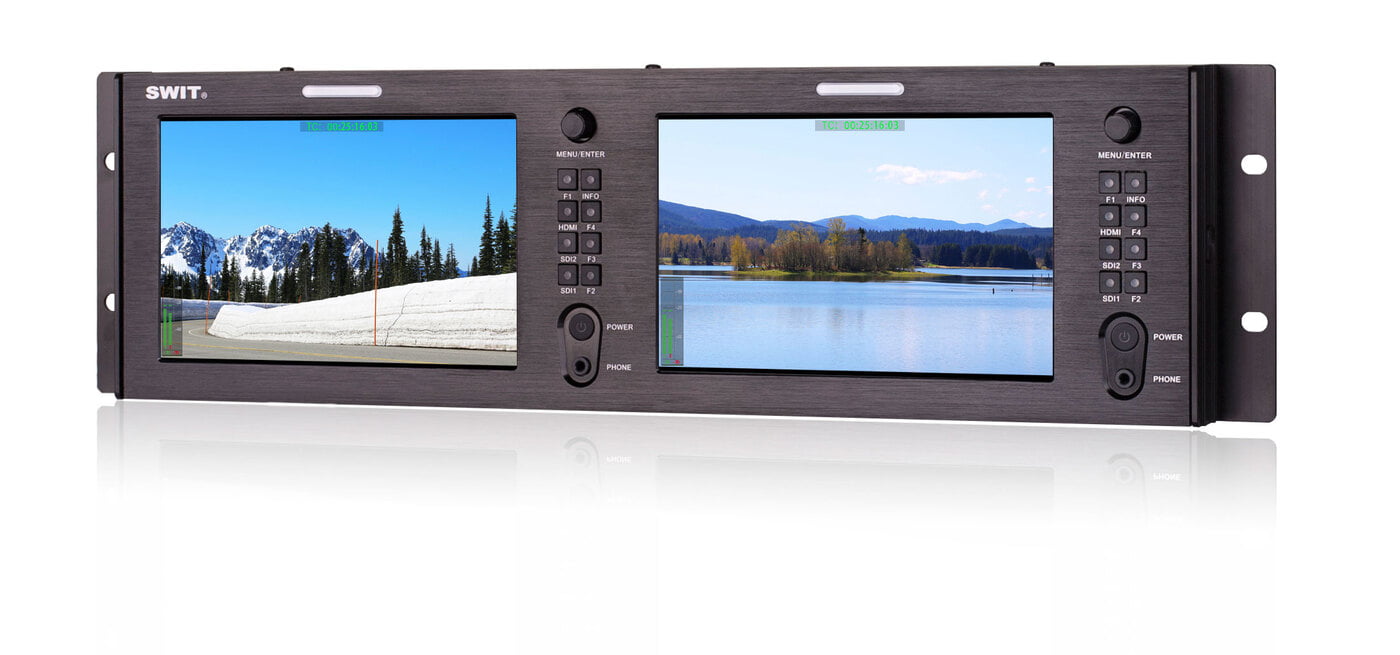

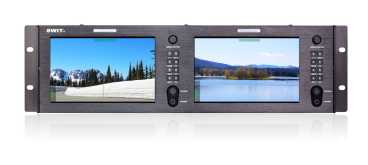

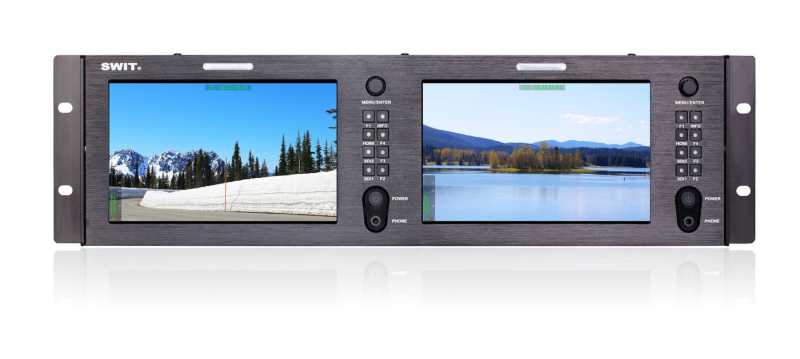

Dual 7” non-glaring LCD, 1920×1200
19-inch 3U rack mount, ±30° rotatable
2K/3G/HD/SD-SDI input & loop output
HDMI 2.0 (4K60p) input & loop output
16-ch embedded audio meters with alert
Select any 2 audio channels to output
9 steps quick zoom-in and mapping
Focus assist with precision adjustment
Build-in multi-camera logs to Rec.709
User 3DLUT cube file import by USB
On-screen TALLY display and GPI
Zebra stripes, False color, R/G/B/Mono
H/V delay, AFD, Timecode display
Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
USB firmware upgrade
| Size | 7 inches x2 |
| Display area | 151.2×94.5mm |
| Resolution | 1920×1200 |
| Aspect ratio | 16:9 (4:3 adjustable) |
| Brightness | 400cd/m2 |
| Contrast | 1000:1 |
| Color | 16.77 million colors |
| Viewing angle | Horizontal: 160°; Vertical: 160° |

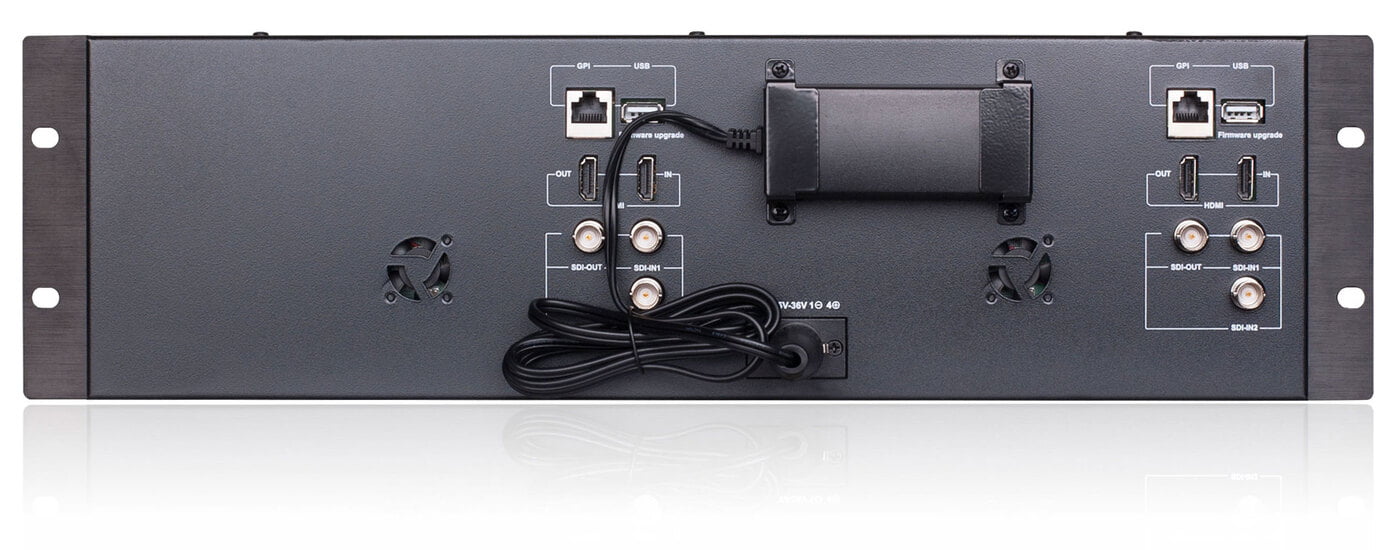

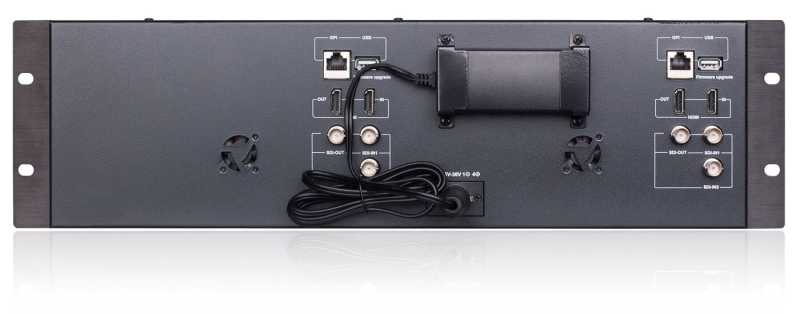

Input(Each LCD)
| BNC ×2 | 2K/3G/HD/SD-SDI input |
| BNC ×1 | HDMI® 2.0 input |
| USB ×1 | LUT upload and Firmware upgrade |
| RS485 ×1 | GPI (Tally) input |
Output(Each LCD)
| BNC ×1 | 2K/3G/HD/SD-SDI loop output |
| HDMI® ×1 | HDMI® 2.0 loop output |
| 3.5mm ×1 | SDI, HDMI® embedded audio output |
Video Format
| SDI | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 2048×1080i (60 / 59.94 / 50) | |
| 1080p (60 / 59.94 / 50) | |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
| HDMI® | 4096×2160p (60 / 50 / 30 / 25 / 24) |
| 3840×2160p (60 / 50 / 30 / 25 / 24) | |
| 480i/ 576i / 480p / 576p | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
General
| Input voltage | DC 6.5V-36V |
| Power consumption | 18-26W |
| Working temperature | 0°C～+50°C |
| Working humidity | 10%～90% |
| Storage temperature | -15°C～+60°C |
| Storage humidity | 10%～90% |
| Dimensions | 484×130×82mm |
| Net weight (main body) | Net 2.4kg; With package 2.7kg |
