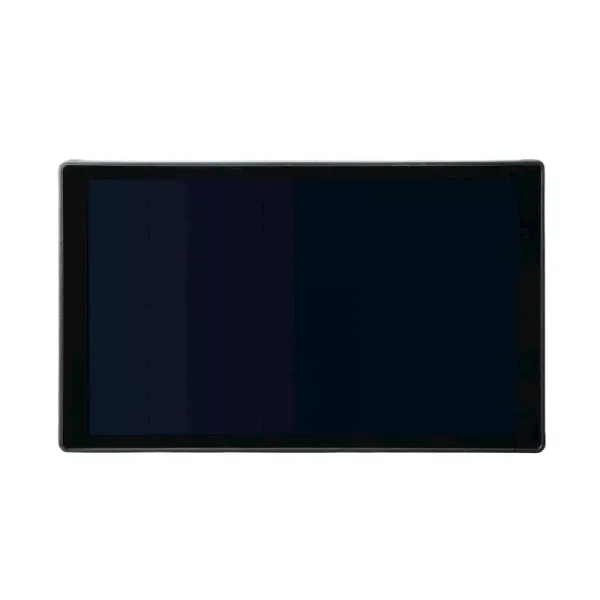

Portkeys LH5C, 5.4″ Camera Control Monitor
NEU
-5%
Portkeys LH5C

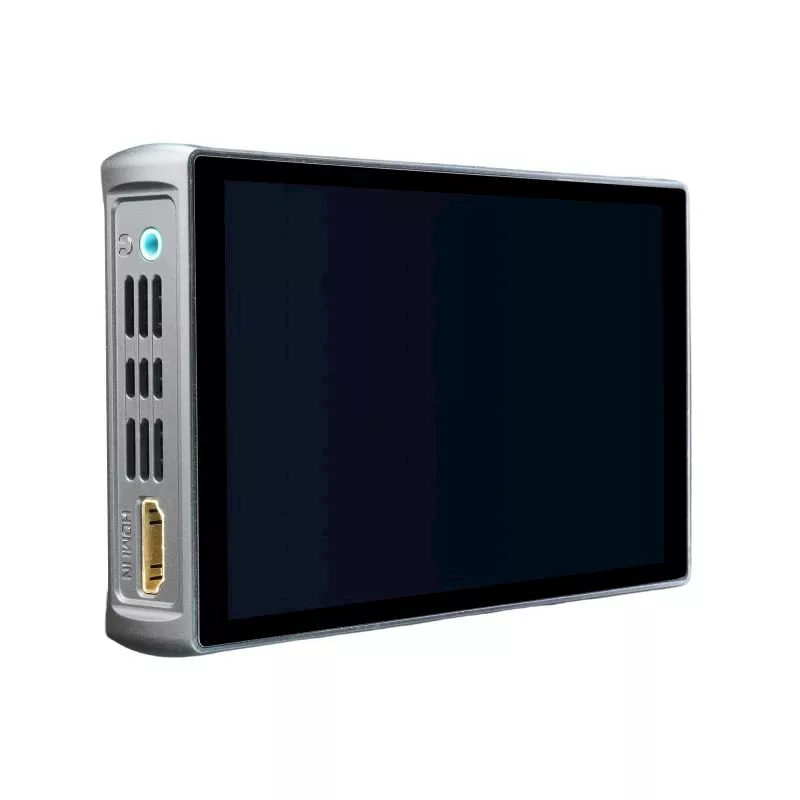

is a professional 5.4-inch on-camera monitor with 800nits of brightness, HDMI video input/output ports, Rec.709 color and 85% DCI-P3 coverage, 3D-LUT output capabilities, and wired camera control features.
Key features:

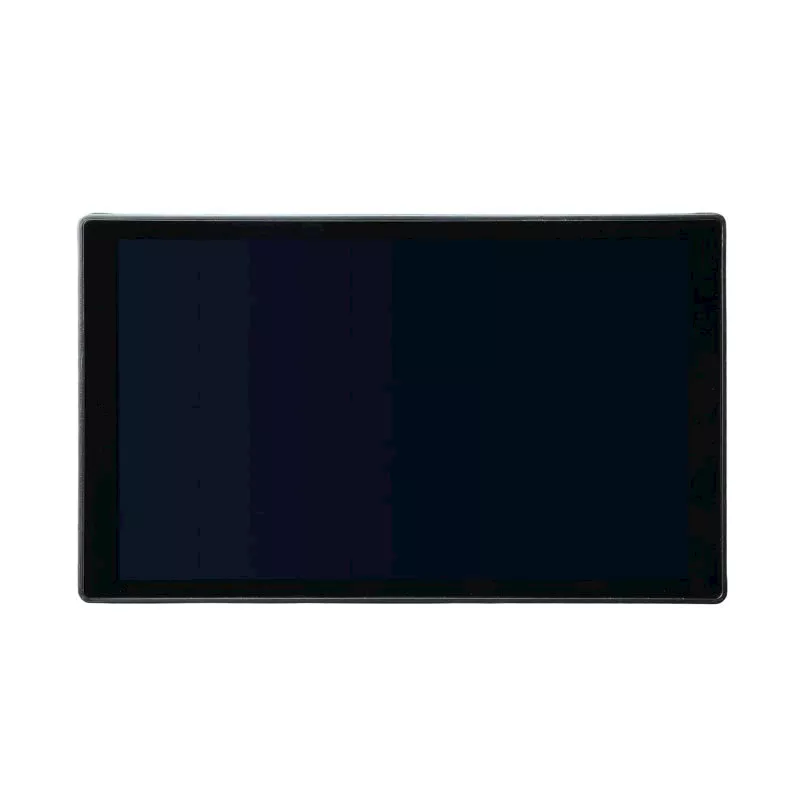

The Portkeys LH5C is an affordable on-camera monitor with wired camera-control capabilities. However, despite its price, this monitor features a 5.4” LCD touchscreen with 800nits brightness, a 1,000:1 contrast ratio, and a large 178° viewing angle. The display has a 1080p resolution (1920 x 1152), and it covers 100% of Rec.709 and 85% of DCI-P3 color spaces. The LH5C comes with a 10-bit (8+2 FRC) panel for high color fidelity and no color banding artifacts.

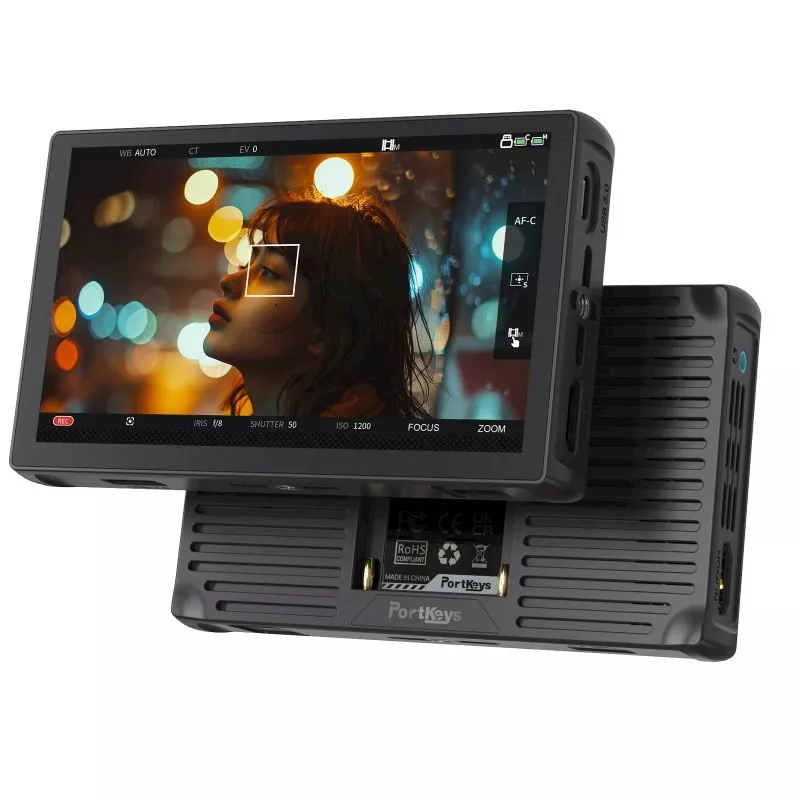

The LH5C enables you to operate various cameras from brands like Sony, Canon, Panasonic, Z CAM, and Blackmagic Design. It is compatible with well-known models, including the Sony FX3, FX30, FX6, and the Canon EOS C80 and C400!
Product specifications
What's in the box:
is a professional 5.4-inch on-camera monitor with 800nits of brightness, HDMI video input/output ports, Rec.709 color and 85% DCI-P3 coverage, 3D-LUT output capabilities, and wired camera control features.
Key features:
- 5.4-inch,10-bit (8+2 FRC) panel with a resolution of 1920 x 1152 and a 1000:1 contrast ratio.
- Maximum brightness of 800nits, 85% DCI-P3 coverage.

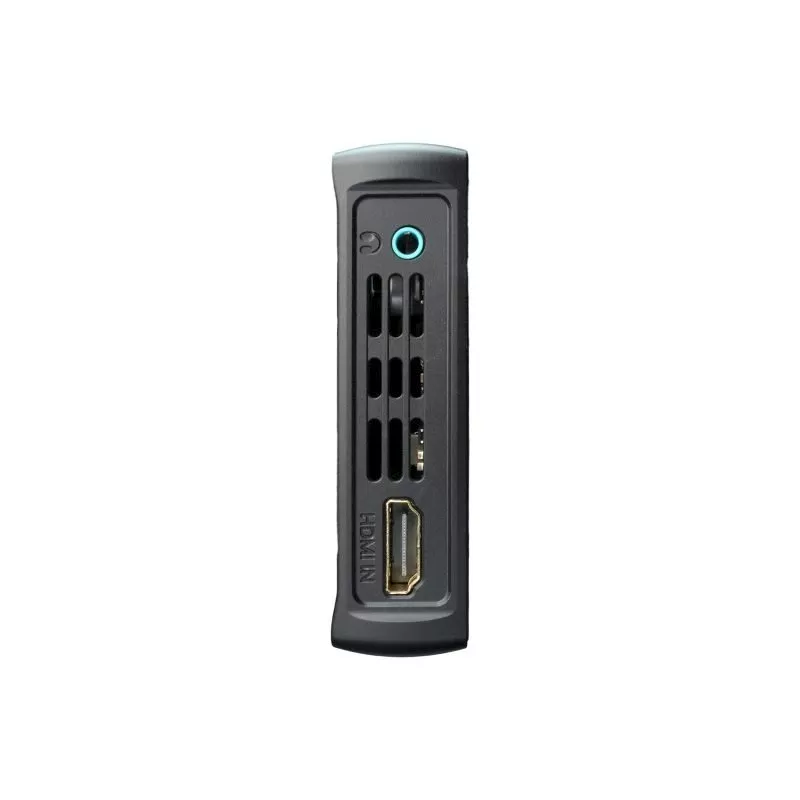

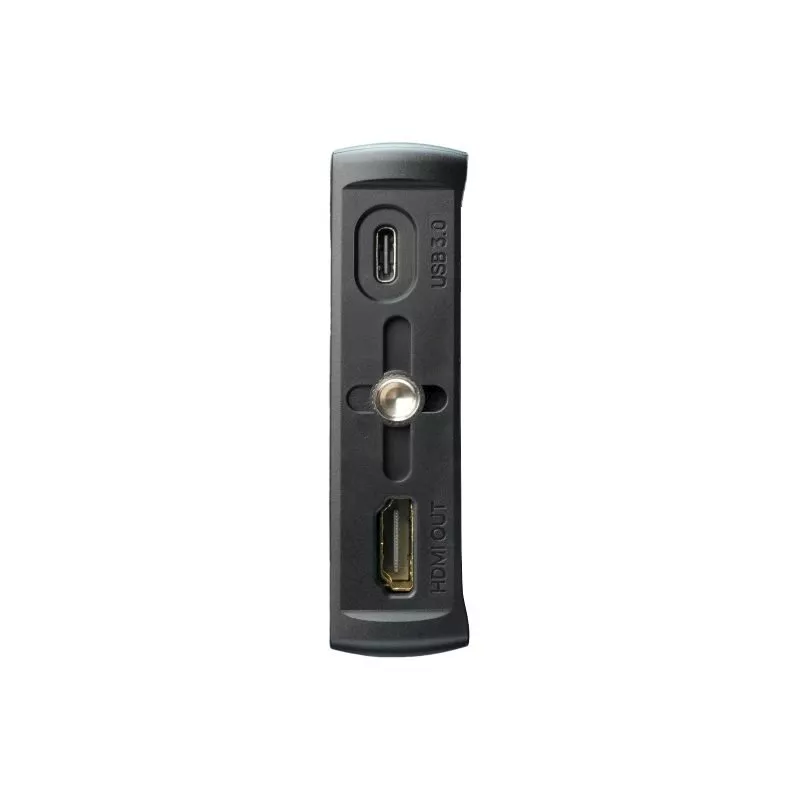

- 1 x 4K HDMI input, 1 x HDMI output.
- Professional monitoring tools: RGB and Luma Waveform, Anamorphic Image De-Squeeze, Peaking, ARRI False Color.
- 3D LUT monitoring and 3D LUT HDMI output capabilities.

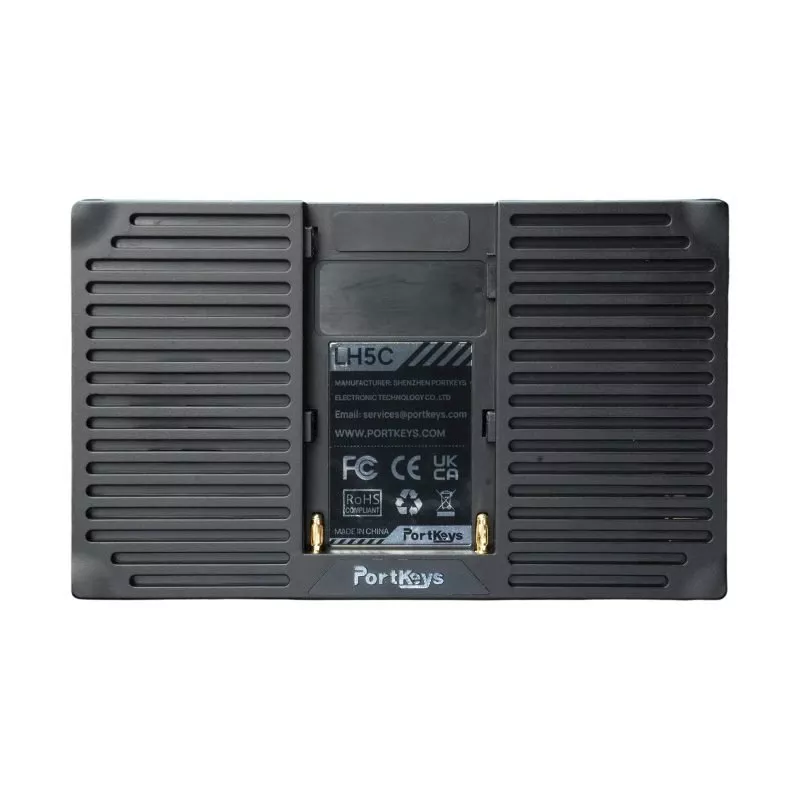

- Built-in Sony NP-F style battery plate.
- USB-C 3.0 5V power input port.
- Low power draw: only 7.5W.
- Lightweight and rugged ABS + PC housing: only 162g/5.7oz.
The Portkeys LH5C is an affordable on-camera monitor with wired camera-control capabilities. However, despite its price, this monitor features a 5.4” LCD touchscreen with 800nits brightness, a 1,000:1 contrast ratio, and a large 178° viewing angle. The display has a 1080p resolution (1920 x 1152), and it covers 100% of Rec.709 and 85% of DCI-P3 color spaces. The LH5C comes with a 10-bit (8+2 FRC) panel for high color fidelity and no color banding artifacts.
The LH5C enables you to operate various cameras from brands like Sony, Canon, Panasonic, Z CAM, and Blackmagic Design. It is compatible with well-known models, including the Sony FX3, FX30, FX6, and the Canon EOS C80 and C400!
Product specifications
- Dimensions: 135.1 x82.5x22mm / 5.3 x 3.3 x 0.8in
- Weight: 162g / 5.7oz
- Material: ABS+ PC

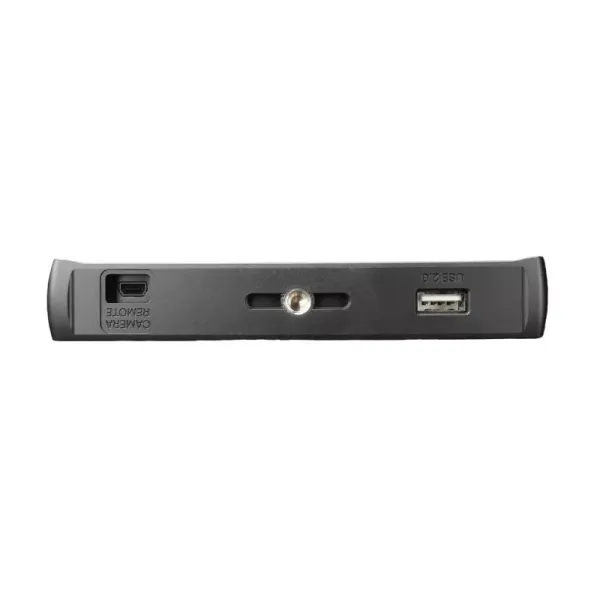

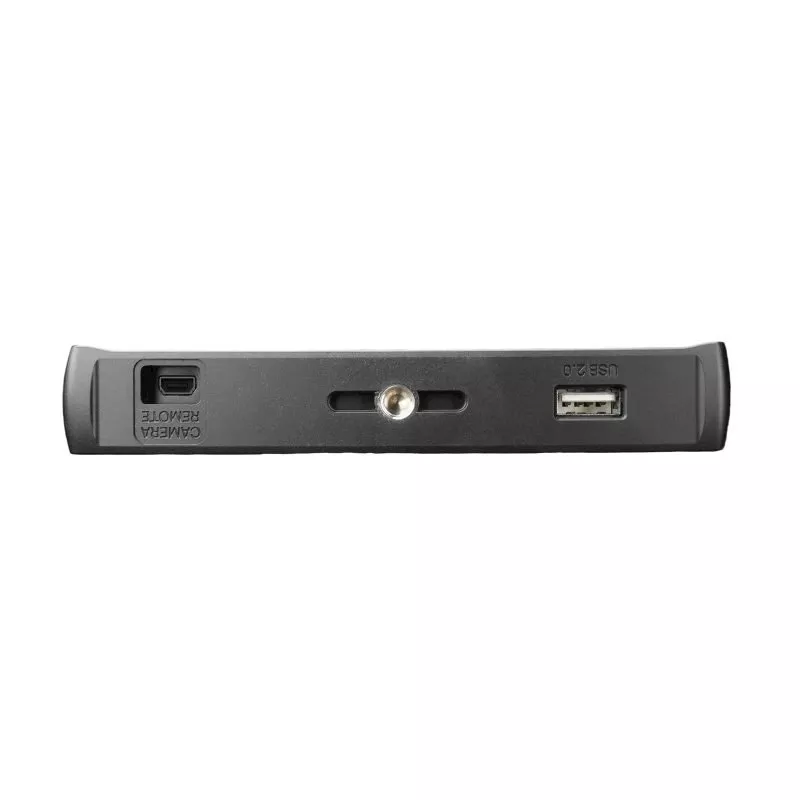

- Mounting Points Bottom: 1/4" screw hole *1, Side: 1 / 4" screw hole *1
- Input Voltage: 7-24V
- Maximum Power Consumption: 7.5W
- Fan: Built-in Silent Fan
- Screen Size: 5.4"
- Brightness: 800nits
- Color Gamut: 85% NTSC
- Resolution: 1920 x 1152
- Contrast Ratio: 1000: 1
- Viewing Angle: 80 / 80 / 80 / 80
What's in the box:
- Safety box
- Mini Flash Drive
- Sunshade
- Protective rubber covers
- MH-2 coldshoe mount
- LANC cable
- USB-C control cable
| Brand | Portkeys |
| Itemcode | 2615.0069 |
| Bruto weight | 4.5 |
| Net weight | 4 |
| HS code | 8528529100 - Monitors |
| Shipping dimensions | 40cm x 35cm x 12cm |
| Supplier item code | PK-LH5C |
