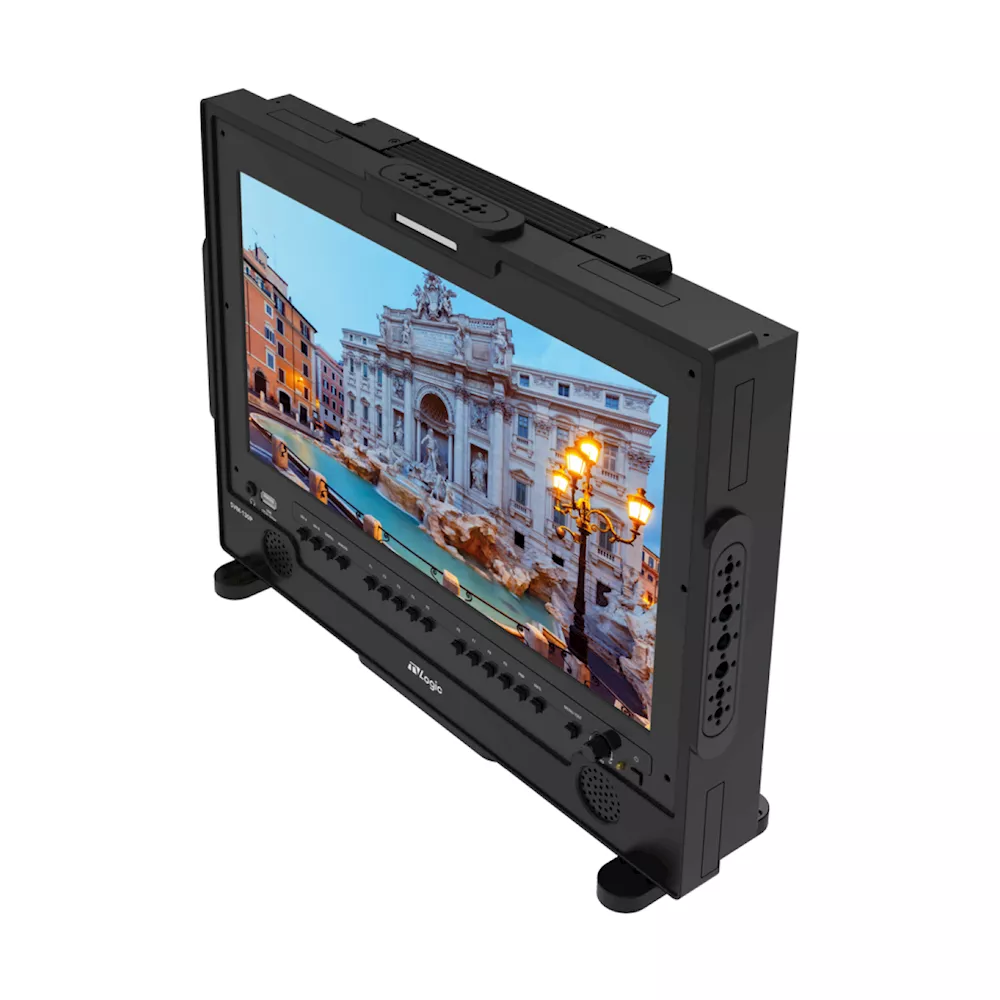

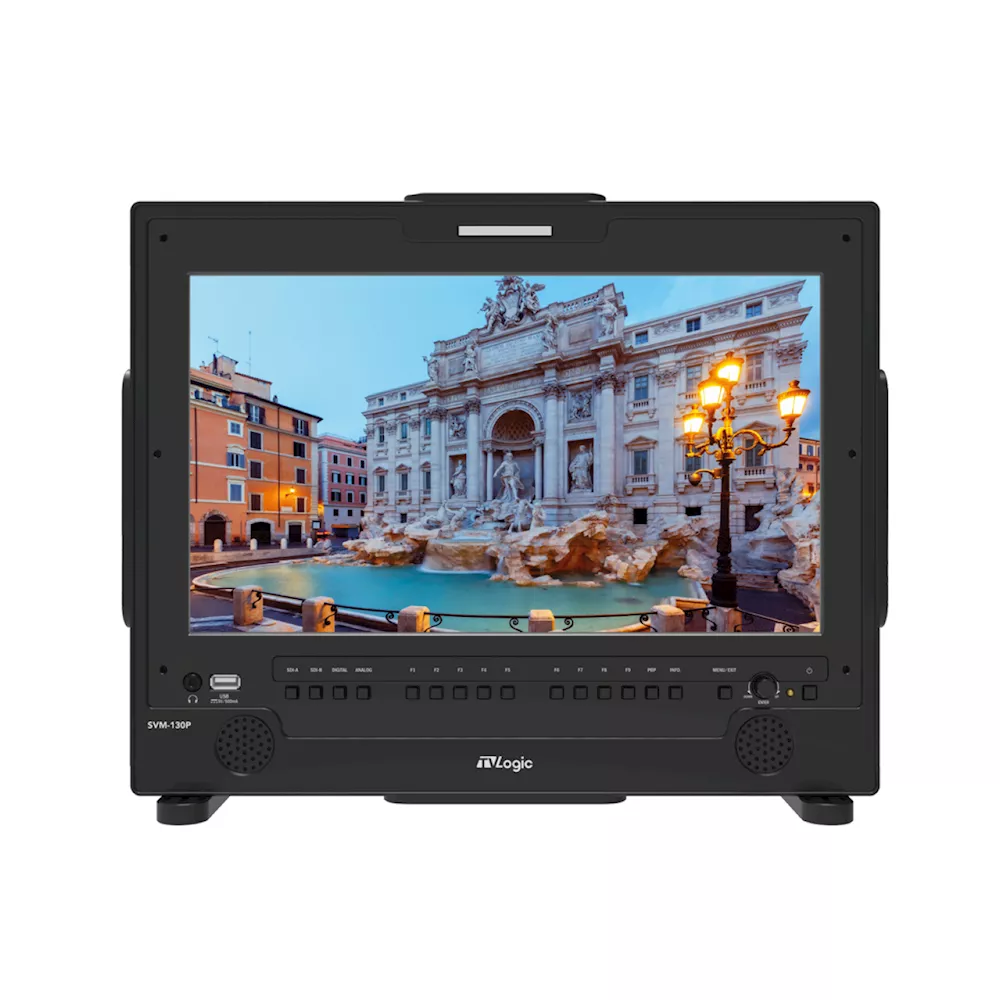

TVLogic SVM-130P
• 1500nits High Brightness Display

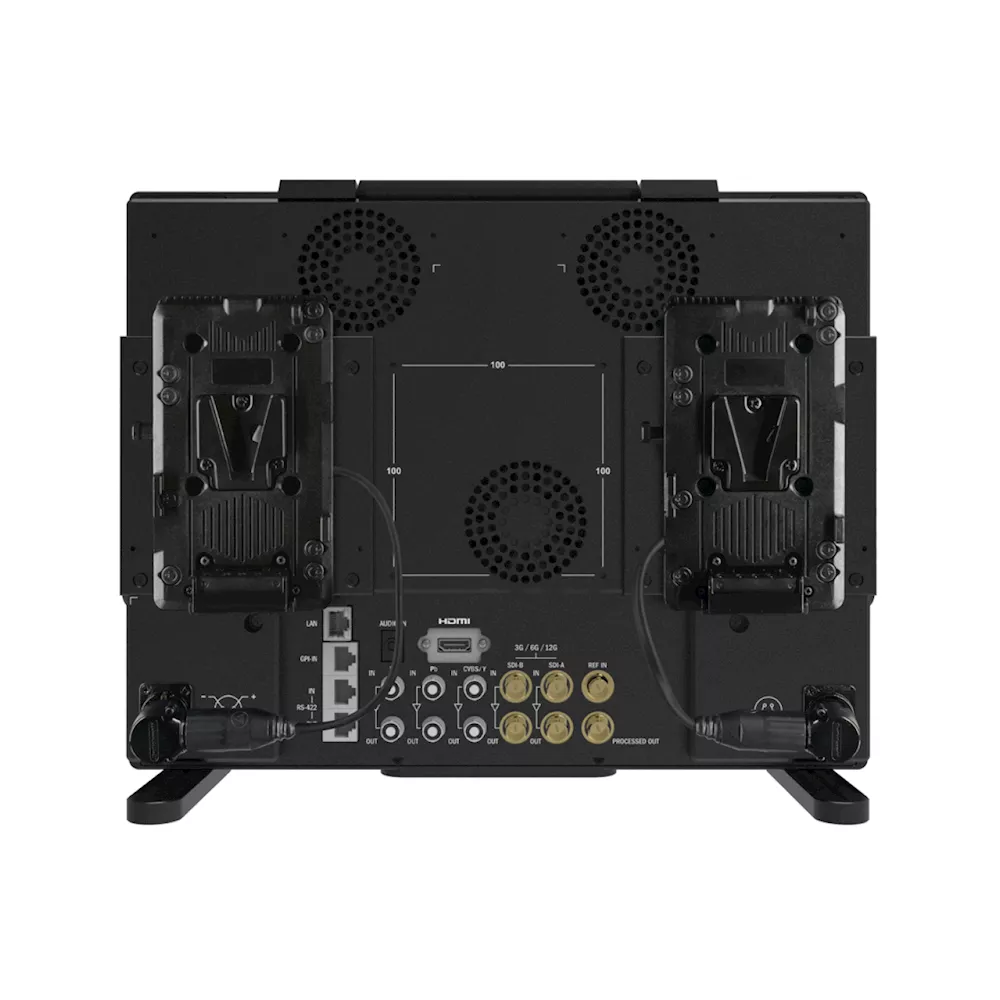

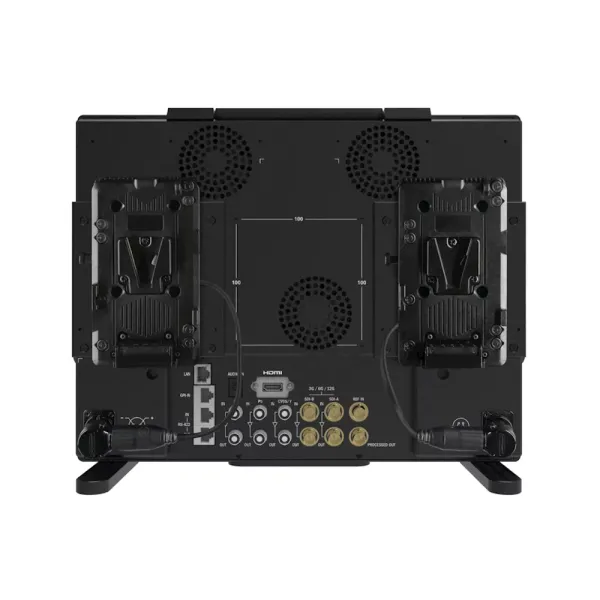

• 2 x 12G-SDI Input and Loopout
• 12G-SDI Input to 3G-SDI Downscale Output
• Processed Monitor Output

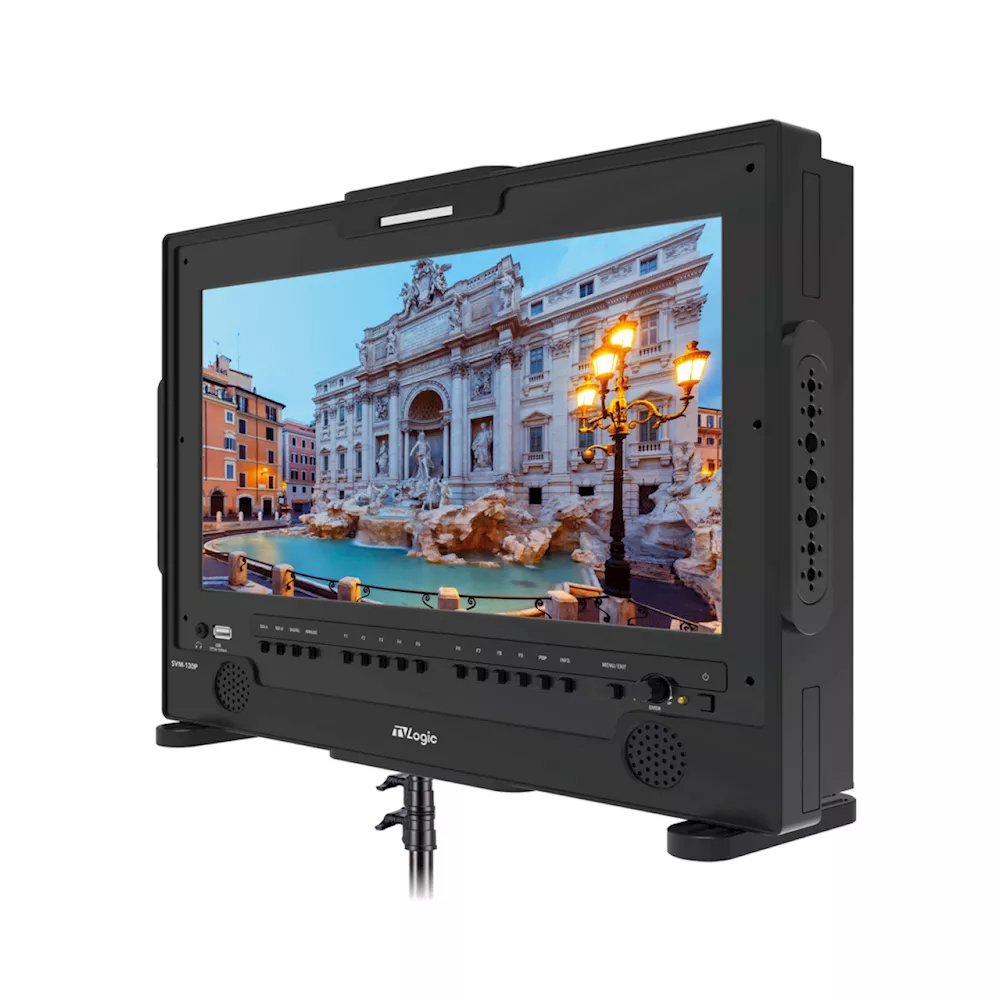

• Cheese Plates, C-stand Mountable
• Dual Battery Brackets (V-Mount, G-Mount)
• Picture-by-Picture Display
• HDR (PQ, HLG, S-LOG3)
• Custom 3D LUT Import by USB Flash Drive
• Auto Detection of SDI Payload ID
• Image Capture & Overlay
• Waveform (YCbCr, RGB) / Vector Scope / Histogram
• Audio Level Meter / Audio Phase Meter
• Fast Mode
• Focus Assist / Marker
• Blue/Mono Only / Timecode Display
• Remote Control & FW Update via Ethernet
• H Flip, V Flip
Main Body 376.8 x 302.5 x 130 (mm) / 14.83 x 11.90 x 5.11 (inch)
Weight 5.34kg / 11.77lbs
Shipping specifications
| Brand | TVLogic |
| Itemcode | 2605.0357 |
| Bruto weight | 35 |
| Net weight | 24 |
| HS code | 8528529100 - Monitors |
| Shipping dimensions | 110 x 41 x 88 cm |
| Supplier item code | TVL-SVM-130P |
