TVLogic LVM-096A, 1O" FHD Multi-Purpose Monitor, Full HD Resolution (1920x1200)
NEU
TOP
-5%
TVLogic LVM-096A

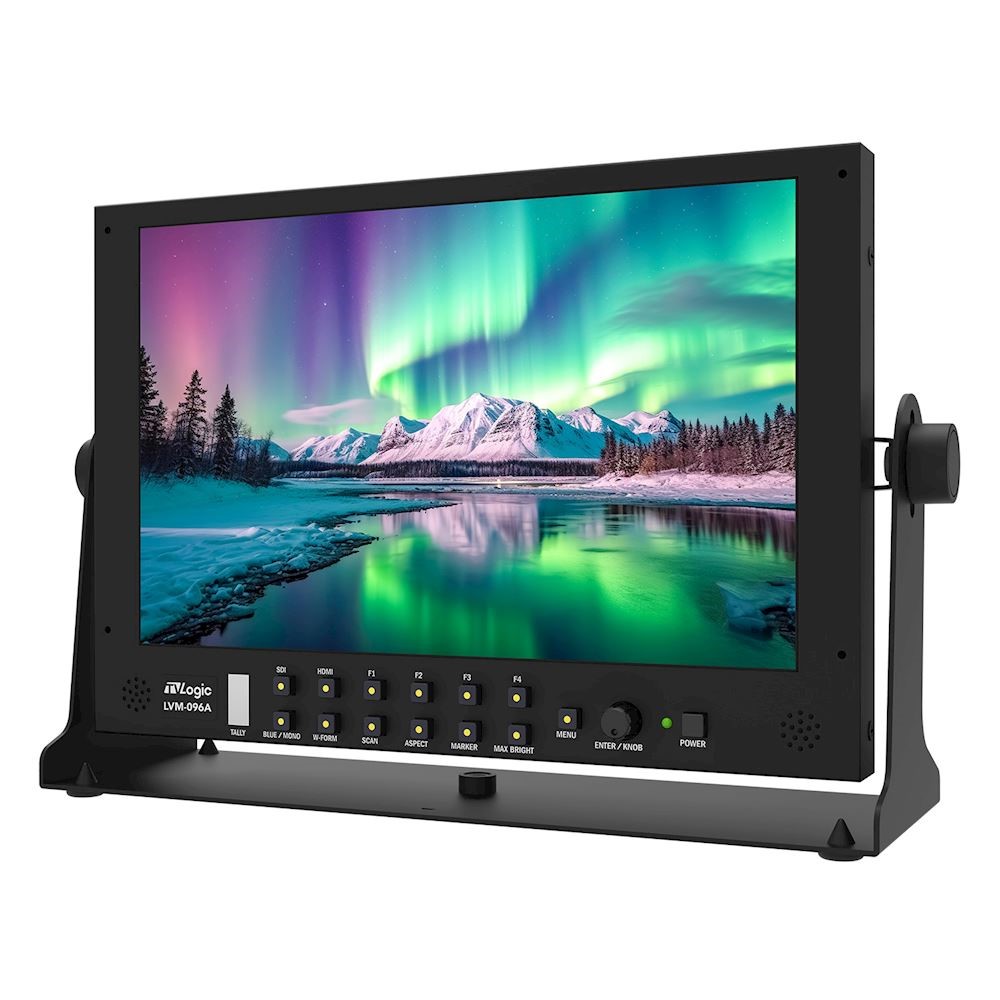

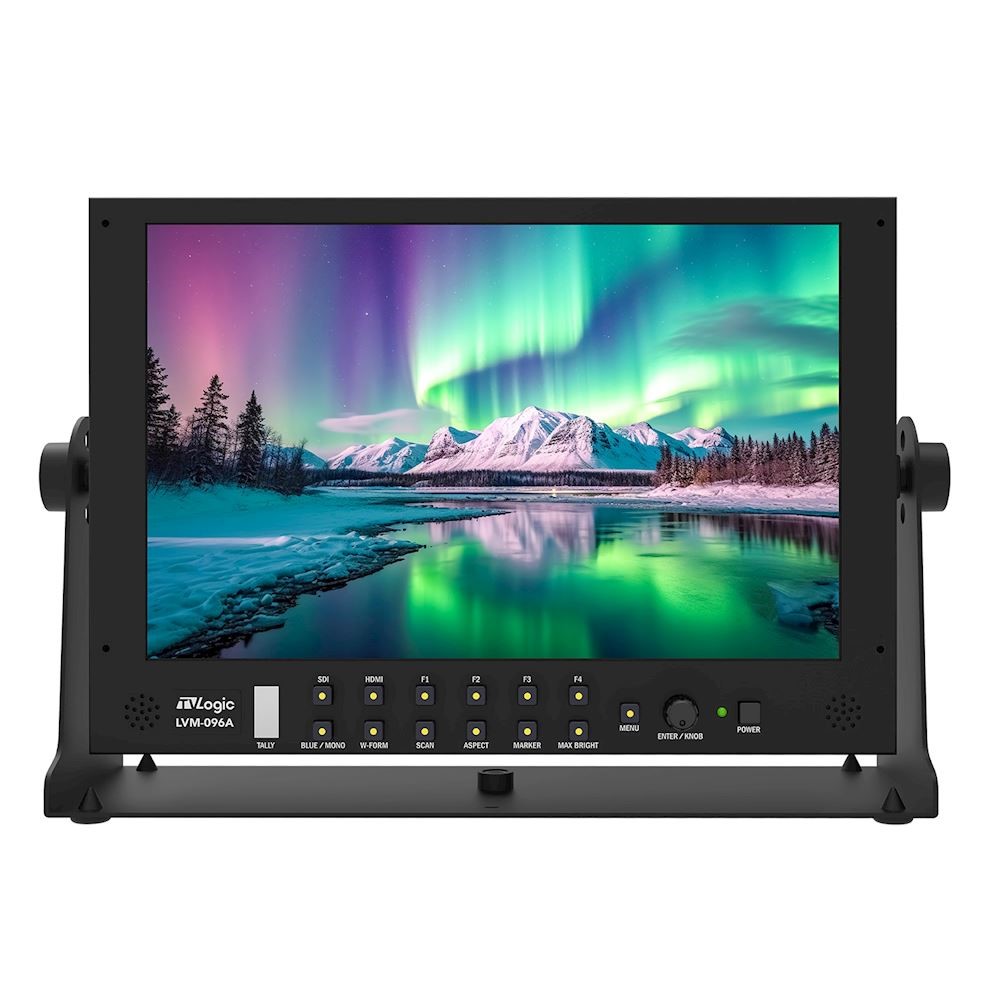

The LVM-096A has 10.1" Full HD 1920x1080 panel corresponding wide range of image sources (3G HD/SD-SDI, HDMI). For maximum efficiency and economic feasibility, LVM-096A is constructed from aluminum for an extra-light weight and a built-in V-Mount. Upgraded with new FHD panel with accurate color reproduction capability, LVM-096A gives clear picture with powerful features.
The LVM-096A has 10.1" Full HD 1920x1080 panel corresponding wide range of image sources (3G HD/SD-SDI, HDMI). For maximum efficiency and economic feasibility, LVM-096A is constructed from aluminum for an extra-light weight and a built-in V-Mount. Upgraded with new FHD panel with accurate color reproduction capability, LVM-096A gives clear picture with powerful features.
• Waveform / Vectorscope
• 16ch Audio Level Meter
• Focus Assist
• Marker
• Timecode Display
• Dynamic UMD
• Blue/Mono Only
• H/V Delay
• Luma(Y’) Zone Check
• Range Error
• SCAN / Pixel-to-Pixel
• Zoom
• User Aspect
• Closed Caption (CC-608, CC-708)
• Various Scan Modes
• Tally
• GPI Control
Main Body 254 x 175 x 60 (mm) / 10 x 6.89 x 2.36 (inch)
With Stand 295.2 x 194.2 x 90 (mm) / 11.62 x 7.65 x 3.54 (inch)
Weight 2.40Kg / 5.29lbs

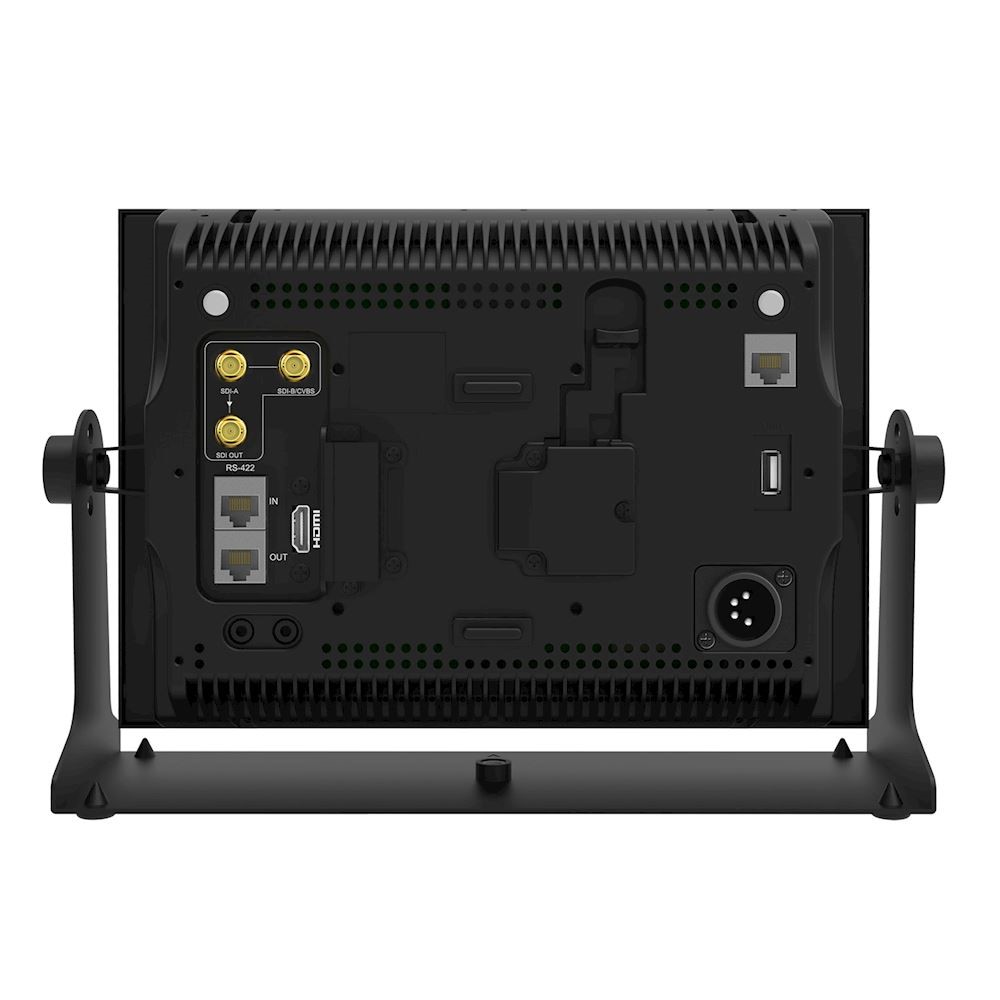

Input
- 1 x 3G-SDI A Input
- 1 x 3G-SDI B Input
- 1 x HDMI input
- 1 x CVBS input (shared with SDI-B)
Output
- 1 x 3G-SDI Out
Main Body 254 x 175 x 60 (mm) / 10 x 6.89 x 2.36 (inch)
With Stand 295.2 x 194.2 x 90 (mm) / 11.62 x 7.65 x 3.54 (inch)
Weight 2.40Kg / 5.29lbs
