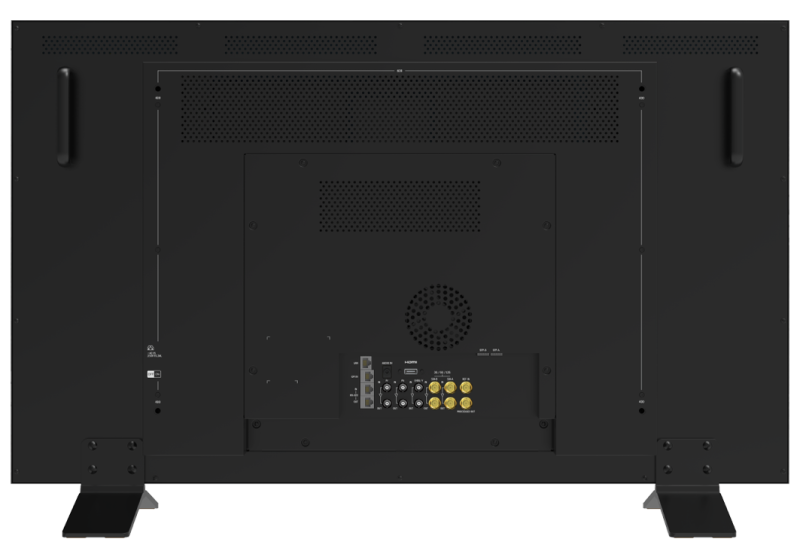

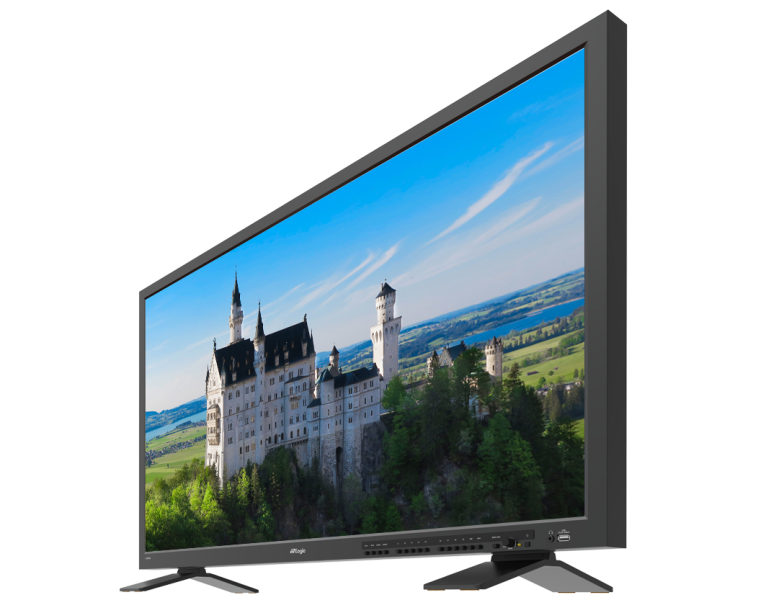

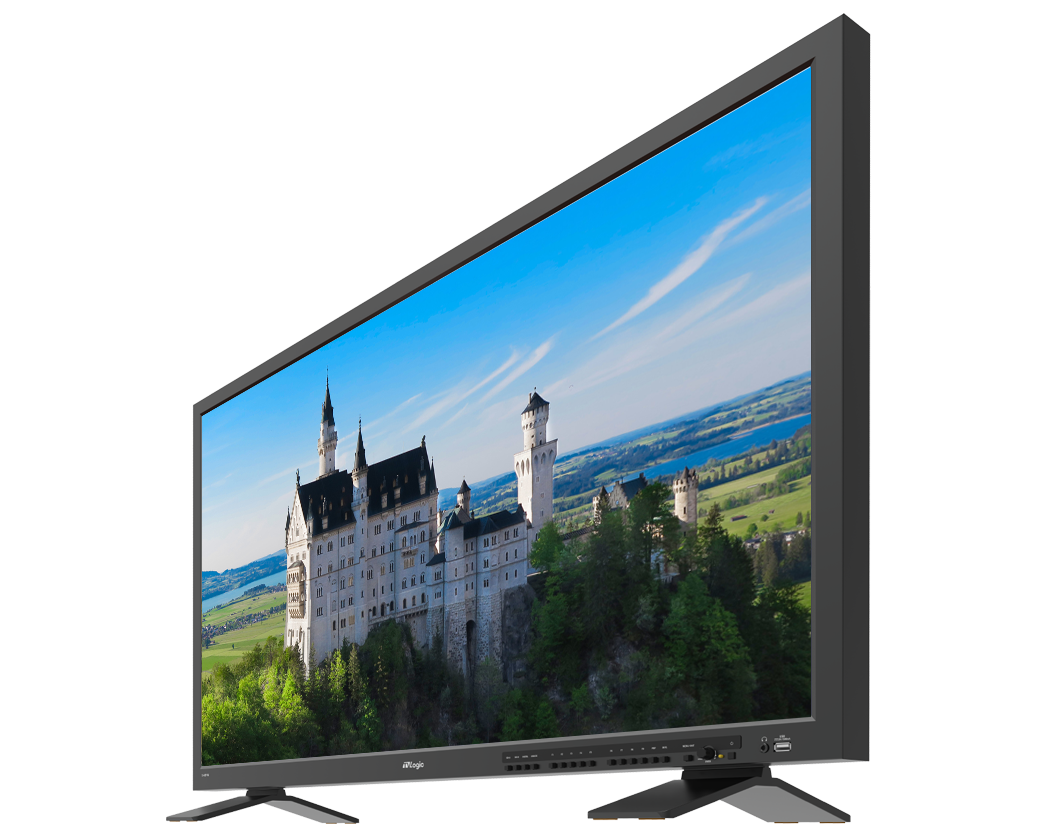

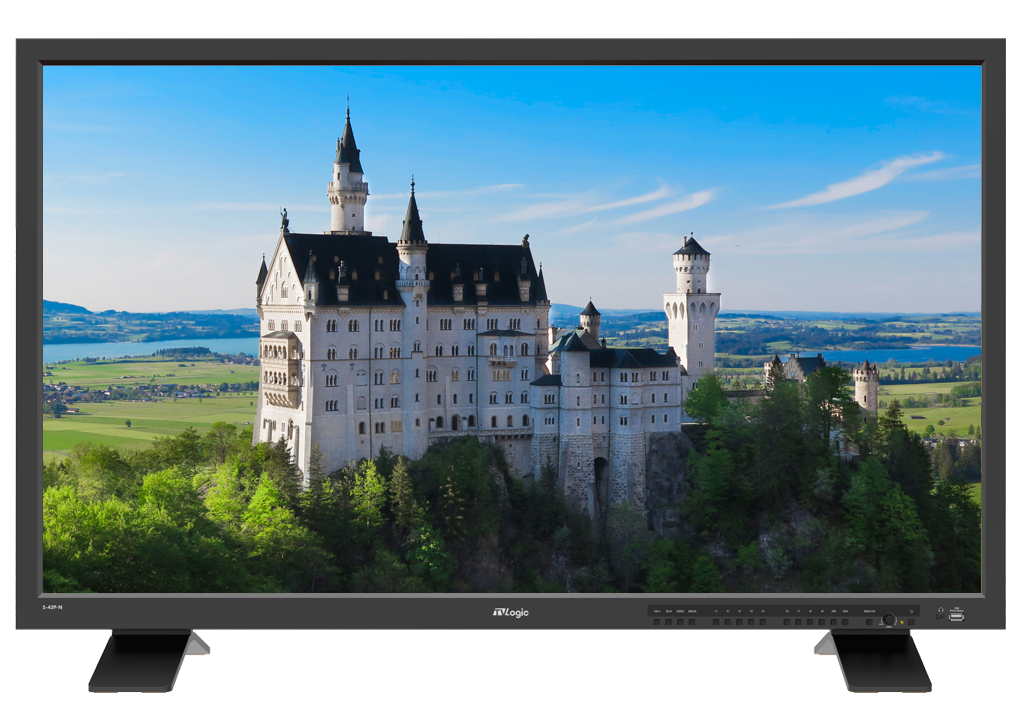

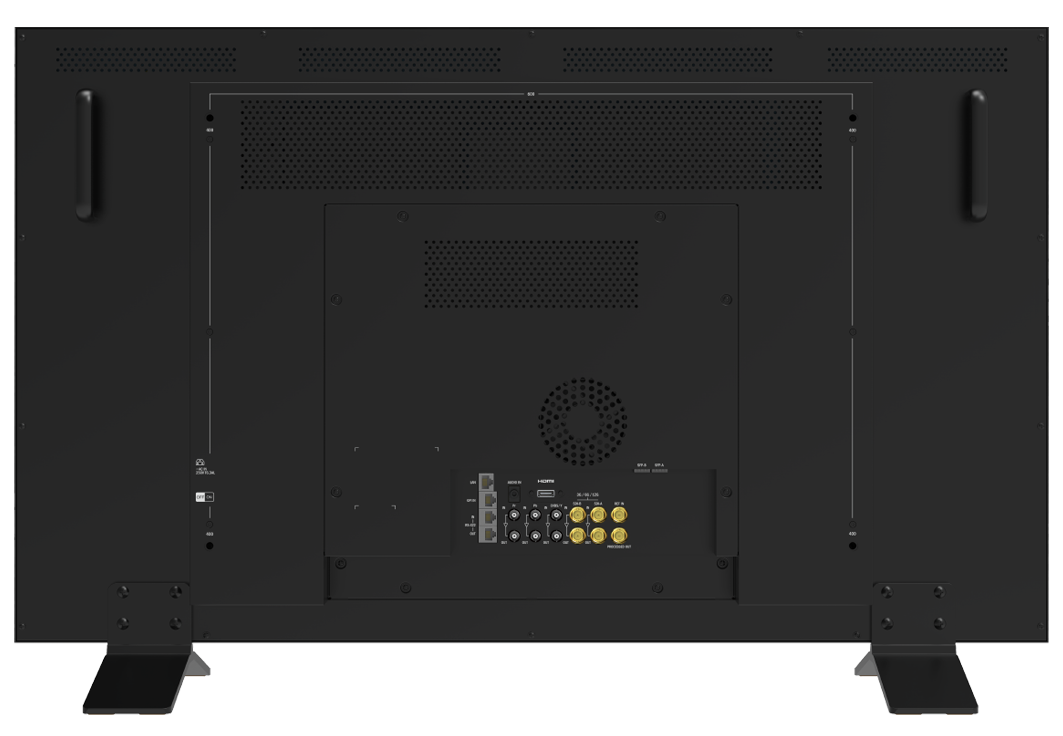

TVLogic S-42P-N, 42’’ FHD Studio Monitor with SFP module & Ember Protocol
NEU
TOP
-10%
TVLogic S-42P-N
The S-42P-N has the new designed mainboard for advanced stability and speedy processing. This monitor supports various video formats including 12G-SDI, HDMI and SFP. Also provides network control by Ember+ protocol and HDR with HDR EOTFs of PQ, HLG and SLog3.
The S-42P-N has the new designed mainboard for advanced stability and speedy processing. This monitor supports various video formats including 12G-SDI, HDMI and SFP. Also provides network control by Ember+ protocol and HDR with HDR EOTFs of PQ, HLG and SLog3.
Product Highlights
• 2 x 12G-SDI Input and Loopout
• 12G-SDI Input to 3G-SDI Downscale Output
• Processed Monitor Output
• Picture-by-Picture Display
• HDR (PQ, HLG, S-LOG3)
• Custom 3D LUT Import by USB Flash Drive
• Auto Detection of SDI Payload ID
• Image Capture & Overlay
• Waveform (YCbCr, RGB) / Vector Scope / Histogram
• Audio Level Meter / Audio Phase Meter
• Fast Mode
• Focus Assist / Marker
• Closed Caption in Multi Languages (CC-608, CC-708, OP47)
• Blue/Mono Only
• Timecode Display
• Remote Control & FW Update via Ethernet
• Dynamic UMD / Tally
• H Flip, V Flip
Main Body Dimensions
Main Body 985 x 588 x 79(mm) / 38.78 x 23.14 x 3.11(inch)
With Stand 985 x 636.5 x 245(mm) / 38.78 x 25.05 x 9.65(inch)
Weight 25kg / 55.12lbs
Shipping specifications
| Brand | TVLogic |
|---|---|
| Itemcode | 2605.0355 |
| Bruto weight | 35 |
| Net weight | 24 |
| HS code | 8528529100 - Monitors |
| Shipping dimensions | 110 x 41 x 88 cm |
| Supplier item code | TVL-S-42P-N |
