Swit TD-R210S
› Install 2x V-mount batteries
› 4pin Regulated 24V out, Max 240W
› 3pin Regulated 48V out, Max 500W
› 48V 500W by SWIT PB-H or HB- series batteries
› For Skypanel S60/S120 100% output
› Neutrik XLR connectors
› 25-45mm light stand install
Specifications:
|
Model
|
TD-R210S
|
|
DC output
|
3-pin XLRx1; 4-pin XLR x1
|
|
Battery type
|
2x V-mount batteries
|
|
Max Load (by 2x 28.8V batteries)
|
3-pin XLR: 48V/10.4A, 500W
4-pin XLR: 24V/10A, 240W
|
|
Max Load (by 2x 14.4V batteries)
|
3-pin XLR: 48V/5A, 240W
4-pin XLR: 24V/10A, 240W
|
|
Working temp
|
-20°C - 40°C
|
|
Dimensions
|
127×104×93mm
|
|
weight
| Net 0.9kg; With package 1.2kg |

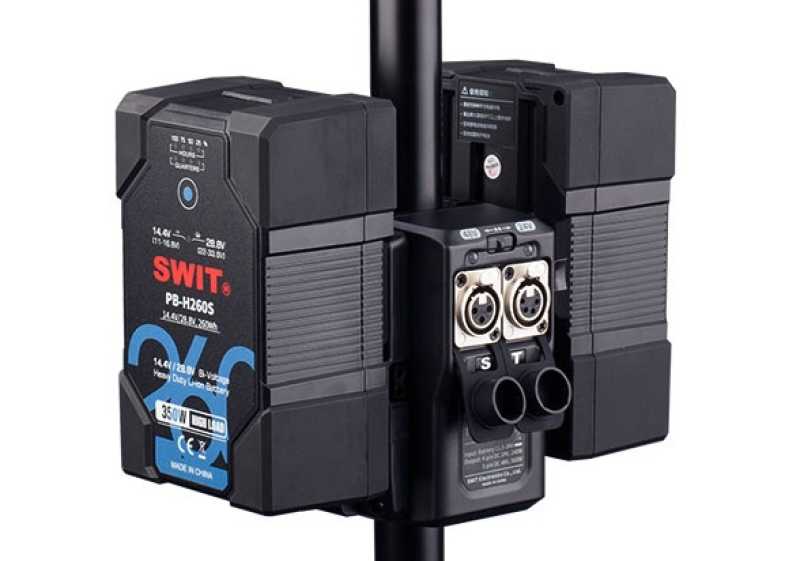

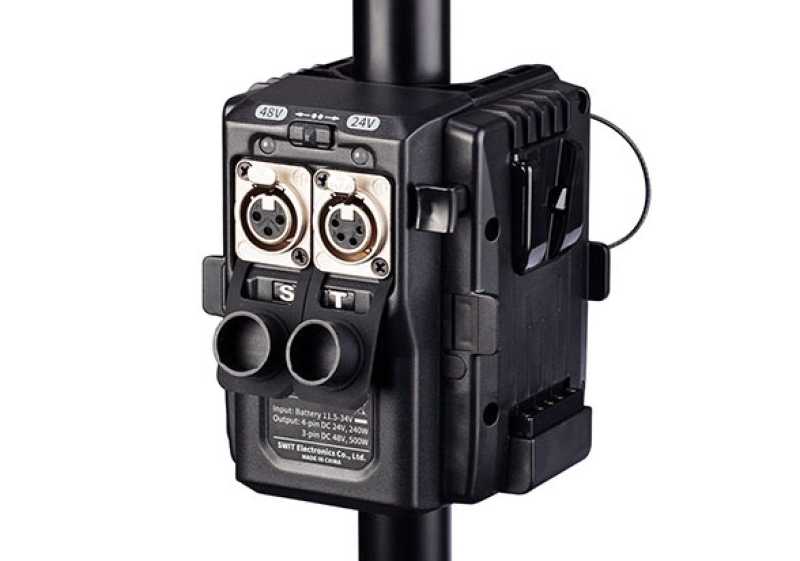

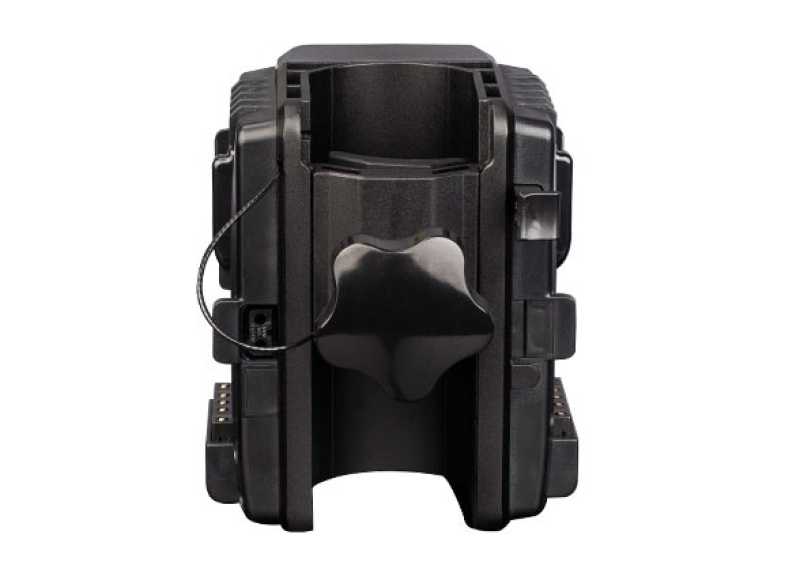

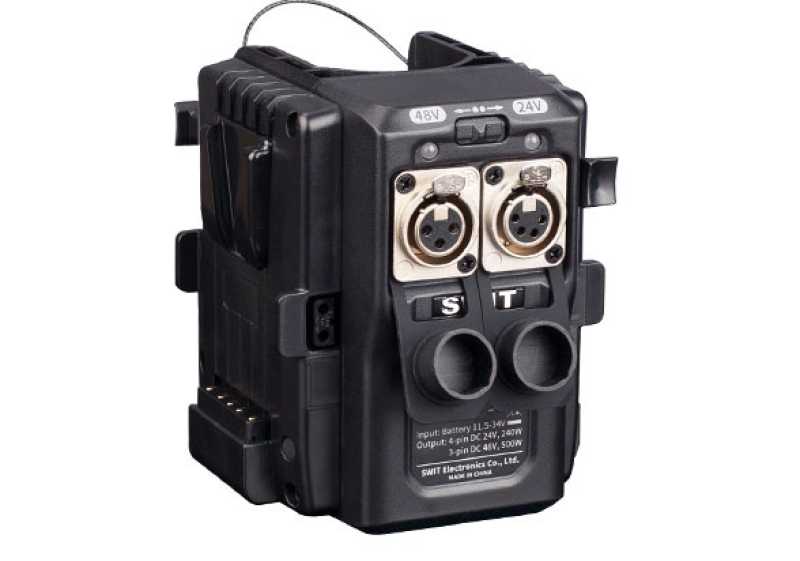

.jpg "Swit TD-R210S, 24V/48V Light Stand Power Adaptor")
