Swit Matrix-B8, 8-Kanal Wandladegerät für B-Mount Akkus
TOP
-38%
Swit Matrix-B8
8-ch simultaneous B-mount fast charging
DC33.6V, 3A, 100W for ≥160Wh batteries
DC33.6V, 1.3A, 44W for <160Wh batteries
2× 3.5-inch color LCD info display
Battery cycle times display
Large LED charging indicators
Wall mounting or 19-inch rack install

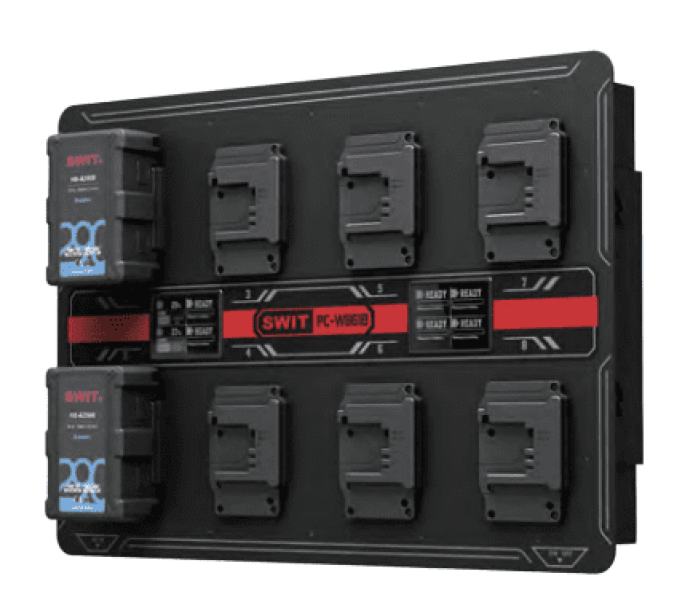

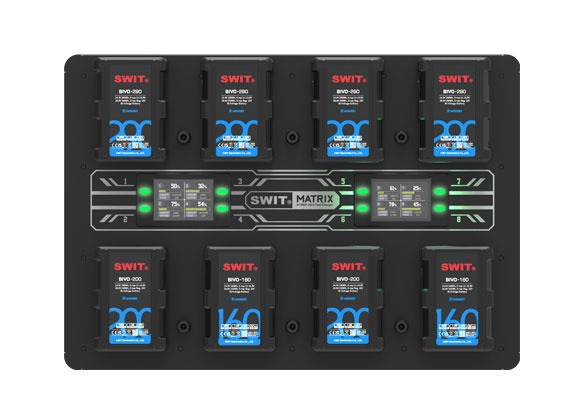

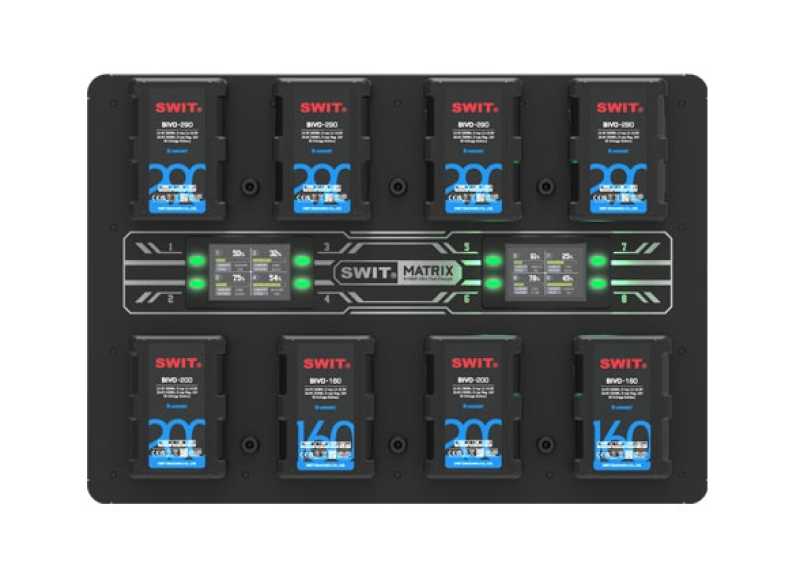

8x100W Ultra Fast Wall Charger
MATRIX-B8 is an 8-ch simultaneous B-mount wall charger with 33.6V 100W ultra fast charging speed each channel, charging SWIT HB-A290B, BIVO series, and compatible with other B-mount batteries that support 33.6V charging voltage like CoreSWX.

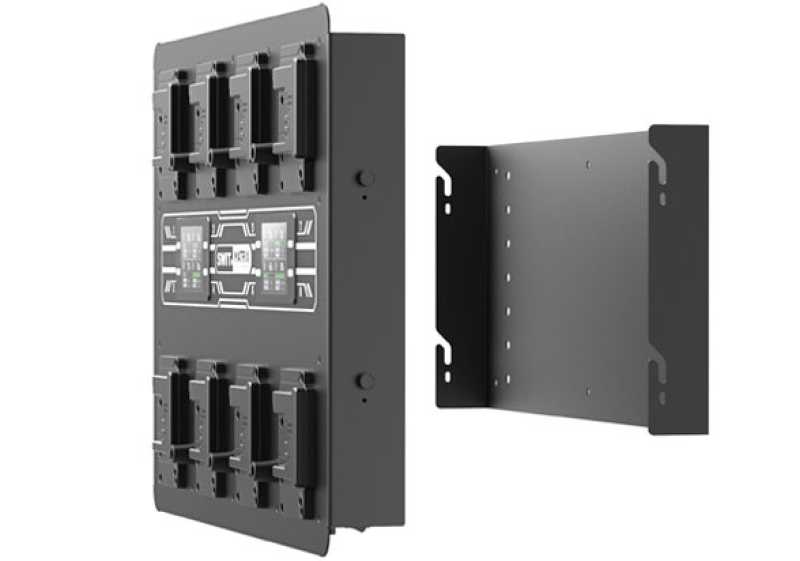

Flexible Wall Mounting Plate
MATRIX-B8 provides with a wall mounting plate on the backside, to be screwed onto the wall, or mounting to standard 19-inch rack bracket.
You can even install the mounting plate onto storage rack or DIT cart.

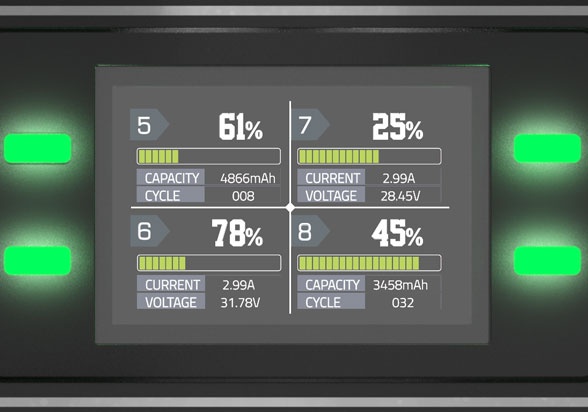

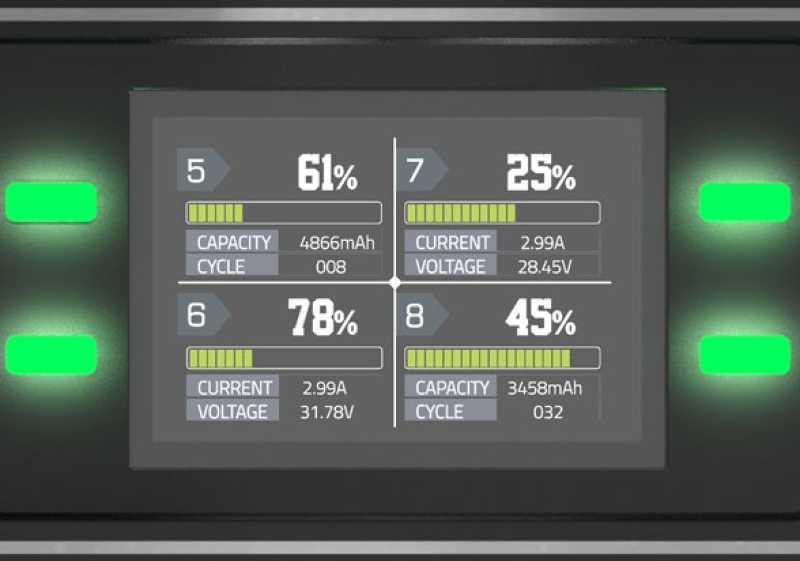

3.5-inch Color LCD and Indicators
MATRIX-B8 provides 2x 3.5-inch color LCD to display charging progress, charging current, voltage, battery cycle times for each channel.You can also check the charging status by large charging indicators from a distance.
8-ch simultaneous B-mount fast charging
DC33.6V, 3A, 100W for ≥160Wh batteries
DC33.6V, 1.3A, 44W for <160Wh batteries
2× 3.5-inch color LCD info display
Battery cycle times display
Large LED charging indicators
Wall mounting or 19-inch rack install
8x100W Ultra Fast Wall Charger
MATRIX-B8 is an 8-ch simultaneous B-mount wall charger with 33.6V 100W ultra fast charging speed each channel, charging SWIT HB-A290B, BIVO series, and compatible with other B-mount batteries that support 33.6V charging voltage like CoreSWX.
Flexible Wall Mounting Plate
MATRIX-B8 provides with a wall mounting plate on the backside, to be screwed onto the wall, or mounting to standard 19-inch rack bracket.
You can even install the mounting plate onto storage rack or DIT cart.
3.5-inch Color LCD and Indicators
MATRIX-B8 provides 2x 3.5-inch color LCD to display charging progress, charging current, voltage, battery cycle times for each channel.You can also check the charging status by large charging indicators from a distance.
| Model | MATRIX-B8 |
| Power | Max 900W |
| Input | AC100V-240V 50/60Hz |
| Output | DC 33.6V, 3A 100W(Max) ×8 - DC 33.6V, 3A 100W for ≥160Wh batteries - DC 33.6V, 1.5A 50W for <160Wh batteries |
| Applicable battery | B-mount battery |
| Net weight(without packaging) | 10.6kg |
| Product dimensions(without packaging) | 630×436×89mm |
| Gross weight(with packaging) | 15.5kg |
| Package dimensions | 745×159×559mm |
