Portkeys OEYE RED elektronischer OLED-Kamerasucher für RED Kameras
TOP
-5%
Portkeys OEYE RED
Allows RED DSMC2/MONSTRO 8K VV/HELIUM 8K S35 Menu Control

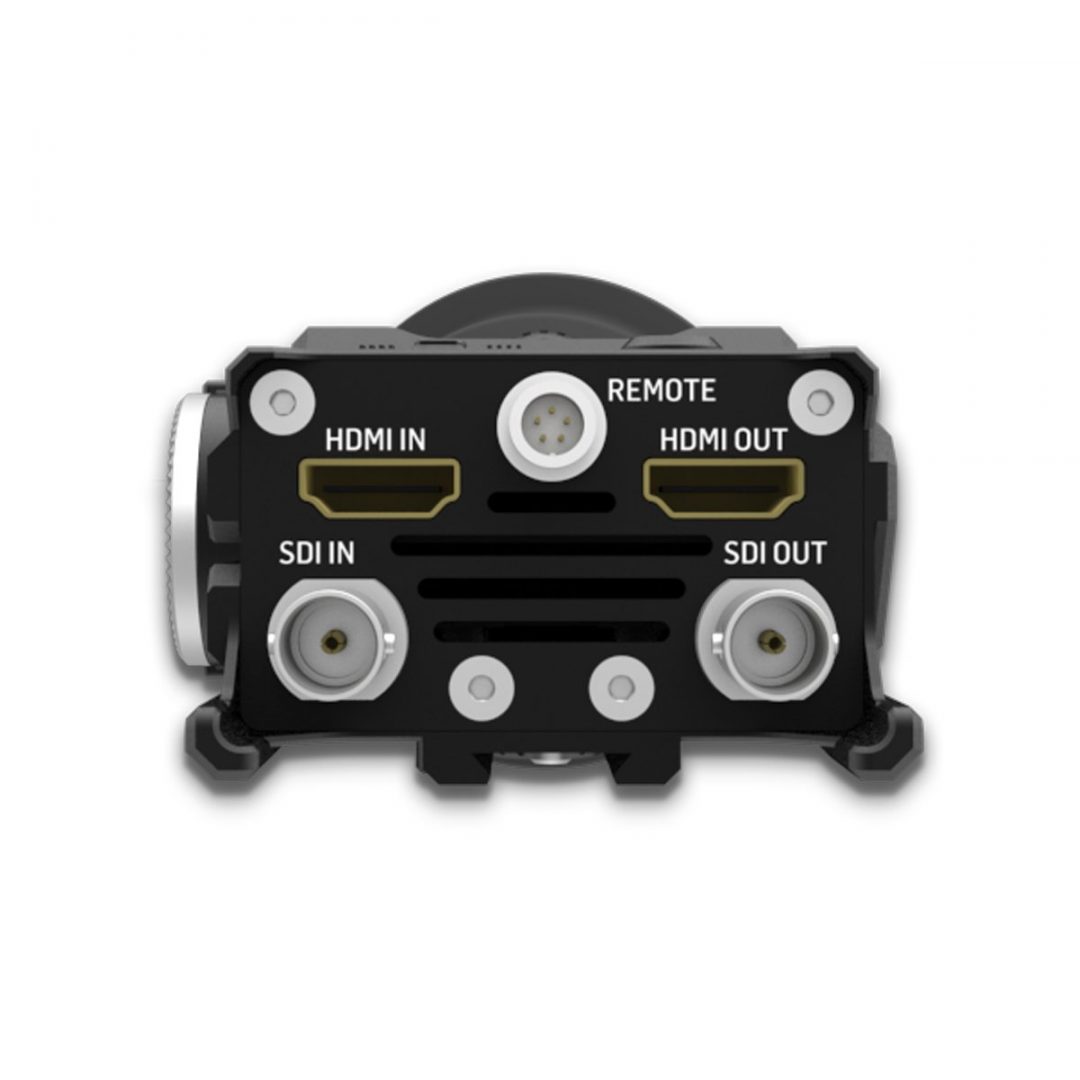

3G-SDI and HDMI Inputs/Loop Outputs
Built-In +8 to -3 Adjustable Diopter
4K 3G-SDI/HDMI EVF with RED Camera Menu Control
1920 x 1080 Resolution Micro-OLED EVFAllows RED DSMC2/MONSTRO 8K VV/HELIUM 8K S35 Menu Control
3G-SDI and HDMI Inputs/Loop Outputs
Built-In +8 to -3 Adjustable Diopter
0.71″, 1920 x 1080 micro-OLED EVF display with comfortable eyecup
200 cd/m² brightness, 100,000:1 contrast ratio, 8-bit color
HDMI input and output support resolutions up to DCI 4K24
3G-SDI input and output support resolutions up to 1080p60
5-pin LEMO-type remote control output port
Built-in adjustable +8 to -3 diopter
Fan Synchronization Mute in Rec mode when work with RED camera
Rosette mount on the side
Durable aluminum construction
Lieferumfang:
PK-OEYE-RED-USER-MANUAL.pdf
Lieferumfang:
1 x Power Cable (4-pin Aviation Connector – D-TAP)
1 x Camera Connection Cable (5-pin Aviation Connector – 5-pin Aviation Connector)
1 x Control Cable(4-pin LEMO – 3-pin Aviation Connector)
1 x OLED-RED Hub
1 x L-type Inner Allen Key Diameter 4.7mm
1 x 7-inch Safety Plastic Box
1 x SDI Cable
1 x Pipe Clamp
1 x Warm Prompt
1 x U Disk(Manual, 3D LUTs, Firmware Inside)
PK-OEYE-RED-USER-MANUAL.pdf
| Display | |
| Color/Monochrome | Color |
| Display Size | 0.71″ / 1.8 cm |
| Screen Resolution | 1920 x 1080 |
| Aspect Ratio | 16:09 |
| Touchscreen | No |
| Maximum Brightness | 200nit |
| Contrast Ratio | 100,000:1 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Pixels Per Inch (ppi) | 3102 ppi |
| Image Controls | Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Image Flip, Image Rotate, OSD Flip, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform, Zebra |
| I / O | |
| Video | 1 x BNC (3G-SDI) Input |
| 1 x BNC (3G-SDI) Loop Output | |
| 1 x HDMI Type A Input | |
| 1 x HDMI Type A Loop Output | |
| Video Format | HDMI |
| DCI 4K: 24 | |
| UHD 4K: 30 / 29.97 / 25/24 / 23.98 | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080PsF: 30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94 | |
| 480i: 60 / 59.94 | |
| SDI (8-Bit 4:2:2 YUV) | |
| 1080p: 60/59.94/50 | |
| SDI (8-Bit 4:4:4/4:2:2 RGB, YUV) | |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 720p: 60/59.94/50 | |
| Camera Connection | 5-pin Aviation Connector |
| Power Cable | 1 x D-TAP to 4-pin Aviation Connector |
| Optics | |
| Diopter Correction | -3.0 to +8.0 |
| Power | |
| DC Input Power | 7 to 24 VDC |
| Power Consumption | 10 W |
| General | |
| Mounting | 1 x Rosette |
| Material of Construction | Aluminum |
| Dimensions | 7.1 x 2.9 x 2.7″ / 180 x 72.4 x 69.7 mm, Including |
| Weight | 14.1 oz / 385g |
