Portkeys MT22-DS, Dual Screen 1000 nits Produktionsmonitor

is a 21.5-inch professional high-brightness production monitor with 1,200nits of brightness, a rugged aluminum alloy construction, two 3G-SDI, one GPI, and one HDMI input ports, one 3G-SDI and one HDMI output ports with cross-conversion, two XLR audio outputs with 48V phantom power, and a complete set of precise monitoring tools.

Key features:

• 21.5-inch, 8-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
• Daylight viewable with a maximum brightness of 1,000nits.
• Factory color-calibrated: 97% coverage of P3.
• 2 x 3G-SDI input, 1 x GPI input, 1 x HDMI input, 1 x HDMI output, 1 x 3G-SDI output with cross-conversion from every direction.
• Two XLR audio outputs with 48V phantom power.

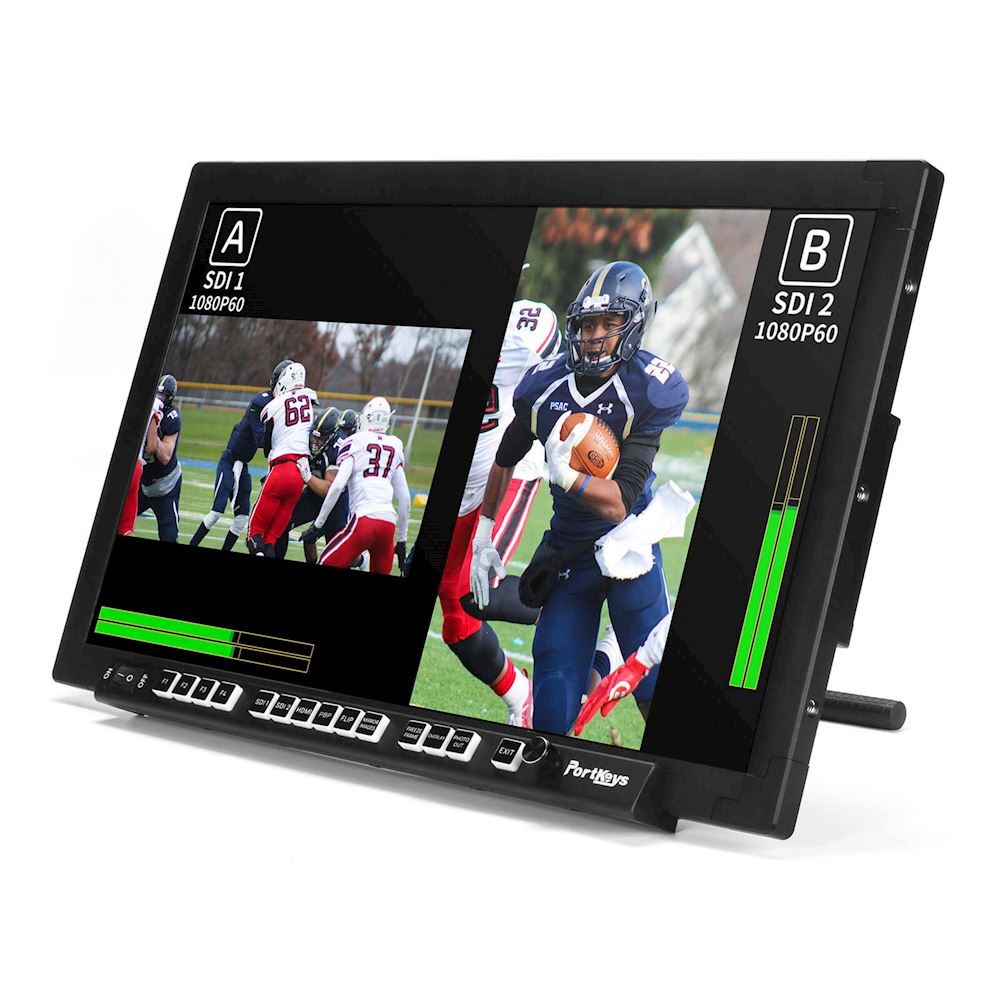

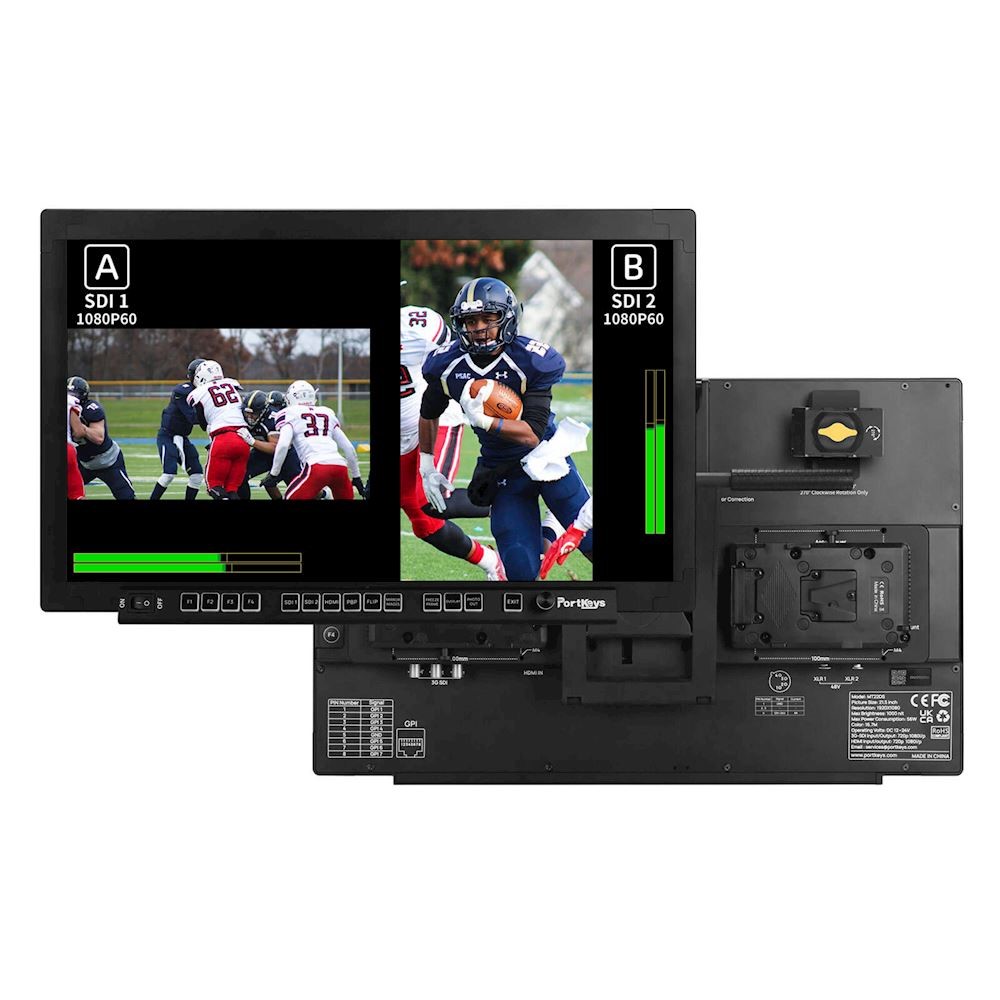

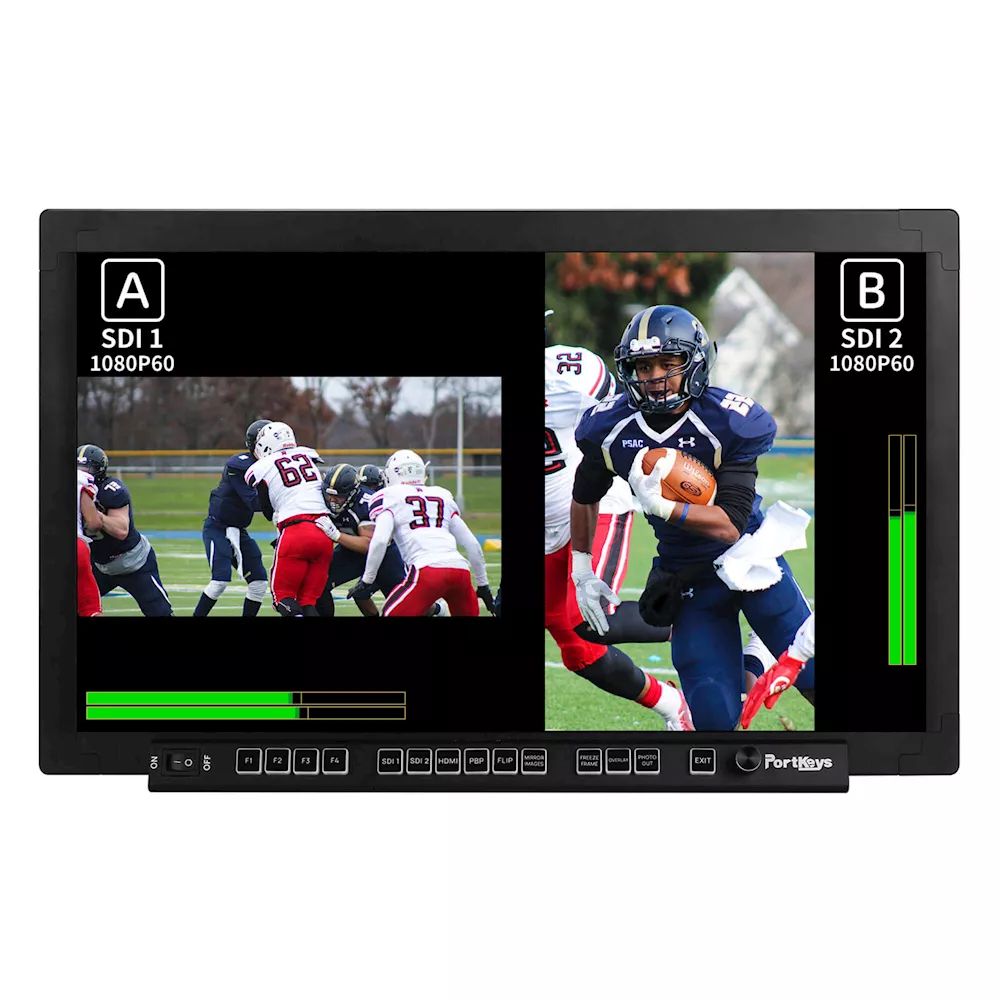

• Split screen monitoring, you can monitor up to three video inputs simultaneously.
• Professional monitoring tools: Waveform, Vectorscope, Anamorphic, Peaking, ARRI False Color.
• 3D LUT monitoring and 3D LUT SDI output capabilities.
• Multiple function buttons for easy access to your favorite monitoring tools.

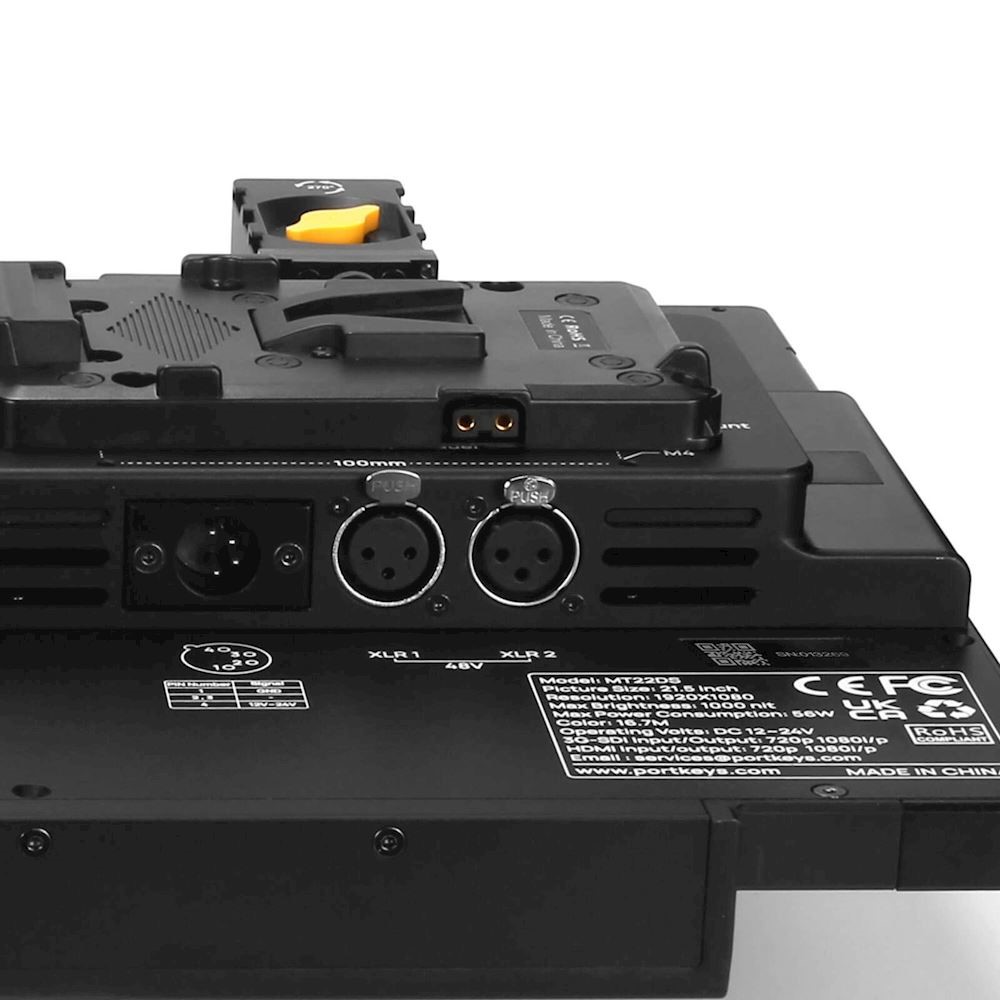

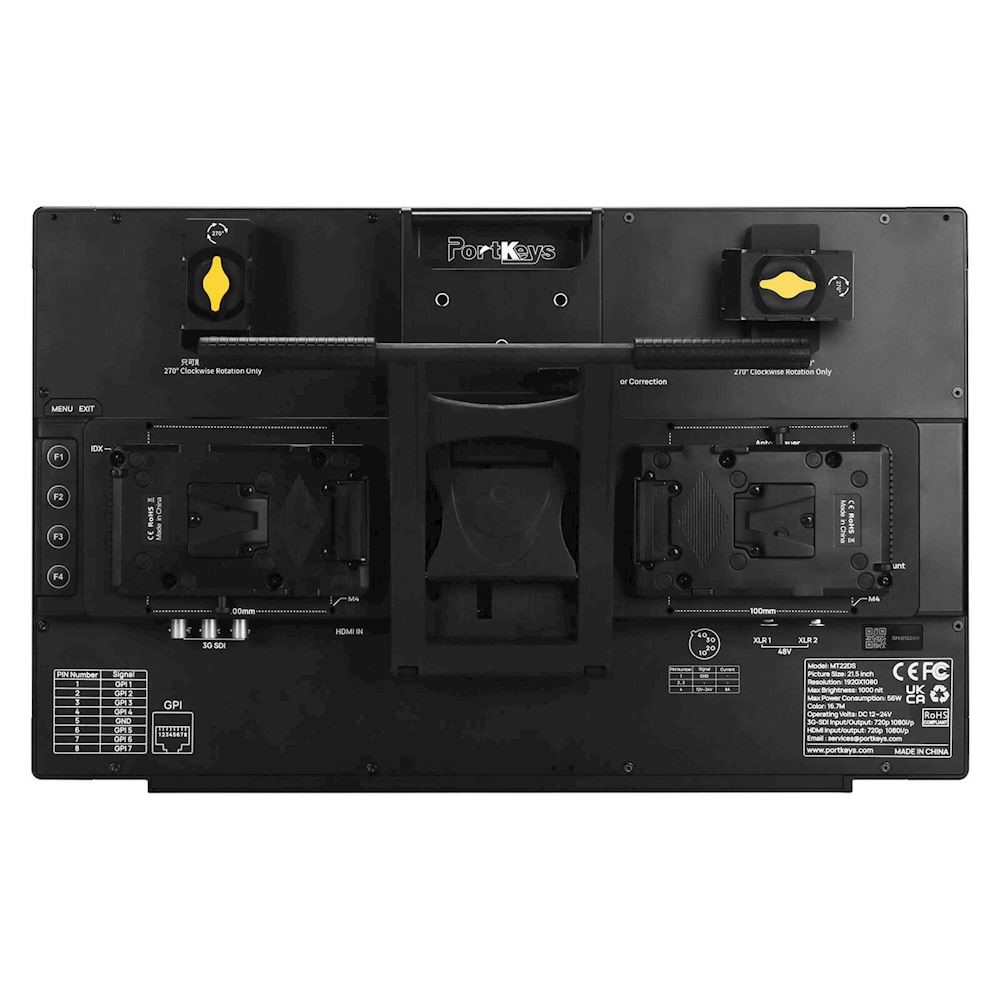

• V-Mount / Gold Mount battery plate. 4-pin XLR 12-24V power input.
• Built-in Sony NP-F battery plates with pass-through power to power wireless video receivers.
• VESA mounting points at the back of the monitor.
• Built-in carrying handle and comes with a removable table stand.
• Rugged all-aluminum housing with 1/4″-20 mounting points on the sides.

1x MT22DS Monitor
1x Folding Holder
1x Power Cable 12V8A
1x M2.5 Inner Allen Key
1x Crystal Drop Rubber Button


• PK-MT22-DS-PRODUCTSHEET.pdf
