SWIT Mino-S210
super-small-size V-Mount Li-Ion Akku 210Wh 14,4V 16Ah mit D-Tap USB-A 5V/2A, USB-C 48W input & 65W output

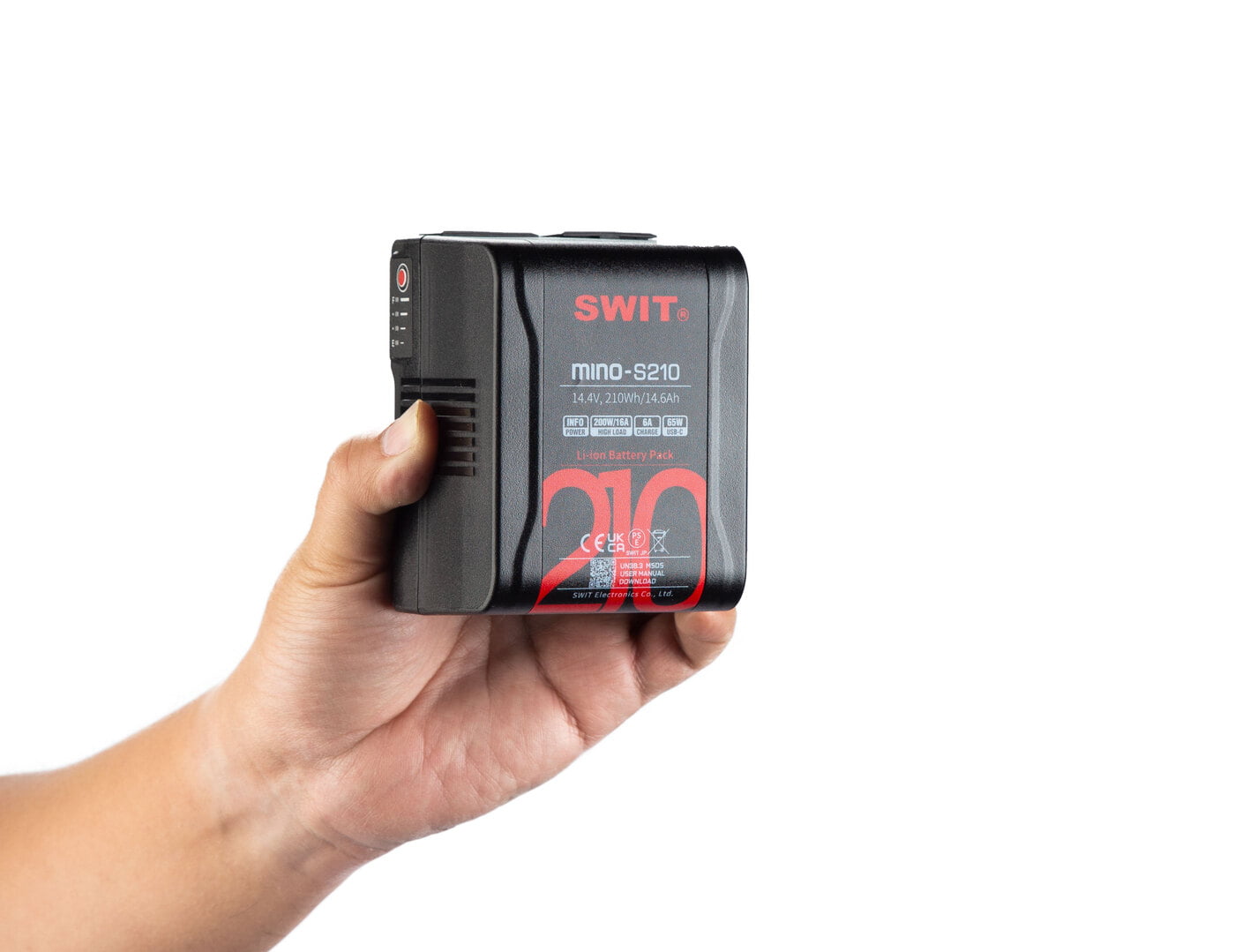

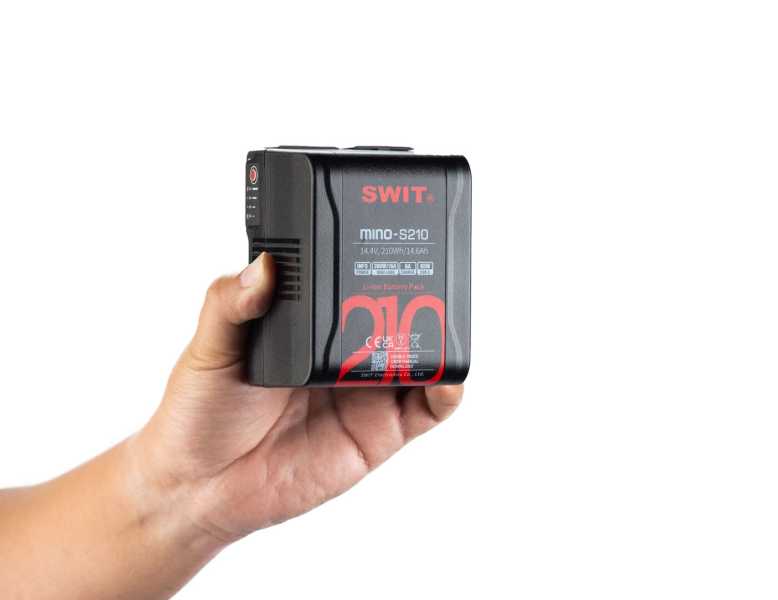

Tiny V-mount battery, Pocket fit

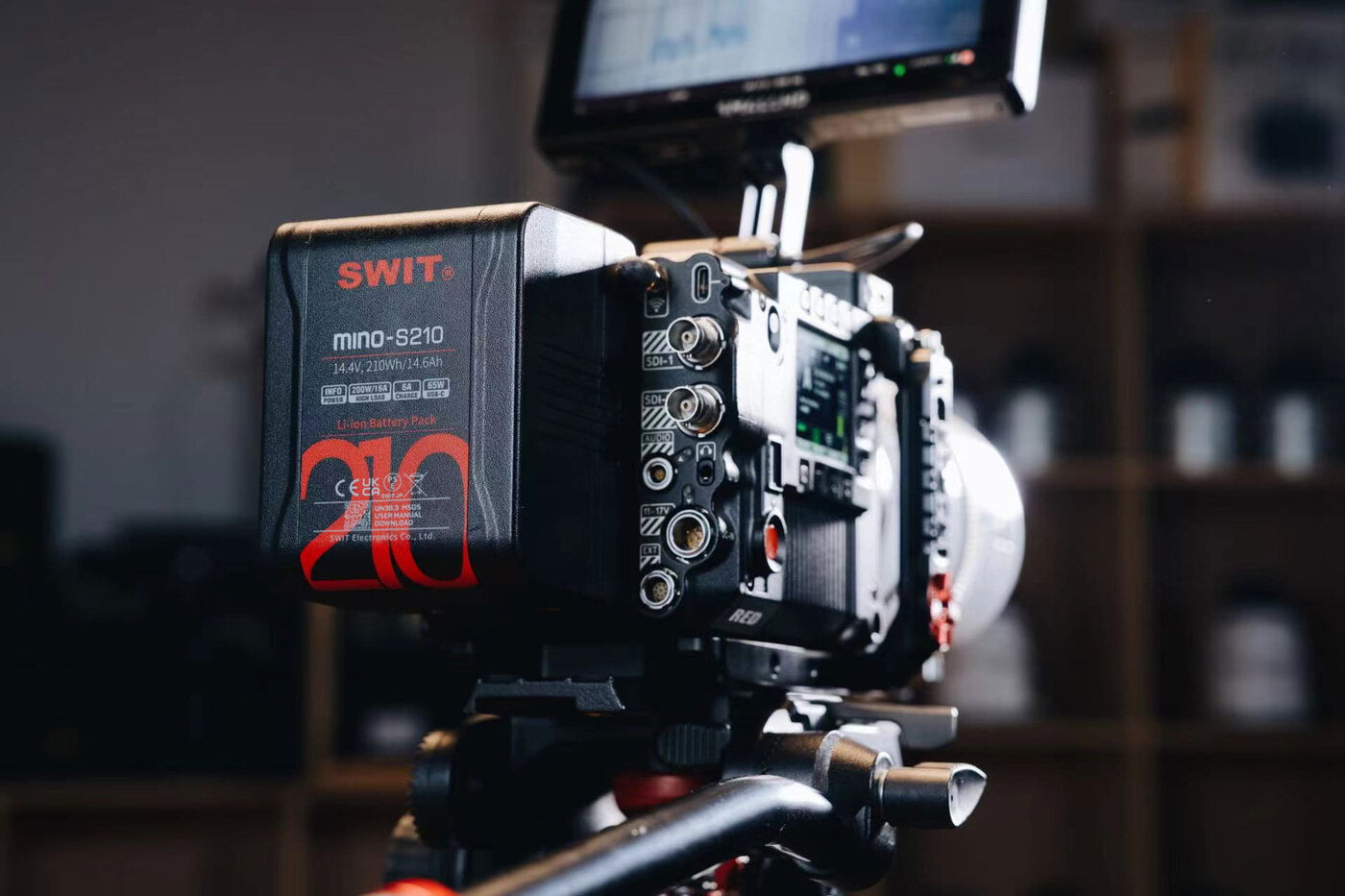

Support RED Raptor install
210Wh/16Ah high capacity
200W/16A constant high load
1x D-tap output & charging input
1x USB-A 5V/2A output
1x USB-C 48W input & 65W output
4-step LED power indicator
Power info for both SONY & RED
Wire-Free internal technic
Multiple circuit protections
|
Battery plate
|
V-mount
|
|
Nominal voltage
| 14.4V |
|
Capacity
|
210Wh, 14.6Ah
|
|
Power IN&OUT
| Electrodes: 200W 16A out, 16.8V 6A in |
|
D-tap: 120W 10A out, 16.8V 6A in
|
| USB-A: 10W, 5V/2A out |
|
USB-C: Max 65W out, 5V/9V/12V/15V/20V(Max) 3.25A
BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP
Max 48W in, 5V/9V/12V/15V/20V(Max) 2.4A |
|
Dimension
| 105×79.6×73.8mm (Fit RED Raptor) |
| Charging Temperature | 0-40°C |
| Discharging Temperature |
-20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
|
|
Net weight
| 1.02kg |
