Swit KA-A20S
Multi-sockets ARRI Plate, V-Mount
V-mount plate for PB-H290s on ARRI ALEXA LF/65/SXT, AMIRA, voltage auto recognizing; Best Quality with Robust, Fashion and Slim: Aluminum CNC unibody; High load reliable; Multiple peak-current protections; Multi-sockets: 2xD-tap and 1xLemo normal low voltage output; 1xUSB 5V/2A output
Standard V-mount plate
For ARRI ALEXA LF/65/SXT etc
Output 22-33.6V with PB-H290S
Output original voltage with other batteries
Aluminum CNC unibody housing
High load reliable pins
2xD-tap, 1x LEMO, 1x USB output
Multiple circuit protections
ALEXA Dedicated V-mount Plate
Aluminum CNC unibody housing

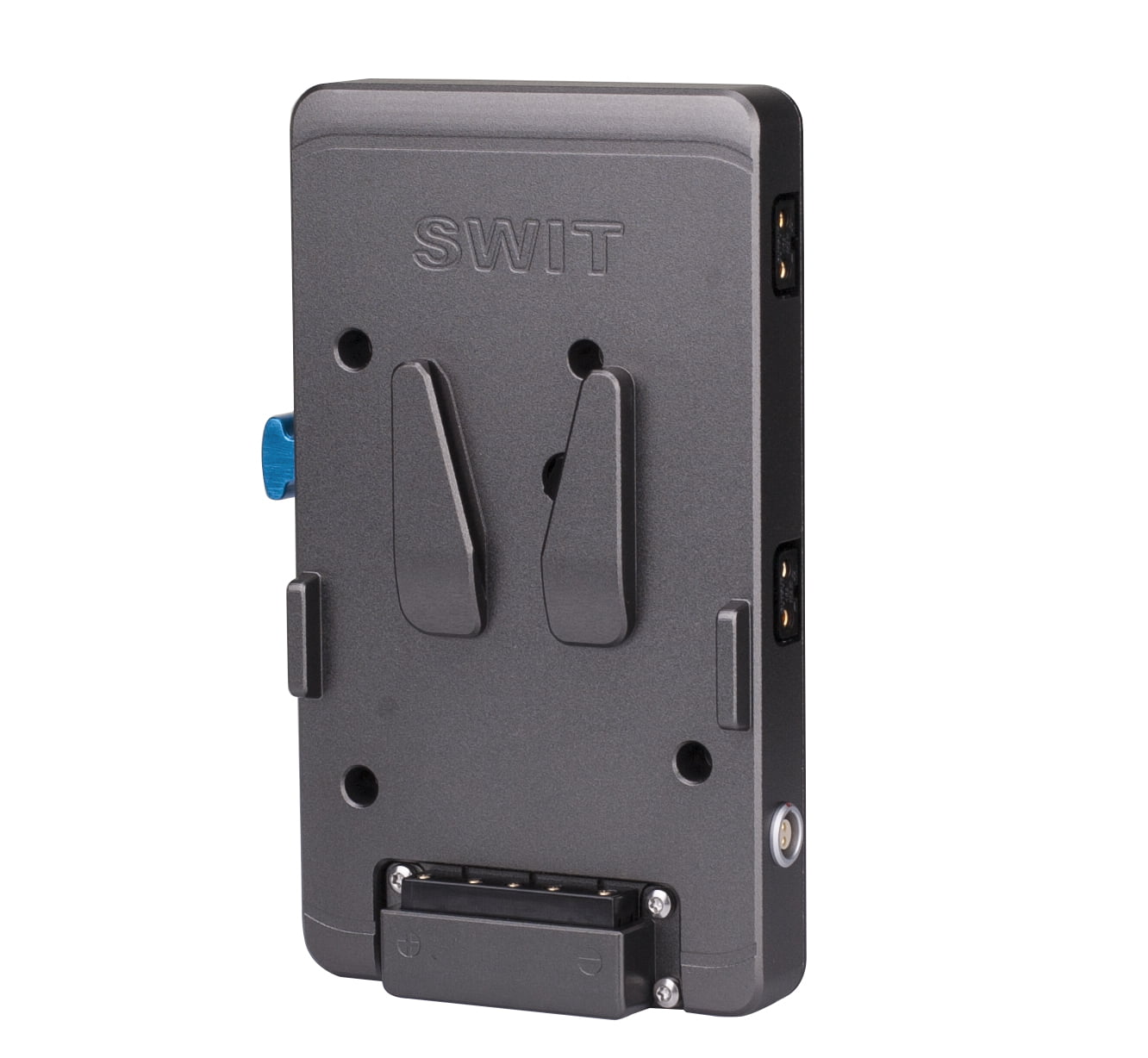

The V-mount plate KA-A20S is designed for ARRI ALEXA LF, ALEXA 65, ALEXA SXT etc, with Aluminum CNC unibody housing, perfectly match with ALEXA cameras, robust and reliable.
High Voltage to ALEXA
Match with PB-H290S to output 22-33.6V
SWIT Bi-voltage battery PB-H290S can recognize the KA-A20S plate and auto switch on 22-33.6V, to power Alexa LF/65/SXT etc.
Use other batteries, the KA-A20S plate will not change voltage, and directly power the camera.

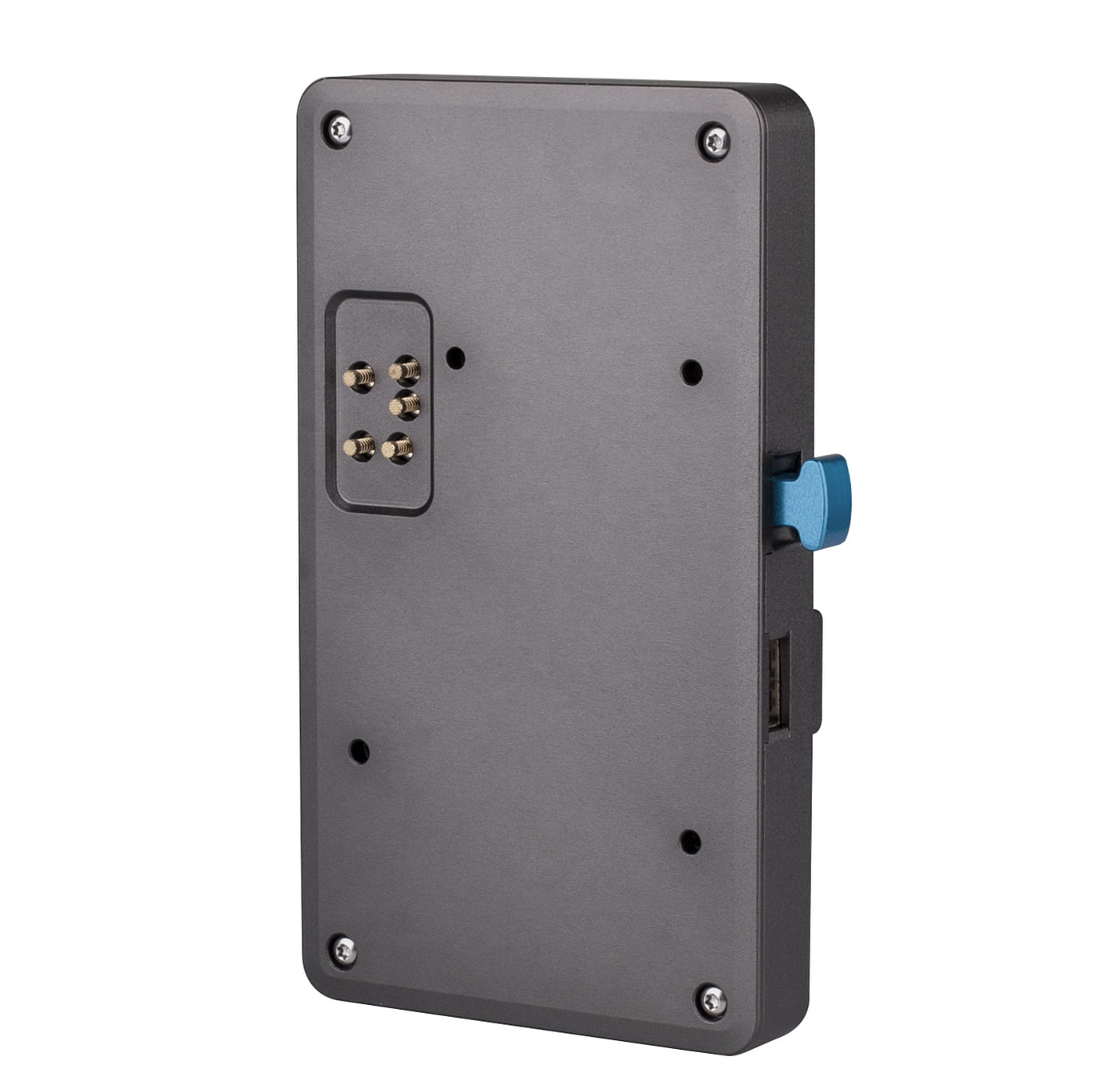

High Load Reliable Pins
Battery Contact Pins:
Unique lantern type pins, wider contact surface, support Max 16A current without overheating; Camera Contact Pins:
Copper rod direct conducting (instead of spring conducting), and the strong spring makes fully contact with camera pins, ensure 10A reliable current and prevent overheat.

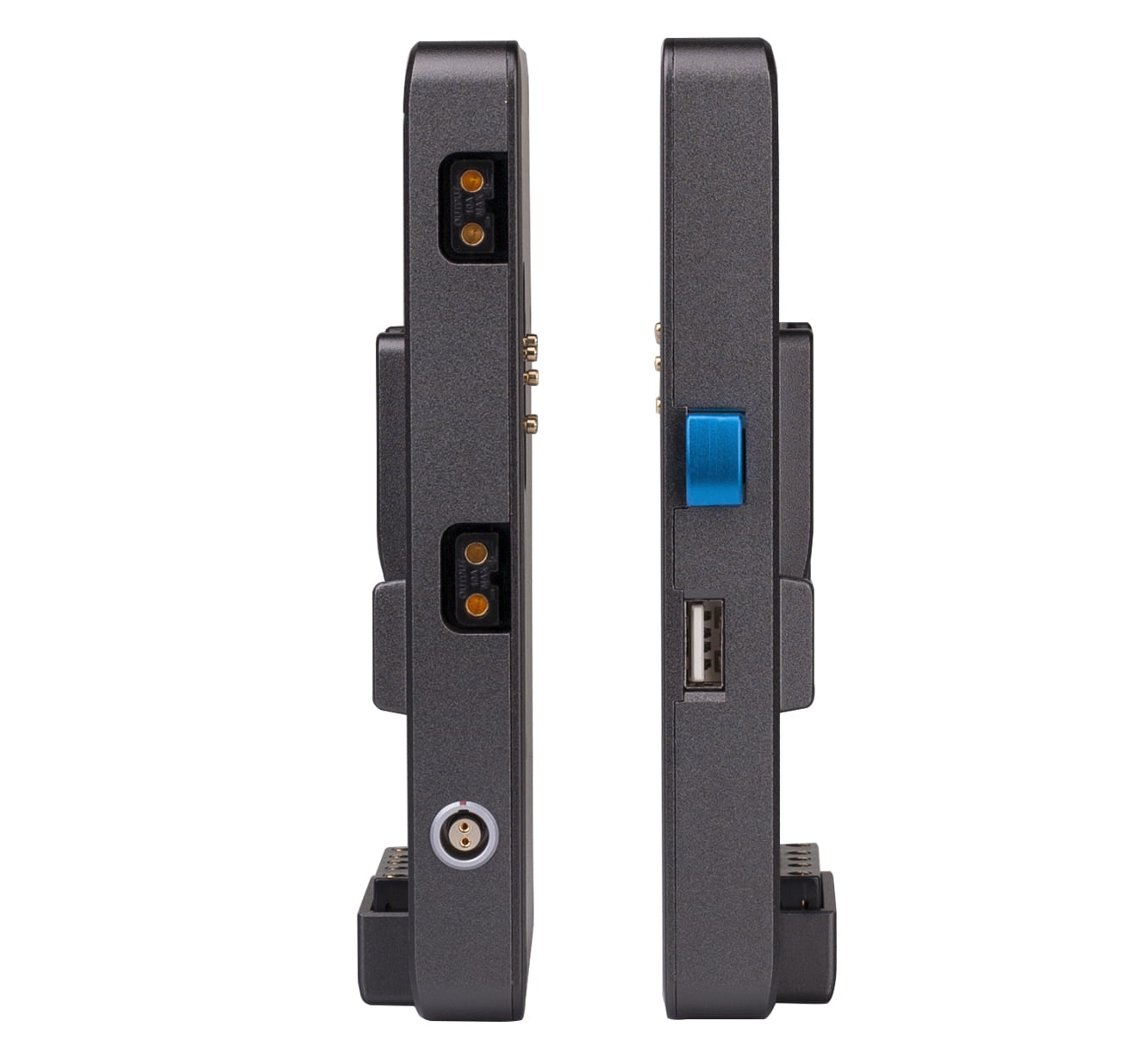

Multi DC Sockets
D-tap / LEMO / USB
KA-A20S plate provides 2x D-tap, 1x 2-pin LEMO and 1x 5V/2A USB output.
Under 22-33.6V power, the D-tap and LEMO outputs constant 16V, Max 6A;
Under 11-16.8V power, the D-tap and LEMO outputs original battery power.
