IDX UC-PD3
100W USB-C PD Charger - Three channel simultaneous, compatible with the DUO-CP, Imicro, B-Mount, SBU and SL-F/PD range of batteries
is a charger that supports the Power Delivery standard and can charge IDX batteries equipped with USB PD terminals. It is small and lightweight, making it convenient for business trips. It has three USB-C ports and supports the USB PD standard up to 100W for a single port, up to 65W for two ports simultaneously, and up to 45W for three ports simultaneously. The output voltage is automatically switched by simply connecting the battery, so you can charge at the optimal output for the connected battery.
Note that the maximum output when charging a battery depends on the USB PD input specifications on the battery side.
Compatible with all IDX batteries with a USB-C PD socket.
- Pocket size allows easy carrying and charging operation for location and travel

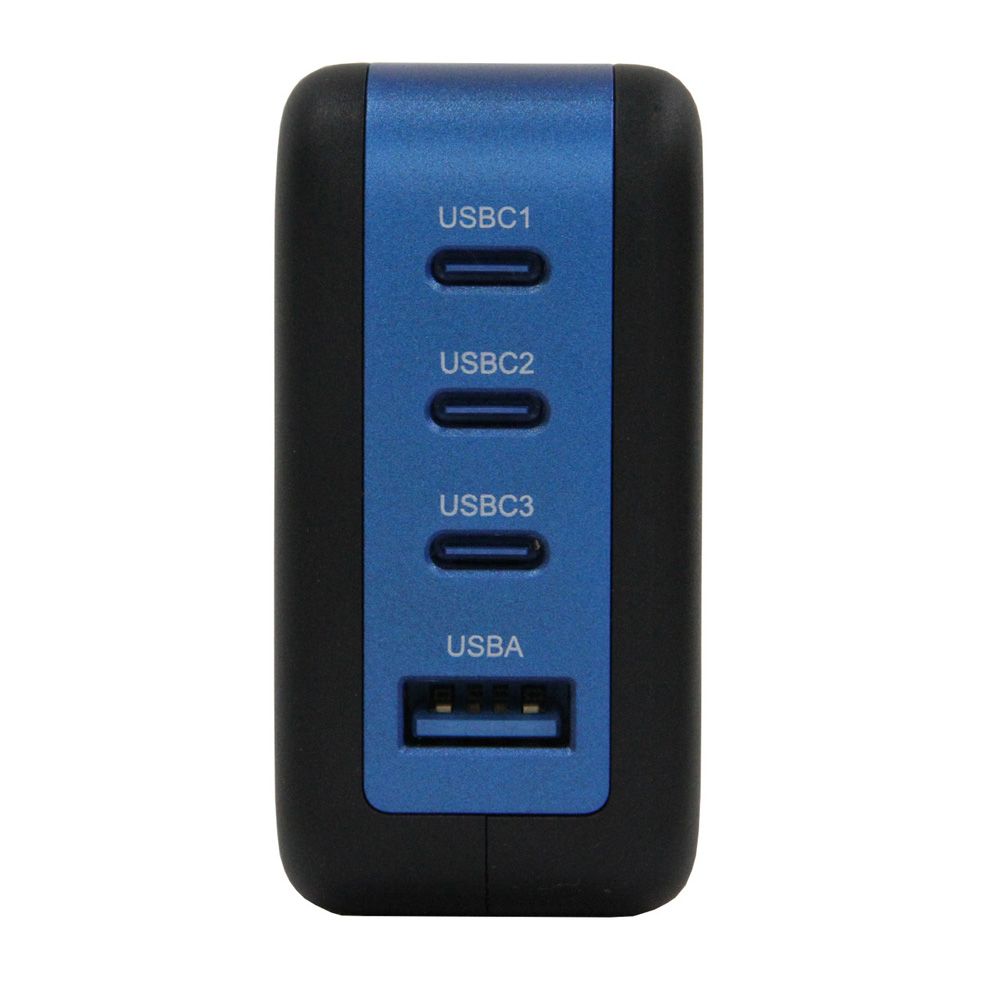

- Four power outputs, one USB-A and three USB-C
- Max 100W output for fast charging
- Output voltage switched automatically to match appropriate voltage
- Built-in short-circuit, overcurrent, and over-voltage protection
| Input Voltage | AC 100-240V 50/60Hz |
|---|---|
| Charge Current (USB-C) | USB-C1/2 port DC 5V3A/9V3A/12V3A/15V3A/20V5A (max. 100W), USB-C3 port DC5V3A/9V2.22A/12V1.67A (max. 20W) |
| Charge Current (USB-A) | USB-A port DC4.5V5A/5V4.5A/9V2A/12V1.5A (max. 22.5W) |
| DC Connector | USB Type-C and USB Type-A |
| Dimensions | 65 (W) x 65 (H) x 32.4 (D) mm |
| Weight | Approximately 210g |
