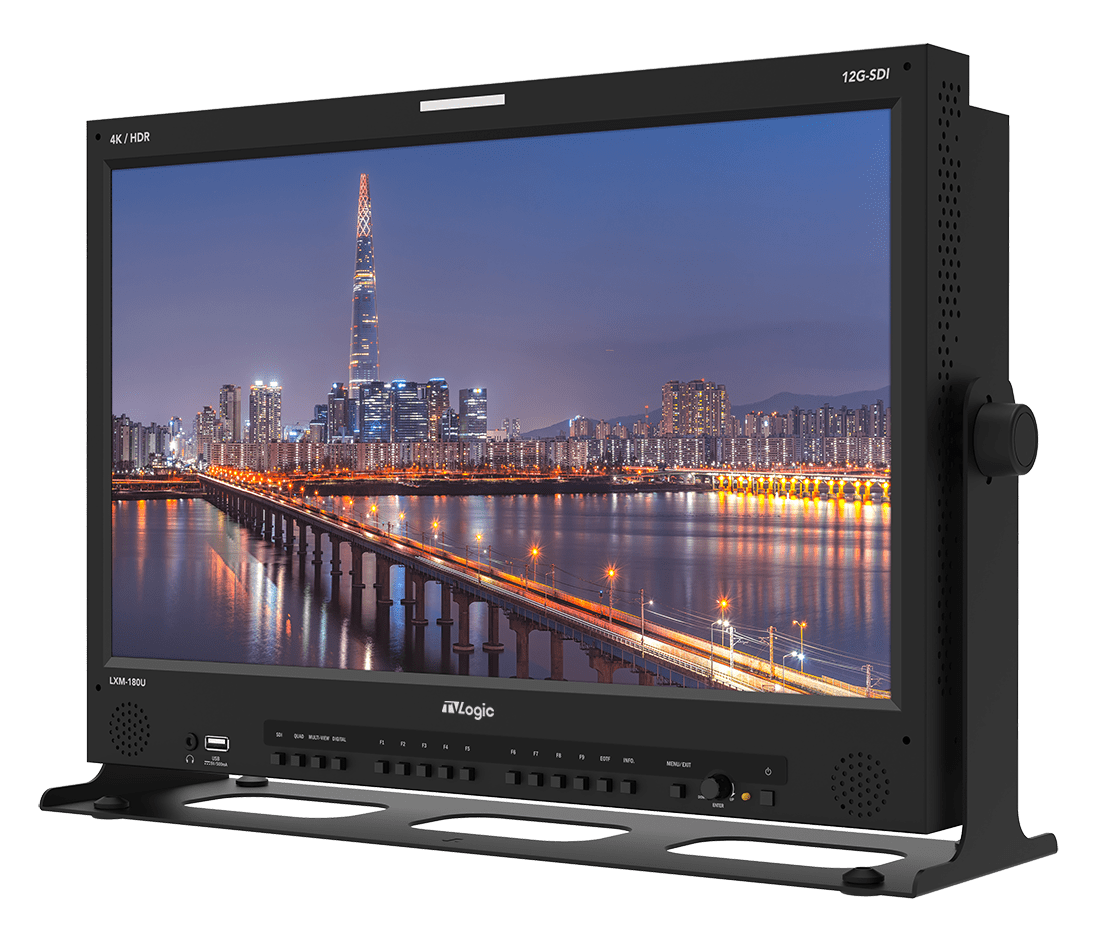

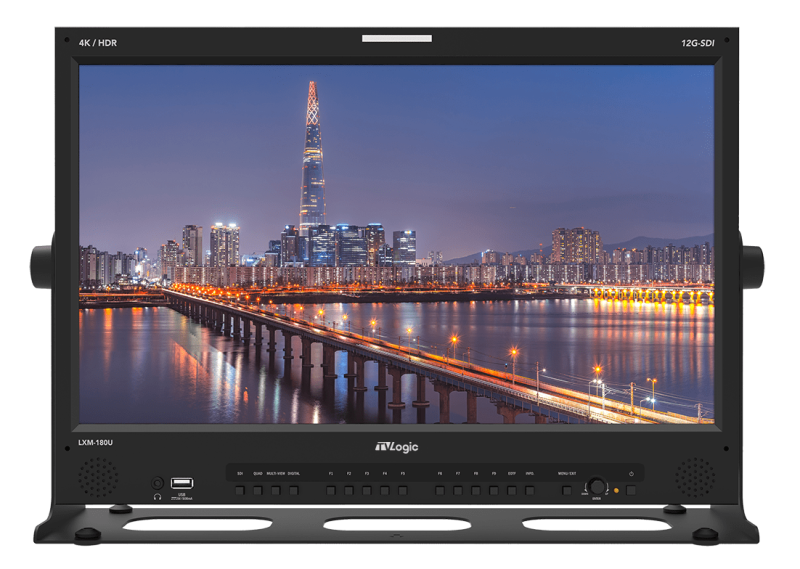

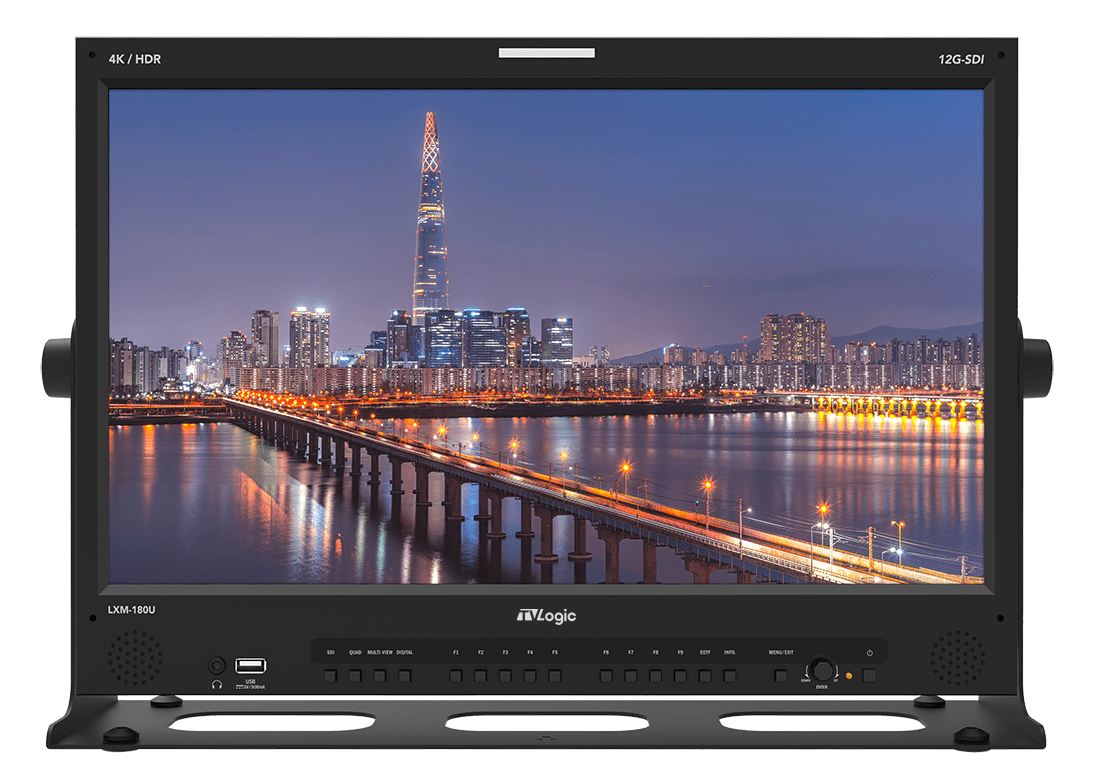

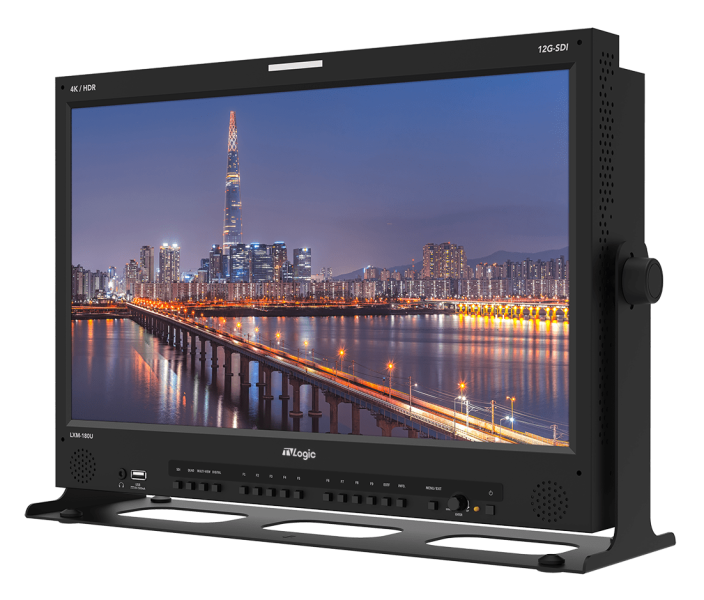

TVLogic LXM-180U, 18.5" 4K/UHD 12G-Quad Multi View Monitor
NEU
TOP
-10%
TVLogic LXM-180U

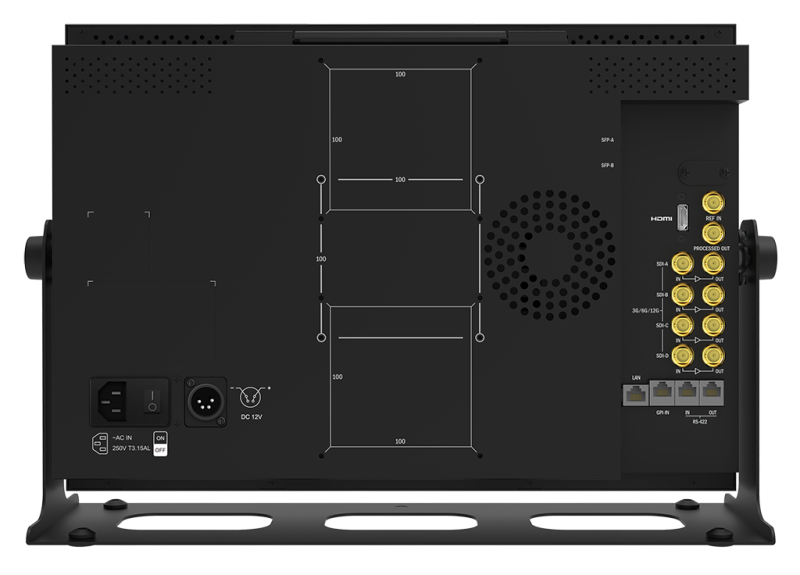

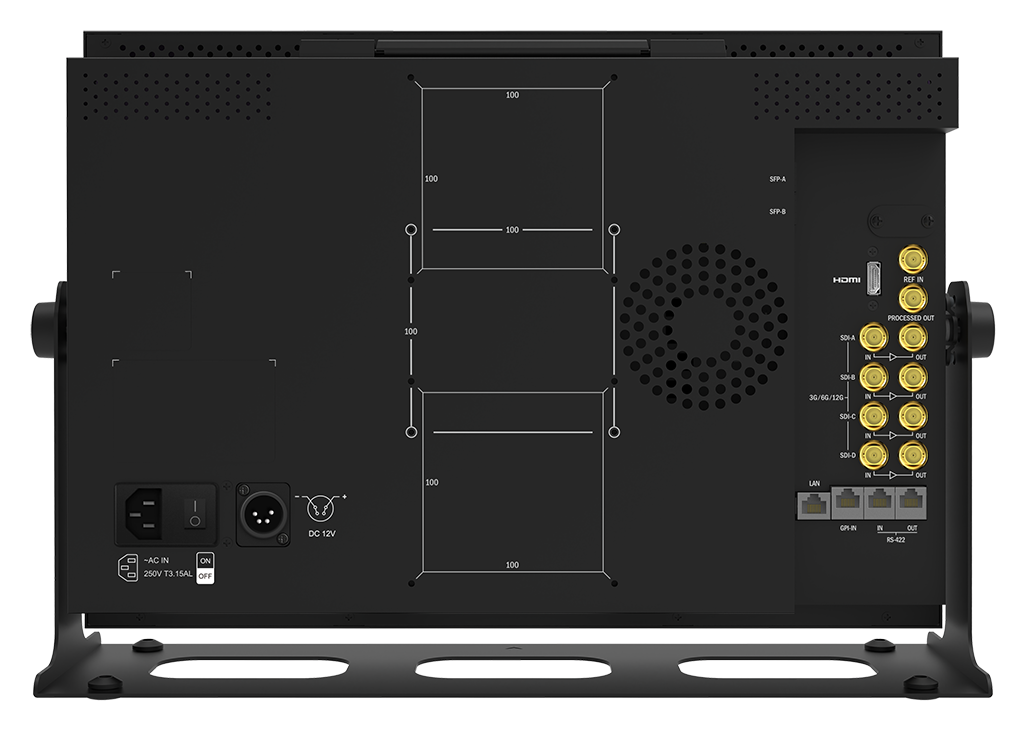

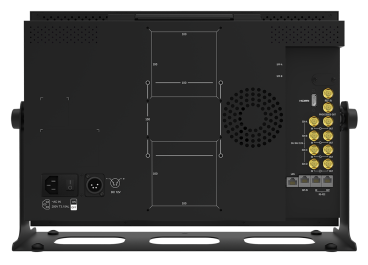

The LXM series incorporates 12G-SDI Input(x4), 12G-SDI Output(x4), Reference(External Sync) input, HDMI 2.0 Input, SFP Input(x2) & Processed Monitor Output.
These new 4K/UHD monitors feature wide viewing angle IPS panel, various HDR EOTFs, Wide color gamut, 10-bit color depth, and Accurate Color Reproduction by 3D LUT support. Additionally, the LXM series monitors offer the high-performance functions such as HDR-SDR Comparison, 12G-SDI Quad-View and Dual-View display, custom 3D LUT import, SFP to SDI conversion output, Processed monitor output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and more. The LXM monitors are ideal for 4K live production, versatile monitoring in the studio and field location, edit suite and post-production.
(LXM-180P, LXM-240P, LXM-320P : 1000nits . LXM-180U: 16.7M colors, 1920 x 1080)
The LXM series incorporates 12G-SDI Input(x4), 12G-SDI Output(x4), Reference(External Sync) input, HDMI 2.0 Input, SFP Input(x2) & Processed Monitor Output.
These new 4K/UHD monitors feature wide viewing angle IPS panel, various HDR EOTFs, Wide color gamut, 10-bit color depth, and Accurate Color Reproduction by 3D LUT support. Additionally, the LXM series monitors offer the high-performance functions such as HDR-SDR Comparison, 12G-SDI Quad-View and Dual-View display, custom 3D LUT import, SFP to SDI conversion output, Processed monitor output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and more. The LXM monitors are ideal for 4K live production, versatile monitoring in the studio and field location, edit suite and post-production.
(LXM-180P, LXM-240P, LXM-320P : 1000nits . LXM-180U: 16.7M colors, 1920 x 1080)
• HDR EOTF (PQ, HLG)
• HDR vs SDR Comparison Display
• Custom 3D LUT Import by USB Flash Drive
• Quad-View, Picture-by-Picture Display
• Various Conversion Output
• Quad Link 12G Input to Single Link 12G or 3G Output
• Auto Detection of SDI Payload ID
• Waveform (YCbCr, RGB) / Vector Scope / Histogram
• Audio Level Meter / Phase Meter / Loudness(LKFS) Meter
• Image Capture & Overlay
• Closed Caption (CC-608, CC-708, OP47)
• Timecode Display
• Marker
• Focus Assist
• Blue/Mono Only
• H Flip, V Flip
• Scan / User Aspect
• Dynamic UMD / Tally
| Brand | TVLogic |
|---|---|
| Itemcode | 2611.0001 |
| Net weight | 6.6 |
| HS code | 8528529100 - Monitors |
| Supplier item code | TVL-LXM-180U |
Main Body 442.5 x 309 x 84 (mm) / 17.42 x 12.16 x 3.30 (inch)
With Body 489.3 x 332.8 x 137.5 (mm) / 19.26 x 13.1 x 5.41 (inch)
Weight 6.6kg / 14.55lbs
Für weitere Informationen besuchen Sie bitte die Homepage zu diesem Artikel.
