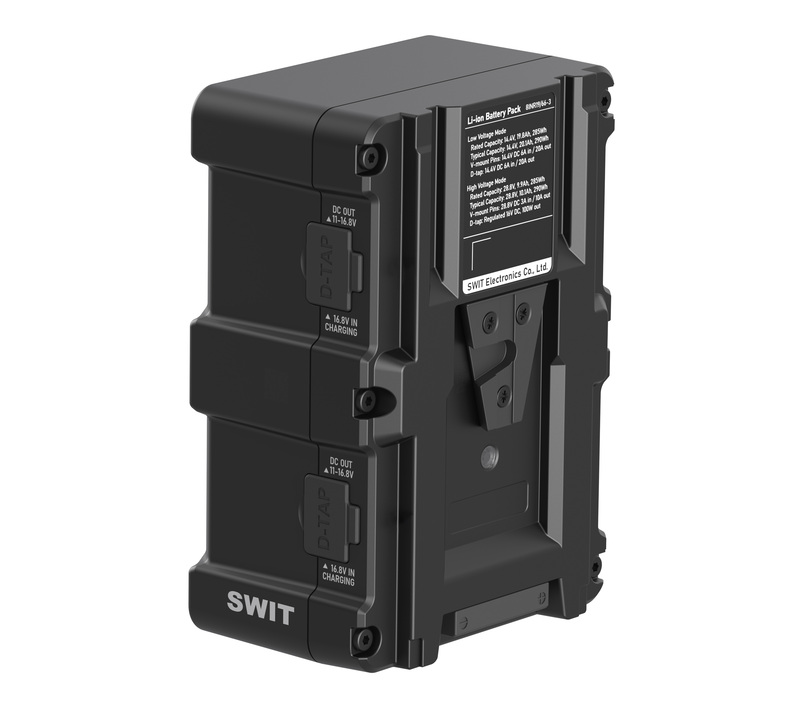

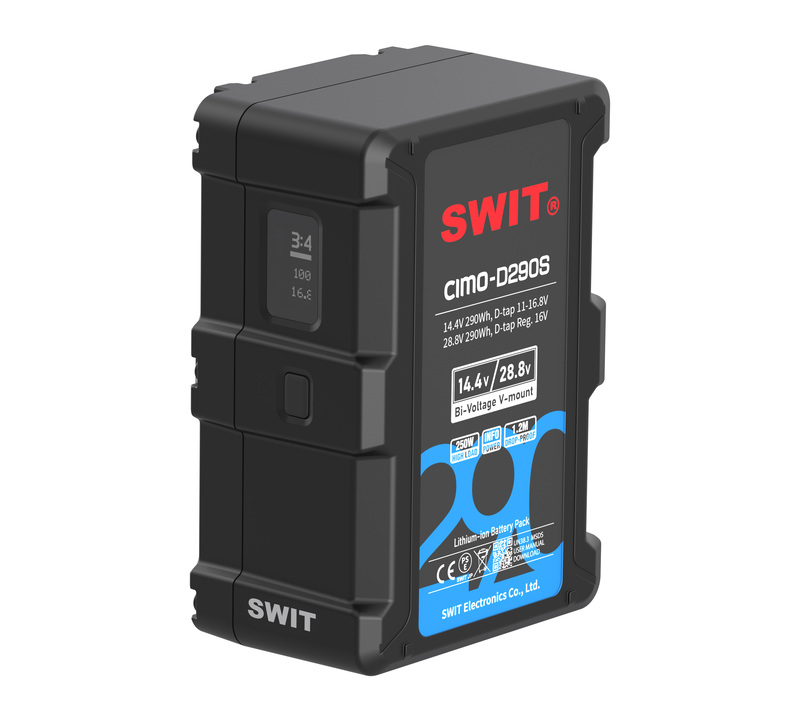

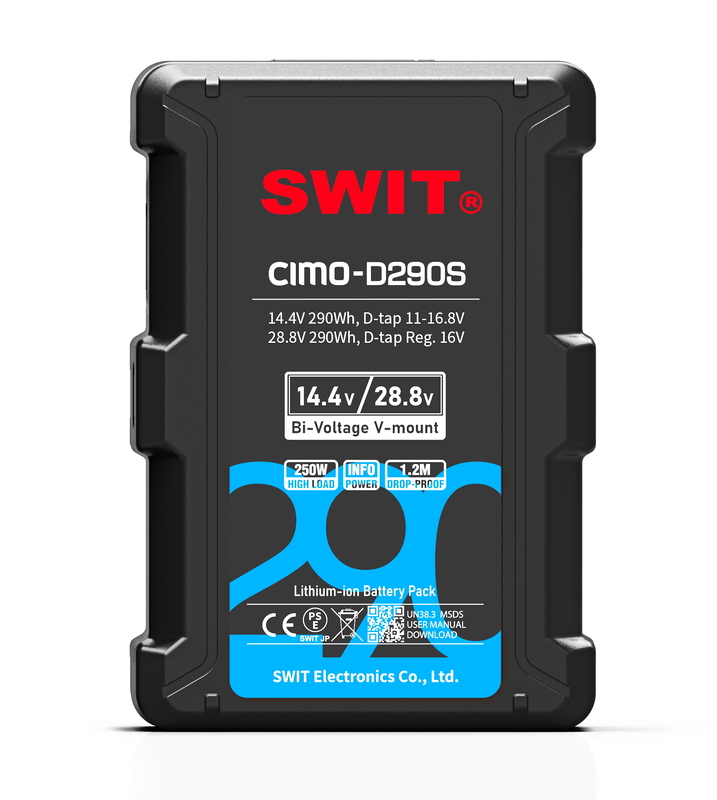

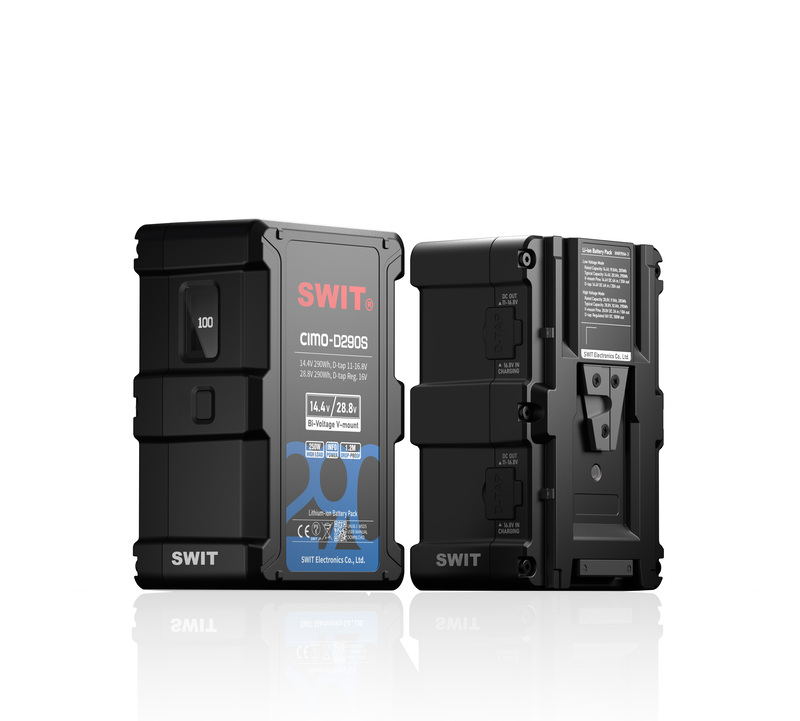

Swit CIMO-D290S
› Cine style V-mount battery
› 14.4V / 28.8V Bi-voltage auto switch
› Voltage switch by Magnetic Sticker
› Compatible with any 3rd party V-mount
› Support any standard V-mount Charger
› 290Wh large capacity, -20°C Power up
› 250W constant high load, 335W peak

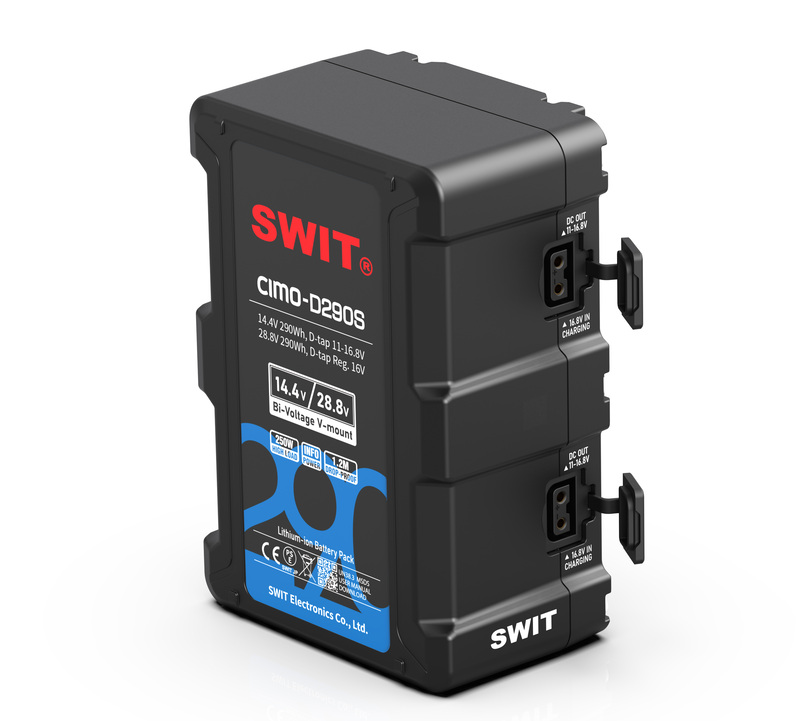

› 2×D-tap 11-16.8V output & charging input

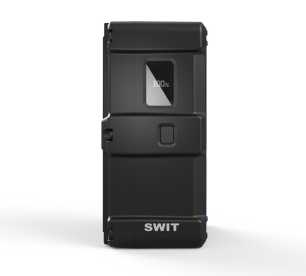

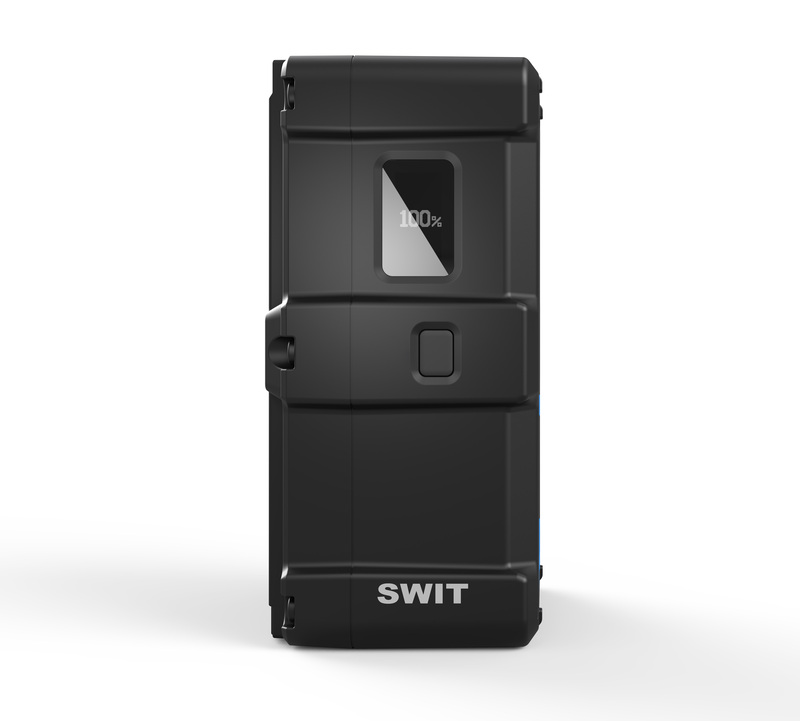

› OLED remaining run time display
› Rear LED torch for dark environment
› Strong housing 1.2m drop-off proof
› BMS multiple circuit protections
Specifications:
|
Battery plate
|
V-mount
|
|
Nominal voltage
| 14.4V / 28.8V Bi-voltage |
|
Capacity
|
290Wh
|
|
Power Load
|
250W constant; 335W peak
|
|
D-tap IN/OUT
|
14.4V Mode:
2× D-tap 11-16.8V output, 150W 10A in total
Support 16.8V Charging through any D-tap
|
|
28.8V Mode:
2×D-tap Regulated 16V output, 100W 6A in total
Charging through D-tap not supported
|
|
Dimension
| 144×100×67mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature |
-20°C-50°C
|
|
Net weight
| Net 1.52kg; With package 1.6kg |
