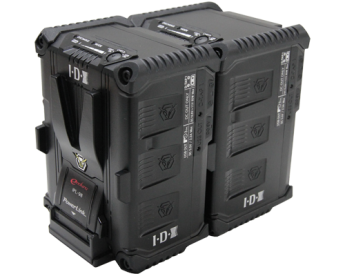

PowerLink capability (stackable up to four IPL-98/IPL-150 or IDX brand V-mount battery except Imicro-98/Imicro-150)
Meets passenger aircraft travel regulations
Capable of handling up to 11.3A loads (14A when linked)‡
(1) 80W D-Tap Advanced Output (unregulated) – D-Tap Output with the added ability to charge battery using low-cost D-Tap Charger (VL-DT1)
(1) 80W D-Tap Output (unregulated)
(1) DC 5.0V /2.3A USB output (auto shut off after 30 minutes of inactivity)
5 Power Indicator LEDs (displaying 10% increments)
Battery circuit protection ensures the IPL-150 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures
The highest grade Lithium Ion cells are used to ensure the IPL-150 is one of the most reliable batteries on the market
11V auto cut-off prevents over-discharging (while load is applied)
Fully compatible with all ENDURA V-Mount Battery chargers and accessories. VL-2000S charger is needed for stack charging.
Environmentally friendly and recyclable
Allgemeines:
Battery Capacity
143Wh (14.4V/ 9.9Ah)
Max Output Voltage
16.8V DC
Nominal Voltage
14.4V DC
Max Discharge Current
11.3A (14A when linked)‡
D-Tap
80W each
USB
DC 5.0V / 2.3A
End Voltage
11V
Battery Protection
Over charge, Over discharge, Over current, Thermal protection
Ambient Temperature
To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
To store: -20°C ~ 50°C (one month)
