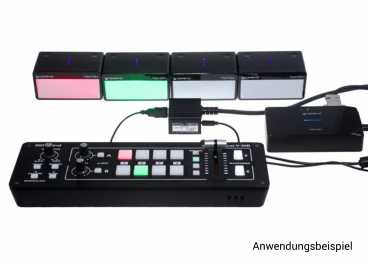

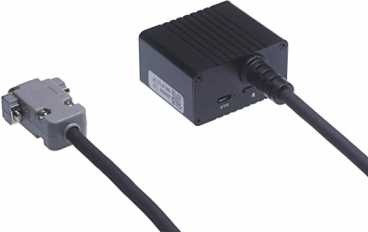

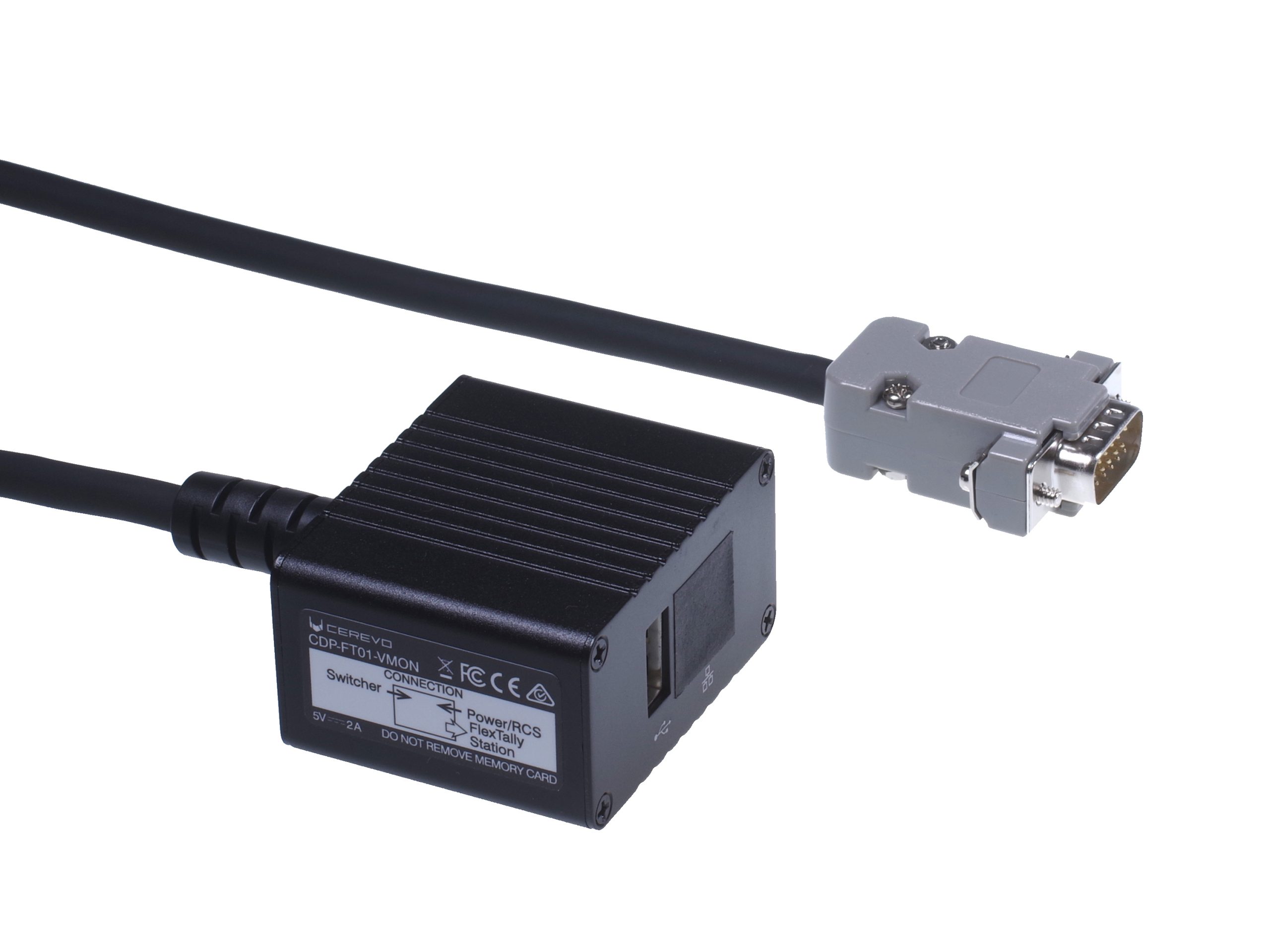

USB-GPIO Converter for FlexTally allows FlexTally to be used with a compatible video switcher by connecting the Converter’s Type A USB port to the target video switcher via a USB cable, and its GPIO cable to FlexTally’s GPIO port. Connecting it to a tablet*13 using the included micro USB cable also lets you use video switchers such as the V-1HD Remote and externally operated apps together at the same time. Enabling expansion without sacrificing the convenience of app-based video switchers.
USB-GPIO Converter for FlexTally Specifications
Size
W: 55mm × D: 46mm × H: 30mm + 1m GPIO cable
Weight
Approx. 160g
Port
USB type-A / micro USB type-B / D-SUB15pin (for FlexTally connection)
Power
5V 2A (USB Power Supply)
Included Items
micro USB Cable
Compatible Switchers
Roland: V-1HD / V-1 SDI,Lumantek: ez Pro VS4
Warranty
One year from purchase
*1: When connecting this product to a tablet using a USB cable, power must be supplied to the tablet via dedicated connector at the same time.
FlexTally

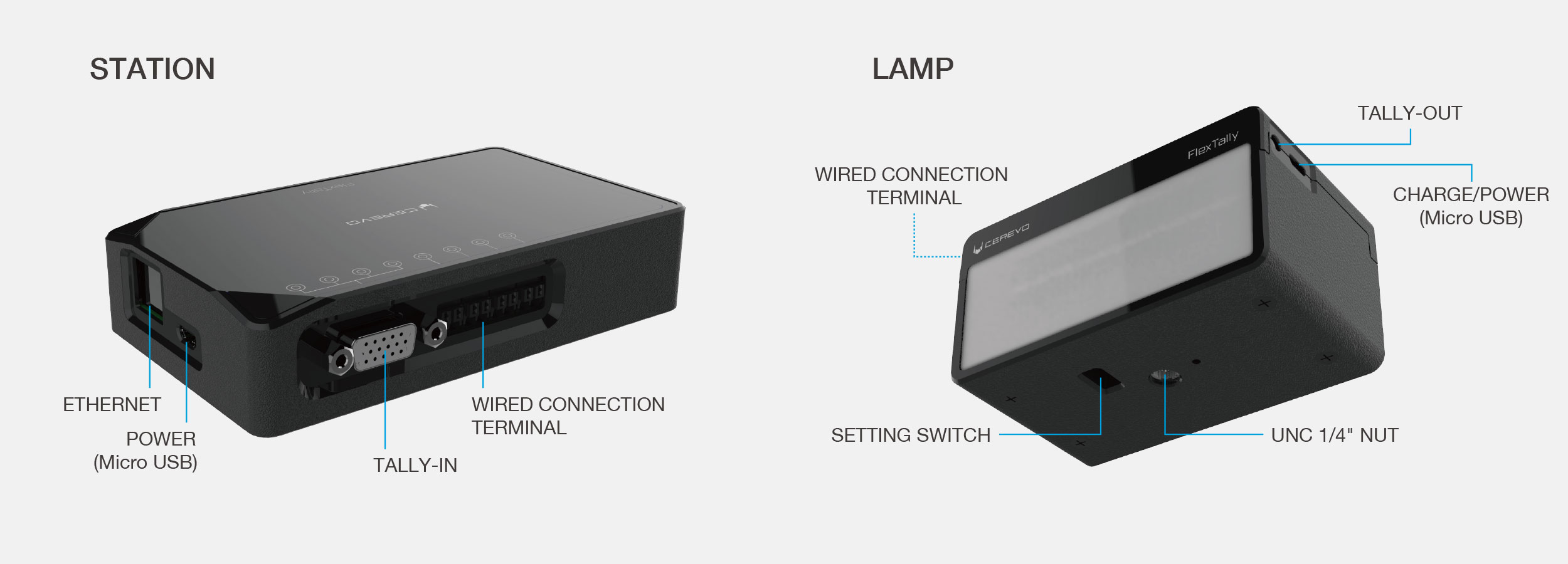

FlexTally is a tally lamp system that consists of one station unit connected to the video switcher and four lamps attached to each camera. One station unit can have up to eight lamps connected (sold separately). When shooting with multiple cameras, such as when recording live programs or live streaming, each FlexTally lamp automatically lights up according to the video switcher’s switching operations, helping the performer to recognize which camera is being used.
